Perfectly traced. Faithfully revealed.
High-performance cartridges that uncover the hidden detail in every groove.
Your phono cartridge is where the magic of analogue begins. As the only part of your system in physical contact with your record, its job is to translate microscopic vibrations into an emotional experience. Our curated collection offers a path to better sound for every listener, from the legendary precision and tracking of Audio-Technica and Ortofon to the rich, organic warmth that has made Grado a favorite for generations. Whether you are seeking a high-output Moving Magnet (MM) for versatility or a sophisticated Moving Coil (MC) from Goldring for ultimate resolution, we provide the tools to refine your playback. Discover the perfect match for your tonearm and hear your vinyl collection as if for the first time.
Sumiko Black Pearl MM Cartridge
Choose your option
Ortofon 2M Blue Stylus
Choose your option
Audio Technica Cartridge Case
Choose your option
Grado Blue3/Red3 Phono MM Cartridge
Choose your option
Sumiko Pearl MM Cartridge
Choose your option
Sumiko Oyster MM Cartridge
Choose your option

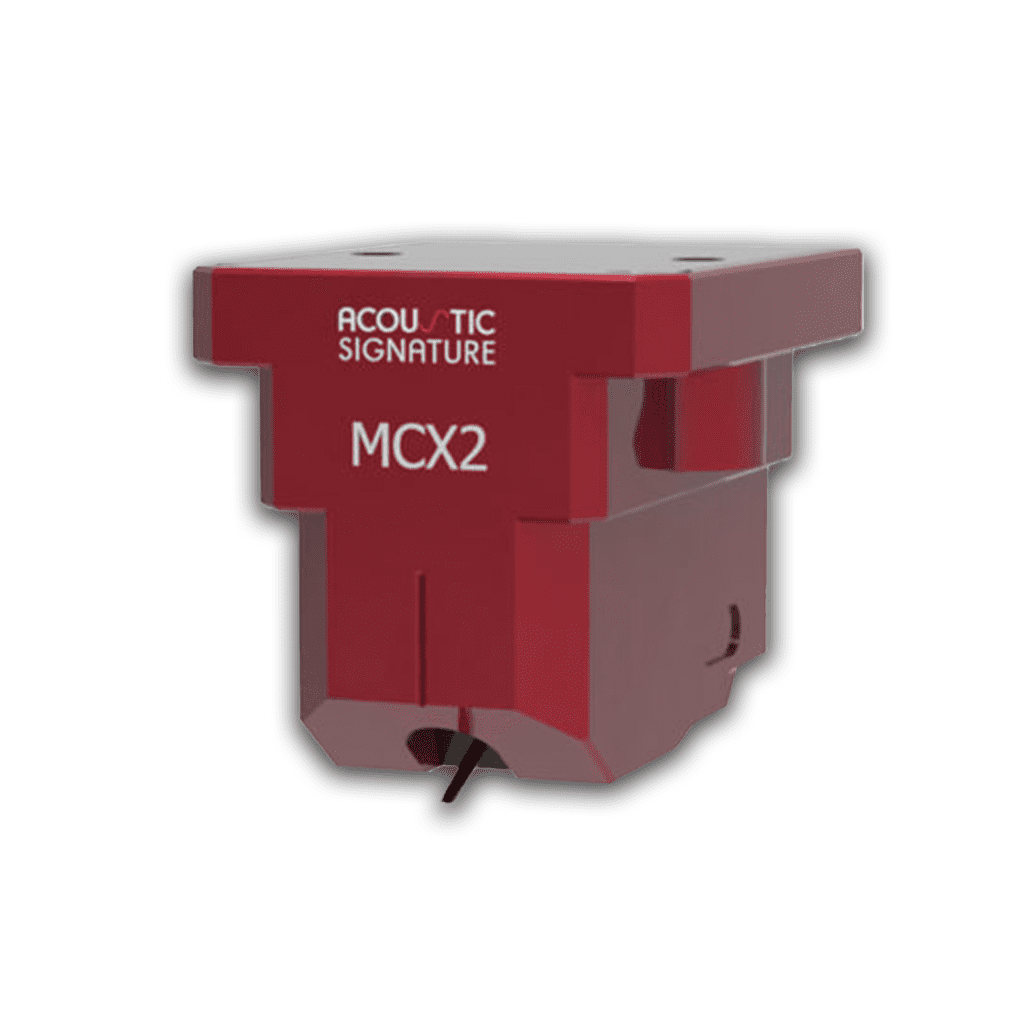

Acoustic Signature MCX2 Cartridge
Choose your option
Acoustic Signature MCX1 Cartridge
Choose your option
Ortofon 2M Blue Cartridge
Choose your option
Ortofon MC X20 Moving Coil Cartridge
Choose your option
Audio Technica AT-VM95SP 78rpm SP Cartridge
Choose your option
Audio Technica AT-VM95SH Shibata Stereo Cartridge
Choose your option
Audio Technica AT-VM95ML Microlinear Stereo Cartridge
Choose your option
Audio Technica AT-VM95EN Elliptical Nude Stereo Cartridge
Choose your option
Audio Technica AT-VM95E Elliptical Stereo Cartridge
Choose your option
Audio Technica AT-VM95C Conical Stereo Cartridge
Choose your option
The Heart of Your Analog System: Choosing a Cartridge
The phono cartridge is arguably the most critical component in your entire analogue chain. It is the only part of your system that actually makes physical contact with your music. It has the monumental task of translating microscopic physical bumps in a vinyl groove into the emotional, high-fidelity electrical signal that feeds your speakers. Click through the tabs below to understand the different technologies, stylus shapes, and how to find the perfect upgrade for your turntable.
Moving Magnet (MM) vs. Moving Coil (MC):The Great Debate
Cartridges use magnets and coils of wire to generate an electrical signal, but the way they are arranged completely changes their sound and compatibility.
- Moving Magnet (MM): The standard for most turntables. Heavy magnets are attached to the stylus cantilever and move near fixed coils. Because the magnets are large, they generate a high-voltage signal that works with almost any standard phono amplifier. They offer punchy, dynamic, and incredibly fun sound. Bonus: When the needle wears out, you can simply pull off the front stylus assembly and slide a new one on yourself.
- Moving Coil (MC): The high-end audiophile choice. The design is inverted: microscopic, ultra-light coils are attached to the cantilever and move within fixed magnets. Because the moving parts are so much lighter, an MC cartridge is incredibly fast. It reacts to the groove with breathtaking speed, extracting micro-details, airy treble, and a massive soundstage that an MM simply cannot reach. However, their electrical output is very low, meaning you must have a dedicated MC Phono Stage to amplify them.
Stylus Shapes: How You Read the Groove
The tiny diamond at the tip of the cantilever comes in several different cuts. The shape determines how deep into the record groove the diamond sits, directly impacting the level of detail you hear.
- Conical / Spherical: The most basic and affordable shape. It sits high in the groove. While it lacks high-end detail, it is very forgiving of surface noise and is a great choice for playing older, worn, or scratched records.
- Elliptical: The most popular upgrade. Shaped more like a subtle oval, it sits deeper and tracks the groove walls much more accurately. This shape significantly improves high-frequency detail, lowers distortion, and tightens up the bass.
- Advanced (Shibata, MicroLine, Fine Line): The pinnacle of stylus design. These hyper-precision cuts perfectly mimic the shape of the cutting lathe that originally made the record. They reach the absolute deepest parts of the groove, extracting every hidden ounce of detail and offering incredibly long lifespans. Note: Because they are so precise, they require very careful alignment during installation.
Synergy and System Matching: Tonearms and Phono Stages
You cannot simply buy the most expensive cartridge and fit it on any turntable. A great sounding analogue system relies on mechanical and electrical synergy.
- The Phono Stage Match: As mentioned, MM cartridges need an MM phono stage (standard), and MC cartridges require an MC phono stage (which provides much higher gain). Check your amplifier or external phono stage to ensure it supports the cartridge type you are buying.
- Tonearm Matching (Compliance): Think of compliance as the "suspension" of the cartridge. MC cartridges generally have stiff suspension (low compliance) and need a slightly heavier, more rigid tonearm to hold them steady in the groove. MM cartridges usually have bouncy, soft suspension (high compliance) and pair beautifully with lighter tonearms.
Lifespan and Upgrading: When is it Time to Replace?
A diamond stylus is incredibly hard, but dragging it through miles of vinyl grooves under pressure eventually wears it down.
- Expected Lifespan: A standard diamond stylus typically lasts between 500 to 1,000 hours of playing time. Advanced cuts (like MicroLine) can sometimes last up to 2,000 hours if your records are kept spotlessly clean.
- The Signs of Wear: If your records suddenly start sounding distorted, if the treble sounds harsh or "sibilant" (hissing on 'S' vocal sounds), or if the soundstage feels flat and muddy, your stylus is likely worn out. Do not keep playing it, as a worn diamond acts like a chisel and will permanently damage your records!
- Replacing vs. Re-Tipping: If you own an MM cartridge, you only need to buy a replacement stylus piece, saving you money. If you own a high-end MC cartridge, the stylus cannot be removed. You will either need to ask about a manufacturer trade-in program for a discount on a new one, or send it to a specialist for a "re-tip."
Cartridge FAQs
Can I install and align a new cartridge myself, or do I need a professional?
Can I install and align a new cartridge myself, or do I need a professional?
You absolutely can do it yourself, but it requires patience, a steady hand, and the right tools. Installing a cartridge isn't just about plugging in four tiny wires; it requires precise mechanical alignment. You will need a cartridge alignment protractor, a tracking force gauge, and good lighting.
If you are upgrading to a high-end cartridge with an advanced stylus shape (like a MicroLine or Shibata), the alignment must be absolutely perfect—including adjusting the VTA (Vertical Tracking Angle) and Azimuth. If it is misaligned, you won't hear what you paid for, and you could damage your records. If you feel uncomfortable, our experts at Audio Emotion are always happy to mount and align your cartridge for you.
How should I clean my stylus, and how often?
How should I clean my stylus, and how often?
You should clean your stylus frequently—ideally before or after every listening session. Even microscopic dust acts like sandpaper in a vinyl groove.
- The Dry Method: Use a dedicated, high-quality carbon fiber stylus brush. Always brush gently from the back of the cartridge pulling straight forward towards you. Never brush side-to-side or front-to-back, as this will snap the delicate cantilever.
- Gel Pads: You simply lower the needle into the soft gel pad and lift it back up. It safely grabs all the dust without any brushing.
- Liquid Cleaners: Use these sparingly. While great for tough grime, overusing liquid stylus cleaners can eventually dissolve the microscopic drop of glue that holds the diamond tip to the cantilever.
Do cartridges require a "break-in" period?
Do cartridges require a "break-in" period?
Yes. Just like the rubber surrounds on a new pair of speakers, the mechanical suspension holding the cartridge's cantilever is stiff right out of the box. During the first 20 to 50 hours of record playing, this suspension will loosen and settle. You will typically notice the bass becoming fuller and rounder, and the treble smoothing out to become less harsh or analytical.
What happens if I set the Tracking Force (VTF) wrong?
What happens if I set the Tracking Force (VTF) wrong?
Every cartridge has a manufacturer-recommended Vertical Tracking Force (usually measured in grams, e.g., 1.8g or 2.0g).
- Too Light: This is actually the most dangerous mistake. If the needle is too light, it won't sit securely in the groove. It will bounce around and physically crash into the groove walls, causing terrible distortion and permanently damaging your records.
- Too Heavy: This will squash the cartridge's suspension, leading to a dull, muddy, and lifeless sound. It also dramatically accelerates the wear on both your stylus and your precious vinyl.
- Tip: Never rely solely on the numbered dial on your tonearm's counterweight. It's worth investing in a digital stylus tracking gauge to ensure your weight is perfectly set down to the hundredth of a gram.
I want to buy a Moving Coil (MC) cartridge, but my amp only has an MM Phono input. What can I do?
I want to buy a Moving Coil (MC) cartridge, but my amp only has an MM Phono input. What can I do?
Because a standard MC cartridge produces a vastly lower electrical output than an MM cartridge, plugging it directly into an MM phono stage will result in an incredibly quiet, thin, and lifeless sound. You have three options:
- Upgrade your Phono Stage: Purchase a dedicated, external MC-compatible phono stage.
- Use a Step-Up Transformer (SUT): A purely passive device that sits between your turntable and your MM phono stage. It uses high-end internal coils to boost the delicate MC signal up to an MM level without adding any electrical noise.
- Buy a High-Output Moving Coil (HOMC): Some manufacturers design specific MC cartridges with slightly larger internal coils. They deliver the speed and detail of a moving coil but output enough voltage to be plugged directly into a standard MM phono stage.
Will upgrading my cartridge make a bigger difference than upgrading my turntable?
Will upgrading my cartridge make a bigger difference than upgrading my turntable?
If you are looking for an immediate, dramatic change to the tone, detail, and character of your music, upgrading the cartridge is the single most cost-effective leap you can make. It is the microphone reading the music.
However, a world-class cartridge cannot fix a bad turntable. The turntable deck and tonearm provide the foundation—they are responsible for spinning at a perfectly stable speed and isolating the needle from microscopic vibrations. If your current turntable is noisy or unstable, a high-end cartridge will simply reveal those flaws with greater clarity.
