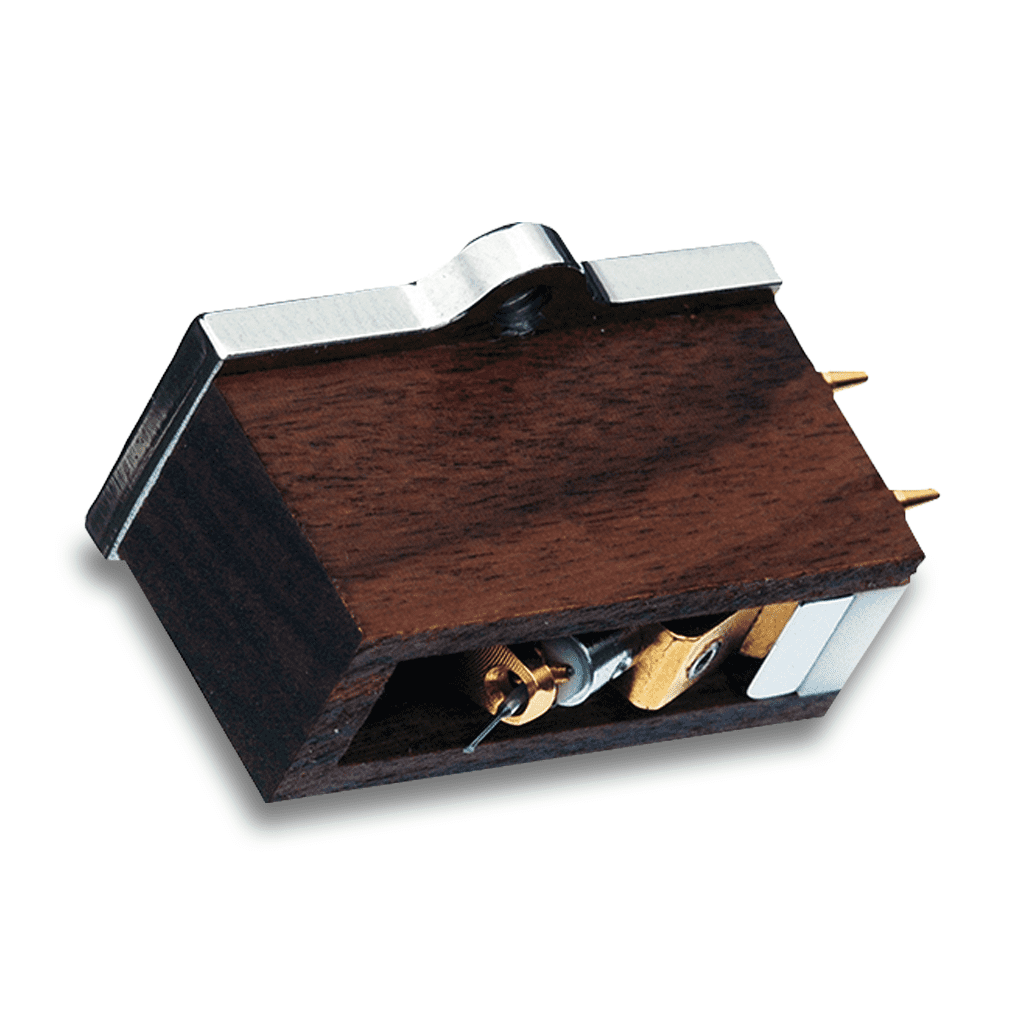

Sumiko Palo Santos Presentation MC Cartridge
Sumiko Palo Santos Presentation MC Cartridge
Our price match promise...
If you find an identical item cheaper from one of our online competitors, tell us and not only will we match the price, we'll beat it by 10% of the difference.
Estimated Shipping Widget will be displayed here!
For over thirty-five years, SUMIKO has provided a comprehensive range of phono cartridges to music lovers seeking the finest musical experience at a variety of price points. In fact, the great market success of SUMIKO phono cartridges has hinged on their phenomenal cost-to-performance ratio. The Palo Santos Presentation is no exception. New design requirements incorporating advances in material technology and construction techniques have resulted in a significantly improved product which delivers a highly refined and resolved, yet musically satisfying sound quality previously unavailable at or even near its price.
Improvements grace virtually every facet of the product to differentiate it from its smaller sibling the Pearwood Celebration II. Most significant is the new generator anchoring system, which has substantially improved rigidity and reduced resonance and background noise to previously unheard of levels. From the new handcrafted Palo Santos (Brazilian Rosewood) body, which is shorter in height to add vision when mounting and aligning this cartridge, to the Long Grain Boron cantilever and new Line Contact stylus, which significantly improves resolution, the Palo Santos Presentation truly deserves the title as our flagship offering.
Technical Specifications
| Cartridge Type | Moving Coil |
| Suspension | Synthetic rubber |
| Frequency Response | 10Hz - 40khz (+/- 1.5dB) |
| Output Voltage/Channel | 0.5mV (3.54cm/s @ 1kHz) |
| Channel Separation | >30dB @ 1kHz |
| Channel Balance | <0.5dB @ 1kHz |
| Optimum Tracking Force | 2.0g |
| Tracking Force Range | 1.8g - 2.2g |
| Dynamic Compliance | 8x10-6 cm/dyn |
| Internal Impedance | 12 |
| Load Impedance | 100 - 1k |
| Capacitance Range | 100pF - 300pF |
| Cantilever | Long-grain boron |
| Stylus | 75 x 4 micron ultra low-mass Line-Contact |
| Output Terminals | Unique gold-plated tapered brass pins |
| Cartridge Weight | 8.3g |
| Mounting System | Standard 0.5 hole spacing (M2.5 threaded) |
| Supplied Hardware | 2x M2.5 (6mm) stainless steel mounting screws 2x M2.5 (8mm) stainless steel mounting screws 4x M2.5 stainless steel washers, 1x 2.0mm allen wrench |
