Guided by precision.
Where mechanical mastery meets the art of analogue.
The tonearm is the silent partner of the analogue system, tasked with the impossible: holding a cartridge with absolute rigidity while allowing it to move with total freedom. Our collection features the world's leading designs in resonance control and bearing precision. Whether you are seeking the ultra-stable, multi-layered construction of Acoustic Signature, the award-winning "ground-up" innovation of Origin Live, or the surgical accuracy of Graham Engineering, these arms are designed to disappear. From the high-value performance of Pro-Ject carbon fiber designs to reference-grade instruments, discover the component that allows your cartridge to track the truth of the groove.

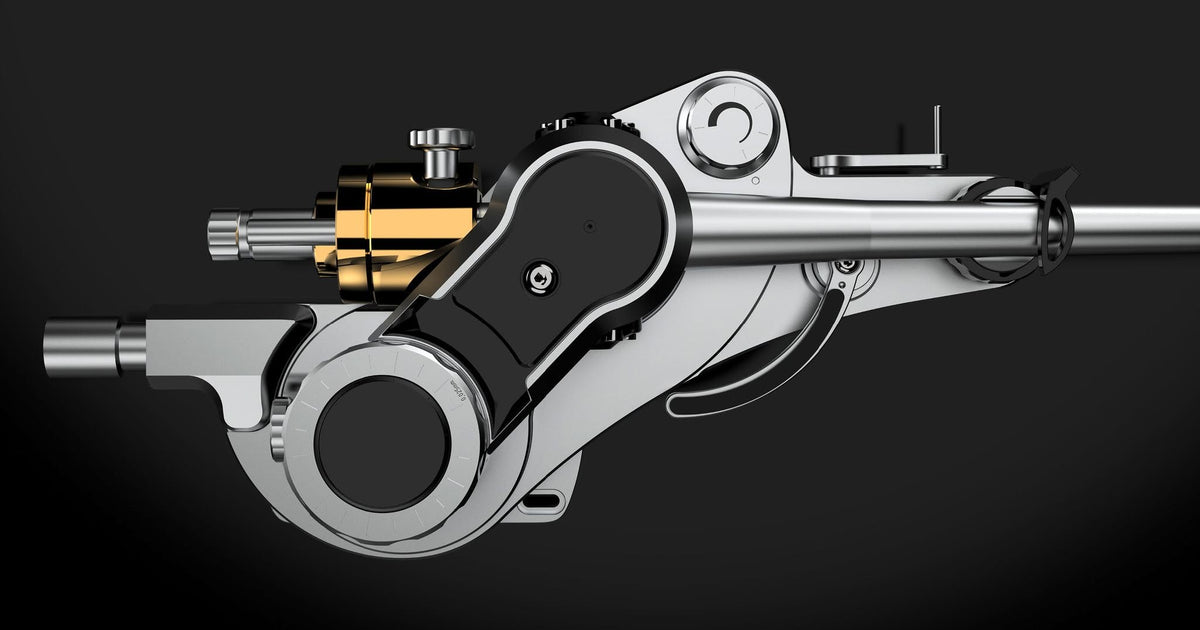

Acoustic Signature TA-10000 Neo Tonearm
Choose your option
Acoustic Signature TA-5000 Neo Tonearm
Choose your option
Pro-Ject EVO AS Tonearm
Choose your option
Acoustic Signature TA-500 Neo Tonearm
Choose your option
Acoustic Signature TA-7000 Neo Tonearm
Choose your option
Acoustic Signature TA-9000 Neo Tonearm
Choose your option
Acoustic Signature TA-2000 Neo Tonearm
Choose your option
Pro-Ject EVO CA Premium Tonearm
Choose your option
Pro-Ject EVO CC Tonearm
Choose your option
Origin Live Illustrious MKV Tonearm (MK5)
Choose your option
Graham Engineering Phantom Elite (2023) Tonearm
Choose your option
EAT C-Note Tonearm
Choose your option
Graham Engineering Phantom III (2024) Tonearm
Choose your option
Acoustic Signature TA-1000 Neo Tonearm
Choose your option
Clearaudio Universal 12" Tonearm
Choose your option
ProJect Signature Tonearm 12"
Choose your option
The Precision Bridge: Choosing the Ultimate Tonearm.
It is easy to think of a tonearm as simply a stick that holds the needle, but in high-end audio, it is a masterclass in contradictory engineering. A world-class tonearm must hold the cartridge absolutely rigid to prevent unwanted vibrations, while simultaneously offering zero friction as it floats gracefully across the record. Upgrading your tonearm unlocks the true tracking potential of your cartridge, revealing wider soundstages, deeper bass, and distortion-free inner grooves. Click through the tabs below to explore the engineering philosophies behind our curated selection.
9-Inch vs. 12-Inch: The Geometry of Perfect Tracking
When records are originally cut, the cutting lathe moves in a perfectly straight line from the outer edge to the centre. However, a pivoting tonearm swings in an arc. This discrepancy causes "tracing distortion," which becomes most noticeable as the needle gets closer to the centre label.
- 9-Inch Tonearms: The industry standard. Because they are shorter, they are naturally lighter and stiffer. This structural rigidity makes them excellent at dissipating resonance, resulting in punchy, fast, and dynamic sound. They also fit on virtually every standard turntable plinth.
- 10-Inch & 12-Inch Tonearms: The purist upgrade. A longer arm creates a wider, much shallower arc across the record. This drastically reduces tracing distortion, resulting in a noticeably smoother, more relaxed sound—especially on the notoriously difficult inner grooves. Note: You must have a large turntable deck or an external armboard designed specifically to accommodate a 12-inch arm.
Gimbal vs. Unipivot Bearings: The Art of Frictionless Movement
The bearing is the pivot point of the tonearm. How the arm rests on this bearing fundamentally changes its sonic signature and how it handles in your hands.
- Gimbal Bearings: The most common and user-friendly design. The arm is captured within a housing using high-precision ball bearings for both vertical and horizontal movement. Gimbal arms feel rock-solid to the touch, are easy to set up, and are renowned for delivering explosive dynamics and iron-fisted bass control.
- Unipivot Bearings: The audiophile's esoteric choice. The entire tonearm rests freely on a single, microscopic needle point (like balancing a plate on a stick). While they feel "wobbly" when you cue them by hand, this design eliminates almost all mechanical bearing friction. Unipivots are famous for delivering an incredibly open, airy top-end and a hauntingly lifelike midrange.
Mass and Compliance: Matching the Arm to the Cartridge
A tonearm and a cartridge act together as a single spring-and-weight system. To get the best sound, the "Effective Mass" of the tonearm must be synergistically matched to the "Compliance" (suspension stiffness) of your cartridge.
- Low-Mass Arms: Usually made from ultra-light materials like carbon fiber. These pair perfectly with High-Compliance (soft suspension) cartridges, which are typically Moving Magnet (MM) designs. If you put a stiff MC cartridge on a light arm, the bass will vanish.
- Medium to High-Mass Arms: Often crafted from magnesium, aluminum, or heavier alloys. These are essential for Low-Compliance (stiff suspension) cartridges, which include the vast majority of high-end Moving Coil (MC) designs. The heavier arm acts as a solid anchor, forcing the stiff stylus to trace the groove rather than vibrating the tonearm itself.
The Importance of Adjustability: Tools for the Analog Perfectionist
If you are investing in a standalone tonearm, you are likely using premium cartridges with advanced, hyper-sensitive stylus shapes (like Shibata or MicroLine). To extract the money you paid for that cartridge, your tonearm must offer precise adjustability.
- VTA (Vertical Tracking Angle): Allows you to raise or lower the entire base of the tonearm. This ensures the diamond sits at the exact microscopic angle the record was originally cut. Proper VTA snaps the soundstage into focus and balances the treble and bass perfectly.
- Azimuth: Allows you to gently twist the arm tube or headshell left and right. This ensures the needle sits perfectly vertical in the V-shaped groove, guaranteeing equal volume and separation between the left and right speakers.
- Anti-Skate / Bias: As the platter spins, physics naturally pulls the tonearm inward toward the centre label. High-end tonearms use precision weights, springs, or magnetic fields to apply an equal outward counter-force, preventing the needle from wearing down one side of the groove faster than the other.
Tonearm FAQs
Can I mount any tonearm on my current turntable?
Can I mount any tonearm on my current turntable?
Not automatically. Tonearms are precision instruments that require exact geometry to function. Before upgrading, you must check two things:
- Pivot-to-Spindle Distance: This is the exact measurement from the centre of your turntable's platter spindle to the centre of the tonearm's mounting hole. A 9-inch arm and a 12-inch arm require entirely different mounting distances.
- Mounting Pattern: Different manufacturers use different physical mounting collars. The most common standards are the Rega mount (a single large hole), the Linn mount (three small bolts), and the SME mount (an elongated sliding base). If your new tonearm uses a different pattern than your old one, you will need to purchase a specific, custom "armboard" for your turntable plinth to accommodate it.
Why do most high-end tonearms have fixed headshells instead of removable ones?
Why do most high-end tonearms have fixed headshells instead of removable ones?
A removable headshell is incredibly convenient if you like to quickly swap between different cartridges. However, in high-end audio, the goal is absolute structural rigidity and signal purity.
Every joint, screw, and connection point on a tonearm acts as a microscopic point of weakness that can introduce resonance or vibrate independently of the arm tube. Furthermore, a removable headshell adds an extra physical break in the delicate electrical wiring. A fixed, continuous arm tube from the pivot to the cartridge delivers superior energy dissipation and a much cleaner path for the audio signal.
Does the internal wiring of a tonearm really affect the sound?
Does the internal wiring of a tonearm really affect the sound?
Absolutely. The electrical signal generated by a moving coil cartridge is infinitesimally small and incredibly fragile. The wire inside the tonearm is the very first conductor that signal touches.
Many audiophiles upgrade their tonearms (or have their current arms professionally re-wired) specifically to get a single, continuous run of ultra-pure copper or silver wire from the cartridge clips straight down to the phono stage RCA plugs. Eliminating solder joints and cheap internal wiring removes a "veil" from the music, instantly lowering the noise floor and revealing a stunning amount of micro-detail.
How do I know by listening if my VTA (Vertical Tracking Angle) is set incorrectly?
How do I know by listening if my VTA (Vertical Tracking Angle) is set incorrectly?
While a visual check is your starting point (the tonearm tube should generally be perfectly horizontal and parallel to the record surface while playing), your ears will tell you when it is perfectly dialed in:
- Arm is too high at the base ("Tail Up"): The music will sound overly bright, thin, and analytical. The bass will lack impact and authority, and vocals might sound harsh or "sibilant."
- Arm is too low at the base ("Tail Down"): The high frequencies will sound rolled-off and dull, and the bass will sound bloated, muddy, and slow.
- When it is perfect: The soundstage will suddenly snap into focus. The bass will be tight and punchy, and the treble will be airy and extended without any harshness.
What exactly is "Effective Mass" and why isn't it just the weight of the arm?
What exactly is "Effective Mass" and why isn't it just the weight of the arm?
"Effective mass" is a physics term. It does not mean placing the tonearm on a kitchen scale and weighing it. Instead, it measures the inertia of the tonearm—essentially, how much resistance the stylus "feels" when it tries to move the arm tube back and forth.
This is why a heavy counterweight positioned very close to the pivot point creates a lower effective mass than a lighter counterweight positioned far away at the end of the arm. Knowing your tonearm's effective mass is crucial for matching it with a cartridge's compliance (suspension stiffness) to ensure the system resonates at the correct frequency (ideally between 8Hz and 12Hz) so it doesn't amplify footfalls or record warps.
Do I really need to use the Anti-Skate (Bias) feature?
Do I really need to use the Anti-Skate (Bias) feature?
Yes. Because a pivoting tonearm is angled inward toward the spindle, the friction of the spinning record naturally pulls the needle hard against the inner wall of the groove.
If you do not apply anti-skate (which applies a counter-force pulling the arm gently outward), the stylus will wear down the inner groove wall much faster, and the music will sound unbalanced, often distorting heavily in the right channel. Proper anti-skate ensures the diamond sits perfectly centred, giving you equal volume, flawless stereo imaging, and a longer lifespan for both your stylus and your records.
