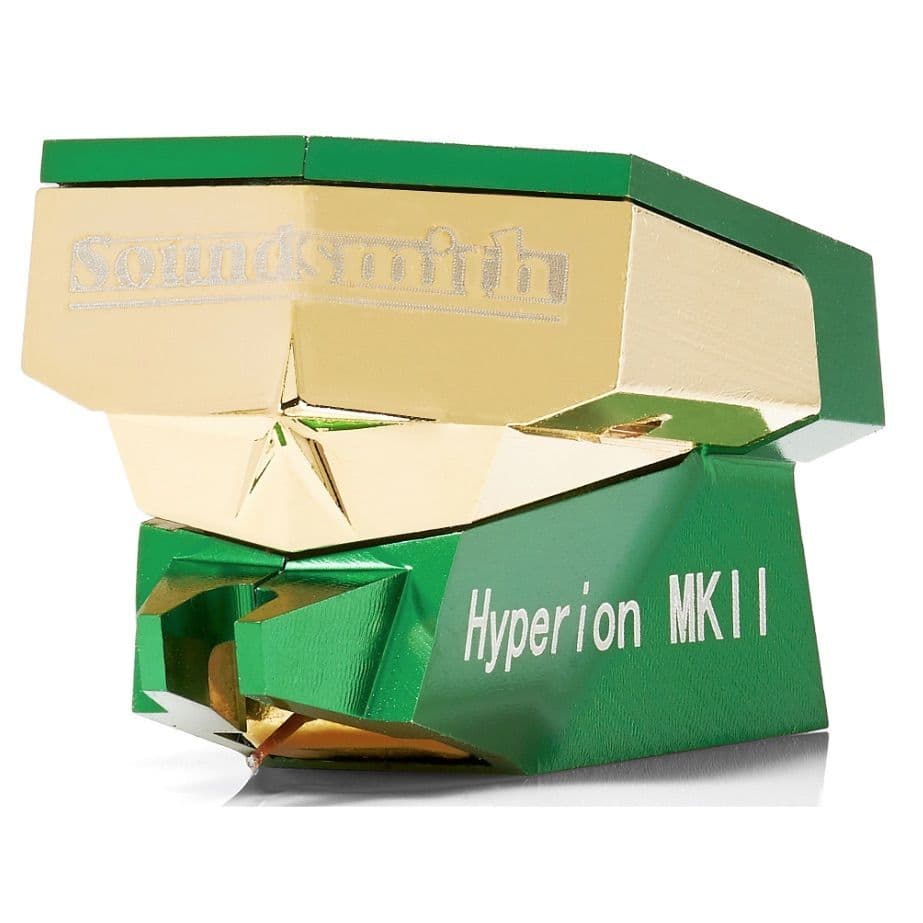

Soundsmith Hyperion MKII Low Output Cartridge
Soundsmith Hyperion MKII Low Output Cartridge
Our price match promise...
If you find an identical item cheaper from one of our online competitors, tell us and not only will we match the price, we'll beat it by 10% of the difference.
Estimated Shipping Widget will be displayed here!
The HYPERION is the cartridge of choice for the most esteemed audio equipment manufacturers. Why? Because when they exhibit their gear at HiFi shows, they want their turntable, amplifier or speaker systems to sound the very best that they can! Peter Ledermanns radical design utilizes an actual cactus spine for the cantilever. The naturally tapered shape, stacked columnar fibers and desiccated resin damping fit the exact parameters of the perfect cantilever: Low mass, extreme rigidity, internal damping, and tremendous strength. Also available in a Dual Compliance Design for older Linear Tracking turntables as the HYPERION LT. HYPERIONS are offered with a choice of CL or OC-CL stylus.
- Cartridge Type: Fixed Coil
- Output: High
- Available As Dual Coil Mono: Yes
- Stylus: Contact Line Nude, 0.100mm SQ
- Radius of curvature
- Selected Diamond shapes: CL or Optimized (OCL)
- Cantilever: Hand formed/treated selected Cactus "Spine"
- Recommended tracking force: 1.8 to 2.2 grams
- Effective tip mass: 0.30 mg
- Compliance: 10 m/mN (low compliance) (LT) | 12 m/mN vertical | 7 m/mN horizontal
- Frequency response: 20-20,000 Hz ± 1.0 dB
- Channel separation (stereo only): 1000 Hz >36 dB (LT: > 34dB), 50-15,000 >25 dB
- Channel difference: <0.5 dB (Stereo) <1.0 dB (Mono)
- Output Voltage: 0.4 mV
- DC Resistance (DCR): 10-11 each channel
- Coil: 2.75 mH each channel
- Suggested Preamp Gain: 58-64 dB
- Soundsmith Recommends: MCP2 Variable Loading Preamp
- Cartridge weight: 10.25 grams
- Loading: 470
