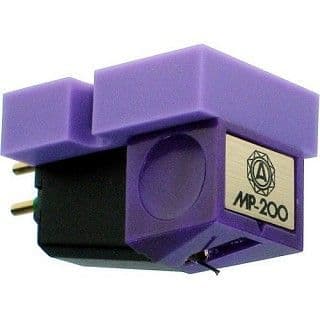

Nagaoka MP-200 MM Cartridge
Nagaoka MP-200 MM Cartridge
Our price match promise...
If you find an identical item cheaper from one of our online competitors, tell us and not only will we match the price, we'll beat it by 10% of the difference.
Estimated Shipping Widget will be displayed here!
The Nagaoka MP-200 phonograph cartridge offers superior clarity, detail and dynamic contrast.
Features
-Superfine polished special elliptical diamond stylus
-Powerful samarium cobalt magnet
-Hardened low-mass, tapered aluminium alloy cantilever for very high fidelity
-Carbon fibre reinforced plastic shoe
-Anti ferro magnetic permalloy shield casing
Type |
Moving magnet |
Cantilever |
High-strength Boron |
Stylus type |
Superfine elliptical diamond |
Weight |
6.5 g |
Output voltage |
1kHz,5cm/sec: 4mV |
Frequency response |
20Hz-23kHz |
Channel balance |
1kHz: > 1.5dB |
Channel separation |
1kHz: > 25dB |
Recommended loading |
47k ohms |
Dynamic compliance |
7.2 x 10-6 cm/dyne |
Static compliance |
20 x 10-6 cm/dyne |
Tracking force range |
1.5 - 2.0 g |
Break-in period |
30 hours |
Stylus replacement |
Nagaoka JN-P200 |
