Product Overview & Specifications
Enter the Exclusive world of Ortofons famous moving coil sound!

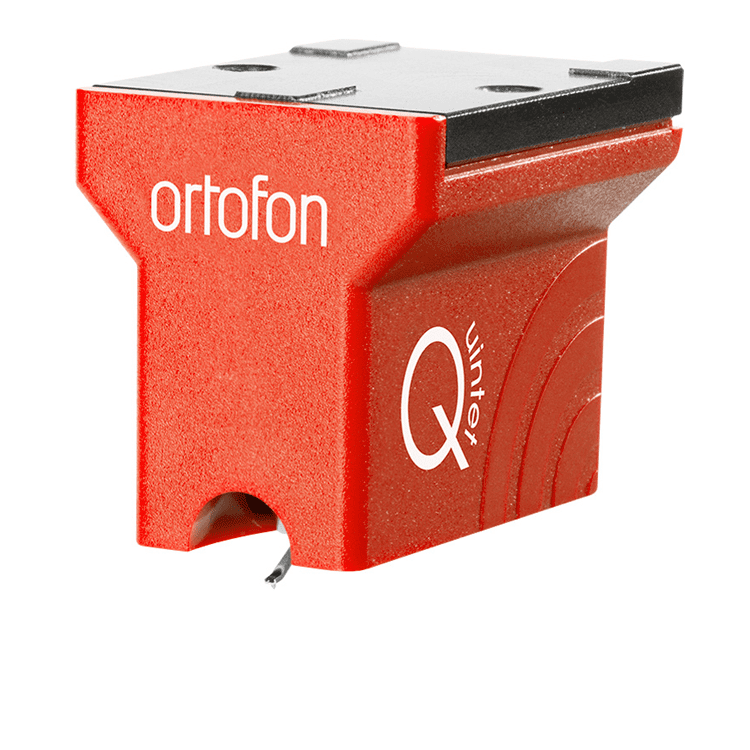

The MC Quintet Red is a perfect introduction to the world of Ortofon moving coils.
It features an Elliptical diamond which is cut and polished to Ortofons standards.
This entry-level MC cartridge has very high price-to-performance ratio and is a perfect all-rounder for the newcomers to the world of Moving Coil cartridges.
| Technical data | ||
| Output voltage at 1 kHz 5 cm/sec | 0.5 mV | |
| Channel balance | < 1.5 dB | |
| Channel separation at 1 kHz | > 21 dB | |
| Channel separation at 15 kHz | > 14 dB | |
| Frequency range at -3 dB | 20 - 25.000Hz | |
| Frequency response 20-20.000 Hz | +/-2.5 dB | |
| Tracking ability at 315 Hz at recommended tracking force *) | 65 ?m | |
| Compliance, dynamic, lateral | 15 ?m/mN | |
| Stylus type | Elliptical | |
| Stylus tip radius | r/R 8/18 ?m | |
| Tracking force range | 2.1-2.5 g (21-25 mN) | |
| Tracking force recommended | 2.3 g (23 mN) | |
| Tracking angle | 20º | |
| Internal impedance, DC resistance | 7 Ohm | |
| Recommended load impedance | >20 Ohm | |
| Cartridge body material | ABS/Aluminium | |
| Coil wire material | Copper | |
| Cartridge colour | Red | |
| Cartridge weight | 9 g | |
| *) Typical value |
Manufacturer site
