Ortofon SPU Royal GM MkII Cartridge
Ortofon SPU Royal GM MkII Cartridge
Our price match promise...
If you find an identical item cheaper from one of our online competitors, tell us and not only will we match the price, we'll beat it by 10% of the difference.
Estimated Shipping Widget will be displayed here!

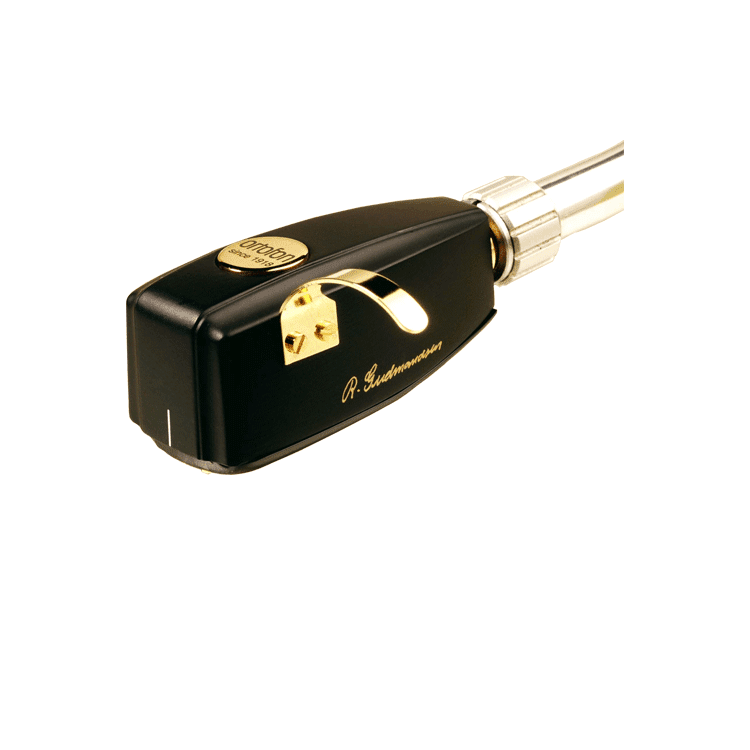

The SPU Royal GM and N models were released in 1998, together with the Jubilee cartridge to celebrate the Ortofon 80 year anniversary. The SPU Royal GM MkII provides a playback experience that embodies the essence of analog, with generous refinements which bring the legendary SPU cartridges into the realm of unrivaled perfection. The addition of Ortofon’s unique Replicant 100 stylus and reduced tip mass ensures open and detailed sound reproduction for a purely exquisite listening experience. Electrum coils, consisting of a gold and silver alloy, provides uncolored and precise transmission of armature movements while the slightly modified damping system makes it possible to reduce VTF and achieves a higher level of linearity.
| Technical data | |
| Output voltage at 1000 Hz, 5cm/sec. | 0.2 mV |
| Channel balance at 1 kHz | < 1 dB |
| Channel separation at 1 kHz | > 25 dB |
| Channel separation at 15 kHz | > 20 dB |
| Frequency range at - 3dB | 20-60.000 Hz |
| Frequency response | 20-20.000 Hz + 1.5 / - 0 dB |
| Tracking ability at 315Hz at recommended tracking force *) | 70 µm |
| Compliance, dynamic, lateral | 8 µm/mN |
| Stylus type | Nude Ortofon Replicant 100 |
| Stylus tip radius | r/R 5/100 µm |
| Tracking force range | 2.5-3.5 g (25-35 mN) |
| Tracking force, recommended | 3.0 g (30 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 6 Ohm |
| Recommended load impedance | > 100 Ohm |
| Cartridge body material | Wooden Powder |
| Coilwire material | Electrum |
| Cartridge colour | Shiny Black |
| Cartridge weight | 31.5 g |
| *) Typical value |
