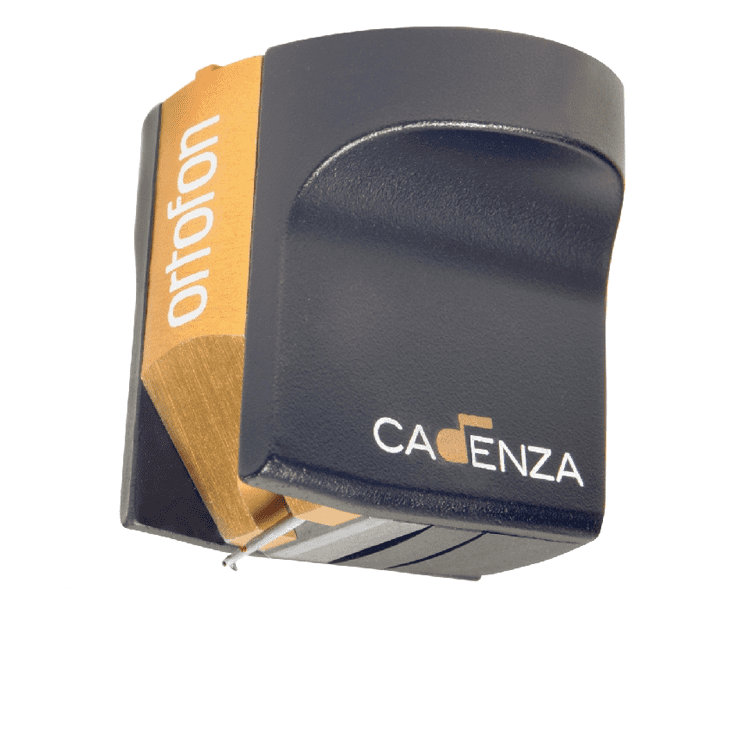

Ortofon Cadenza Bronze Cartridge
Ortofon Cadenza Bronze Cartridge
Our price match promise...
If you find an identical item cheaper from one of our online competitors, tell us and not only will we match the price, we'll beat it by 10% of the difference.
Estimated Shipping Widget will be displayed here!
The Cadenza Bronze model is using a Replicant 100 stylus and a conical aluminium cantilever.
The coil wire is the famous Ortofon Aucurum wire, which is a gold plated 6NX copper wire.
Field Stabilizing Element/FSE, is used for optimal linearity especially during complex crescendo passages.
Cadenza Bronze is a true high-end reference cartridge, conveying music with supreme precision, impact and dynamics. Its stereo imaging capabilities illuminate the farthest corners of the soundstage in all three dimensions.
| Technical data | |
| Output voltage at 1000 Hz, 5cm/sec. | 0,4 mV |
| Channel balance at 1 kHz | < 1 dB |
| Channel separation at 1 kHz | > 24 dB |
| Channel separation at 15 kHz | > 20 dB |
| Frequency range at - 3dB | 20 - 55 kHz |
| Frequency response 20 Hz - 20 kHz | +/-1,5 |
| Tracking ability at 315Hz at recommended tracking force *) | 80 µm |
| Compliance, dynamic, lateral | 12 µm/mN |
| Stylus type | Nude Ortofon Replicant on conical alu cantilever |
| Stylus tip radius | r/R 5/100 µm |
| Tracking force range | 2,2-2,7 g (22-27 mN) |
| Tracking force, recommended | 2,5 g (25 mN) |
| Tracking angle | 23° |
| Internal impedance, DC resistance | 5 Ohm |
| Recommended load impedance | 50-200 Ohm |
| Cartridge body material | Stainless steel / Aluminium |
| Cartridge colour | Bronze/Black |
| Cartridge weight | 10,7 gram |
