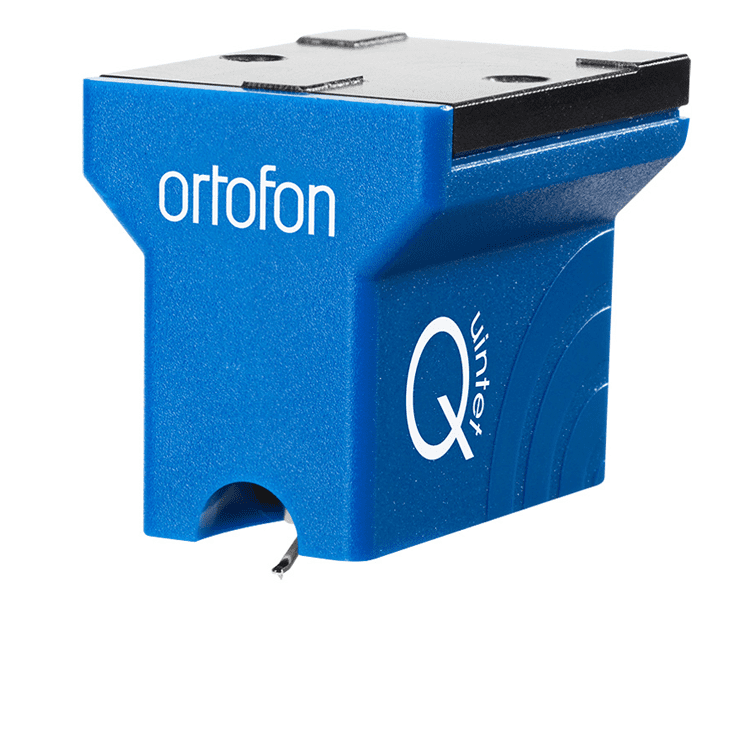

Ortofon Quintet Blue Cartridge
Ortofon Quintet Blue Cartridge
Our price match promise...
If you find an identical item cheaper from one of our online competitors, tell us and not only will we match the price, we'll beat it by 10% of the difference.
Regular price
£459.00
Sale price
£459.00
Regular price
Tax included.
Shipping calculated at checkout.
Estimated Shipping Widget will be displayed here!
The MC Quintet Blue is a very homogeneous cartridge whose sound image will tend to more smooth reproduction compared to Quintet Red and moderate dynamic strength compared to Quintet Bronze.
It features a Nude Elliptical diamond mounted on an aluminium cantilever.
The Quintet Blue will bring more space, depth and detail into the sound and is a very good choice for any kind of music, especially rhythmic.
| Technical Data | ||
| Output voltage at 1 kHz 5 cm/sec | 0.5 mV | |
| Channel balance | < 1.5 dB | |
| Channel separation at 1 kHz | > 21 dB | |
| Channel separation at 15 kHz | > 14 dB | |
| Frequency range at -3 dB | 20-25.000 Hz | |
| Frequency response 20-20.000 Hz | +/-2.5 dB | |
| Tracking ability at 315 Hz at recommended tracking force *) | 70 ?m | |
| Compliance, dynamic, lateral | 15 ?m/mN | |
| Stylus type | Nude Elliptical | |
| Stylus tip radius | r/R 8/18 ?m | |
| Tracking force range | 2.1-2.5 g (21-25 mN) | |
| Tracking force recommended | 2.3 g (23 mN) | |
| Tracking angle | 20º | |
| Internal impedance, DC resistance | 7 Ohm | |
| Recommended load impedance | >20Ohm | |
| Cartridge body material | ABS/Aluminium | |
| Coil wire material | Pure 4-nines copper | |
| Cartridge colour | Blue | |
| Cartridge weight | 9 g | |
| *) Typical value | ||
