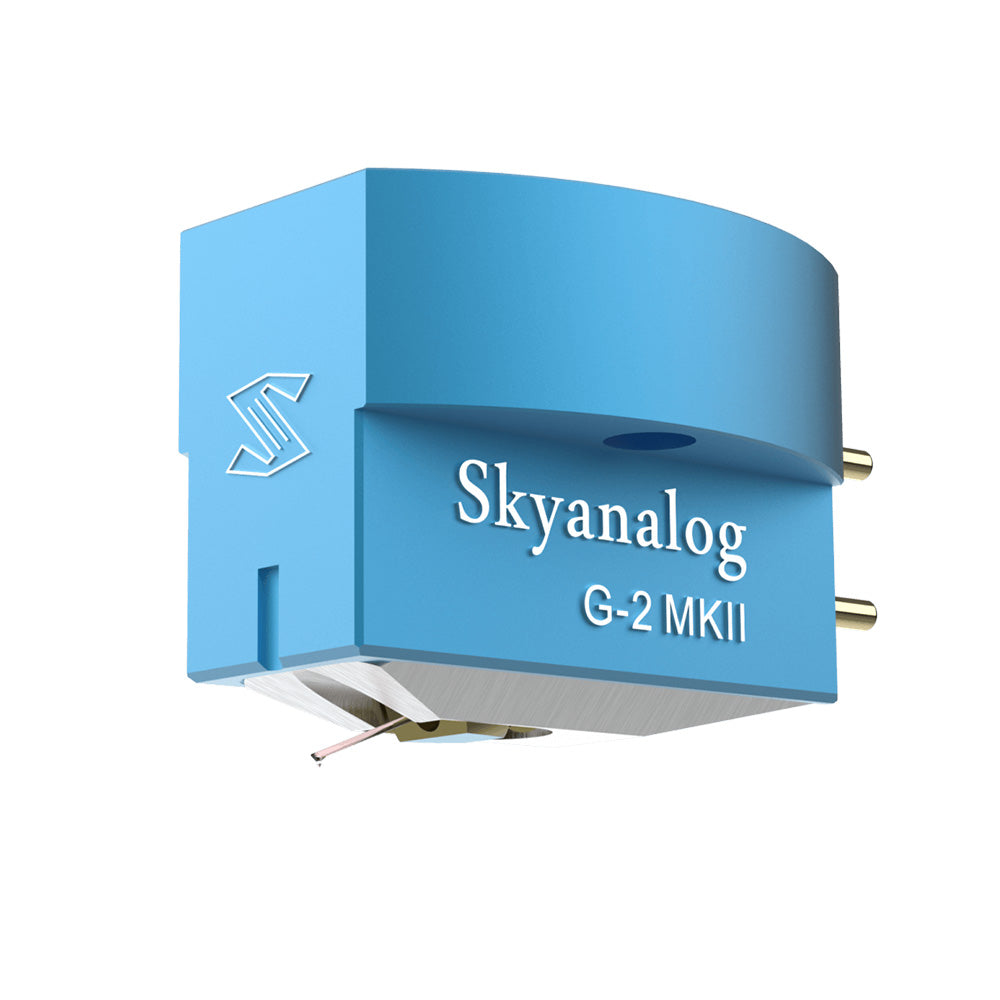

Skyanalog G-2 MC Cartridge
Skyanalog G-2 MC Cartridge
Our price match promise...
If you find an identical item cheaper from one of our online competitors, tell us and not only will we match the price, we'll beat it by 10% of the difference.
Estimated Shipping Widget will be displayed here!
The Charisma Audio Model G-2 is a high-performance moving coil (MC) phono cartridge engineered for audiophiles seeking exceptional tracking accuracy, fast transient response, and smooth, balanced frequency reproduction. Built around a pure iron cross-coil structure and an ultra-rigid ruby cantilever, it delivers outstanding micro-detail and low distortion across the entire audible spectrum.
Featuring a precision elliptical stylus tip, the Model G-2 achieves superior channel separation and exceptional channel balance. Optimized for medium-mass tonearms, it operates at a delicate tracking force centered around 1.35 grams, making it an ideal choice for high-end analogue setups requiring both gentle record care and reference-grade sonic clarity.
KEY FEATURES
- Ruby Cantilever: Features an ultra-rigid ruby cantilever designed for minimal deflection, fast acoustic transmission speed, and low resonance.
- Precision Elliptical Stylus: Outfitted with an elliptical nude diamond stylus (r/R = 5/15 µm) for accurate groove tracing and detailed high-frequency performance.
- Pure Iron Cross Coil: Employs a low-mass pure iron cross-coil design to maintain high channel separation and wide dynamic range.
- Ultra-Low Dynamic Compliance: Tuned for optimal performance when paired with medium-mass tonearm systems.
- Refined Tracking Performance: Operates at an optimal 1.35 g tracking force while delivering excellent 70 µm tracking ability at 315 Hz.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Cartridge Type | Moving Coil (MC) Phono Cartridge |
| Cartridge Weight | 10.7 g |
| Cantilever Material | Ruby |
| Stylus Profile | Elliptical Nude Diamond |
| Stylus Tip Radius | r/R = 5/15 µm |
| Vertical Tracking Angle (VTA) | 20° |
| Coil Structure | Pure Iron Cross Coil |
| Output Voltage | 0.32 mV at 3.54 cm/sec |
| Internal Impedance | 6 Ω |
| Frequency Response | 20 Hz – 25,000 Hz (±1 dB) |
| Channel Separation | > 30 dB at 1 kHz |
| Channel Balance | < 1 dB |
| Tracking Ability (315 Hz / 2 g) | 70 µm |
| Dynamic Compliance | 13 µm/mN |
| Recommended Loading Impedance | 200 Ω – 470 Ω |
| Recommended Tracking Force | 1.1 g – 1.5 g (Optimum: 1.35 g) |
| Recommended Tonearm Mass | Medium |
| Optimum Working Temperature | 23 °C |
| Break-in Period | 30 Hours |
