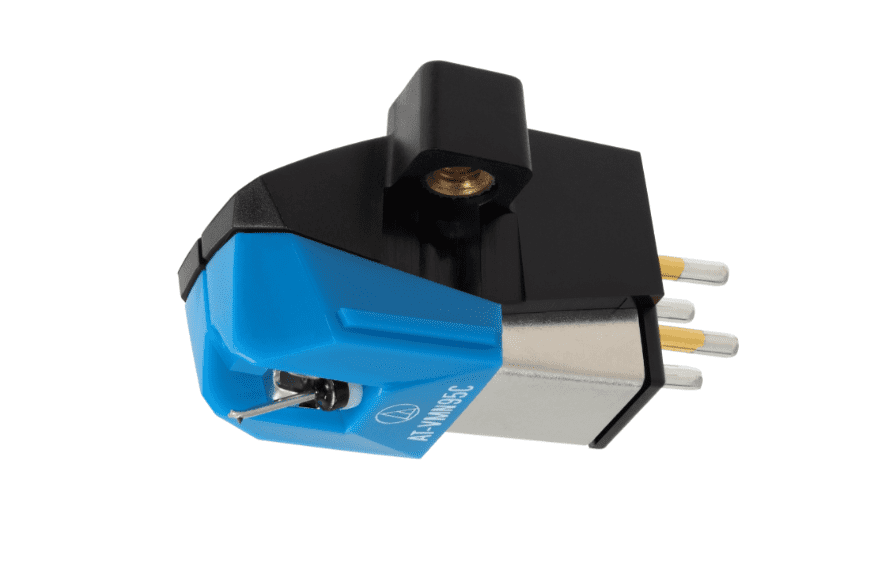

Audio Technica AT-VM95C Conical Stereo Cartridge
Frequently Bought Together
Product Overview & Specifications
AT-VM95C
VM95 series Conical stereo cartridge
The AT-VM95C, the new Audio-Technica entry model Conical cartridge will replace the legendary AT90 Series models such as AT91, AT91R and CN5625AL
Also the AT-VM95C is a budget cartridge featuring a conical stylus, the compatibility in the range will allow to upgrade with any of the 4 other LP styli of the Series such as Elliptical, Elliptical Nude, Microlinear and Shibata.
- Aluminium cantilever
- 4.0mV output voltage
- Compatible body with all VM95 Series stylus assemblies
- Replacement for AT91, AT91R and CN5625AL
VM95 Series - Styli compatibility
Every cartridge diamond stylus becomes worn after a period of play.
Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.
Our VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.
The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.
AT-VMN95C
AT-VMN95E
AT-VMN95EN
AT-VMN95ML
AT-VMN95SH
AT-VMN95SP
AT-VM9E Series compatibility with the AT-XP Series DJ Cartridges
- The electromagnetic engine-body of XP-Series, is fully compatible with all replacement styli of VM95 Series and will deliver more output voltage than VM95 Series cartridge. So providing improved compatibility with phono inputs of Professional DJ Mixers.
- VM95 Series electromagnetic engine-body is also compatible with the three replacement styli of the DJ cartridge AT-XP Series, nevertheless, the electromagnetic engine-body of XP-Series, will deliver more output voltage than VM95 Series cartridge in order to provide better compatibility with phono inputs of Professional DJ Mixers.
- Note that typical tracking force when using XP Series styli is three grams as opposed to two grams for VM95 Series styli.
- The suspension design and compliance of XP-Series styli have been optimized for intensive DJing, including possible manual cueing and back-cueing.
- The VM95 Series suspension design and compliances of VM95 Series have been designed for optimum audiophile reproduction.
ATN-XP7
ATN-XP5
ATN-XP3
Specifications
| Cartridge & Stylus | |
| Frequency Response | 20 - 20,000 Hz |
| Channel Separation | 18 dB (1 kHz) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force | 1.8 to 2.2g (2.0g standard) |
| Stylus Construction | Bonded Round Shank |
| Recommended Load Impedance | 47,000 Ω |
| Coil Impedance | 3.3 kΩ (1 kHz) |
| DC Resistance | 485 Ω |
| Coil Inductance | 550 mH (1 kHz) |
| Output Voltage | 4.0 mV (@ 1 kHz, 5 cm/sec) |
| Output Channel Balance | 2.5 dB (1 kHz) |
| Stylus Shape | Conical |
| Cantilever | Aluminium Pipe |
| Static Compliance | 17 x 10 6 cm / dyne |
| Dynamic Compliance | 6.5 x 10 6 cm / dyne (100 Hz) |
| Mounting | 1/2 centres |
| Cartridge Weight | 6.1g |
| Dimensions | 17.2 x 18.9 x 28.3 ( H x W x D mm) |
| Accessories Included | Two 11 mm installation screws; Two 8 mm installation screws; Two washers |
| Model | AT-VM95C |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | AT-VMN95C |
| Stylus Size | 0.6 mil |
| Type | VM Stereo Dual Magnet |
| Wire Used for Coil | T.P. Copper |
