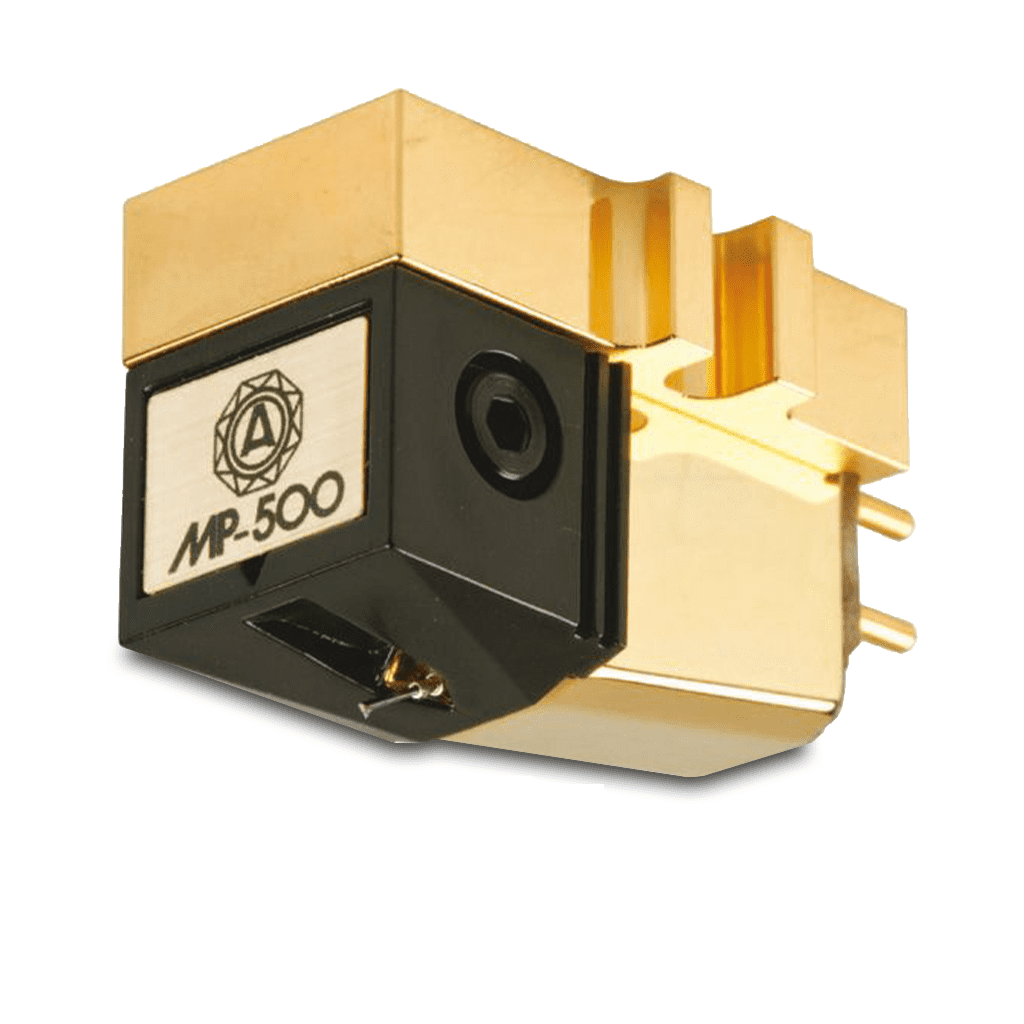

Nagaoka MP-500 Cartridge
Nagaoka MP-500 Cartridge
Our price match promise...
If you find an identical item cheaper from one of our online competitors, tell us and not only will we match the price, we'll beat it by 10% of the difference.
Regular price
£799.00
Sale price
£799.00
Regular price
Tax included.
Shipping calculated at checkout.
Estimated Shipping Widget will be displayed here!
The Nagaoka MP-500 phonograph cartridge offers the highest musical and creative expression of the new MP series. It expertly extracts and reproduces with vivid, colorful and dimensional clarity what others miss. Meet Nagaoka's little friend - the Nagaoka MP-500 phonograph cartridge - the master of the grooves.
Features
- Exclusive super rigid body for ultra resonance and superb fidelity
- Superfine line contact diamond stylus
- Powerful samarium cobalt magnet
- Low-mass, high strength boron cantilever
- Carbon fibre reinforced plastic shoe
- Anti ferro magnetic permalloy shield casing
Technical Specifications
| Type | Moving Permalloy |
| Cantilever | High-Strength Boron |
| Stylus Type | Superfine Line Contact Diam |
| Weight | 8g |
| Output Voltage | 1kHz, 5cm/sec: 3mV |
| Frequency Response | 20Hz-25kHz |
| Channel Balance | 1kHz > 1dB |
| Channel Separation | 1kHz > 27dB |
| Recommended Load | 47k Ohms |
| Dynamics Compliance | 8.5 x 10-6 cm/dyne |
| Tracking Force Range | 1.3g - 1.8g |
