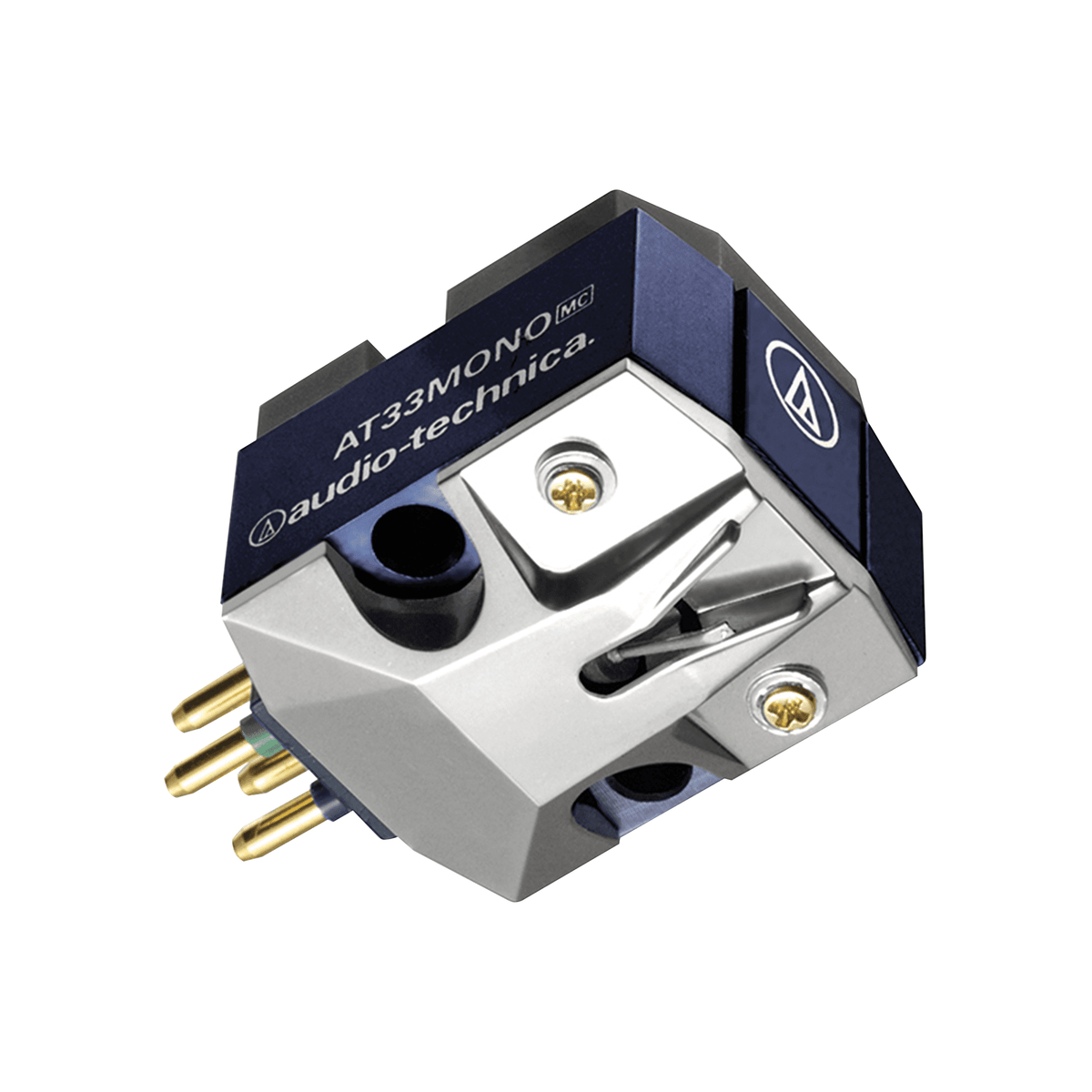

Audio Technica AT33MONO Moving Coil Cartridge
Frequently Bought Together
Product Overview & Specifications
AT33MONO
Moving Coil Cartridge
The AT33MONO is made specifically for use on mono systems. It has a horizontal coil, and so in principle only generates electricity horizontally. The AT33MONO produces sound to a very high quality because it does not easily pick up unnecessary strain components from distorted or scratched records, producing audio that you couldn't possibly get from a stereo cartridge. The AT33MONO also has appropriate compliance in the vertical direction, so will not cause damage to stereo records. Enjoy those well-known classic mono records of yesteryear with the AT33MONO.
- Mono cartridge compatible with stereo playback systems.
- Conical stylus chip and hard duralumin cantilever.
- 10O middle impedance specification.
- PCOCC coil prevents crystal gain boundary formation (in transmission direction).
- Strong body stabilized by a rigid body set-up.
- "Hanenite" anti-vibration rubber eliminates unnecessary vibrations.
- High-quality sound / Brass fastening screw.
*This model is not compatible with SP records.
A True Mono Cartridge
The AT33MONO cartridge only generates electrical signal with horizontal movement due to the horizontal configuration of the coil.
Eliminates unnecessary vibration
Hanenite anti-vibration high-damping rubber eliminates unnecessary vibration.
Internal wiring on AT33MONO featuring two horizontal voice coils, each voice coil terminations available independently.
Specifications
| Cartridge & Stylus | |
| Frequency Response | 20 - 20,000Hz |
| Channel Separation | 30dB (1kHz) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force | 2.3 to 2.7 g (standard 2.5 g) |
| Recommended Load Impedance | More than 100Ω (when head amp connected) |
| Coil Impedance | 10Ω (1kHz) |
| DC Resistance | 10Ω |
| Coil Inductance | 28µH (1kHz) |
| Output Voltage | 0.35mV (1kHz and 5cm/sec. horizontal signal) |
| Output Channel Balance | 1.0dB (1kHz) |
| Stylus Shape | Conical |
| Cantilever | Duralumin pipe |
| Static Compliance | 20×10-6cm/dyne |
| Dynamic Compliance | 6×10-6cm/dyne (100Hz) |
| Mounting | 1/2" Centers |
| Dimensions | H16×W16.6×D26.5mm |
| Accessories Included | Non-magnetic screwdriver x1, Washers x2, Protector x1, Cartridge fastening screw 13mm×2, 19mm×2, Nut x2, Brush x1, PCOCC lead set x1 |
| Body Material | Aluminium/Synthetic Resin |
| Stylus Size | 0.65 mil |
| Type | MC-type |
| Weight | 6.9g |
