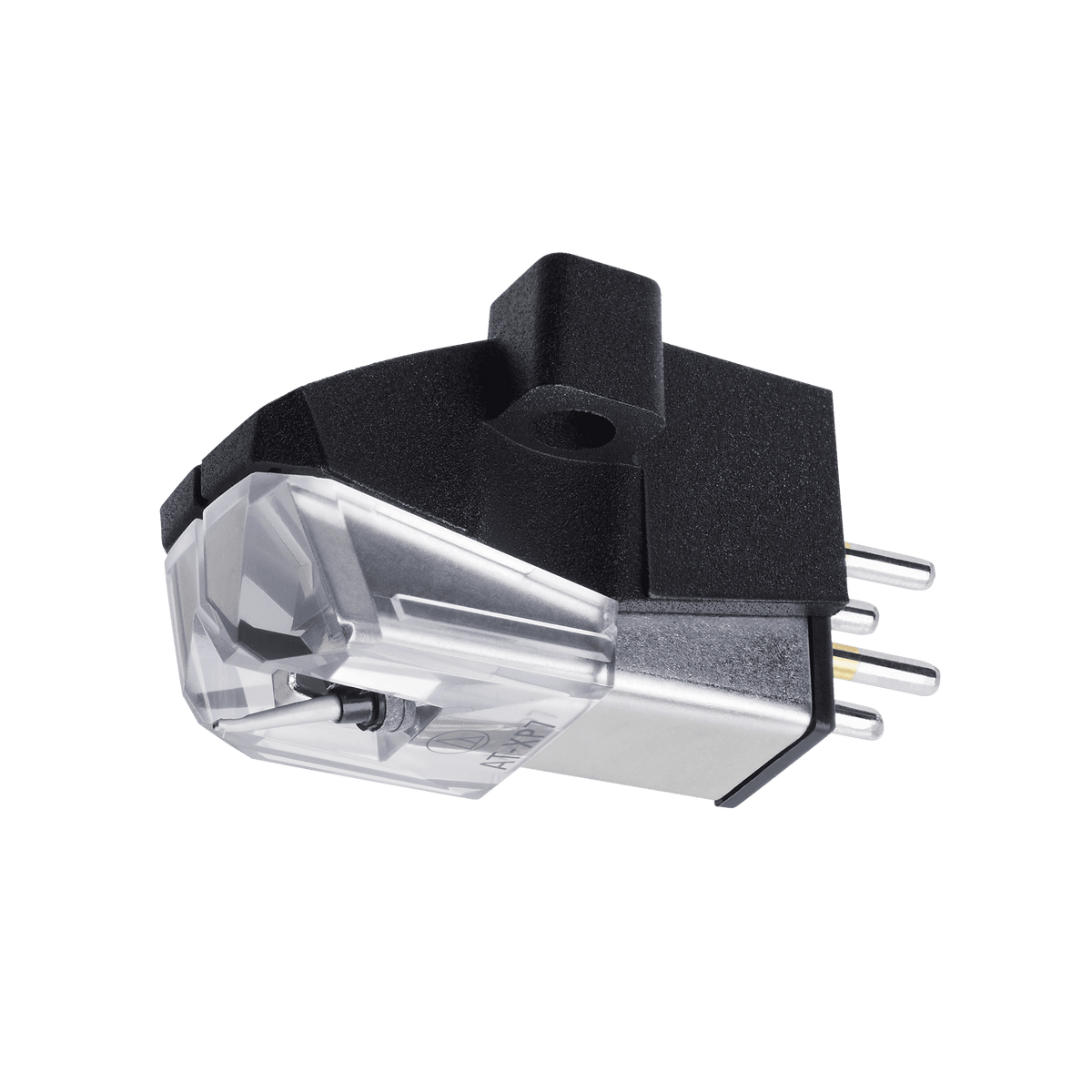

Audio Technica AT-XP7 Dual Moving Magnet Stereo Cartridge
Audio Technica AT-XP7 Dual Moving Magnet Stereo Cartridge
Our price match promise...
If you find an identical item cheaper from one of our online competitors, tell us and not only will we match the price, we'll beat it by 10% of the difference.
Estimated Shipping Widget will be displayed here!
AT-XP7
Dual Moving Magnet Stereo Cartridge
The AT-XP7 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 6.0 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
- Durable robust design for high-quality specialist DJ playback
- Cartridges designed for DJ venue applications for their Hi Fi audio Performance
- Great visibility of stylus tip for instant positioning in dark environments
- Audiophile experience associated with DJing environment with the signal output level and output impedance characteristics adapted to DJ professional mixing boards
- VM dual magnet cartridge with 0.3 x 0.7 mil elliptical bonded stylus
- Tapered aluminium cantilever
- Stainless wire suspension enables expressive higher frequency for clearer sound
- High-rigidity and Low-resonance cartridge housing
- Replacement Stylus: ATN-XP7
Specifications
| Cartridge & Stylus | |
| Frequency Response | 20 - 20,000 Hz |
| Channel Separation | 22 dB at 1kHz |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force | 2.0 to 4.0 g (standard 3g) |
| Stylus Construction | Bonded Round Shank |
| Recommended Load Impedance | 47,000 ohms |
| Coil Inductance | 1.0 H (1 kHz) |
| Output Voltage | 6.0 mV (mV at 1 kHz, 5 cm/sec) |
| Output Channel Balance | Output Channel Balance |
| Stylus Shape | Elliptical |
| Cantilever | Aluminium tapered Pipe |
| Static Compliance | 20 x 10-6 cm/dyne |
| Dynamic Compliance | 8.0x10-6cm/dyne (100Hz) |
| Mounting | Half-inch |
| Dimensions | H17.2×W17.8×D28.3mm |
| Accessories Included | Cartridge installation slotted screws 11.0 mm (0.43) x 2 and 8.0 mm (0.31) x 2, Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1 |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | ATN-XP7 |
| Stylus Size | 0.3 x 0.7 mil |
| Type | VM Dual Magnet |
| Weight | 6.2g |
