Xindak XA6950IIs Hybrid Integrated Amplifier - UK Edition
Frequently Bought Together
Product Overview & Specifications
The Xindak XA6950IIs (UK Edition) is Xindak's flagship hybrid integrated amplifier, designed specifically for the UK market with a full 3-year warranty for the first owner. Combining a vacuum tube preamplifier stage with a true balanced, fully symmetrical solid-state power section, the XA6950IIs incorporates hand-matched Electro Harmonix 6922 tubes alongside three pairs of high-performance Sanken 2SC3264/2SA1295 power transistors per channel.
Built around an ES9038PRO 32-bit DAC architecture, the XA6950IIs serves as an all-in-one digital and analog audio hub. It introduces Xindak's zero-impact room correction technology with ultra-precise Treble, Mid-range, and Bass tone controls—backed by a Direct bypass mode—as well as bespoke dual Vu meters with dimming. Additional features include a dedicated high-end headphone amplifier, an ALPS volume potentiometer, custom 10,000 µF super-tolerance capacitors, and a custom toroidal transformer power supply.
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- Hybrid Vacuum Tube / Solid-State Architecture: Features a tube preamplifier stage powered by 2x hand-matched Electro Harmonix 6922 vacuum tubes, driving a fully symmetrical, true balanced solid-state power amplifier section.
- High-Power Class A / Class A/B Output: Operates in pure Class A mode up to 40 watts per channel, expanding to 130 watts per channel in Class A/B to deliver high dynamic headroom.
- Reference ES9038PRO DAC Engine: Integrated flagship 32-bit, 8-channel ESS Sabre DAC supporting native DSD1024, DSD256 via DoP, and PCM decoding up to 32-bit / 768 kHz over USB.
- Zero-Impact Tone Control Suite & Direct Bypass: Provides ultra-precise Treble, Mid-range, and Bass attenuation adjustments without compromising signal purity, alongside a 'Direct' setting for complete tone circuit bypass.

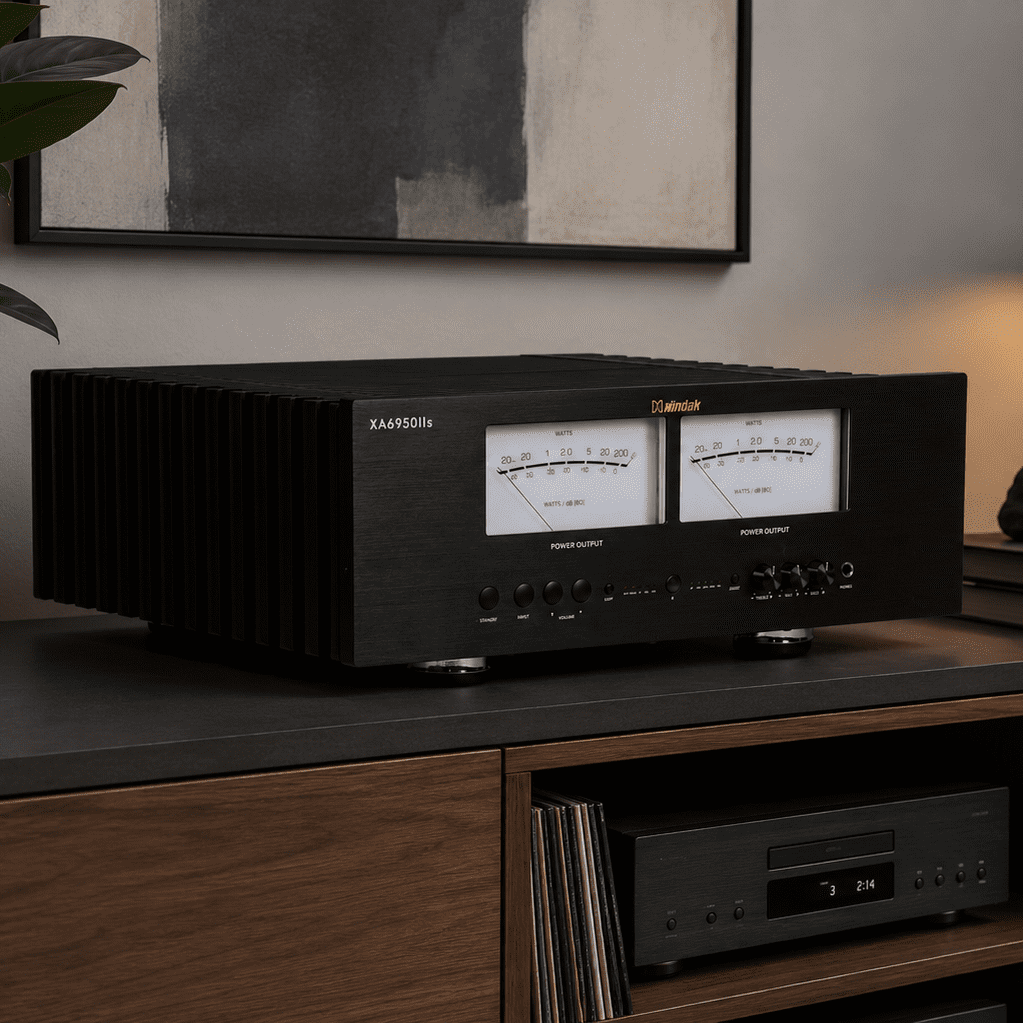

- Dual Vu Meters with Dimming: Features precision engineered, in-house analog Vu meters with adjustable illumination levels.
- Integrated Audiophile Headphone Amplifier & Pre-Out: Includes a dedicated high-performance headphone output and stereo Pre-Out terminals for expanded system routing.
- Bespoke Power & Component Hardware: Powered by custom toroidal transformers, Xindak-designed 10,000 µF super-tolerance capacitors, and an ALPS volume potentiometer.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Category | Flagship Hybrid Integrated Amplifier & DAC |
| Model Designation | Xindak XA6950IIs (UK Edition) |
| Rated Output Power | 40W+40W(Class A) / 130W+130W (Class A/B) |
| Preamplification Stage | 2 x Hand-Matched Electro Harmonix 6922 Vacuum Tubes |
| Power Amplification Stage | Fully Symmetrical True Balanced Design (6 x Sanken 2SA1295 & 6 x 2SC3264 Transistors) |
| Digital-to-Analog Converter (DAC) | ES9038PRO 32-bit, 8-channel DAC (140 dB Dynamic Range) |
| USB Digital Audio Decoding | Native DSD1024, DSD256 (DoP), PCM up to 32-bit / 768 kHz |
| Digital Inputs | 1 x DSD USB, 1 x Bluetooth, 2 x TOSLink Optical, 1 x Coaxial S/PDIF |
| Analog Inputs | 1 x Stereo RCA (Unbalanced), 1 x Stereo XLR (Balanced) |
| Outputs | 1 x Stereo RCA Pre Out, Dedicated Headphone Jack, Speaker Terminals |
| Frequency Response | 10 Hz – 100 kHz (±1 dB) |
| Total Harmonic Distortion (THD) | 0.045% |
| Signal-to-Noise Ratio (S/N) | 95 dB |
| Input Sensitivity & Impedance | 300 mV / 47 kΩ |
| Tone Controls | Treble, Mid-range, and Bass Attenuation with 'Direct' Bypass Mode |
| Volume Control & Power Capacitors | ALPS Potentiometer | Custom Xindak 10,000 µF Super-Tolerance Capacitors |
| Power Supply Transformer | Bespoke Dual Toroidal Transformers |
| Power Consumption | 480 W |
| Enclosure & Accessories | Vu Meters with Dimmer | Full-Function RCA-011 Aluminum Remote Control |
| Dimensions (W x D x H) | 430 x 460 x 170 mm |
| Net Weight | 29.0 kg |
| Warranty | Full 3-Year UK Warranty (First Owner) |
