Wyred 4 Sound mINT Integrated

• Excellent condition
• Original box and packing

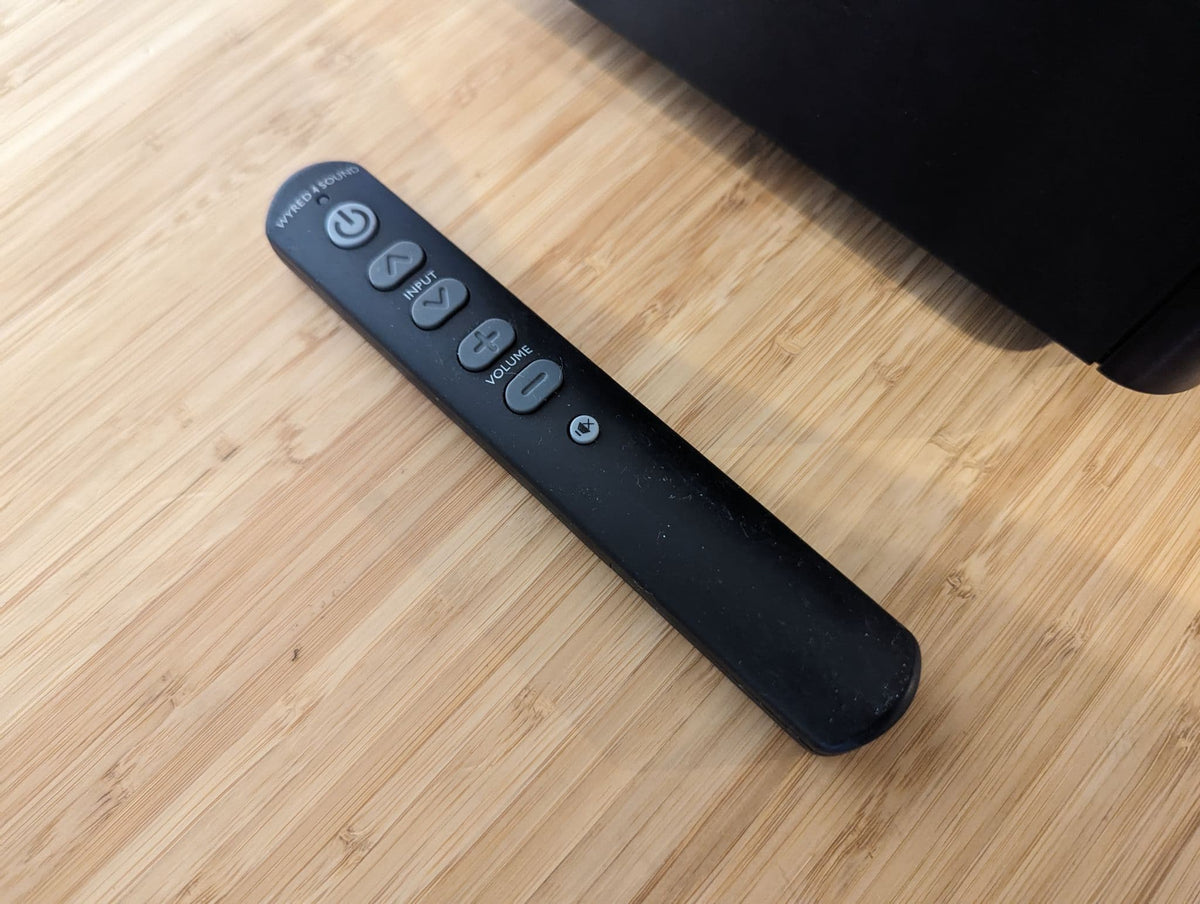

• Remote control

With a built-in DAC, powerful headphone amp, small footprint, and rave reviews from almost every publication in the industry, whats not to like about our mini-Integrated Amp? Sporting a top-tier ESS DAC, the mINT supports 24 bit 192kHz streaming through S/PDIF inputs and 24 bit 96kHz via USB. Configurable analog inputs and outputs round out this unit as a one-size-fits-all solution. On the amplification side, the mINT uses compact and efficient amp technology to deliver 100 watts per channel at 8 ohms, controlling large speakers with ease. A sweet little unit thats won awards from Tone Audio magazine, 6 Moons and Home Theater Review among others, a mINT is sure to get your system in mint condition!

mINT Features

Built-in ESS Sabre DAC
24/96kHz USB input
24/192 Toslink and Coaxial input
No drivers required
2 sets of gold plated unbalanced (RCA) inputs
2 sets of gold plated unbalanced (RCA) outputs (For use with a powered sub, etc.)
100 watt per channel power amp (8 ohms)
Differential design
Headphone amp
Fully functional remote control
12V DC Trigger input (to automatically activate HT Bypass mode)
12V DC Trigger output
Home Theater bypass
Extremely low noise floor
True Resistive-Ladder volume control
Extremely low Idle power consumption
Rugged construction
½ Machined and anodized front panel
66k input impedance
External selectable mains 115/230VAC
Compact size (8W x3.5H x 8D)
9 lbs.
Covered by a 5 YEAR WARRANTY

Typical THD+N 8 (10W out): 0.004%
Power Output 8 @ 0.2% THD+N: 102W
Power Output 8 @ 1.0% THD+N: 111W
Power Output 4 @ 0.2% THD+N: 170W
Power Output 4 @ 1.0% THD+N: 187W
IMD (CCIF): 0.0002%
Transient Inter modulation (TIM): 0.003%
Output Idle Noise: <70µV
Efficiency 4: 81% @ 170W
Efficiency 8: 80% @ 100W
Frequency Response 20Hz-20kHz: ± 0.2db
Lower Bandwidth: 1.5Hz (All Loads)
Dynamic Range: 119db
Gain: 0-33db
Sensitivity: 0.65V
Output Impedance: 0.018
Min Load: 3
Dampening Factor (100Hz 8): >500
Max Output Current: 20A
Channel Tracking: < ± 0.060db
Crosstalk (20Hz-20kHz): >83db
Idle Power Consumption: 20w

Pre-amp Stage

Fixed Out THD (2V In/Out): 0.002%
Max Preout Level (0.1% THD): 4.5V
Frequency Response: 20Hz-20kHz: ± 0.020db
Output Noise: <30µV
Unbalanced Input Impedance: 66k
Output Impedance (Pre Out): 100

Digital In/ Fixed Out

Gain: 24db
Noise: <30µV
THD+N: <0.005%
Channel Tracking: ± 0.015db
Frequency Response: 20Hz-20kHz: ± 0.045db

Headphone Output

32 Load: 720mW @ 0.1% THD+N
300 Load: 132mW @ 0.1%TDH+N
600 Load: 60mW @ 0.1% THD+N
