Wiim Bar Soundbar

£449.00

Recommended Additions

Frequently Bought Together

Product Details

Product Overview & Specifications

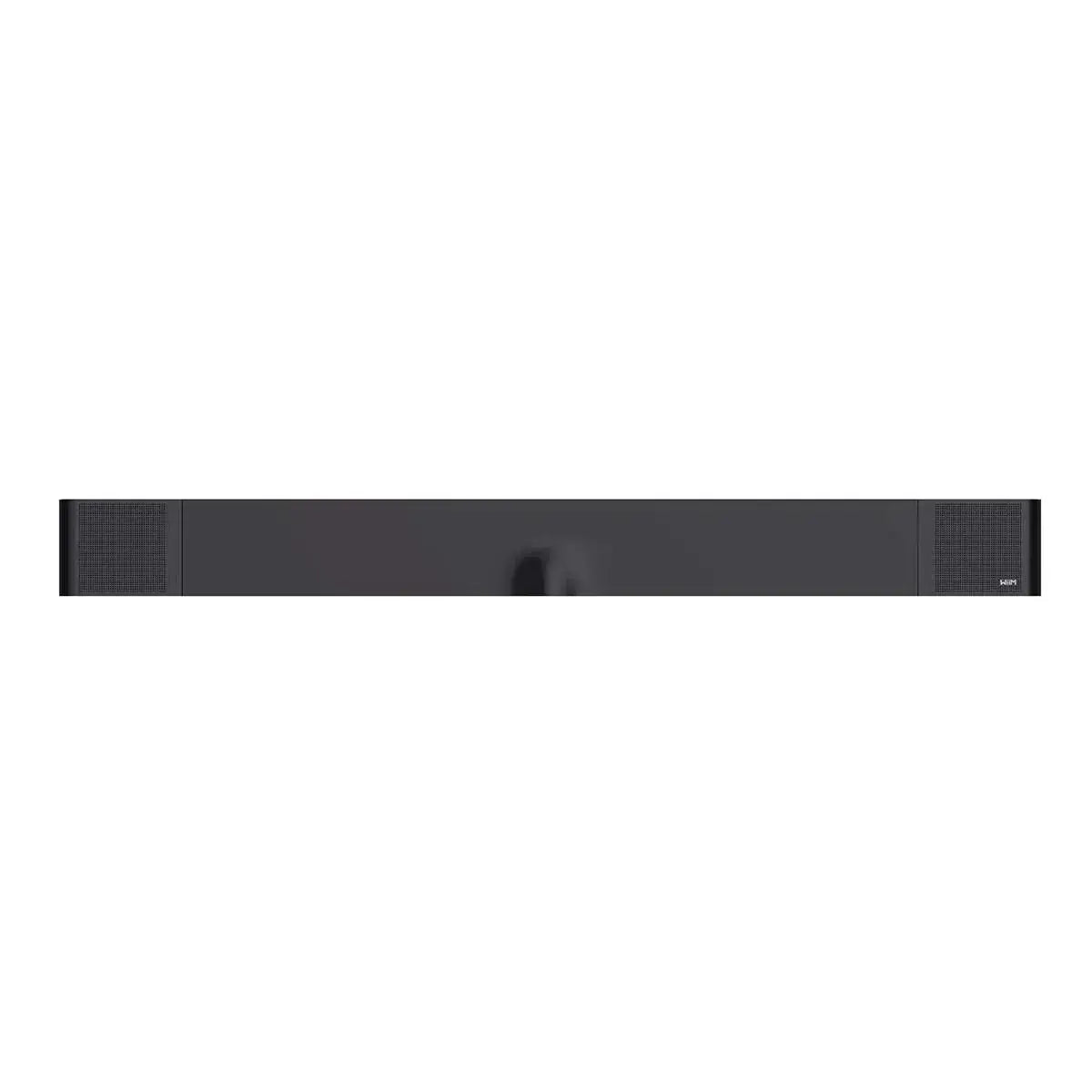

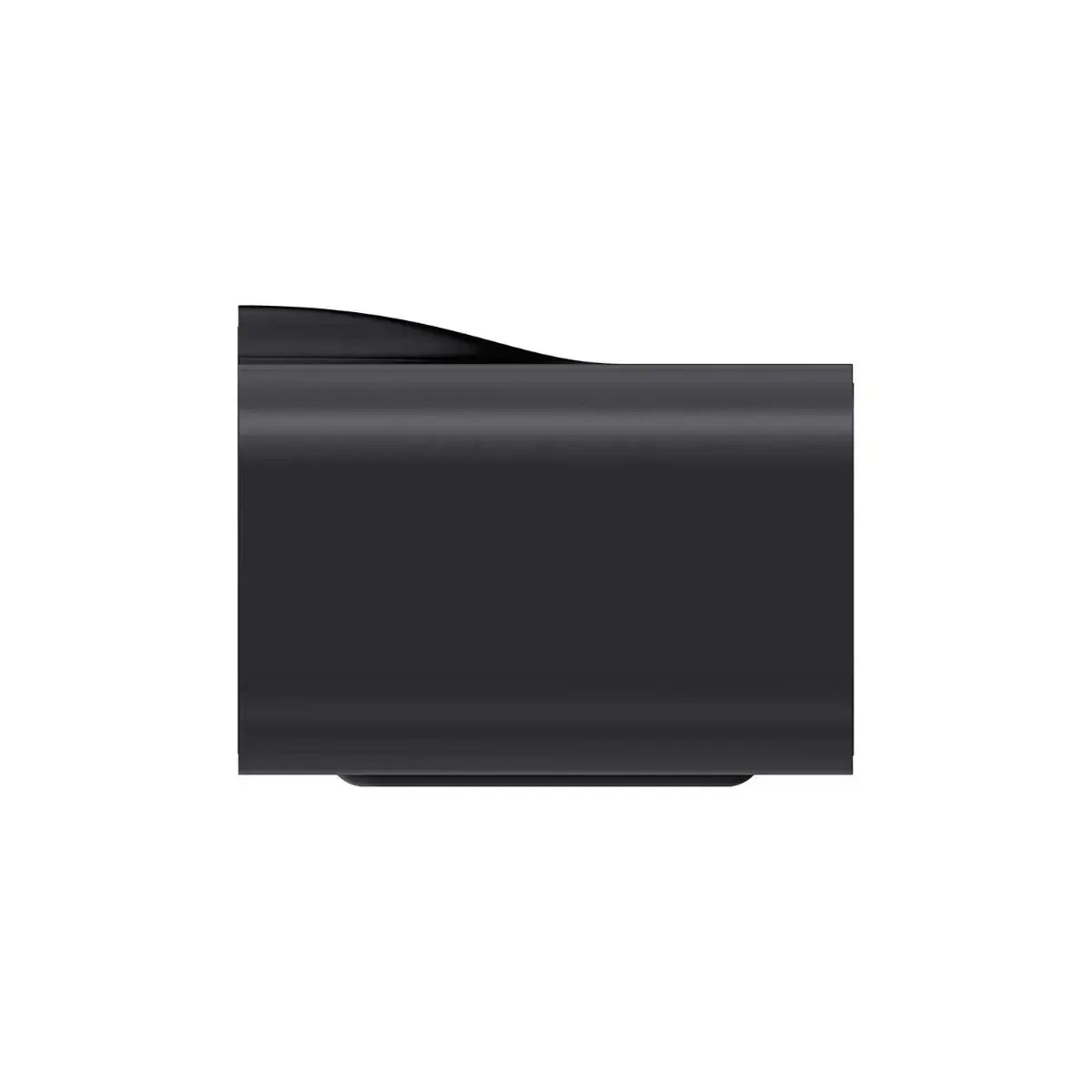

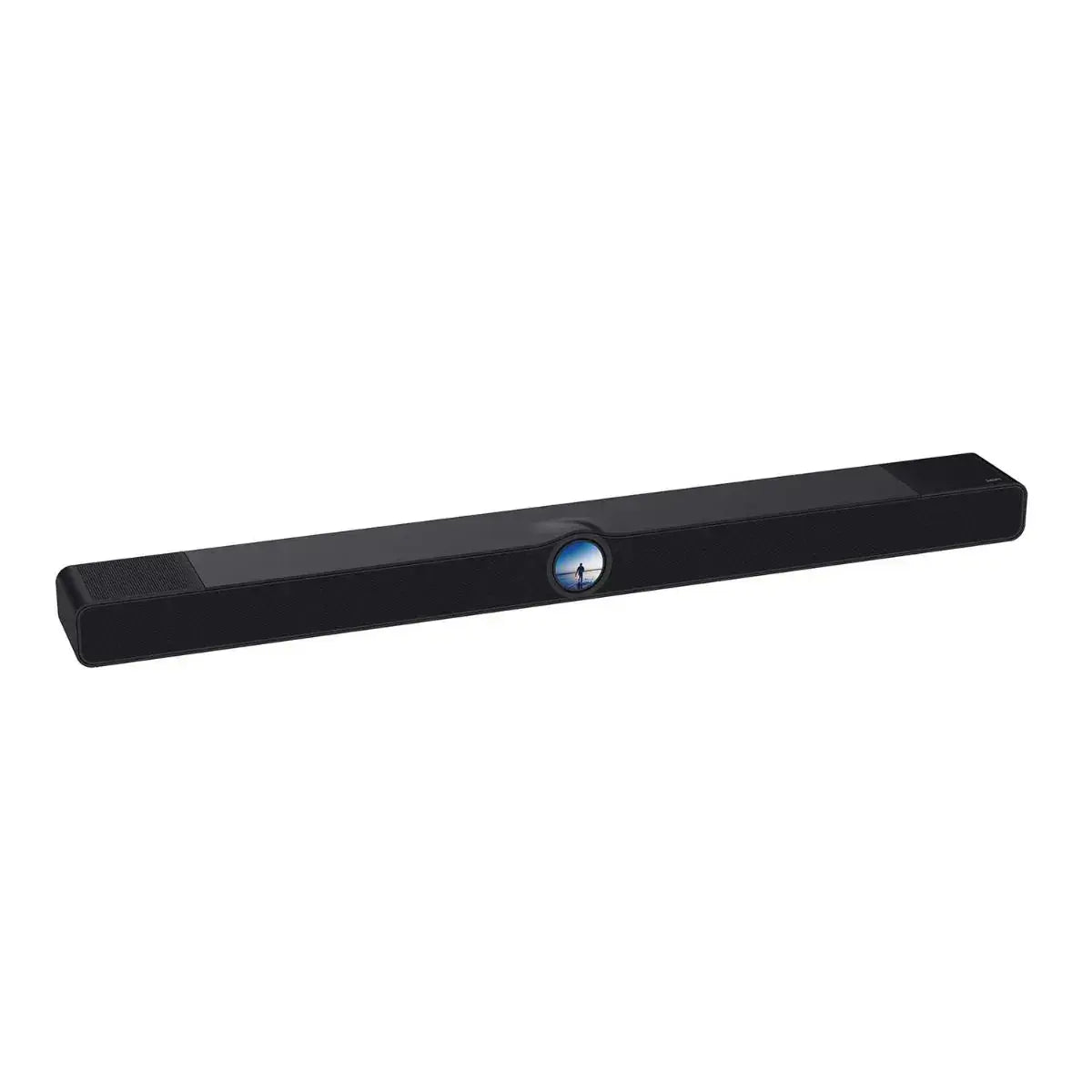

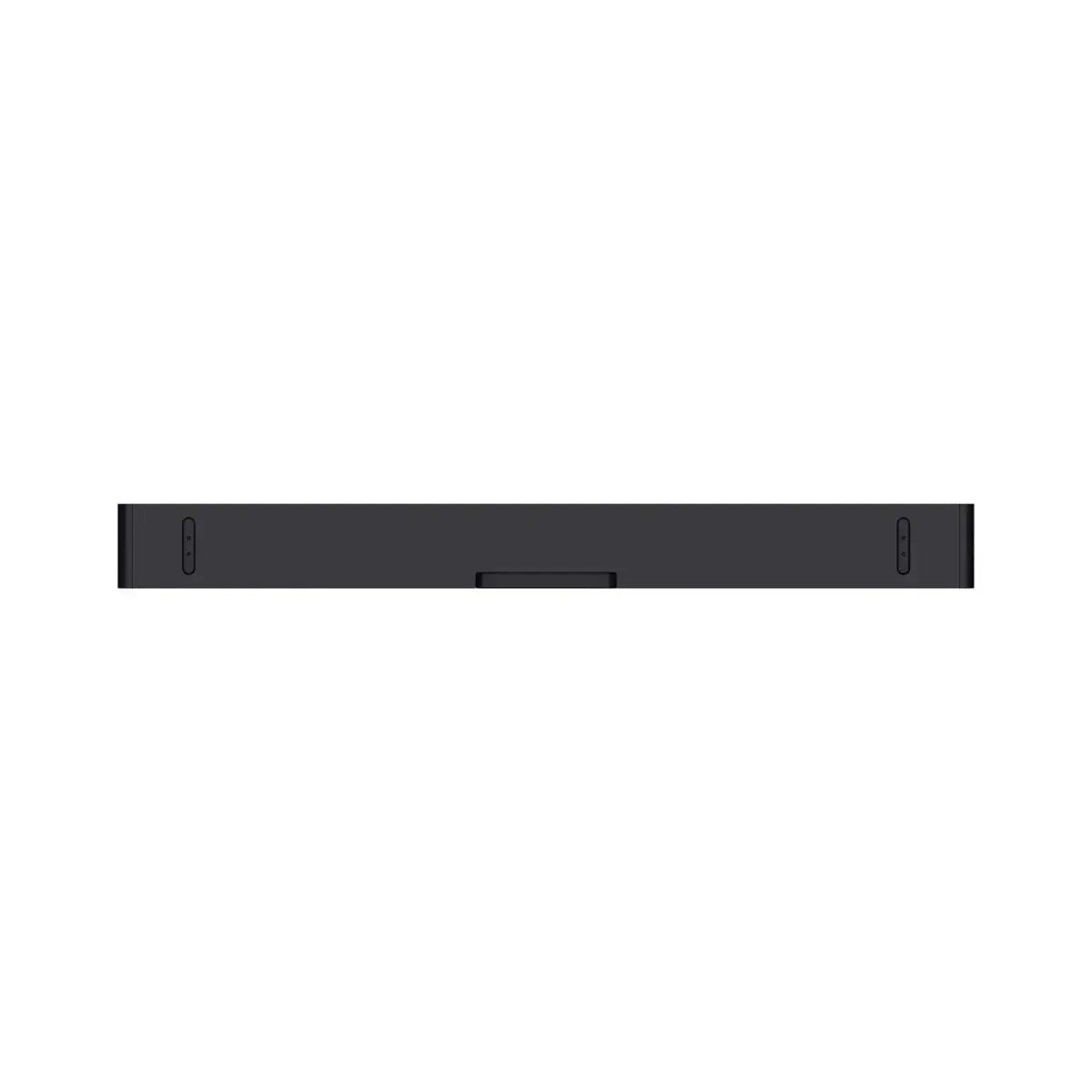

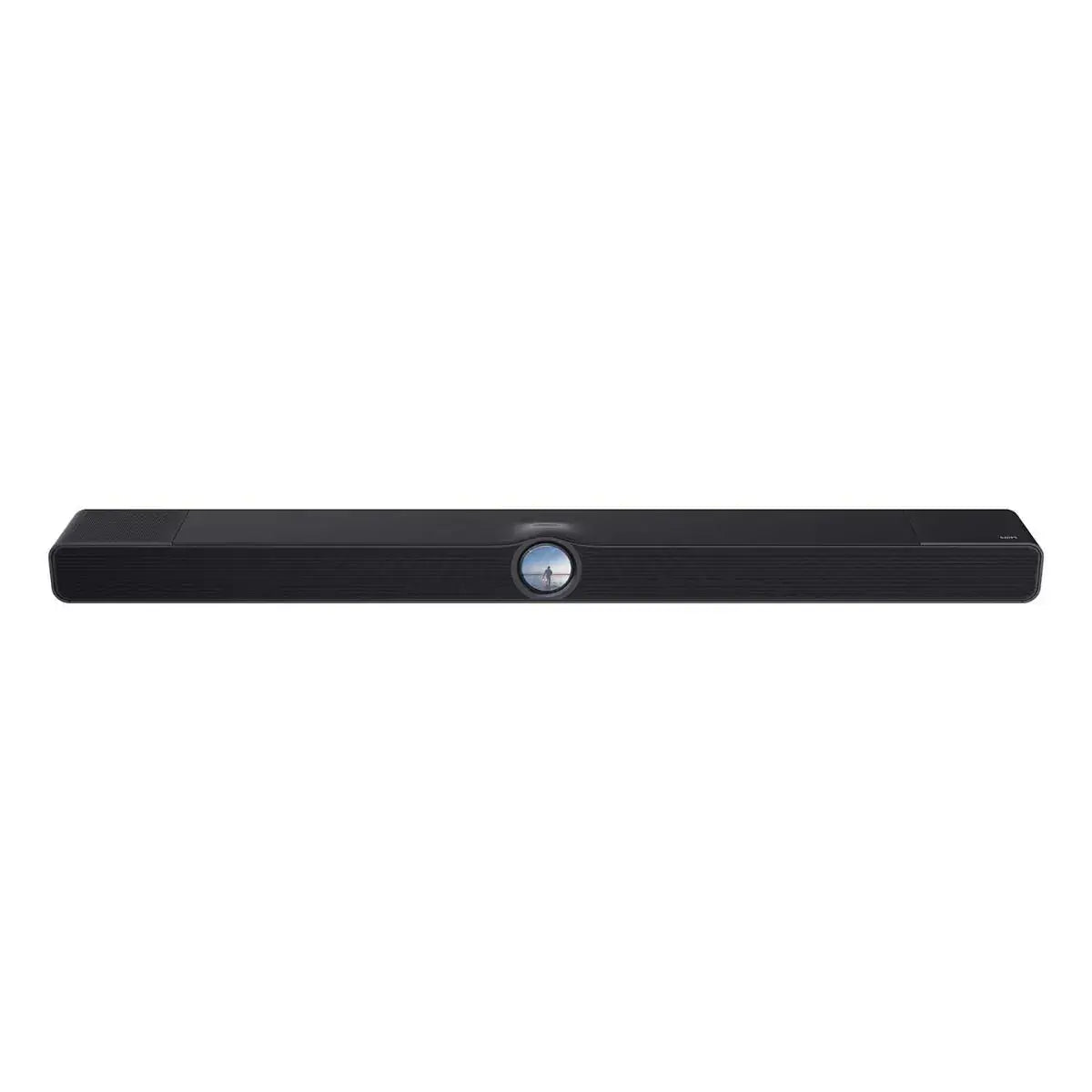

Bar The WiiM Bar is a 3.0.2 Dolby Atmos soundbar with a touch display, HDMI eARC and RoomFit calibration, delivering immersive home cinema sound and detailed music streaming in one sleek, expandable design. 1

SPECIFICATIONS

Specification	Detail
Acoustic System	8-driver acoustic system with 4 passive radiators
Front Mid-woofers	3 x 110 x 52mm mid-woofers
Front Tweeters	3 x 52 x 52mm tweeters
Top Height Drivers	2 x 52 x 52mm full-range drivers
Passive Radiators	4 x 115 x 50mm passive radiators, front x 2 and rear x 2
Max System Power	135 W
Native Channel Layout	3.0.2
Height Effects	Top-firing height channels
Supported Audio Formats	LPCM, Dolby Atmos/TrueHD/DD+, AC3, DTS, DTS:X
Dolby Atmos Support	Via supported content and compatible input setup
DTS	X Support
HDMI Home Theatre Connection	HDMI eARC
Native Configuration	3.0.2 Dolby Atmos and DTS:X soundbar
Expandable Configuration	Up to 5.1.2 with compatible WiiM surround and subwoofer devices
Surround Expansion	Wireless surround support with compatible WiiM devices
Subwoofer Expansion	Wireless subwoofer support with compatible WiiM devices
Room Correction	RoomFit auto-correction
Dialogue Enhancement	Clear Voice and AI Dialog Enhancement
Night Listening	Night Mode
Sound Modes	Movie Mode, Music Mode, Voice Enhance Mode, Night Mode
Preset EQ	24 preset EQ settings
Graphic EQ	10-band Graphic EQ
Parametric EQ	10-band Parametric EQ, where supported in the WiiM Home App
Per-source EQ	Supported via WiiM Home App, where available
App Customization	Sound modes, EQ, RoomFit, input settings, grouping, and device preferences
Display	Glass-covered 2.1-inch Hi-Res full-color round LCD touch screen
Display Type	Round touch display
Display Content	Album art, track information, time, EQ, Smart Presets, Recently Played, clock faces, dynamic wallpapers, and album art standby
Playback Controls	Play, pause, skip, and like
Source Controls	Source selection from the display
EQ Controls	Quick EQ access on the device; deeper EQ control in the WiiM Home App
Smart Presets	One-tap access to favorite preset routines and content
Recently Played	Access to recently played playlists, stations, and shows
Personalization	Multiple clock faces, dynamic wallpapers, and album art standby
Proximity-lit Capacitive Buttons	Volume +, Volume , Play/Pause, Source Switch
Status LED	RGB+W status LED
App Control	WiiM Home App
Voice Control	Alexa and Google Assistant
Remote	WiiM Bar Remote
Remote Controls	Playback, volume, source switching, sound modes, mute/unmute, standby, and voice control where available
On-device Controls	2.1-inch round touch display and proximity-lit capacitive buttons
Setup Control	WiiM Home App via WiFi or Ethernet
Ecosystem Control	Manage streaming, grouping, EQ, presets, and compatible WiiM devices from the WiiM Home App
HDMI	HDMI eARC
Optical	Optical In
Analog input	Line In
Ethernet	10/100 Mbps Ethernet
USB	USB Host for storage
USB Audio Input or Output	WiFi
WiFi 6E	WiFi Bands
2.4 GHz, 5 GHz, and 6 GHz	WiFi Standard
802.11 b/g/n/ax	Bluetooth
Bluetooth 5.4	Bluetooth Profiles
BLE, A2DP Rx/Tx, AVRCP, HID	LE Audio
Supported via software update	Bluetooth Input
Stream from compatible phones, tablets, TVs, and laptops	Bluetooth Output
Output to compatible Bluetooth speakers, headphones, or earphones, where supported	Wired Network Behavior
Ethernet available for a stable wired network connection	Streaming App
WiiM Home App	In-app Streaming
Stream 20+ music services through the WiiM Home App	Casting & Streaming Protocols
Google Cast Audio / Chromecast Audio, Spotify Connect, TIDAL Connect, Qobuz Connect, Amazon Music Cast, DLNA/UPnP, Qplay 3.0, LMS, Roon	Example Music Services
Spotify, Amazon Music, YouTube Music, TIDAL, Qobuz, Deezer, TuneIn, SoundCloud, Pandora, iHeartRadio, vTuner, Napster, SoundMachine, KKBOX, Soundtrack Your Brand	AirPlay 2
Not supported	Network Playback
WiFi, Ethernet, DLNA/UPnP, and WiiM Home App	Direct App Control
Supported with compatible services such as Spotify Connect, TIDAL Connect, Qobuz Connect, and Google Cast Audio	WiiM Multi-room Audio
Group WiiM Bar with compatible WiiM devices for synchronized multi-room listening	Compatible WiiM Ecosystem
Designed to integrate with WiiM Amp, WiiM Ultra, WiiM Pro, WiiM Mini, and WiiM Edition speakers for multi-room music grouping	Home Theatre Expansion
Expand from 3.0.2 to up to 5.1.2 with compatible WiiM surround and subwoofer devices	Surround Setup
Use compatible WiiM devices as wireless surround channels	Subwoofer Setup
Add compatible WiiM subwoofer support for deeper bass	Other Multi-room Options
Alexa multi-room and Google Cast multi-room, where supported	Physical Input Multi-room
For Line In, Optical In, HDMI eARC, or Bluetooth as multi-room sources, use a WiiM-device group	USB Function
USB Host for storage	Media Library
Access a personal media library from connected USB storage	Media Server
Can act as a media server for other WiiM and DLNA devices on the same network	Supported Storage Examples
USB drive or compatible external storage	Supported File Systems
FAT32, NTFS, EXT4, where supported	Playback Contro
Browse and control USB media through the WiiM Home App	Dimensions
1060mm x 105mm x 74mm	Height Without Foot
70mm	Weight
5kg	Placement
TV console or wall mount	Wall Mounting
Wall brackets included	Display Location
Front-facing 2.1-inch round touch display	On-device Controls
Top-panel capacitive controls and front touch display	Status Light
RGB+W LED status indicator	What's Included
WiiM Bar	WiiM Bar Remote
User Guide	Power Cable
HDMI Cable	Optical Cable
Wall brackets × 2 with screws	Power Input
100240V AC	Frequency
50/60 Hz	Max System Power
135 W	Power Cable
Detail	Included
