Wharfedale OW-1 Diamond On-Wall Speaker White
Frequently Bought Together
Product Overview & Specifications

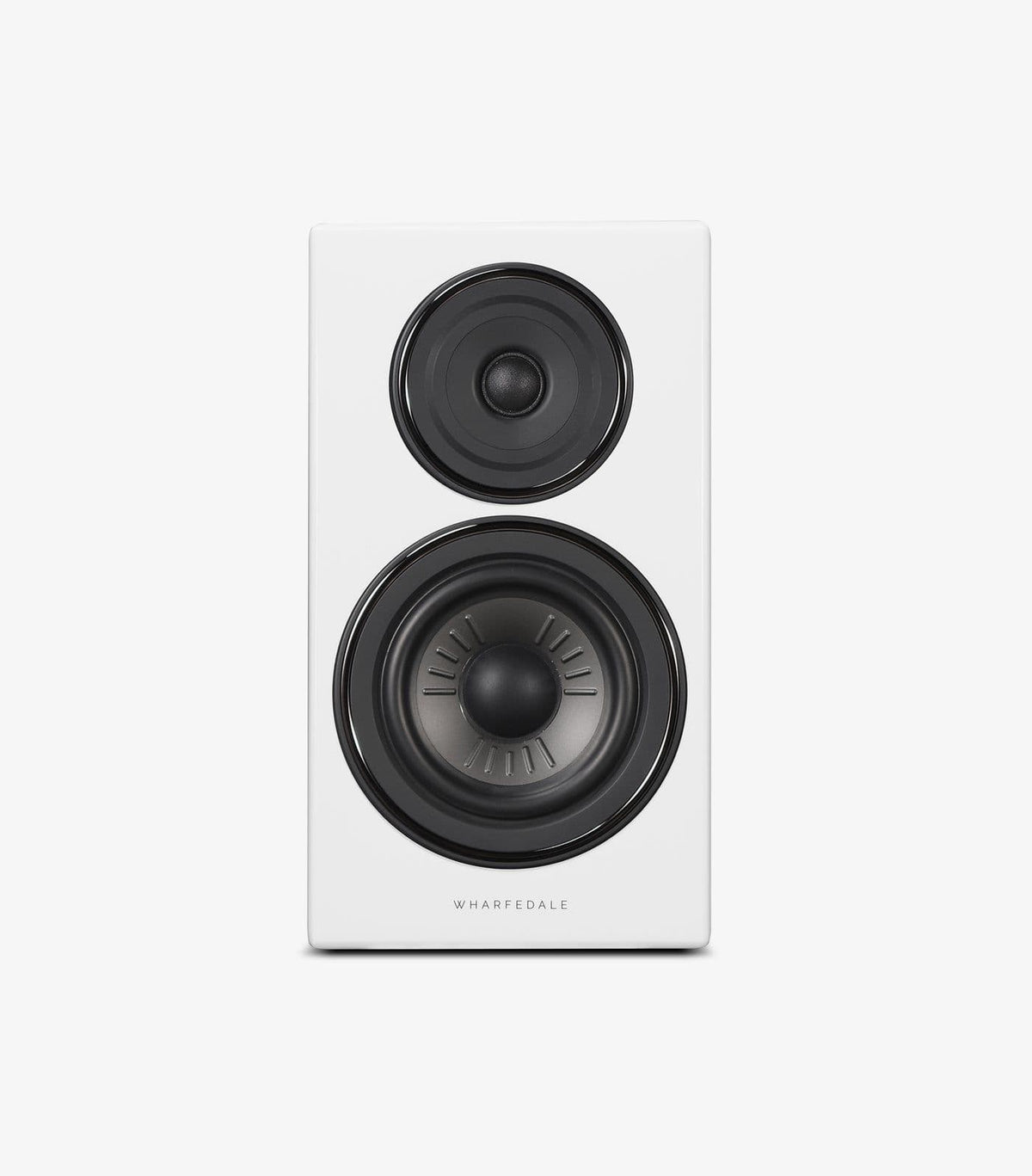

Description The Wharfedale OW-1 is a compact two-way on-wall loudspeaker from the latest Diamond series, designed to deliver high-performance stereo or home-cinema sound without intruding on the room. In White, the 141mm-deep cabinet sits flush against the wall and the slim, neutral profile is intended to disappear against a light-painted surface or alongside a wall-mounted TV. The OW-1 pairs a 1-inch textile dome tweeter with a 6.5-inch advanced polypropylene cone bass driver in a sealed (closed-box) cabinet, crossing over at 2.6kHz. The closed-box loading is well suited to on-wall installation because there is no rear port to interact with the wall behind, which keeps low-frequency response tight and predictable in real rooms. Wharfedale quotes a usable frequency response of 80Hz to 20kHz (±3dB) with bass extension to 75Hz at -6dB, 86dB sensitivity (2.83V/1m) and a 4Ω nominal impedance (3.9Ω minimum), so the OW-1 will run happily from a mainstream stereo amplifier or AV receiver rated for 4-ohm loads. Recommended amplifier power is 20 to 100 watts and peak power handling is 100 watts, with a peak SPL of 96dB.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Type | 2-way on-wall closed-box loudspeaker |
| Bass driver | 6.5" (150mm) advanced polypropylene cone |
| Treble driver | 1" (25mm) textile dome |
| Crossover frequency | 2.6kHz |
| Frequency response | 80Hz20kHz (±3dB) |
| Bass extension | 75Hz (-6dB) |
| Sensitivity | 86dB (2.83V/1m) |
| Nominal impedance | 4Ω |
| Minimum impedance | 3.9Ω |
| Recommended amplifier power | 20100W |
| Peak power handling | 100W |
| Peak SPL | 96dB |
| Cabinet volume | 4.86 litres |
| Dimensions (H x W x D) | 360 x 200 x 141mm (incl. grille and bracket) |
| Net weight | 5.0kg (each) |

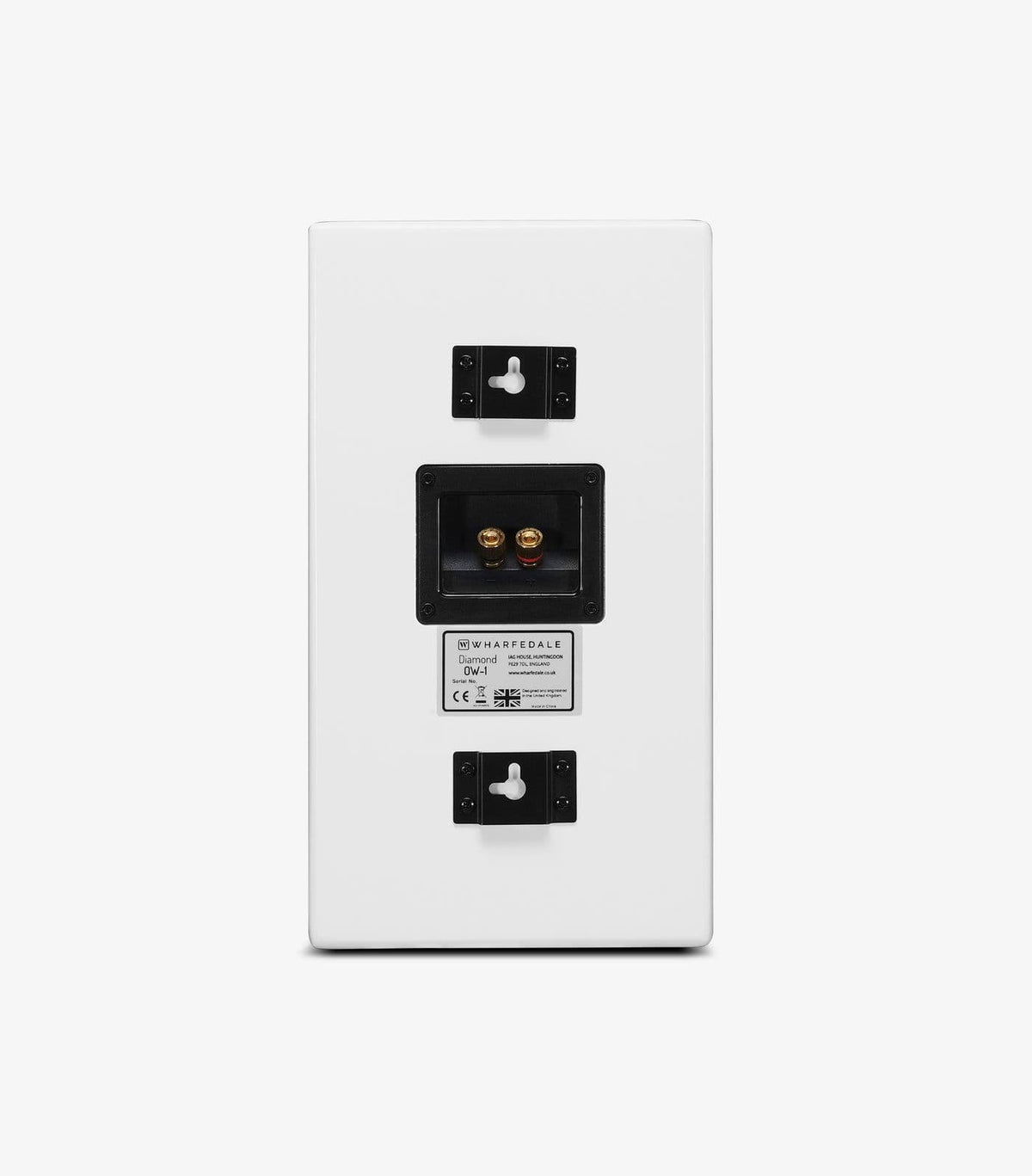

| Mounting | Keyhole wall brackets pre-fitted to rear |
| Connections | Single pair of gold-plated binding posts |
| Finish | White |
| Supplied as | Single speaker |
| Warranty | 3 years |
