Wharfedale IW-1 Diamond In-Wall Speaker White
Frequently Bought Together
Product Overview & Specifications

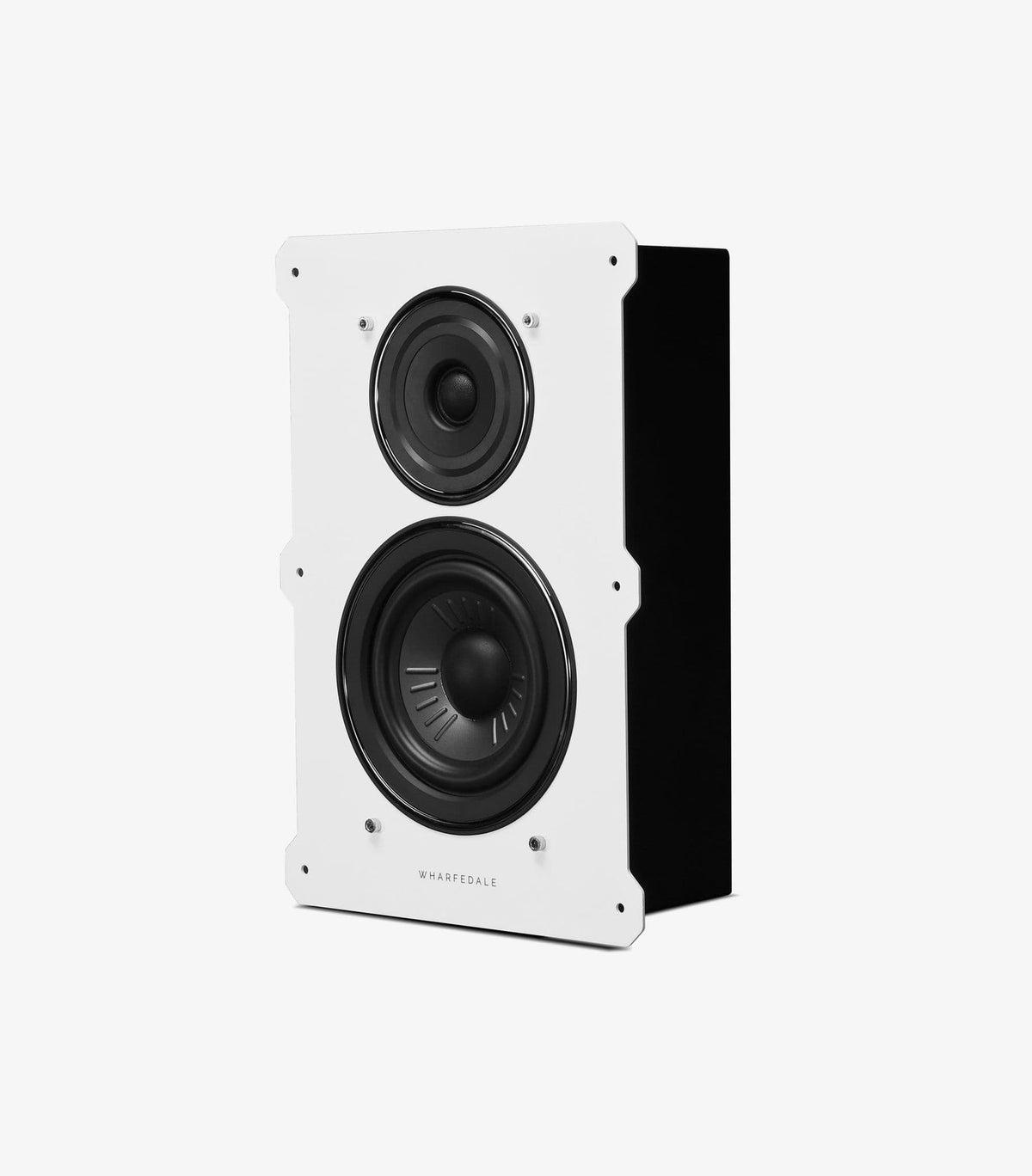

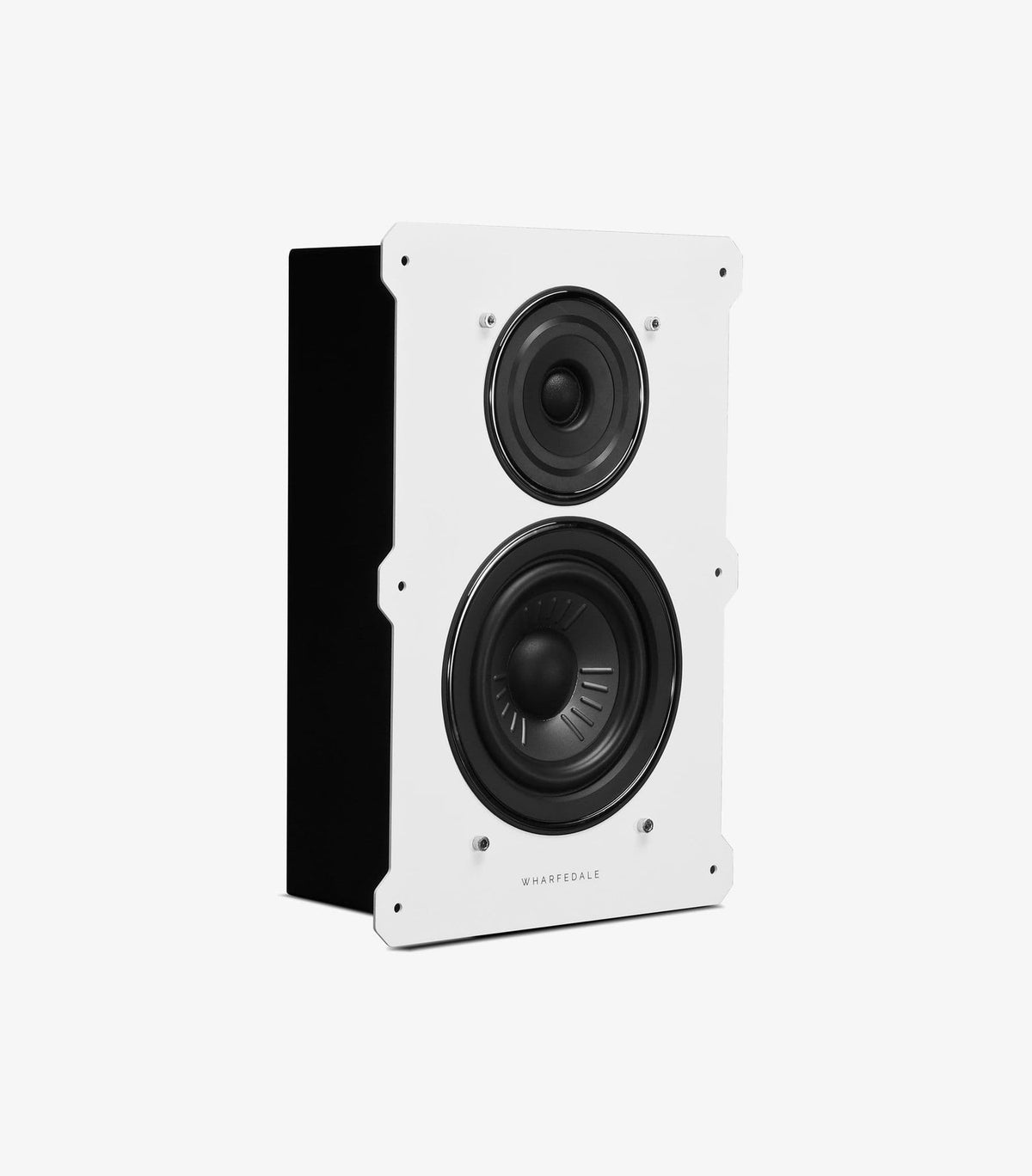

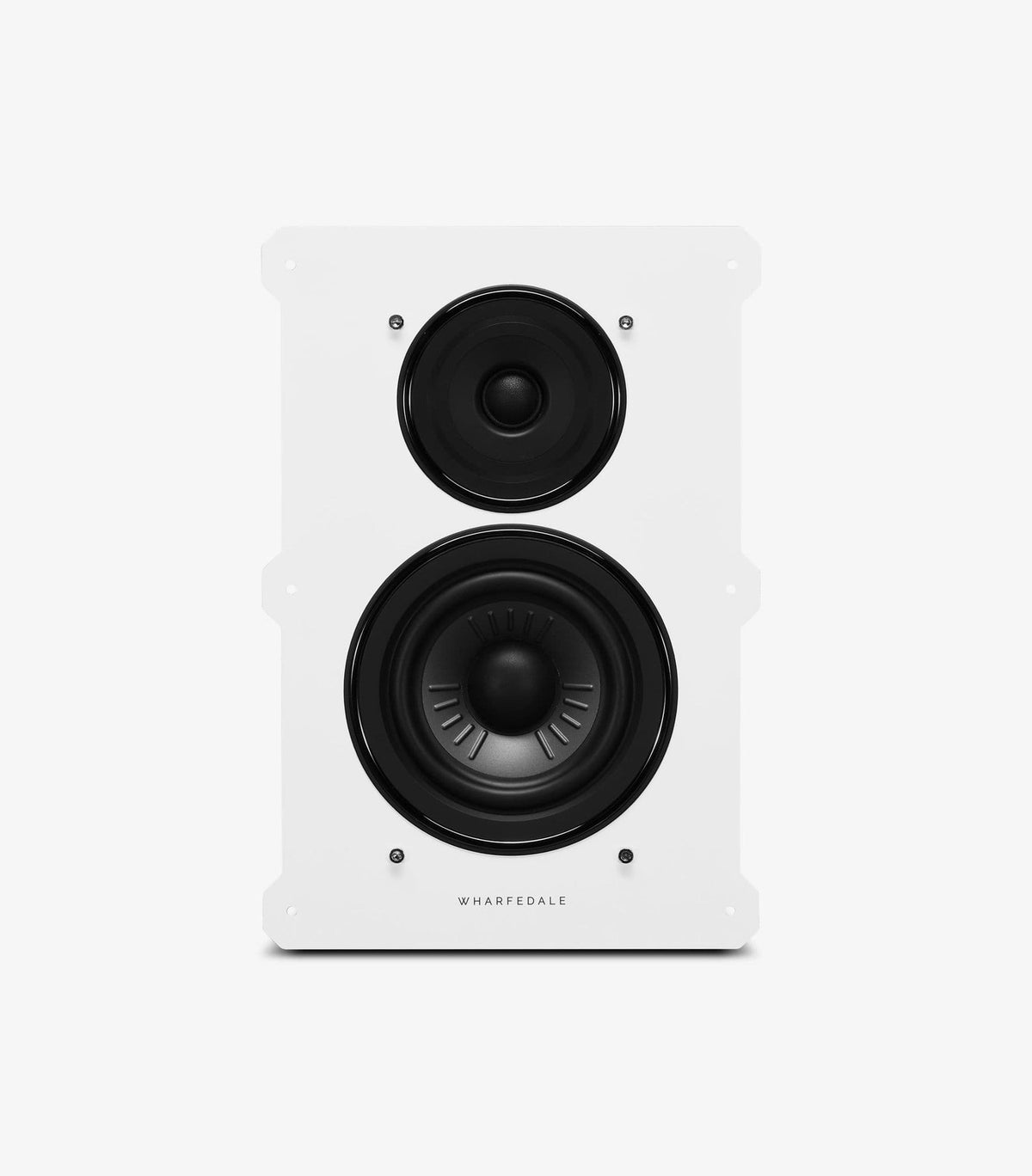

Discreet In-Wall Performance from Wharfedales Diamond IW Series The Wharfedale IW-1 Diamond is a 2-way in-wall speaker from the Diamond IW range, designed to be flush-mounted into a wall or ceiling cavity for a completely hidden, architectural installation. Building on Wharfedales long-standing expertise in home cinema speaker design, the IW series allows you to create a truly immersive surround-sound environment without the visual intrusion of conventional speakers. The IW-1 Diamond pairs a 6.5-inch (150mm) advanced polypropylene-cone bass/midrange driver with a 1-inch (25mm) textile dome tweeter, crossed over at 2.6kHz. The closed-box design ensures controlled bass extension to 75Hz, making it well-suited as a surround or infill channel in multi-channel home cinema setups. The white grille finish blends cleanly into plasterwork and is standard for in-wall installations.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| General description | 2-way in-wall loudspeaker |
| Enclosure type | Closed-box |
| Bass driver | 6.5 (150mm) PP cone |
| Treble driver | 1 (25mm) textile dome |
| Crossover frequency | 2.6kHz |
| Sensitivity (2.83V @ 1m) | 86dB |
| Recommended amplifier power | 20100W |
| Peak power handling | 100W |
| Nominal impedance | 4Ω |
| Minimum impedance | 3.9Ω |
| Frequency response (+/3dB) | 80Hz20kHz |
| Bass extension (6dB) | 75Hz |
| Peak SPL | 96dB |
| Dimensions (H x W x D) | 360 x 200 x 141mm (incl. grille and bracket) |
| Net weight | 5.5kg |
| Finish | White |
| Sold as | Individual unit (each) |
