Product Overview & Specifications

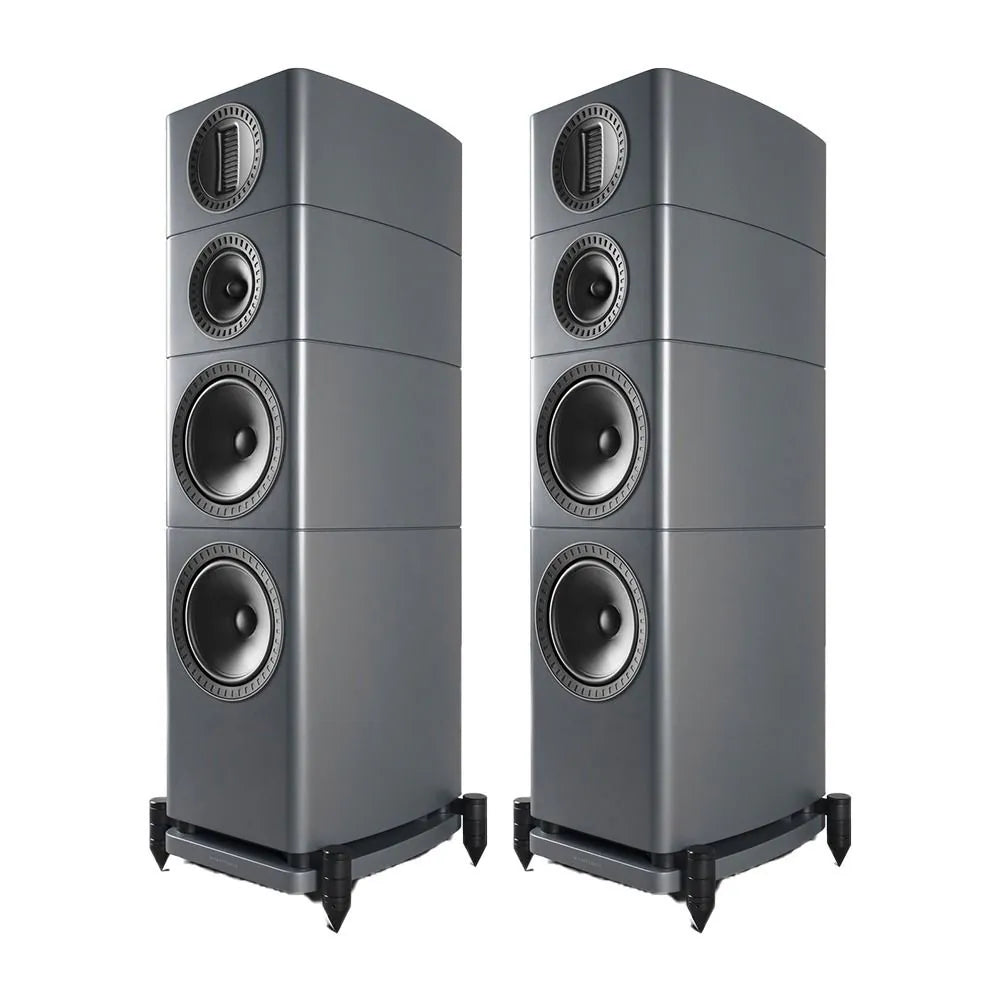

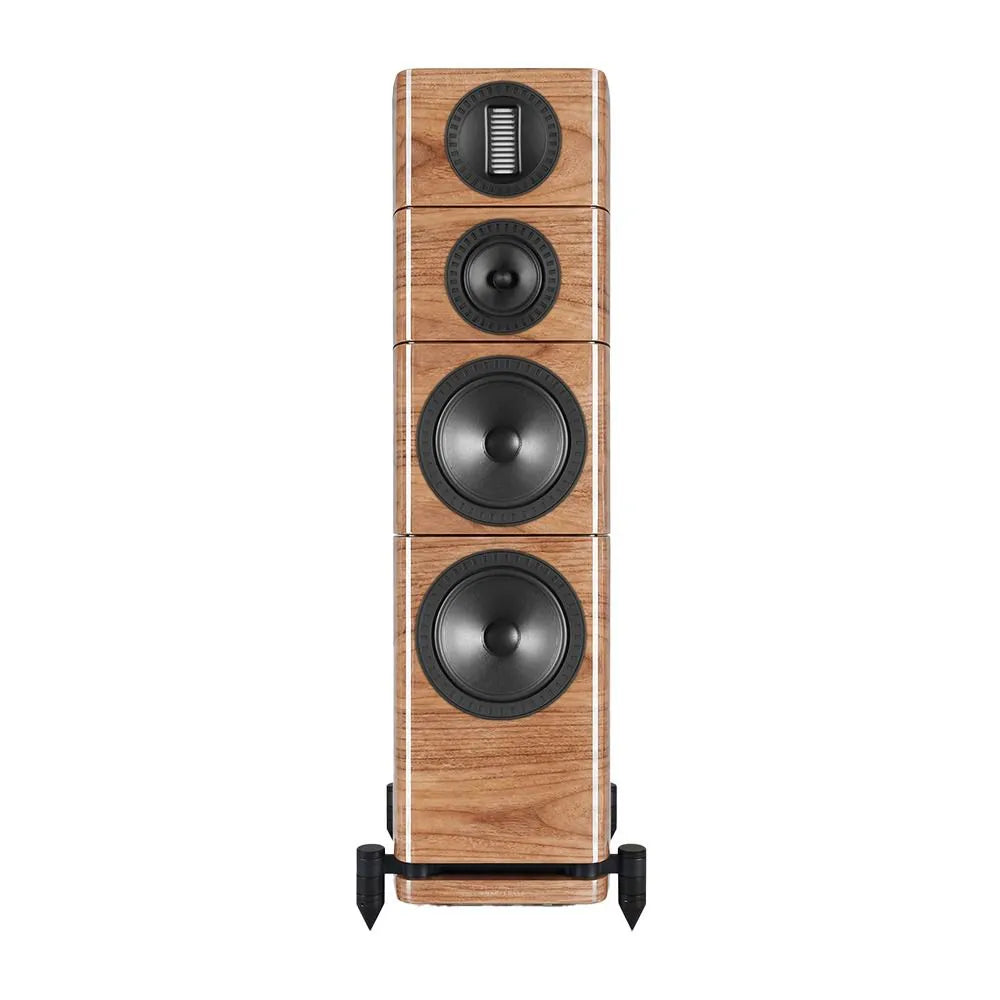

The Wharfedale ELYSIAN 4R is the flagship four-driver, three-way floorstanding loudspeaker in Wharfedale's Generation R ELYSIAN Series. Designed for ambitious two-channel stereo systems, the ELYSIAN 4R incorporates a custom 27 x 90mm Air Motion Transformer (AMT) treble unit, a dedicated 150mm (6") coated glass-fibre matrix midrange driver, and dual 220mm (8.5") coated glass-fibre matrix bass transducers housed in a substantial multi-layer enclosure.
Reaching down to 24 Hz (-6dB) in room, low-frequency performance is managed by Wharfedale's Slot-Loaded Profiled Port (SLPP) bass management system, which routes internal cabinet air pressure downward through a profiled slot in the integrated plinth to minimise turbulence and reduce boundary placement sensitivity. Featuring Generation R crossover topology with direct-path PCBs, high-silicon-iron-cored coils, air-core inductors, and low-inductance resistors, the ELYSIAN 4R provides wide dynamic scale, articulate low-end authority, and transparent acoustic imaging.
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- Flagship Three-Way, Four-Driver Configuration: Dedicated driver array comprising twin 8.5" bass drivers, a 6" midrange driver, and an AMT high-frequency transducer to handle maximum dynamic swings with minimal distortion.
- Dual 220mm Coated Glass-Fibre Bass Units: Twin 8.5" coated glass-fibre matrix cones deliver deep extension, controlled transient impact, and low-frequency weight.
- Dedicated 150mm Midrange Transducer: Isolated 6" coated glass-fibre matrix cone featuring an aluminium demodulation ring to preserve natural vocal tone and instrumental texture.
- Refined 27 x 90mm Air Motion Transformer (AMT): Ultra-lightweight pleated diaphragm moving air with high efficiency for smooth, extended high-frequency response and open spatial detail.
- Generation R Crossover Engineering: Reworked crossover utilizing direct-path circuit boards, high-silicon-iron-cored coils for bass, air-core coils for midrange/treble, Super Audiophile polypropylene capacitors, and low-inductance resistors.
- Slot-Loaded Profiled Port (SLPP) Bass System: Downward-firing port system vents cabinet air energy into the plinth gap to equalise pressure and ensure stable low-end integration across listening spaces.

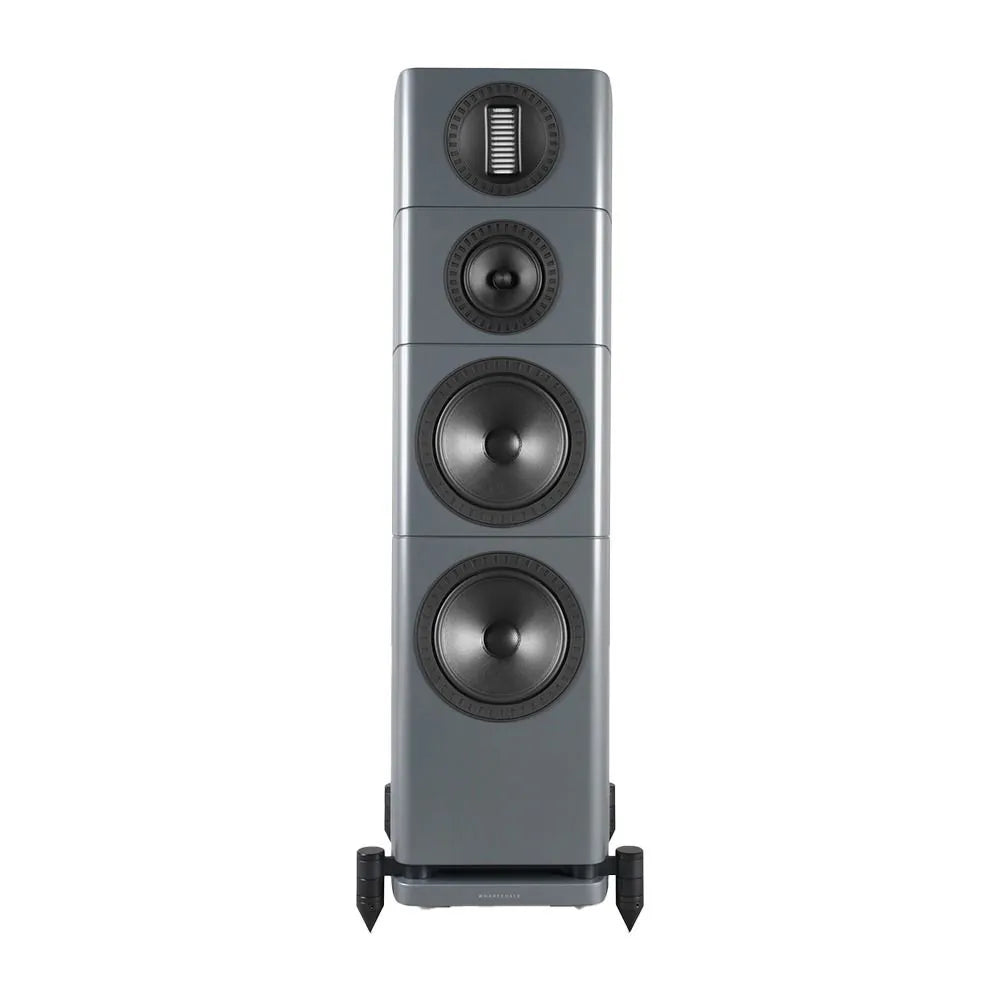

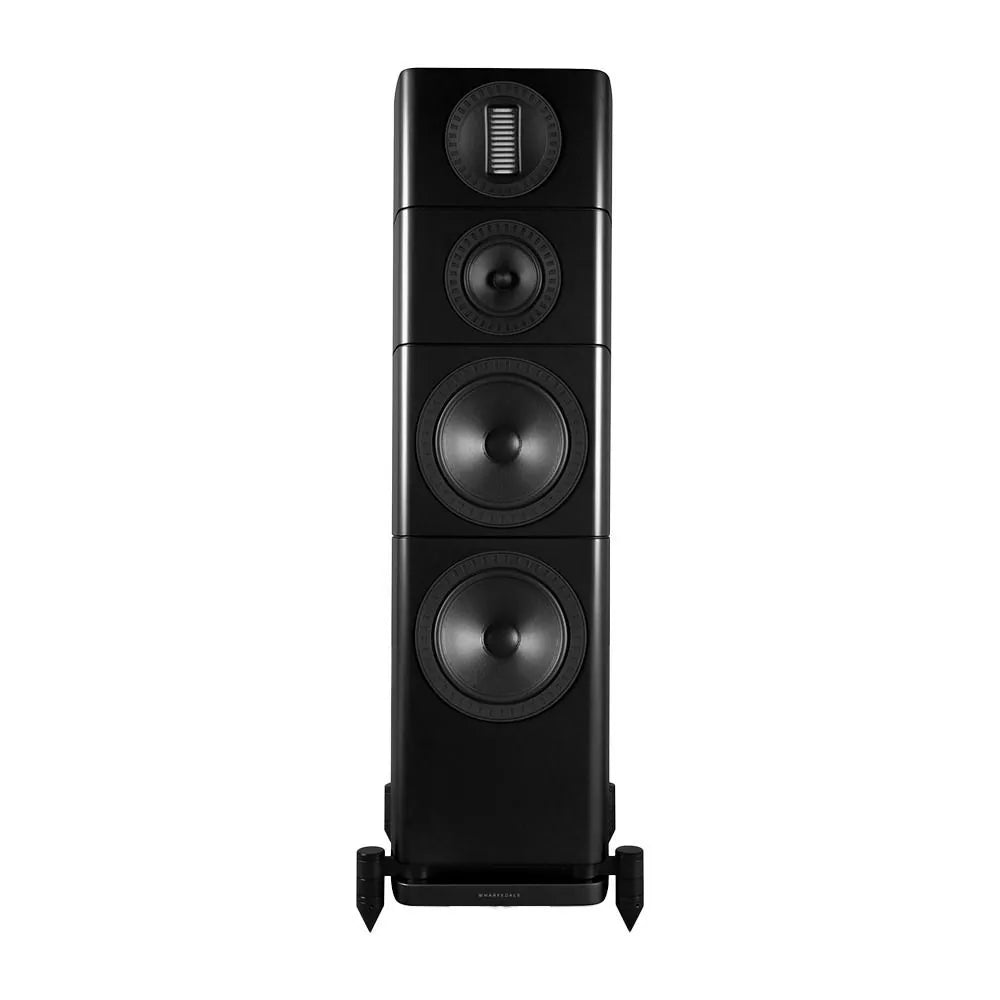

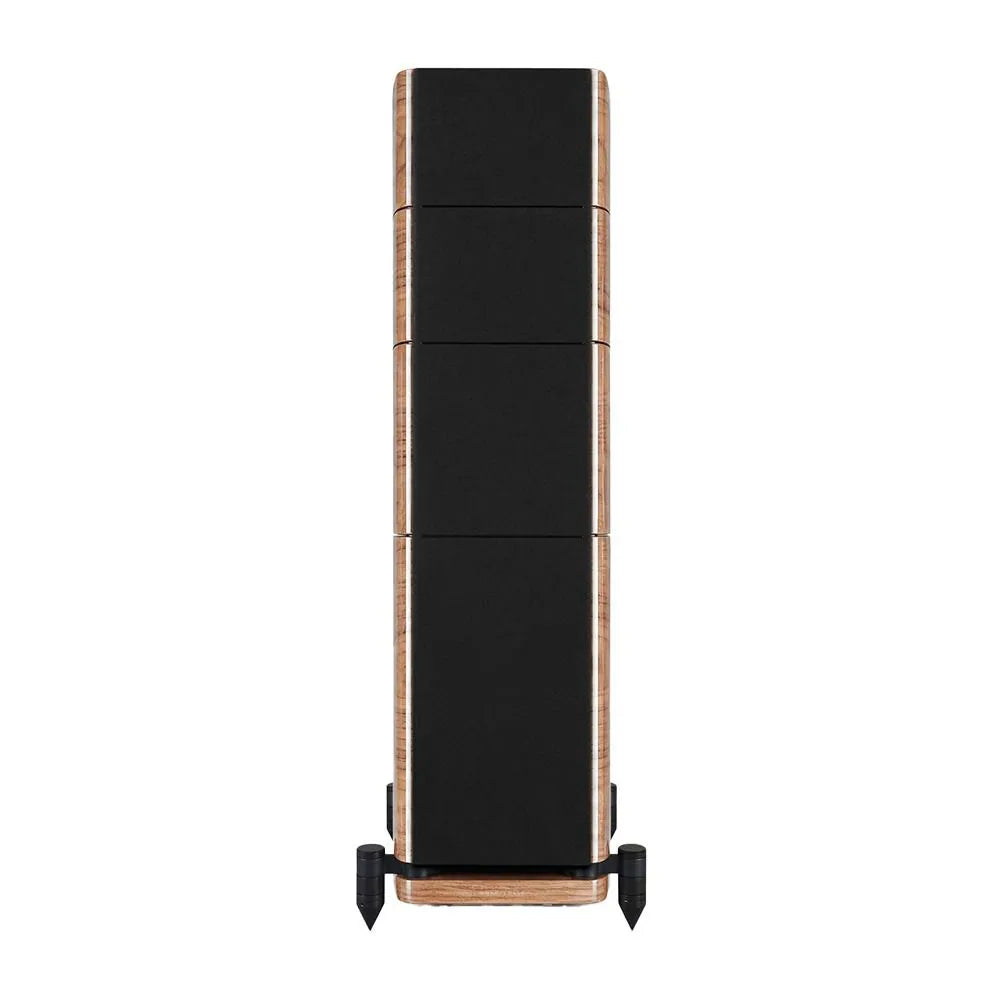

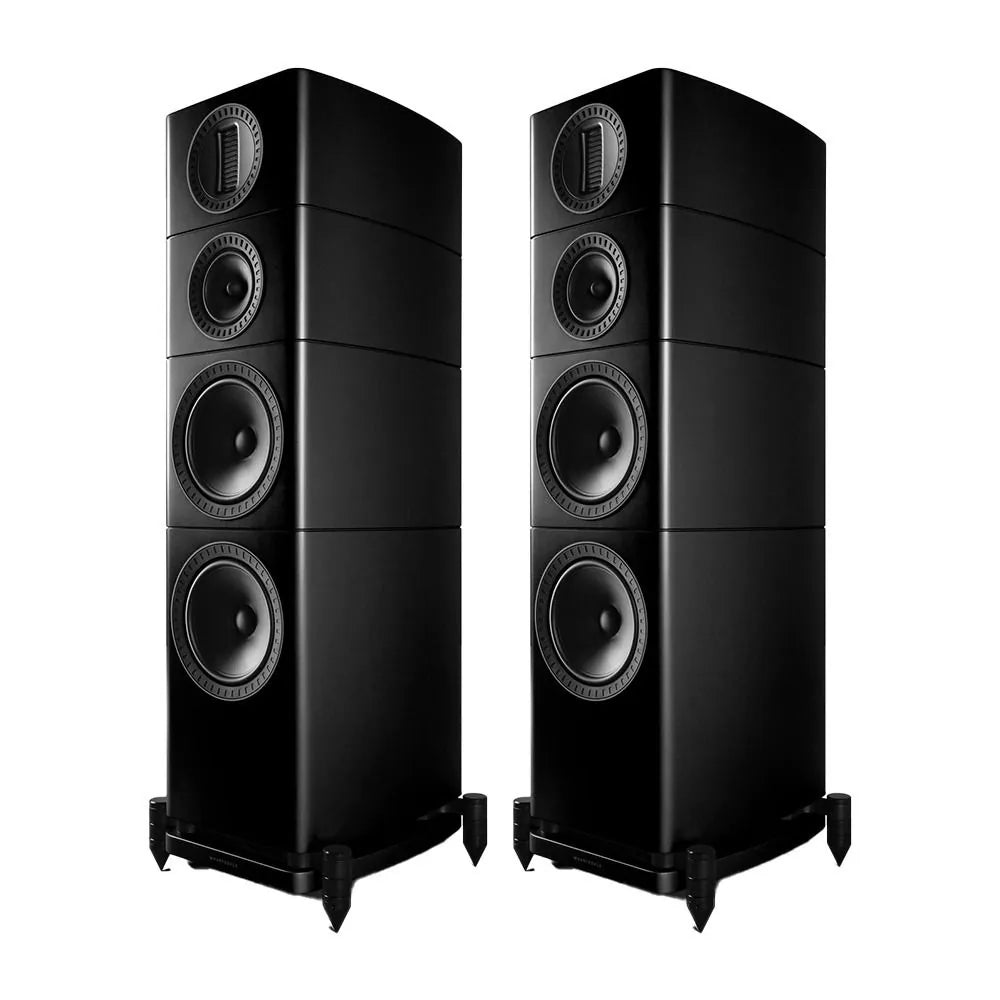

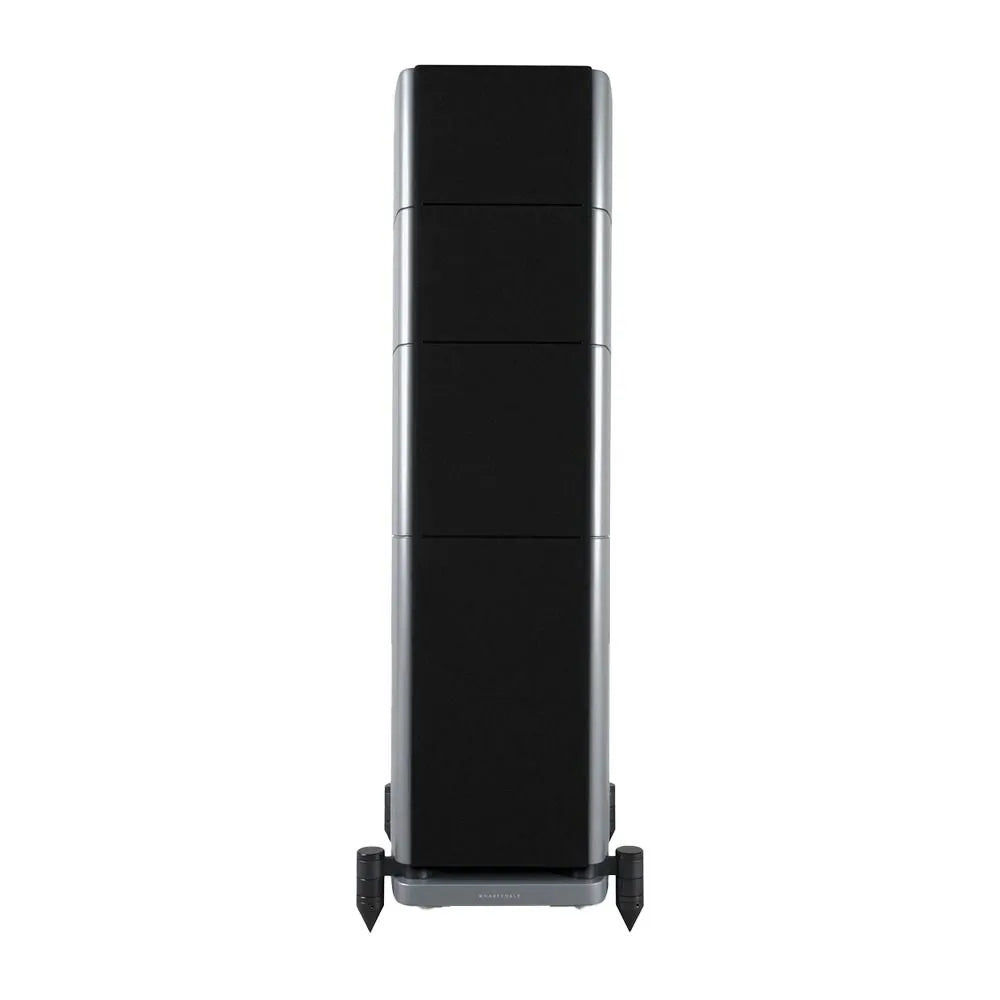

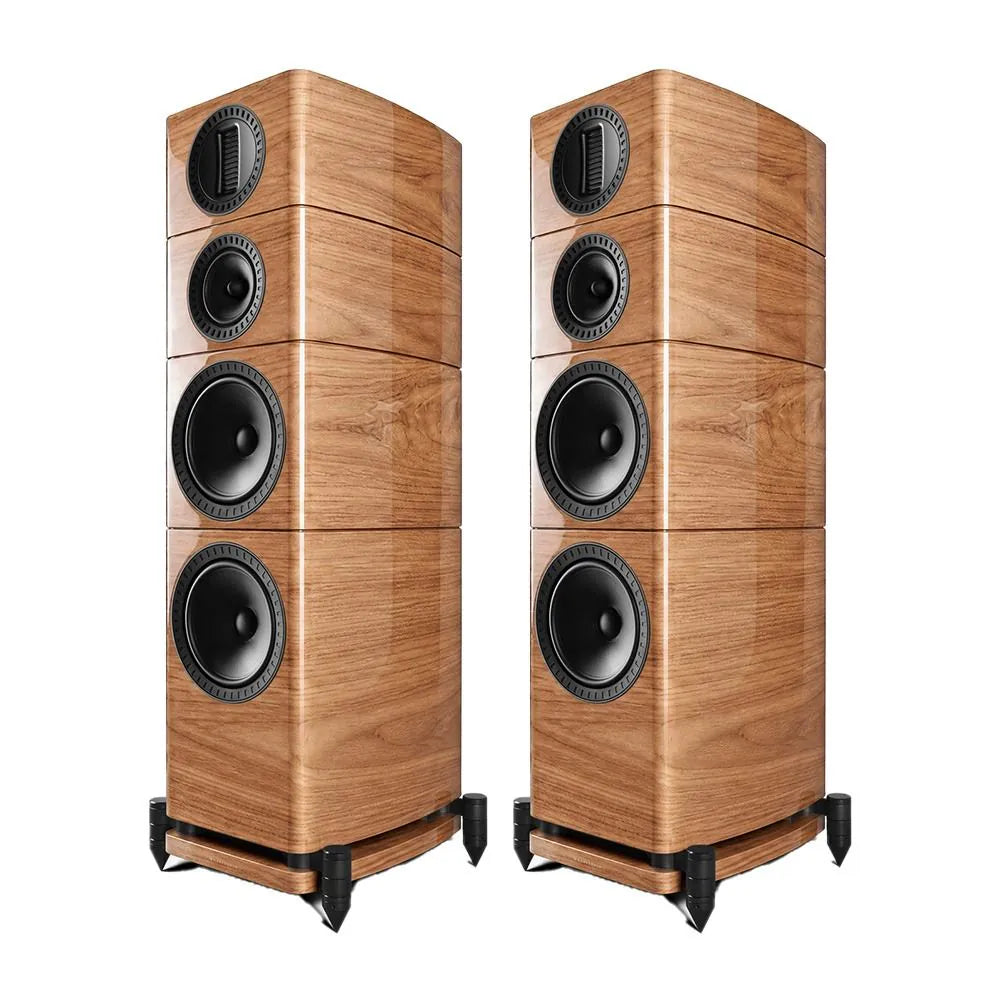

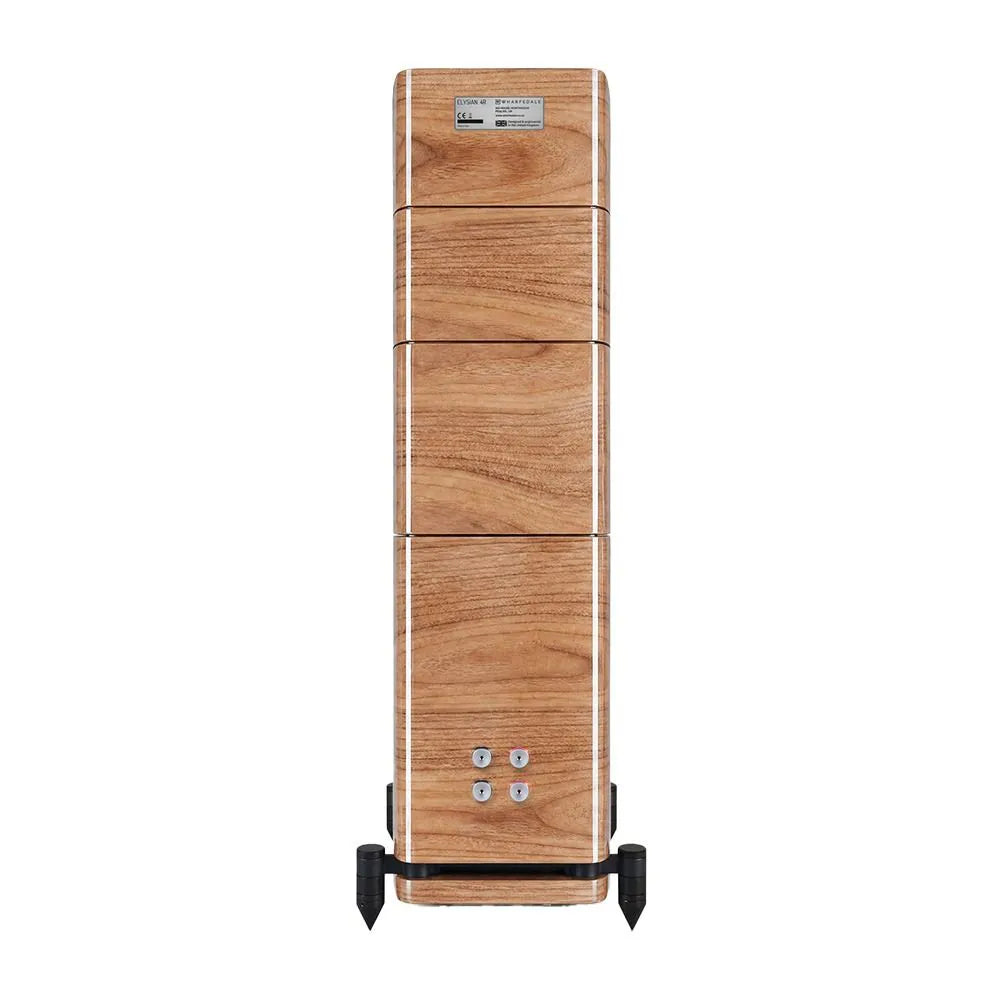

- Flagship Cabinet Finishes & Trim Detailing: Heavyweight multi-layer cabinet offered in Walnut High Gloss, Matte Black, and Lunar Grey, complemented by refined matte-black metal trim detailing.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Category | Flagship Reference 3-Way Floorstanding Loudspeaker |
| Brand / Series | Wharfedale — ELYSIAN Series |
| Model Designation | ELYSIAN 4R |
| Enclosure Type | Bass Reflex (Slot-Loaded Profiled Port - SLPP) |
| High-Frequency Driver | 27 x 90 mm Air Motion Transformer (AMT) |
| Midrange Transducer | 6" (150mm) Coated Glass-Fibre Matrix Cone |
| Low-Frequency Drivers | 2x 8.5" (220mm) Coated Glass-Fibre Matrix Cones |
| Frequency Response (±3dB) | 30 Hz – 22,000 Hz |
| Bass Extension (-6dB) | 24 Hz |
| Sensitivity (2.83V @ 1m) | 92 dB |
| Nominal Impedance | 4 Ω (Compatible with 8 Ω Outputs; Minimum 3.2 Ω) |
| Recommended Amplifier Power | 15 W – 250 W RMS |
| Peak Sound Pressure Level (SPL) | 110 dB |
| Crossover Frequencies | 340 Hz / 3.1 kHz |
| Internal Cabinet Volumes | 38.0 Litres / 79.4 Litres |
| Dimensions (H x W x D) | 1188 x 402 x (432 + 30) mm (Height on Plinth; Includes Terminals & Feet) |
| Net Weight | 49.5 kg per Speaker |
| Available Finishes | Walnut High Gloss / Matte Black / Lunar Grey (with Matte-Black Trim Details) |
