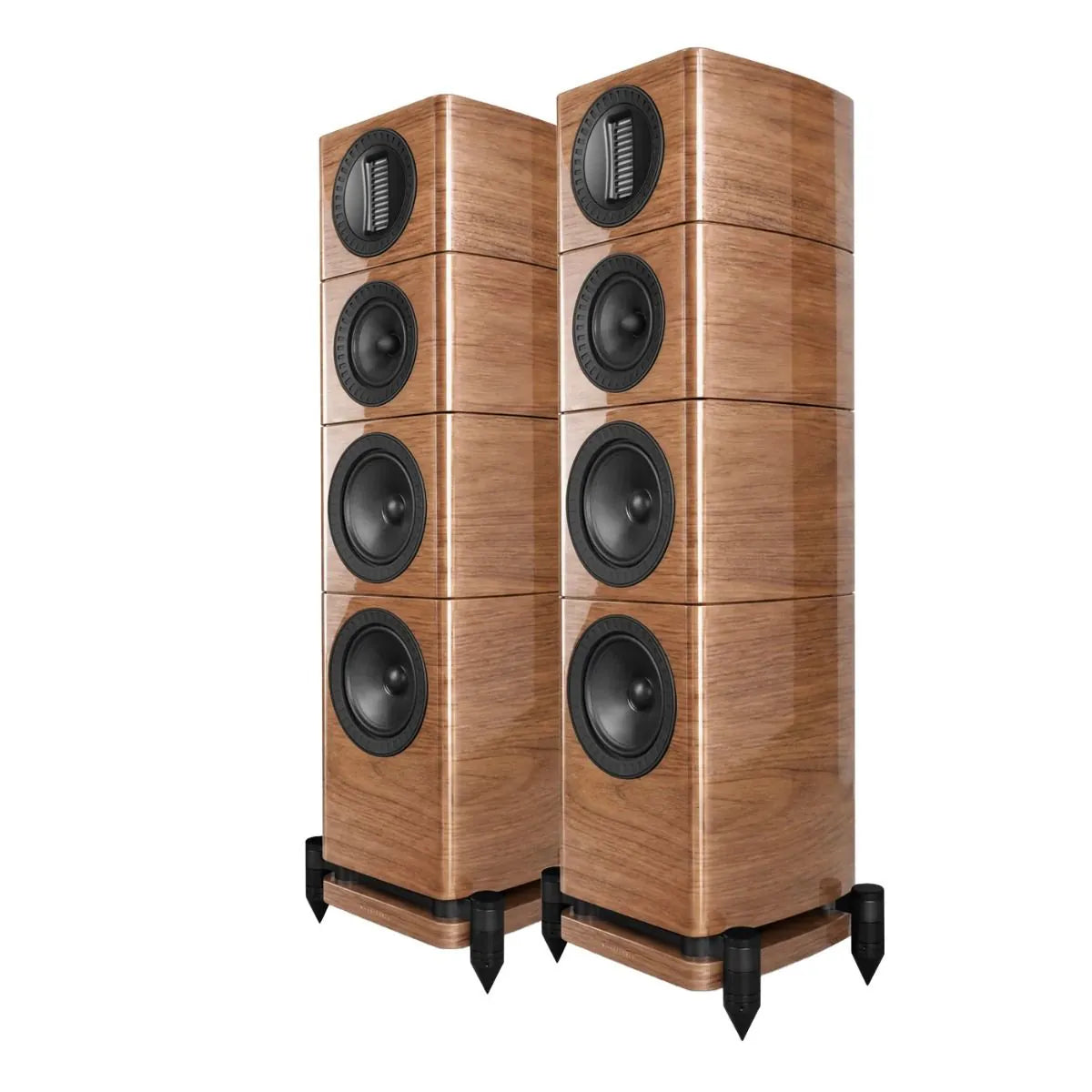

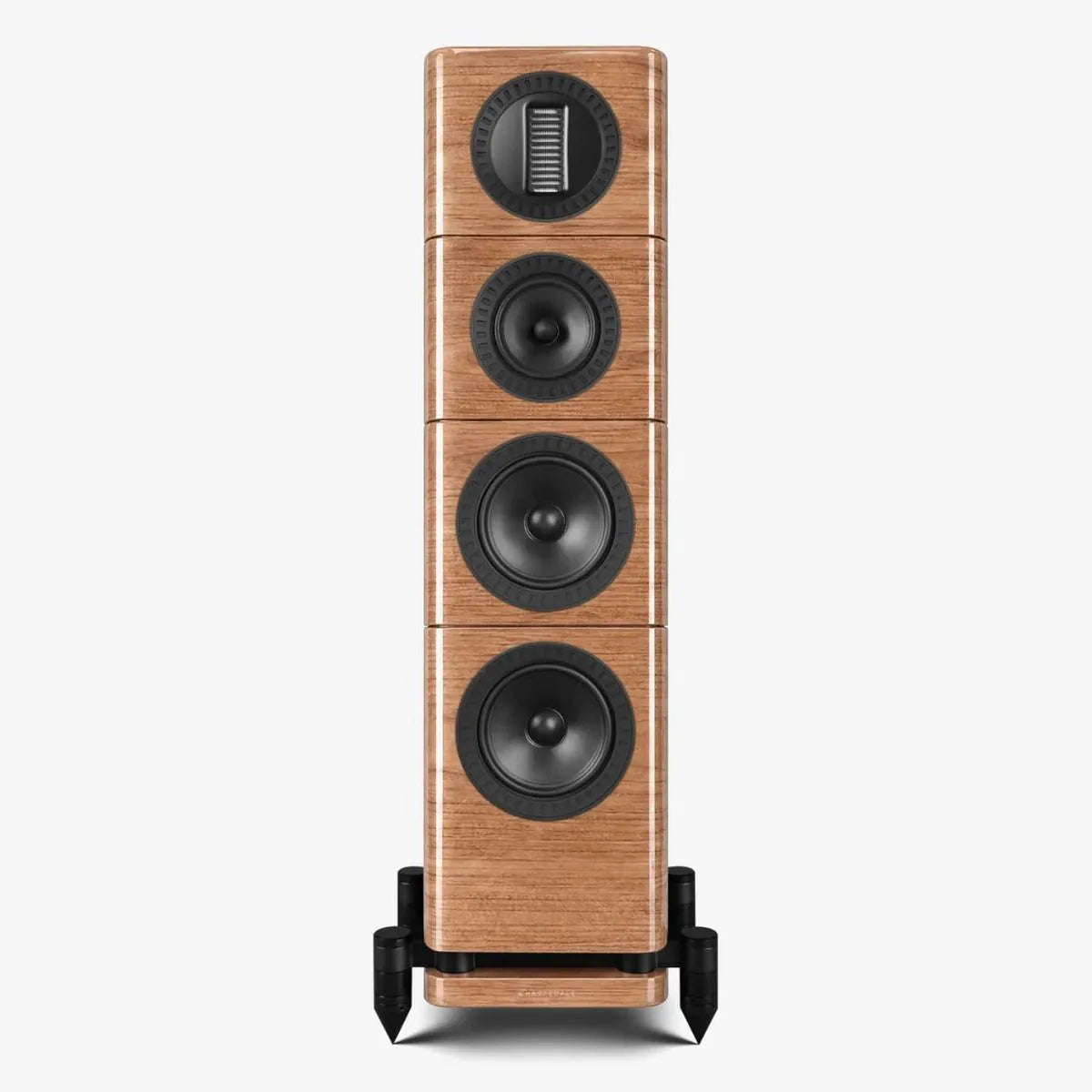

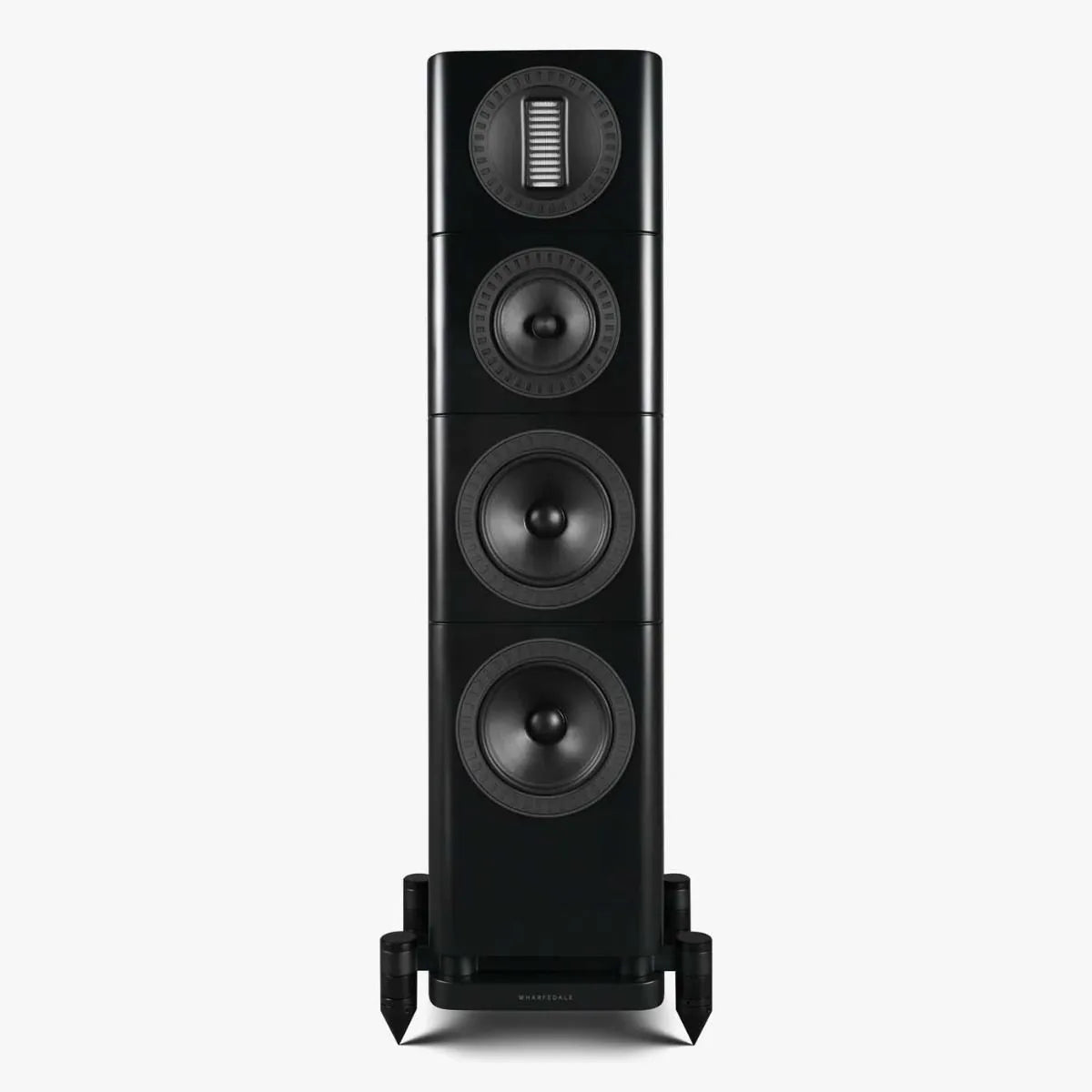

The Wharfedale ELYSIAN 3R is a reference four-driver, three-way floorstanding loudspeaker designed to deliver the scale, resolution, and dynamics of flagship floorstanders in a room-friendly cabinet profile. Positioned within Wharfedale's flagship range, the ELYSIAN 3R incorporates a custom 27 x 90mm Air Motion Transformer (AMT) high-frequency driver, a dedicated 150mm (6") coated glass-fibre matrix midrange unit, and dual 180mm (7") coated glass-fibre matrix bass drivers.
Reaching down to 32 Hz (-6dB), low-frequency tuning is managed by Wharfedale's Slot-Loaded Profiled Port (SLPP) bass system, which directs internal cabinet pressure downward through a profiled slot in the integrated plinth to equalise pressure and simplify placement near walls. Utilizing Generation R crossover refinements with high-silicon-iron-cored coils, air-core inductors, and direct-path circuit board layouts, the ELYSIAN 3R delivers effortless dynamic headroom, articulate low end, and transparent soundstaging.
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- Three-Way, Four-Driver Floorstanding Configuration: Dedicated driver complement featuring dual 7" bass drivers, a 6" midrange transducer, and an AMT tweeter to maximize power handling and minimize intermodulation distortion.
- Dual 180mm Coated Glass-Fibre Bass Units: Twin 7" glass-fibre matrix cones deliver fast, deep, and impact-driven low frequencies with low coloration.
- Dedicated 150mm Midrange Transducer: Isolated 6" coated glass-fibre matrix driver optimized for natural vocal expression and instrument texture.
- 27 x 90mm Air Motion Transformer (AMT): Lightweight pleated diaphragm moves air efficiently, delivering smooth, detailed high frequencies with low distortion.
- Generation R Crossover Engineering: Incorporates high-silicon-iron-cored coils for deep bass, air-core inductors for mid/treble, Super Audiophile polypropylene capacitors, and low-inductance resistors.
- Slot-Loaded Profiled Port (SLPP) System: Downward-firing profiled port vents cabinet air energy into the plinth gap, equalising pressure for clean bass integration across various room layouts.

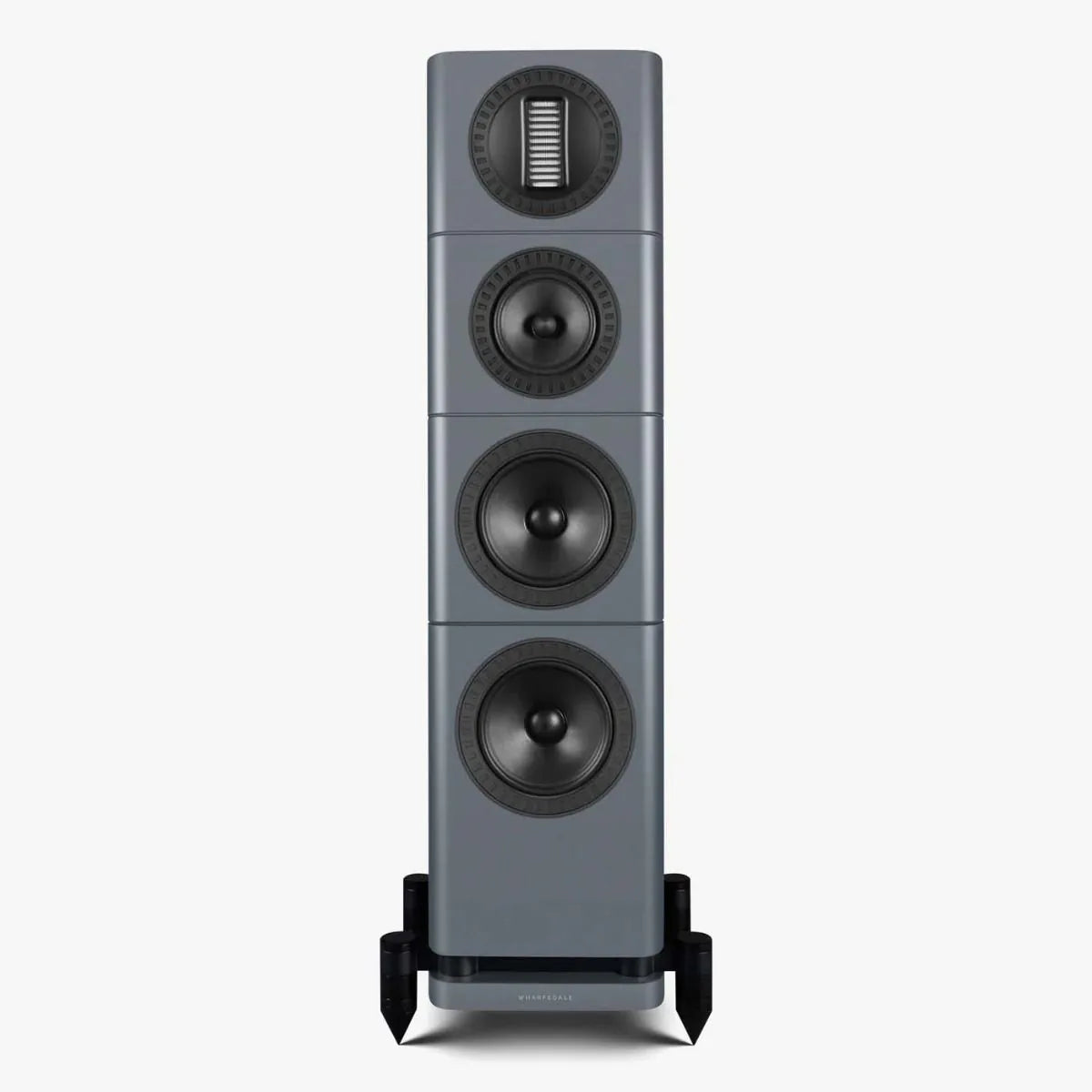

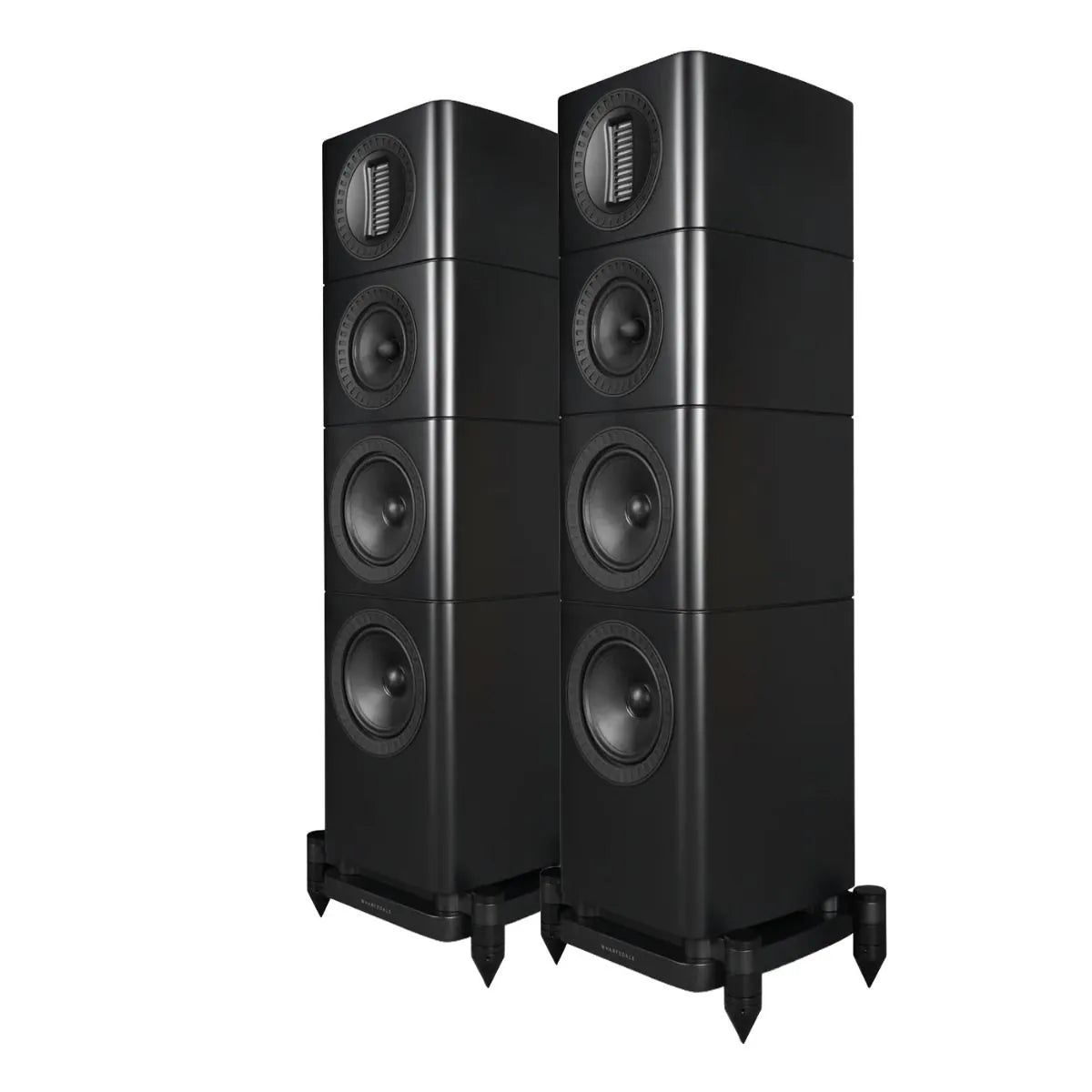

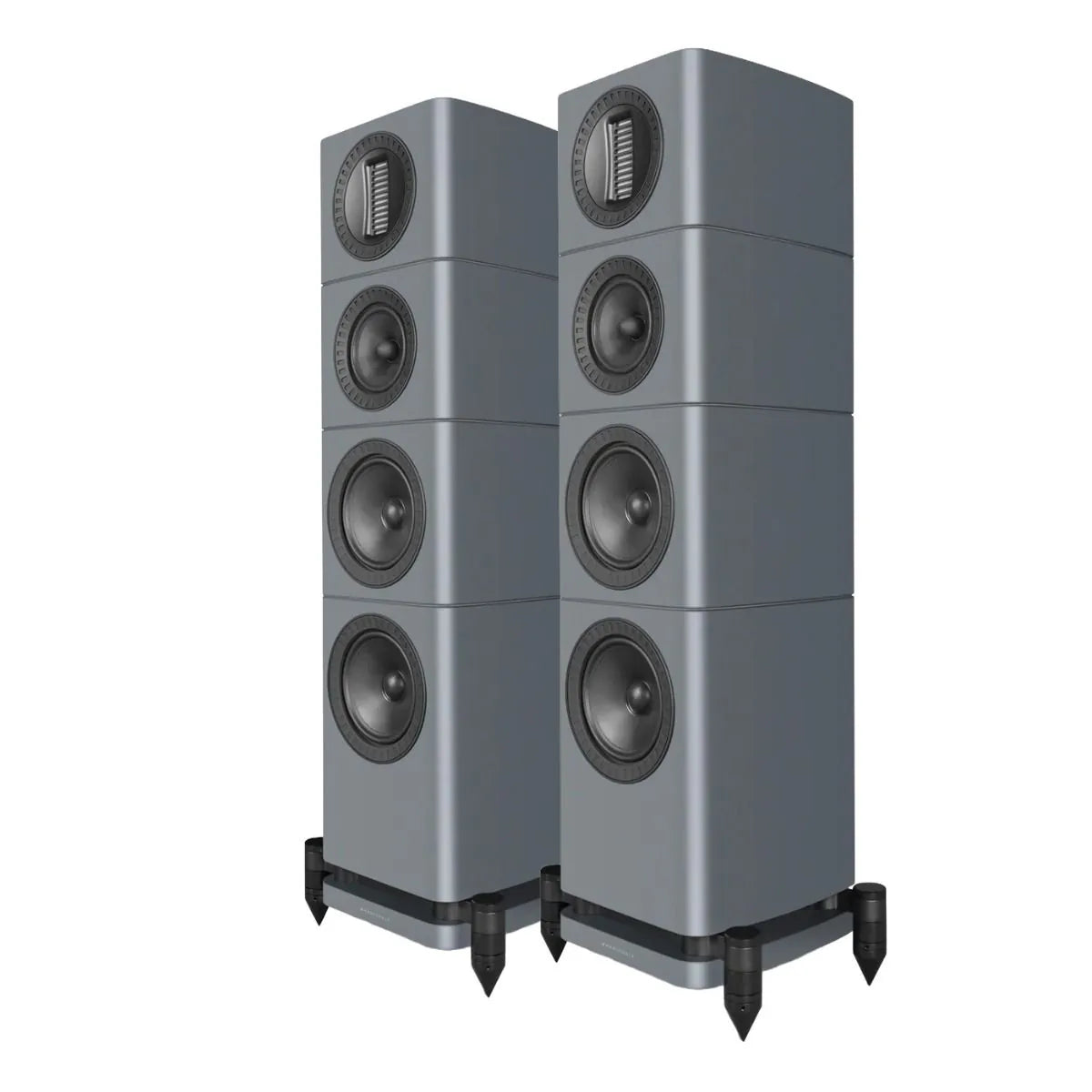

- Updated ELYSIAN R Finish Language: Multi-layer cabinet available in Walnut High Gloss, Matte Black, and Lunar Grey, accented by stylish matte-black trim details.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Category | Reference 3-Way Floorstanding Loudspeaker |
| Brand / Series | Wharfedale — ELYSIAN Series |
| Model Designation | ELYSIAN 3R |
| Enclosure Type | Bass Reflex (Slot-Loaded Profiled Port - SLPP) |
| High-Frequency Driver | 27 x 90 mm Air Motion Transformer (AMT) |
| Midrange Transducer | 6" (150mm) Coated Glass-Fibre Matrix Cone |
| Low-Frequency Drivers | 2x 7" (180mm) Coated Glass-Fibre Matrix Cones |
| Frequency Response (±3dB) | 44 Hz – 22,000 Hz |
| Bass Extension (-6dB) | 32 Hz |
| Sensitivity (2.83V @ 1m) | 89 dB |
| Nominal Impedance | 4 Ω (Compatible with 8 Ω Outputs; Minimum 3.5 Ω) |
| Recommended Amplifier Power | 30 W – 250 W RMS |
| Peak Sound Pressure Level (SPL) | 108 dB |
| Crossover Frequencies | 340 Hz / 2.3 kHz |
| Internal Cabinet Volumes | 12.0 Litres / 60.0 Litres |
| Dimensions (H x W x D) | 1050 x 263 x (285 + 30) mm (Height on Plinth; Includes Terminals & Feet) |
| Net Weight | 37.7 kg per Speaker |
| Available Finishes | Walnut High Gloss / Matte Black / Lunar Grey (with Matte-Black Trim Details) |
