Product Overview & Specifications

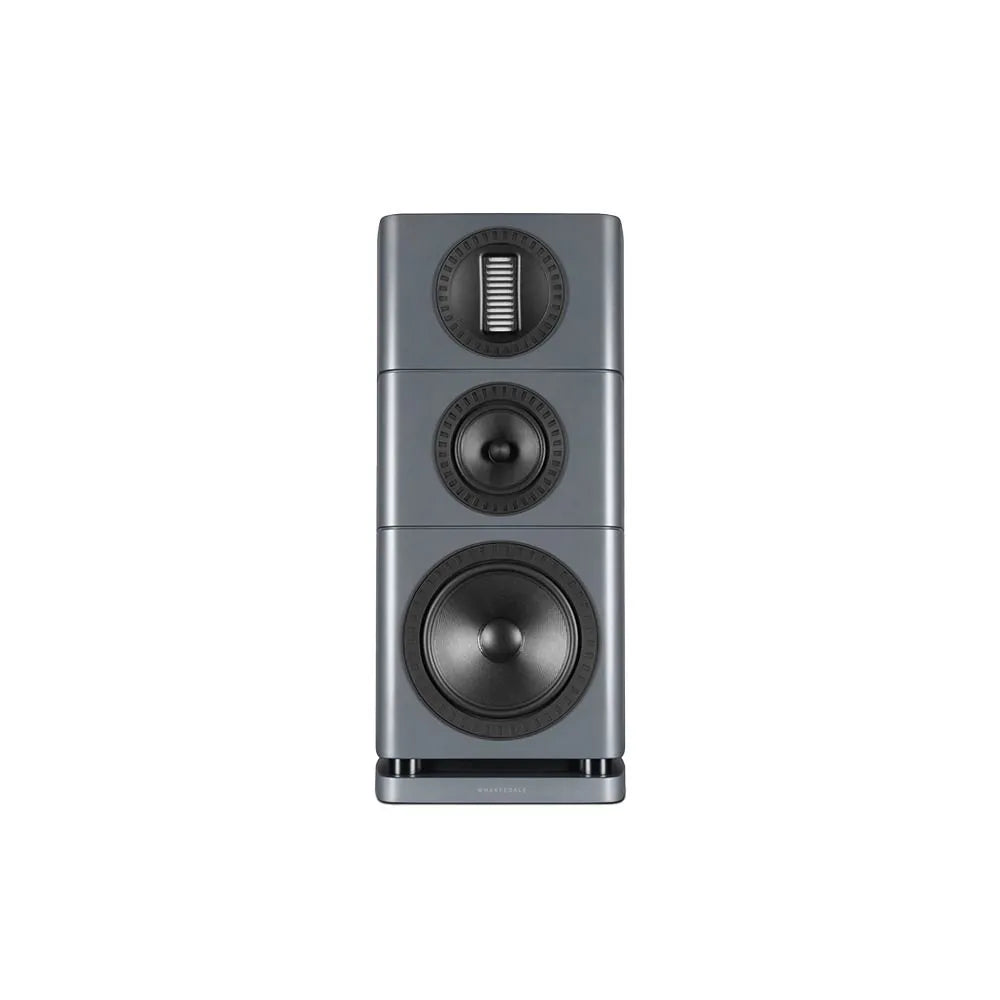

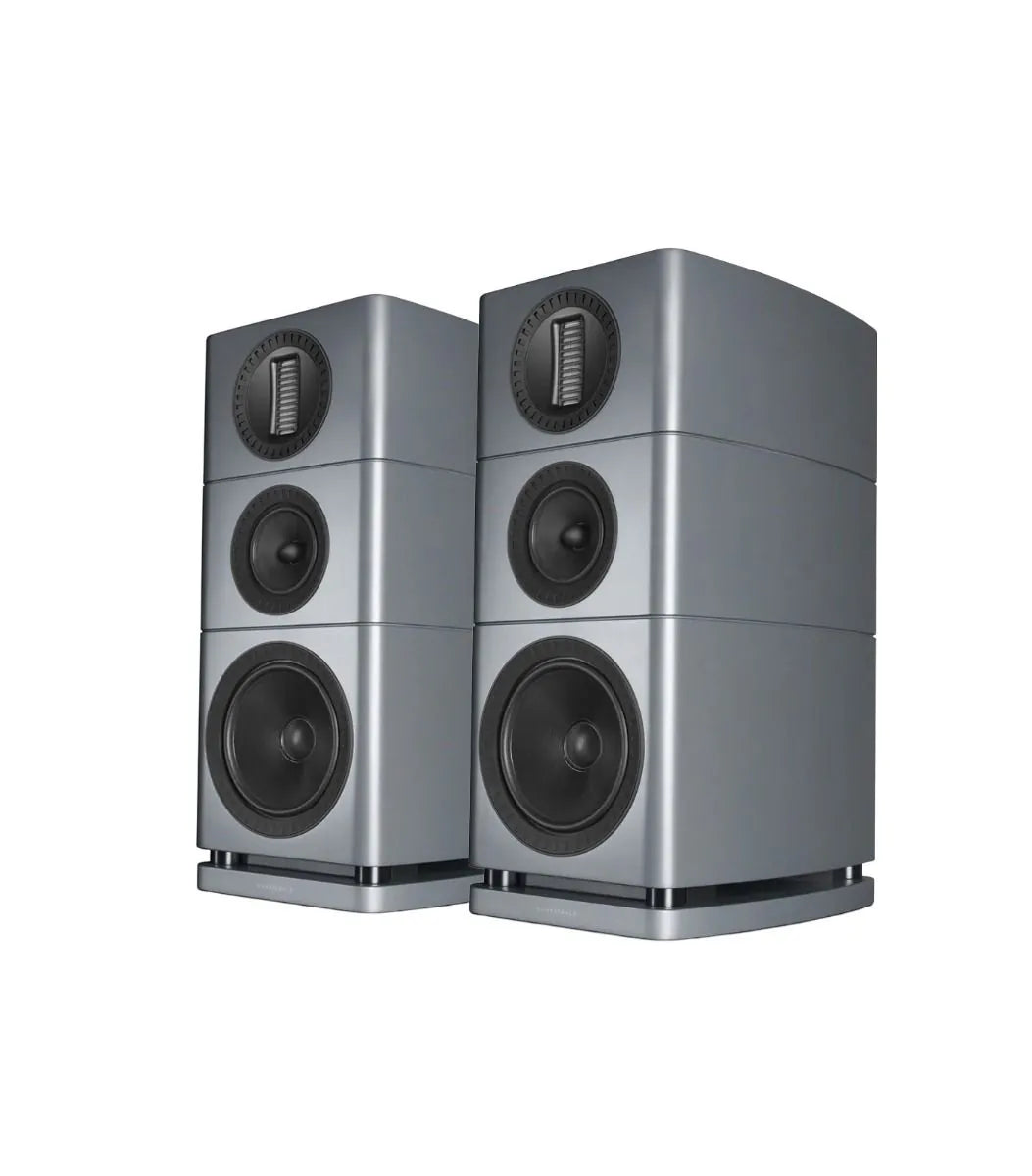

The Wharfedale ELYSIAN 2R is a reference three-way standmount loudspeaker designed to offer the scale, authority, and resolution of a larger floorstanding speaker within a standmount format. Occupying a distinctive position in Wharfedale's flagship range, the ELYSIAN 2R incorporates dedicated drivers for each section of the frequency spectrum: a 27 x 90mm Air Motion Transformer (AMT) high-frequency driver, a 150mm (6") coated glass-fibre matrix midrange driver, and an 8.5" (220mm) coated glass-fibre matrix bass transducer.
Low-frequency extension down to 28 Hz (-6dB) is facilitated by Wharfedale's Slot-Loaded Profiled Port (SLPP) bass management system, which vents internal cabinet pressure downward through a profiled plinth slot to simplify placement near room boundaries. Featuring Generation R crossover refinements with high-silicon-iron-cored coils, air-core inductors, and direct-path circuit board layouts, the ELYSIAN 2R delivers wide dynamic bandwidth, articulate bass control, and transparent vocal focus for high-end stereo playback.
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- True Three-Way Standmount Architecture: Dedicated drive units for low, mid, and high frequencies enable each driver to operate within its optimal linear band with minimal intermodulation distortion.
- 8.5" Coated Glass-Fibre Matrix Bass Driver: Large-diameter 220mm bass unit delivering depth, low end authority, and controlled transient response.
- Dedicated 6" Midrange Transducer: Isolated 150mm coated glass-fibre matrix driver dedicated to vocal texture, instruments, and midrange clarity.
- 27 x 90mm Air Motion Transformer (AMT): Pleated diaphragm moving air efficiently to provide high-frequency detail retrieval with low distortion and wide dispersion.
- Generation R Crossover Refinement: Features high-silicon-iron-cored coils for deep bass, air-core inductors for mid/treble, Super Audiophile polypropylene capacitors, and low-inductance resistors on direct-path PCBs.
- Slot-Loaded Profiled Port (SLPP) System: Downward-firing profiled port equalises internal air pressure into the plinth gap to minimise air turbulence and placement sensitivity.

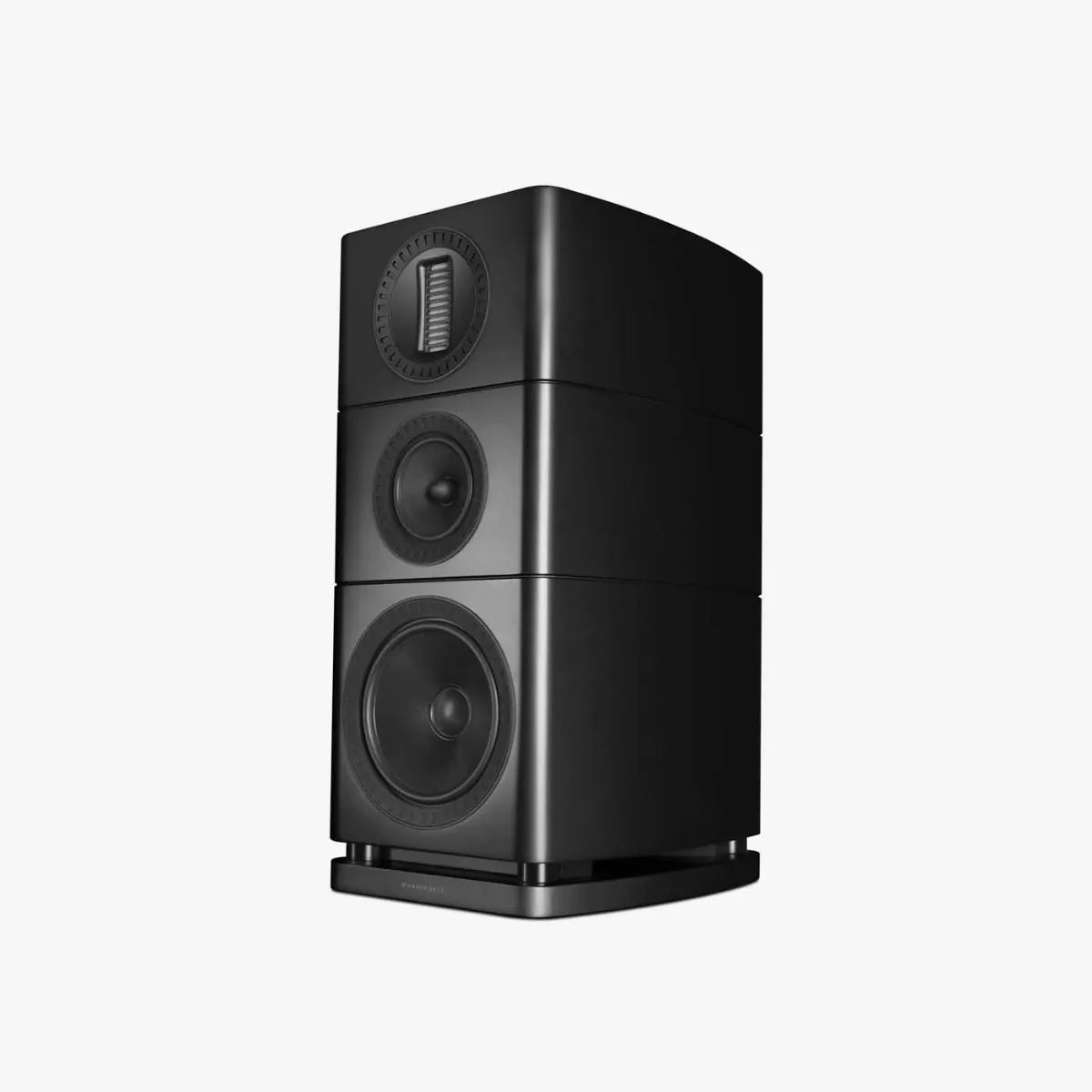

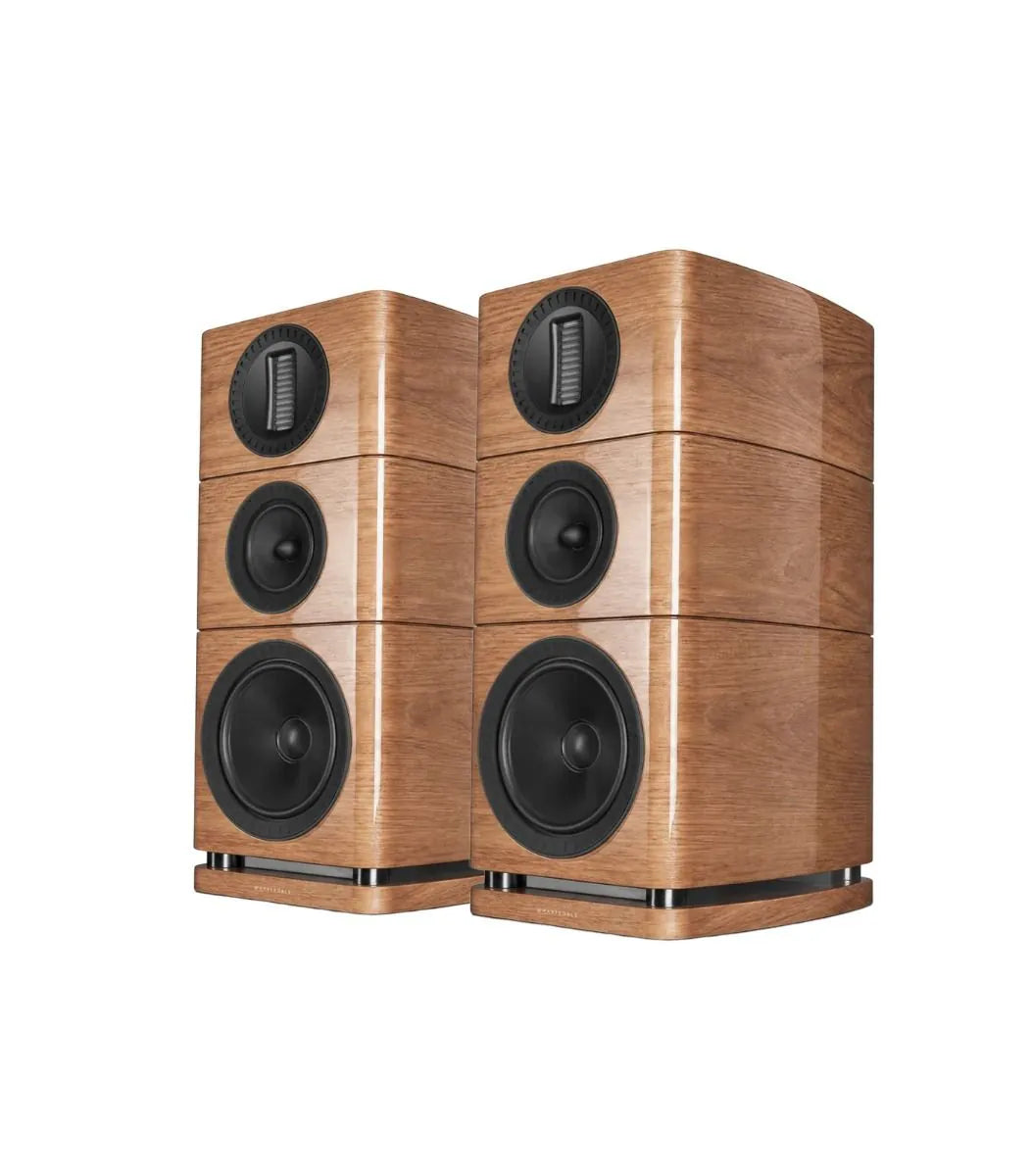

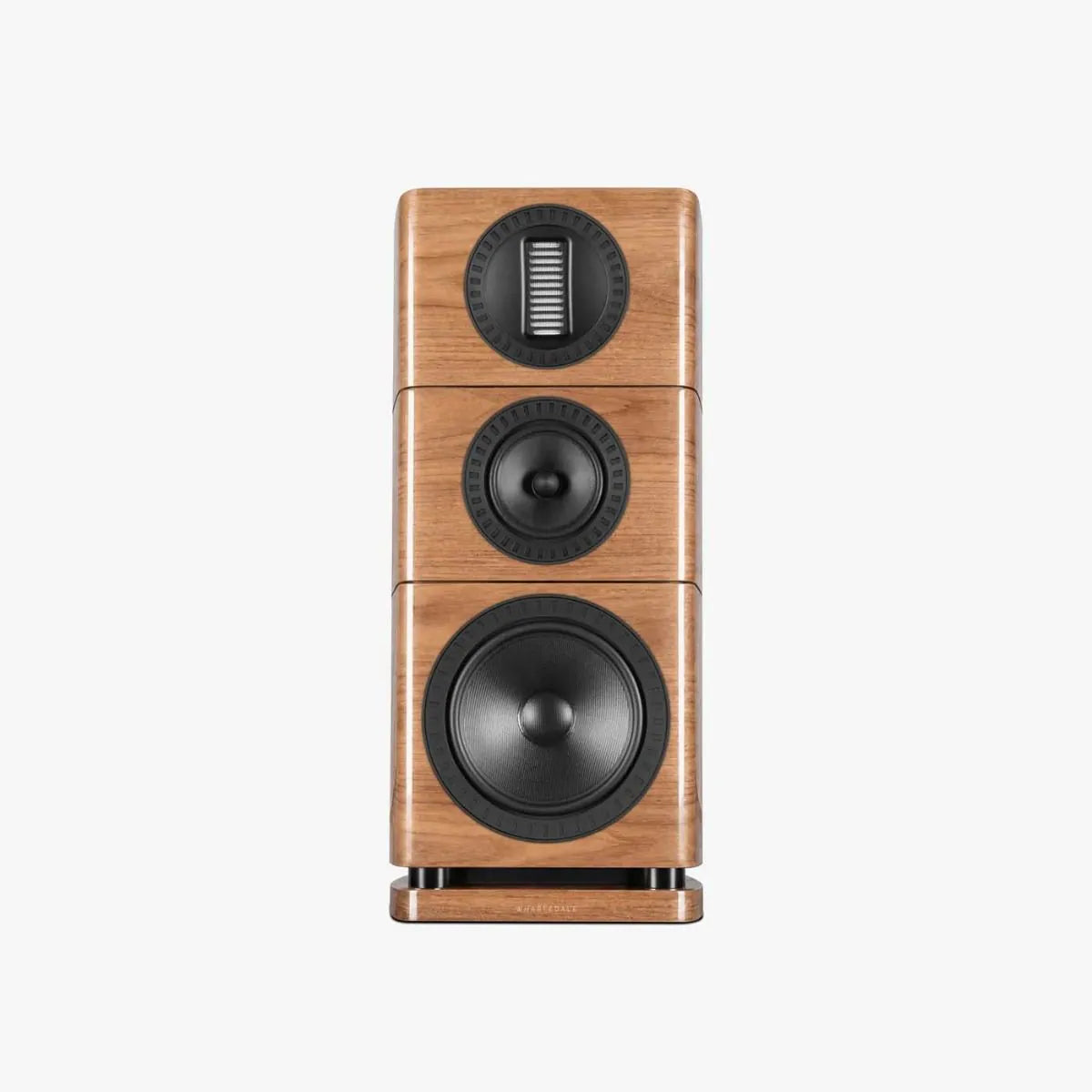

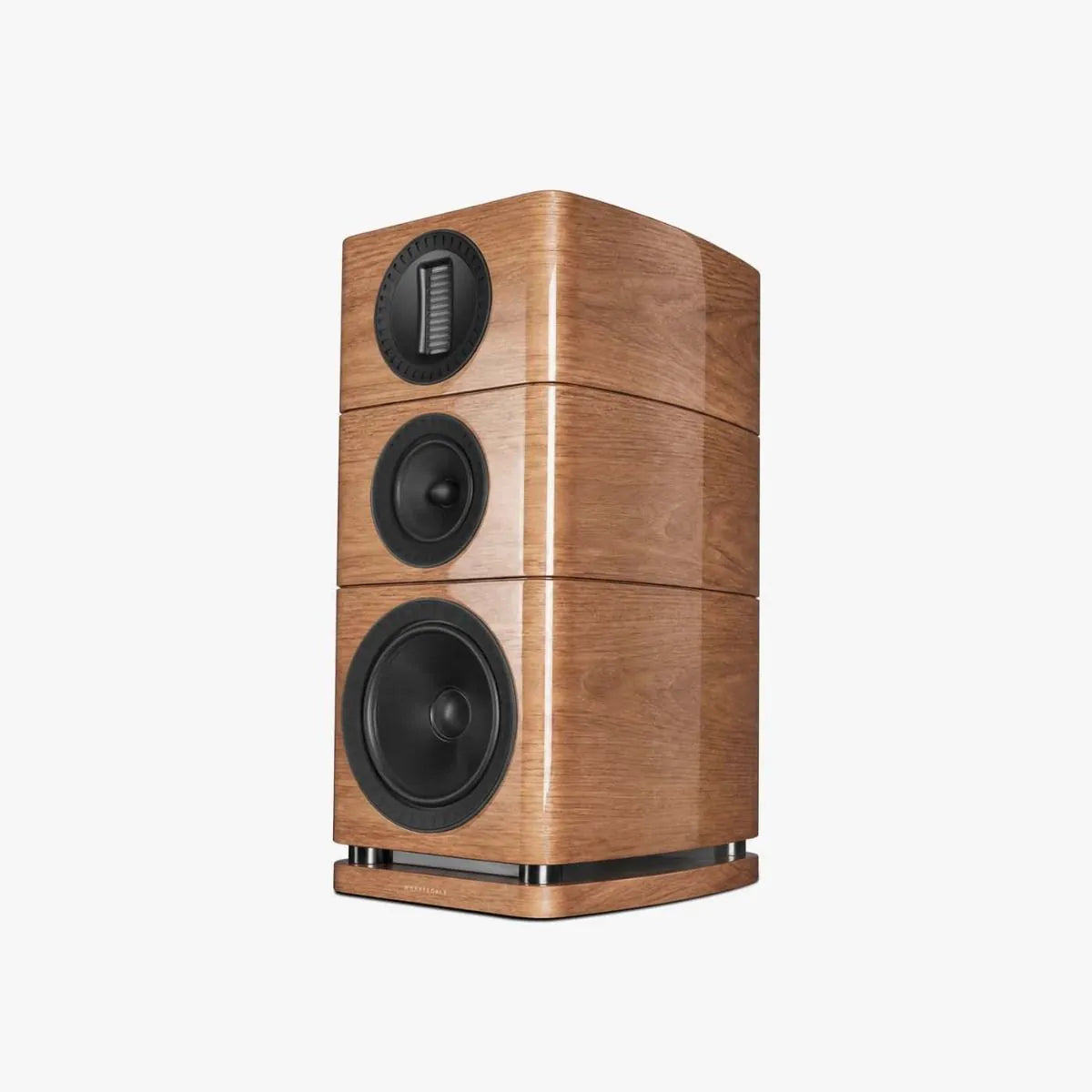

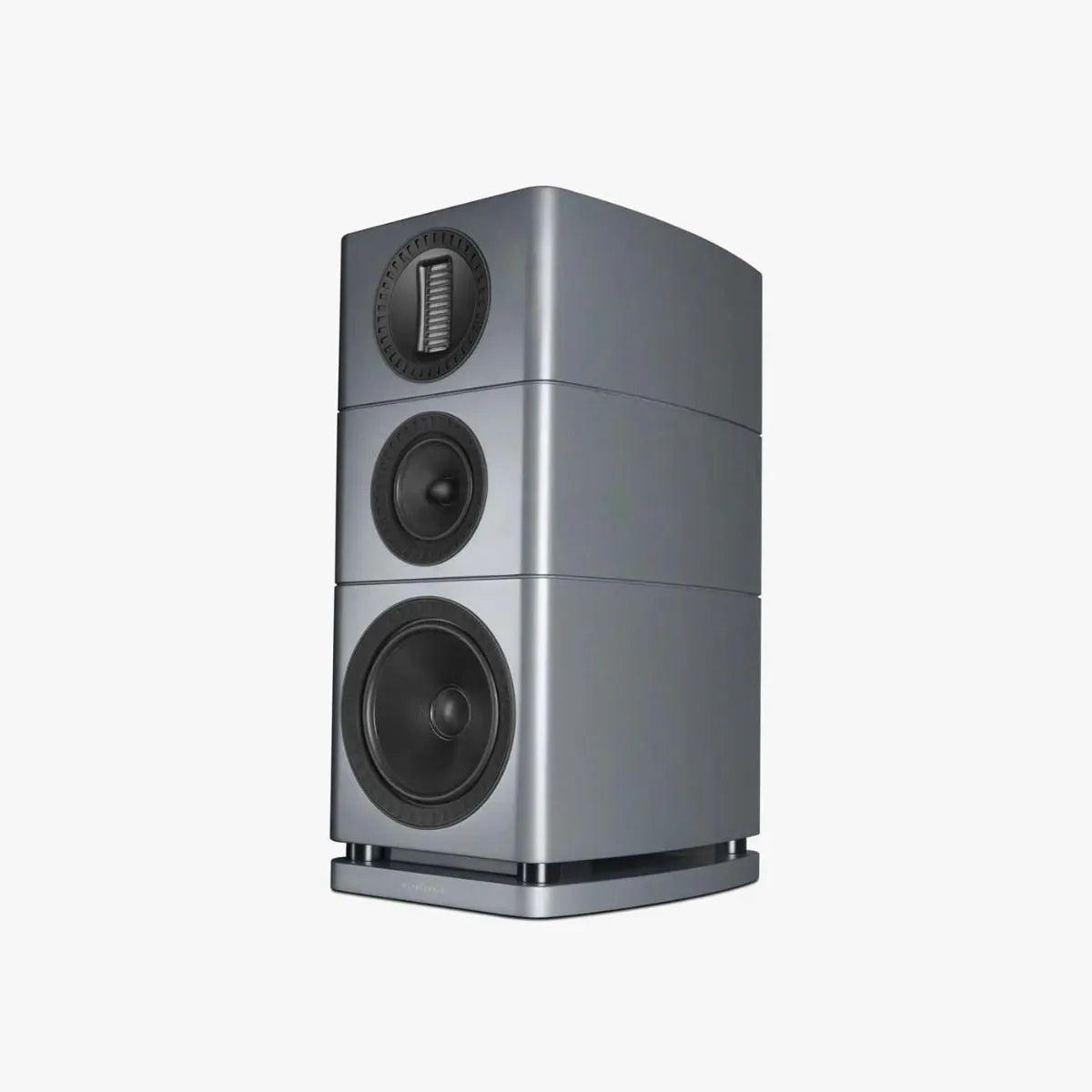

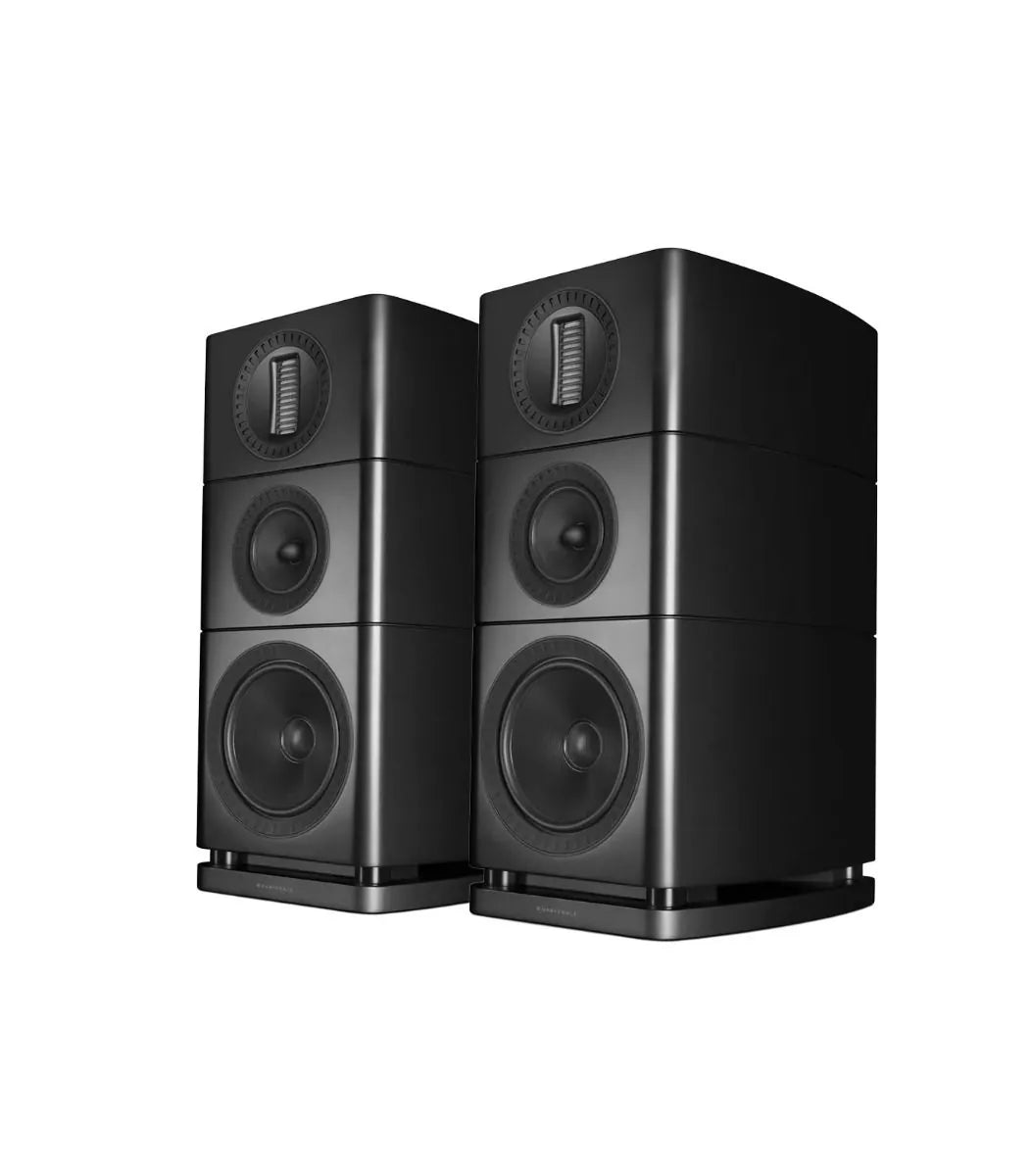

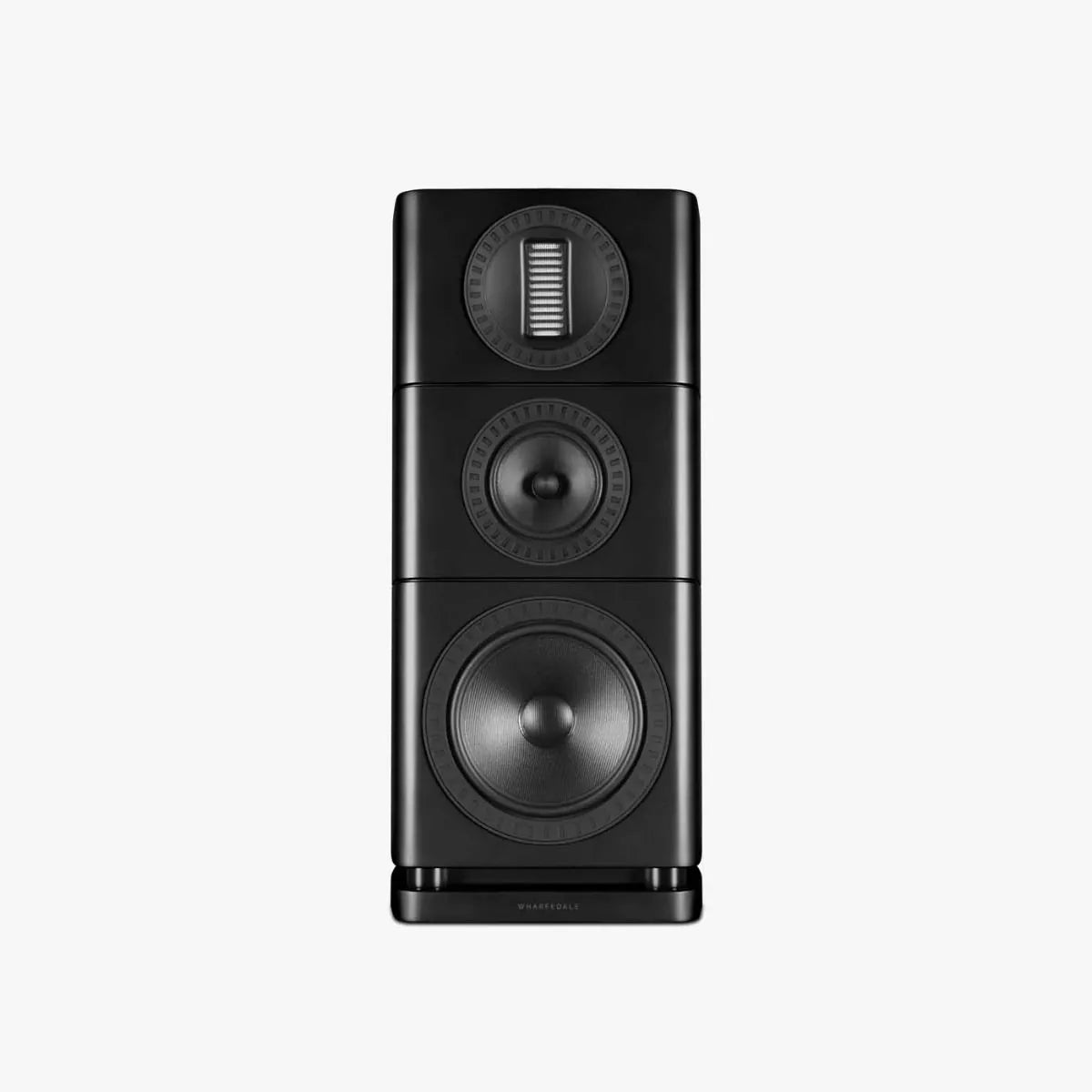

- Luxury Cabinet Finishes & Matching Stands: Available in Walnut High Gloss, Matte Black, and Lunar Grey with refined matte-black trim details, engineered to pair with dedicated high-carbon steel floor stands.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Category | Reference 3-Way Standmount Loudspeaker |
| Brand / Series | Wharfedale — ELYSIAN Series |
| Model Designation | ELYSIAN 2R |
| Enclosure Type | Bass Reflex (Slot-Loaded Profiled Port - SLPP) |
| High-Frequency Driver | 27 x 90 mm Air Motion Transformer (AMT) |
| Midrange Transducer | 6" (150mm) Coated Glass-Fibre Matrix Cone |
| Low-Frequency Driver | 8.5" (220mm) Coated Glass-Fibre Matrix Cone |
| Frequency Response (±3dB) | 35 Hz – 22,000 Hz |
| Bass Extension (-6dB) | 28 Hz |
| Sensitivity (2.83V @ 1m) | 89 dB |
| Nominal Impedance | 4 Ω (Compatible with 8 Ω Outputs; Minimum 3.6 Ω) |
| Recommended Amplifier Power | 25 W – 250 W RMS |
| Peak Sound Pressure Level (SPL) | 109 dB |
| Crossover Frequencies | 360 Hz / 2.9 kHz |
| Internal Cabinet Volumes | 17.5 Litres / 43.6 Litres |
| Dimensions (H x W x D) | 700 x 334 x (432 + 30) mm (Height on Plinth; Includes Terminals) |
| Net Weight | 30.5 kg per Speaker |
| Available Finishes | Walnut High Gloss / Matte Black / Lunar Grey |
