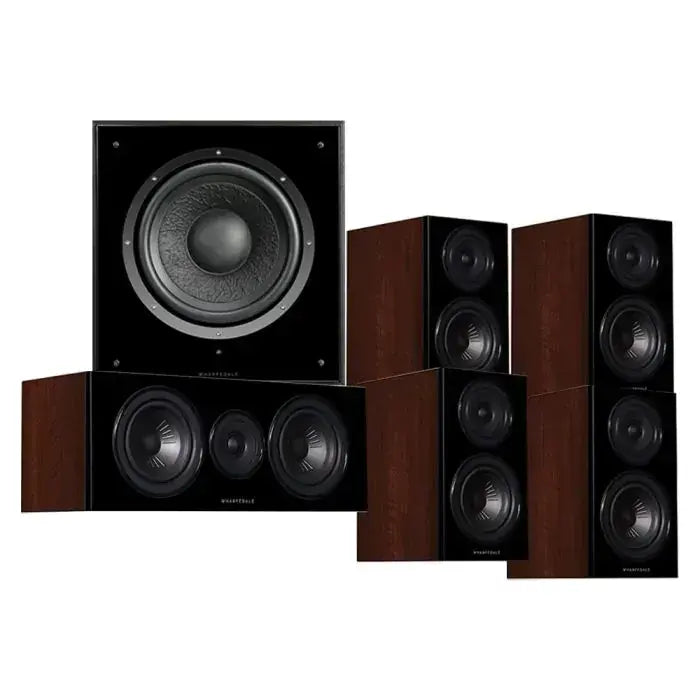

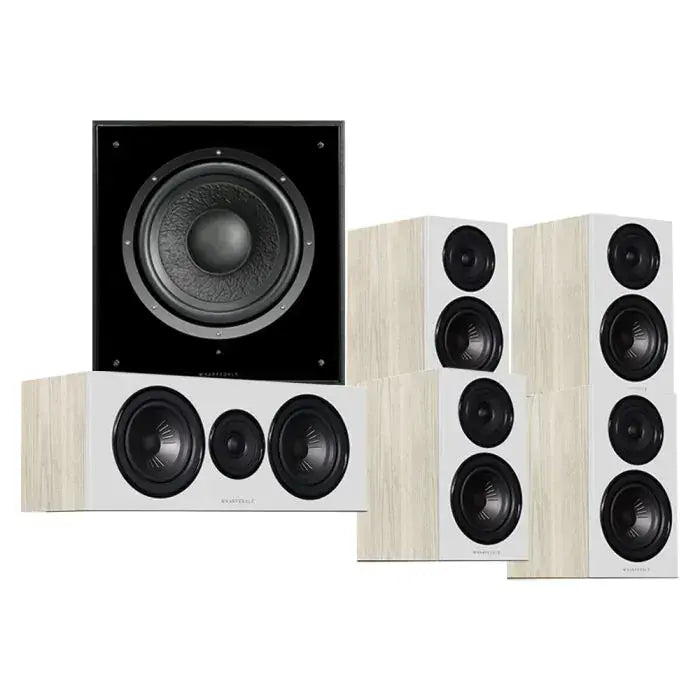

Wharfedale Diamond 12.1 5.1 AV Home Cinema Pack
Frequently Bought Together
Product Overview & Specifications
Wharfedale Diamond 12.1 HCP
Diamond 12.1 Bookshelf Speakers
The true all-rounder, the Wharfedale Diamond 12.1 is a traditional standmount (or bookshelf) speaker that embodies the history and performance values of the Wharfedale Diamond series.
The perfect affordable hi-fi speaker, the Diamond 12.1 offers the best of both worlds - compact size with power and detail.
Perfect for 2-channel hi-fi systems, thanks to its intricate performance but also compact and capable for immersive home theatre, the Diamond 12.1 is designed and certified to perform, regardless of room size and application.
The DIAMOND 12.1 features a high-performance 130mm (5) KlarityTM driver for exceptional timing and refined bass. The superb 25mm (1) woven polyester dome tweeter delivers open and smoothly extended high frequencies.
Diamond 12.C Centre Speaker
The Diamond 12.C brings cinema-quality vocal tangibility and depth to the Wharfedale Diamond 12 series home theatre system.
Designed as the centrepiece and perfect complement for the Diamond 12 series standmount (bookshelf) and floorstander models, the Diamond 12.C is compact, accurate and powerful.
Using dual 130mm (5) KlarityTM drivers for accurate, refined mid-range and bass frequencies, while the 25mm (1) dome tweeter delivers open and smoothly extended high frequencies opening up detail and depth for movies, sports and music.
SW-10 Subwoofer*
The SW series of subwoofers offer a level of performance previously unheard of in their class. Revolutionary drive units, amplifier modules and filter stages feature on every model.
They strike the perfect balance between power and sound quality, offering remarkable sound pressure levels, yet retaining enough control to be considered audiophile in quality.
The centre vents are copper lined to reduce the magnetic distortion and improve the heat dissipation.
Still utilising the solid, well-engineered power amplifiers the SW subwoofers are optimised for high impact at low frequencies and are ideal for movies or music.
*SW-10 only available in Black Wood or White Sandex finishes.
Diamond 12.1 Bookshelf Speakers | |
|---|---|
| General description | 2-way bookshelf speaker |
| Enclosure type | bass reflex |
| Transducer complement | 2-way |
| Bass driver | 5"(130mm) advanced PP Cone |
| Treble driver | 1"(25mm) Textile Dome |
| AV shield | No |
| Sensitivity (2.83V @ 1m) | 88dB |
| Recommended amplifier power | 20-100W |
| Peak SPL | 96dB |
| Nominal impedance | 8 Compatible |
| Minimum impedance | 4.0 |
| Frequency response (+/-3dB) | 65Hz ~ 20kHz |
| Bass extension (-6dB) | 60Hz |
| Crossover frequency | 2.6kHz |
| Cabinet Volume (in litres) | 8.2L |
| Dimensions ( H x W x D ) | 312 x 180mm x (250+28) mm |
| Net weight | 6.8kg/pcs |
Diamond 12.C Centre Speaker | |
| General description | 2-way centre speaker |
| Enclosure type | closed-box system |
| Bass driver | 5"(130mm) advanced PP Cone x2 |
| Treble driver | 1"(25mm) Textile Dome |
| AV shield | No |
| Sensitivity (2.83V @ 1m) | 90dB |
| Recommended amplifier power | 20-120W |
| Peak SPL | 96dB |
| Nominal impedance | 8 Compatible |
| Minimum impedance | 4.0 |
| Frequency response (+/-3dB) | 90Hz ~ 20kHz |
| Bass extension (-6dB) | 80Hz |
| Crossover frequency | 2.2kHz |
| Cabinet Volume (in litres) | 8.7L |
| Dimensions ( H x W x D ) | 180 x 480 x (180+28) mm |
| Net weight | 8.5kg/pcs |
SW-10 Subwoofer | |
| Drive Units | 1 x (10") 250mm cone long-throw |
| Frequency Response | 40-120Hz ±3dB |
| Amplifier Power Output | 200W |
| Peak Power Output | 350W |
| Line Input Sensitivity | 200mv for maximum output |
| Crossover Range | 30-150Hz |
| Inputs | Stereo Line In (2x RCA Phono) |
| Input Impedance | Line Input 10k |
| Signal-to-noise ratio (S/N) | 85dB |
| Avg. Max Output @1m | 110dB |
| Features | Phase inversion, Auto on-off |
| Dimensions | Height: (358+58)mm(with feet) |
| Net Weight | 15kg |
