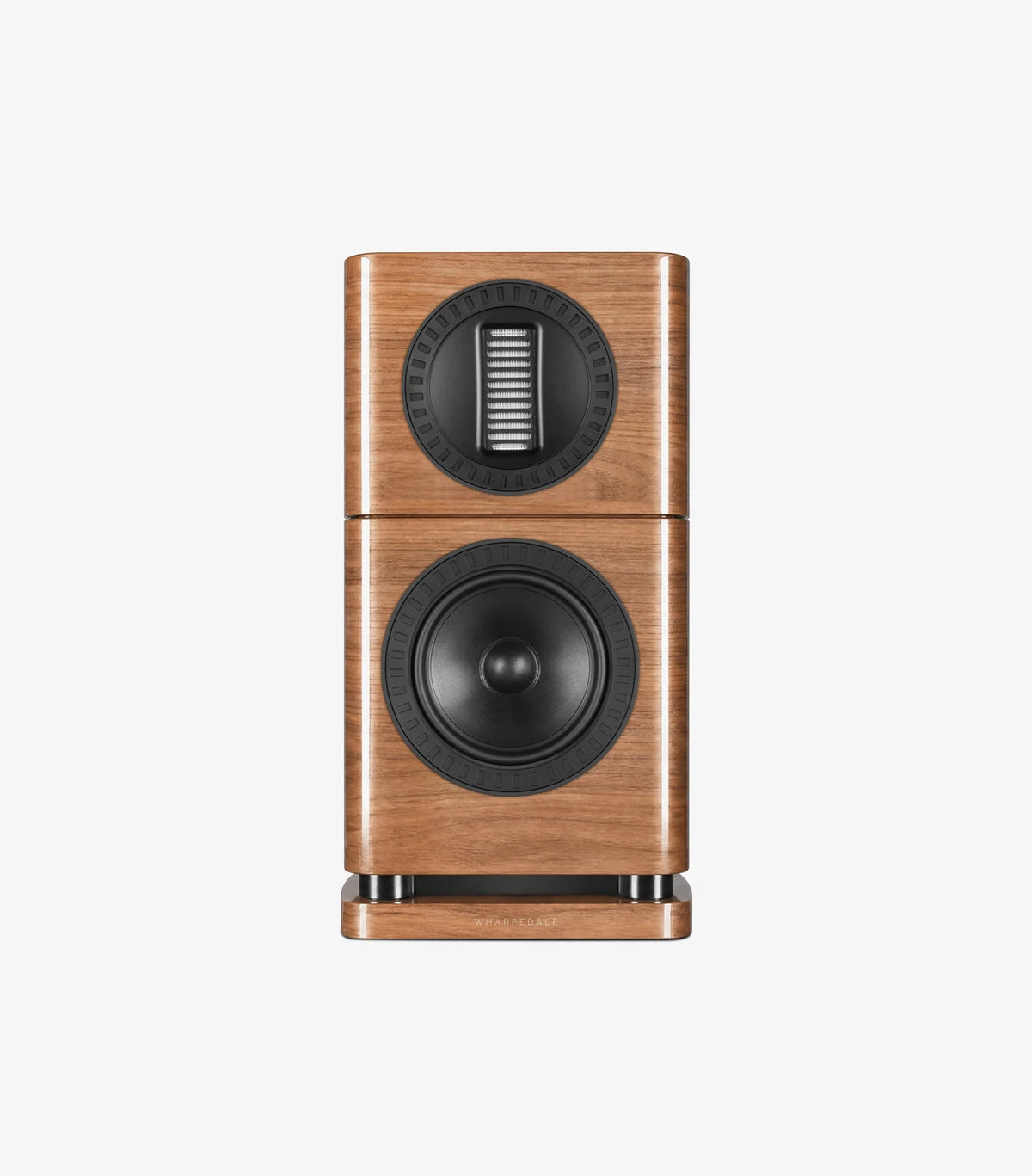

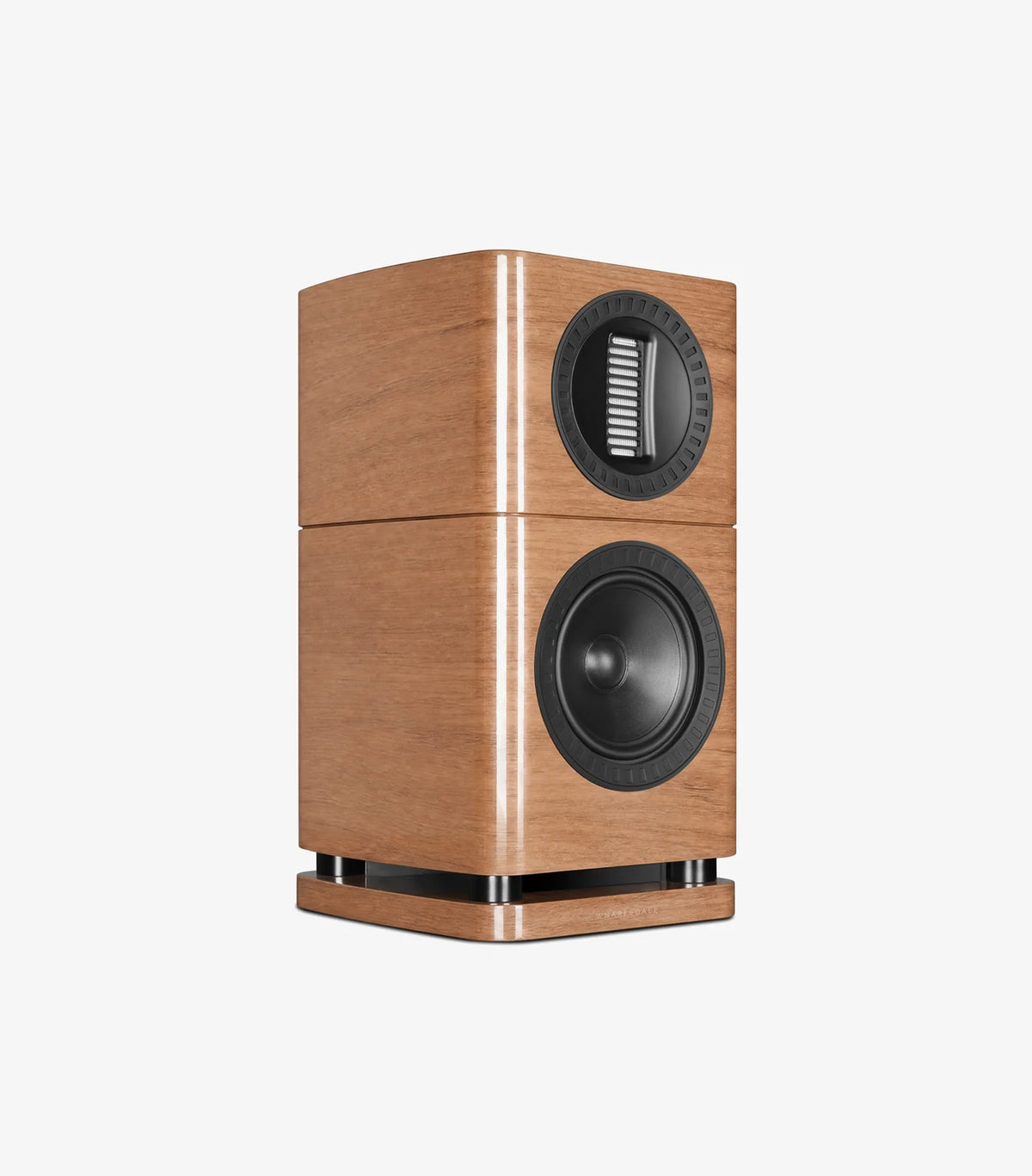

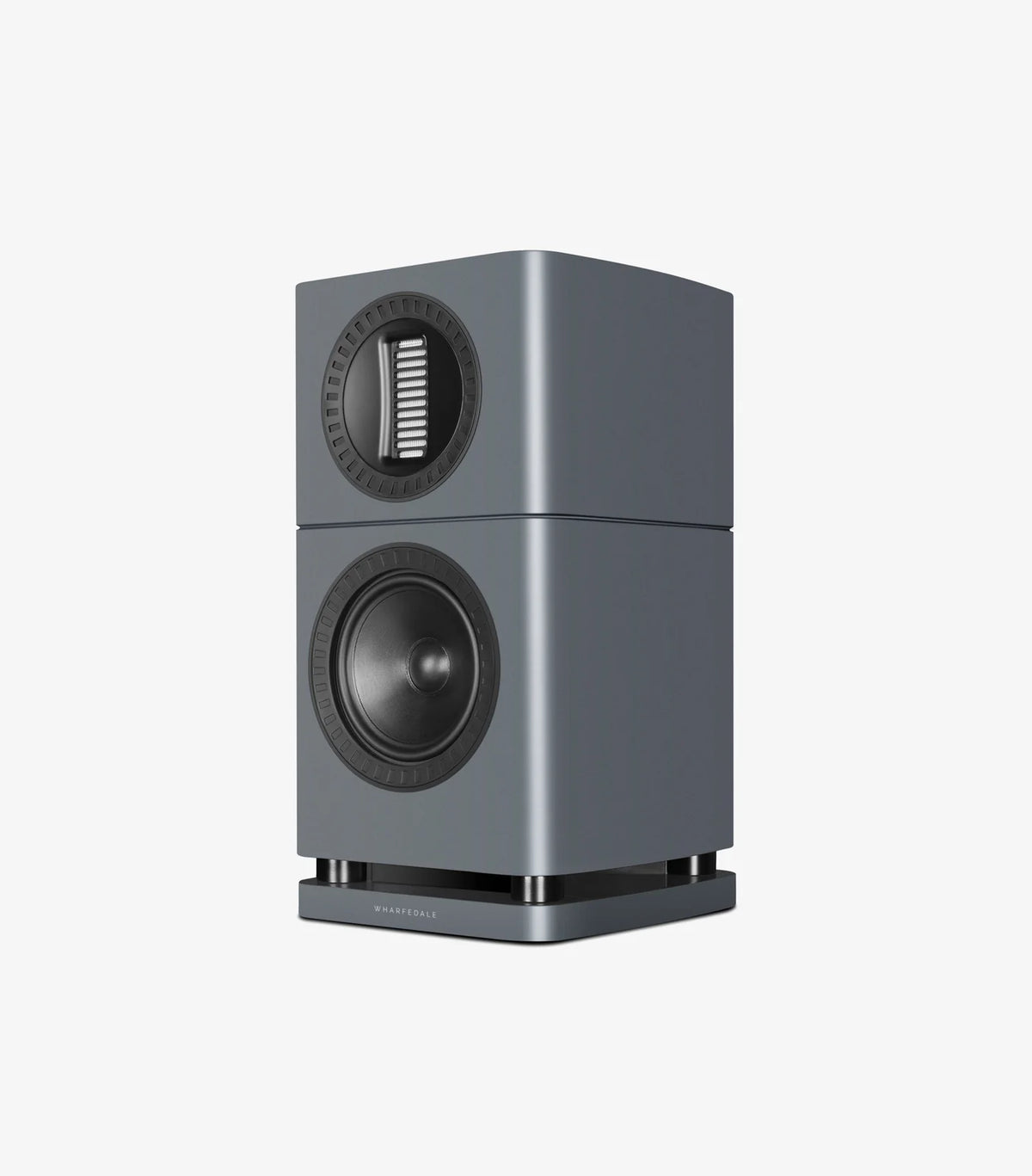

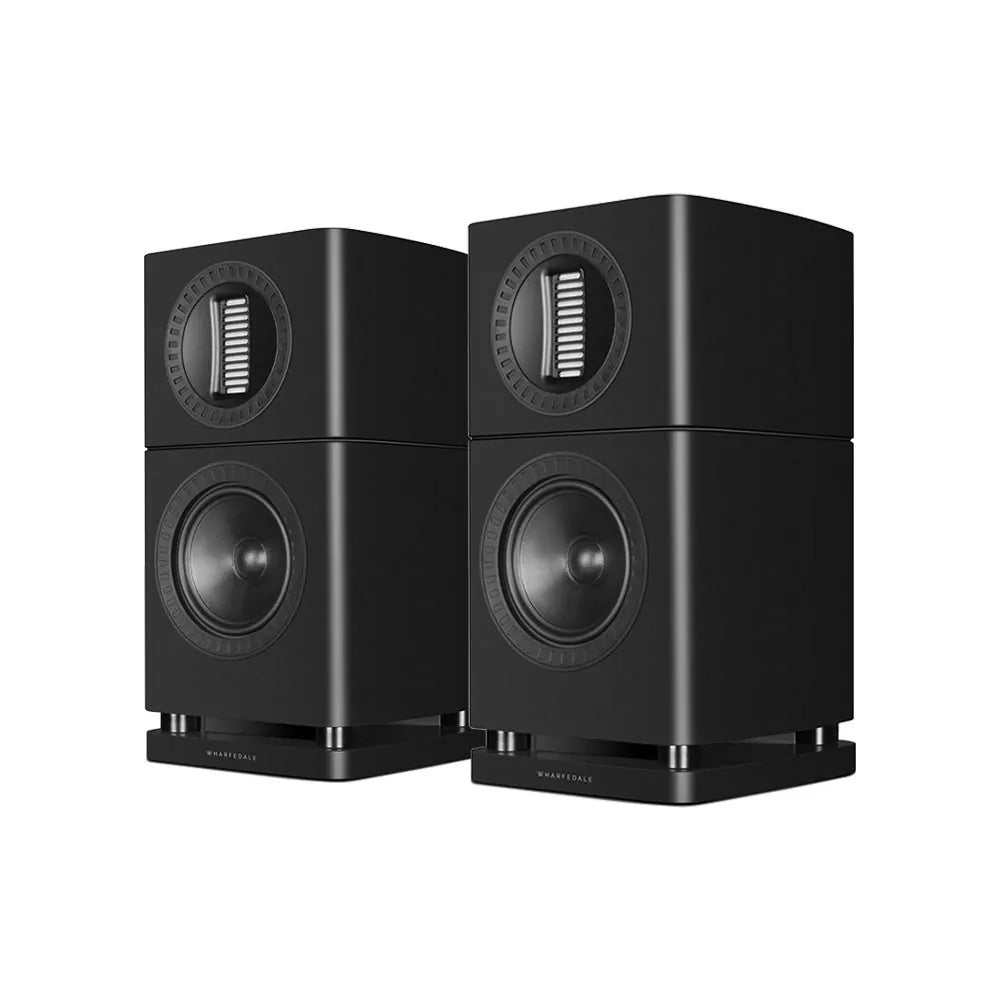

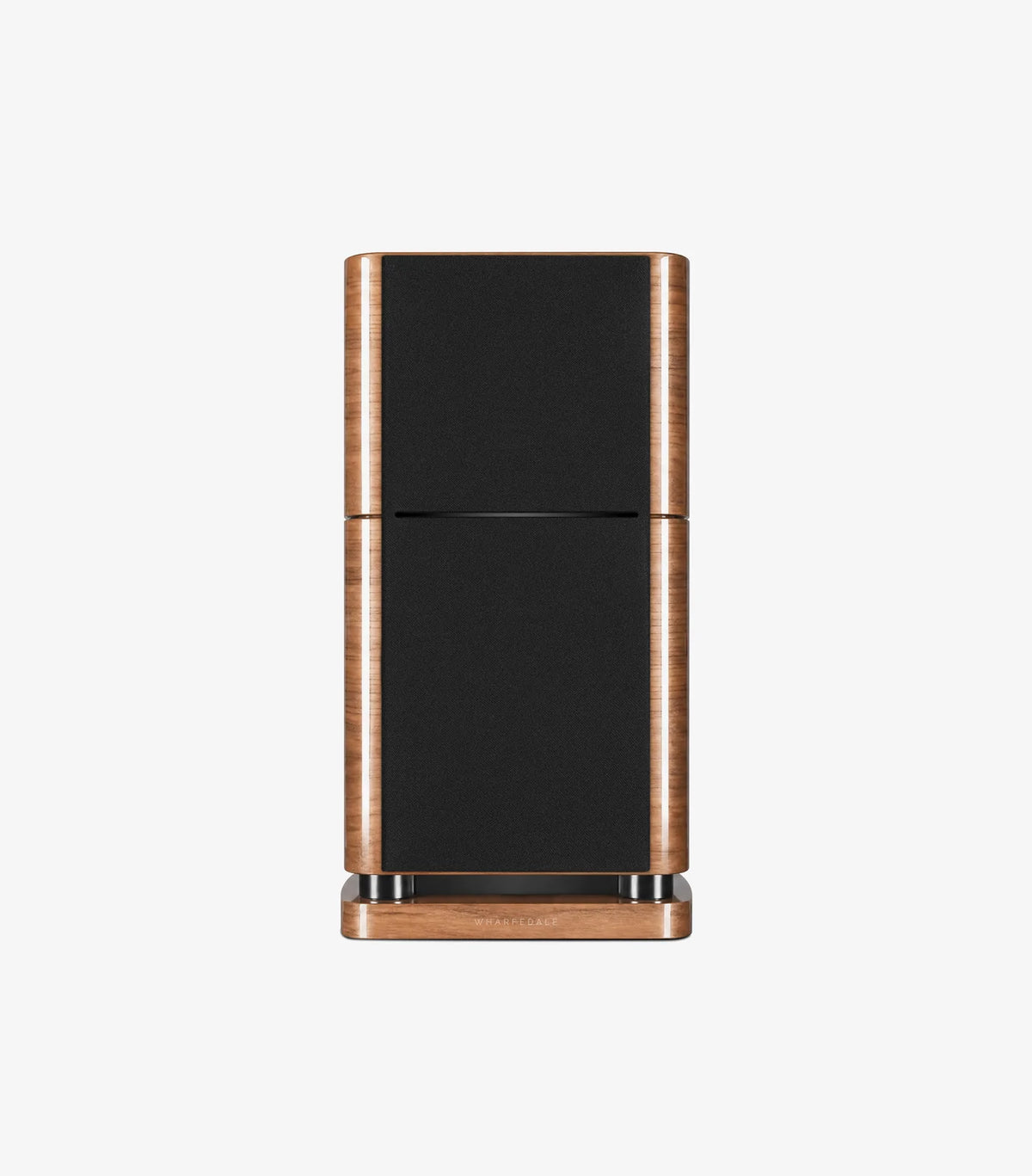

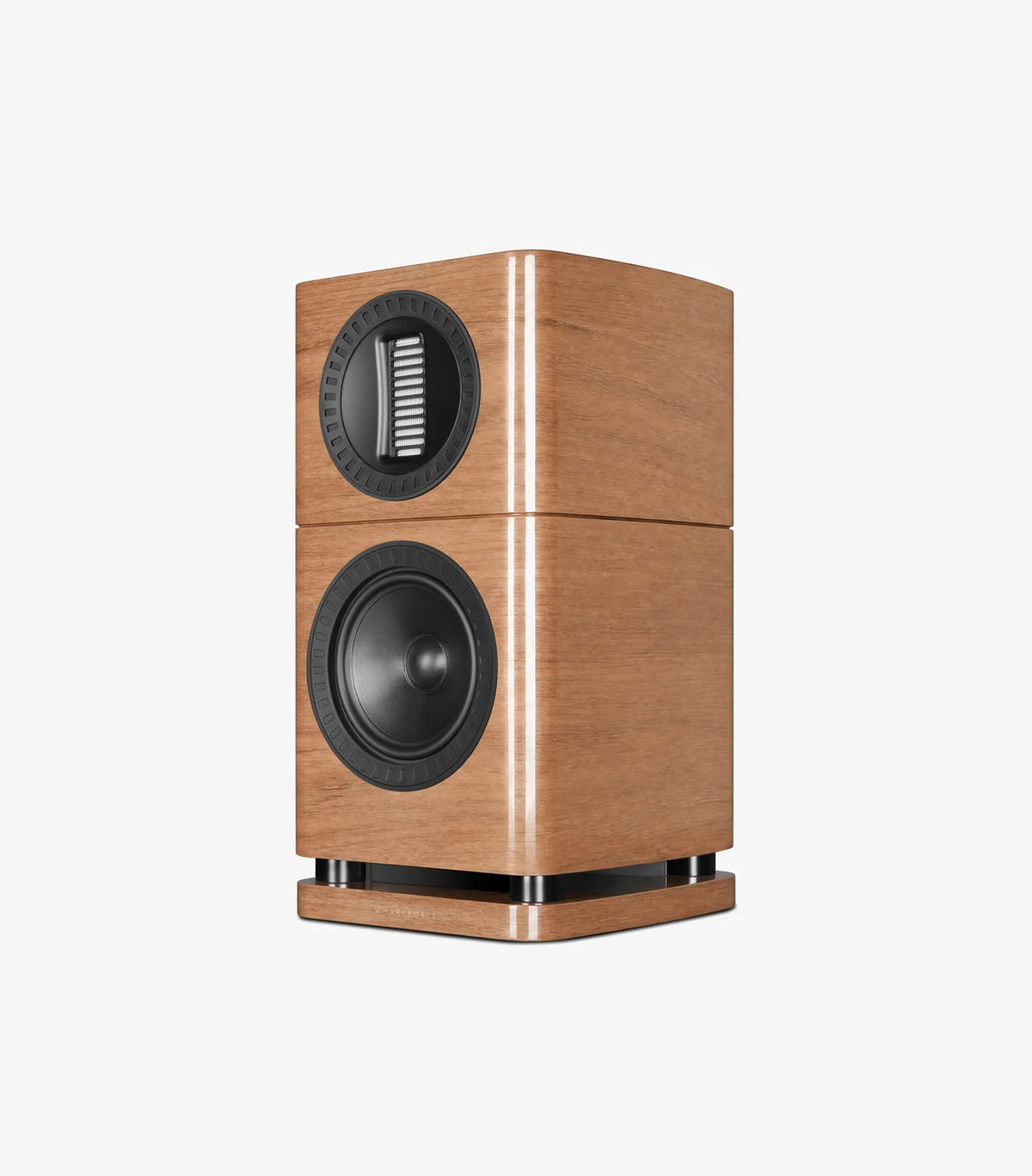

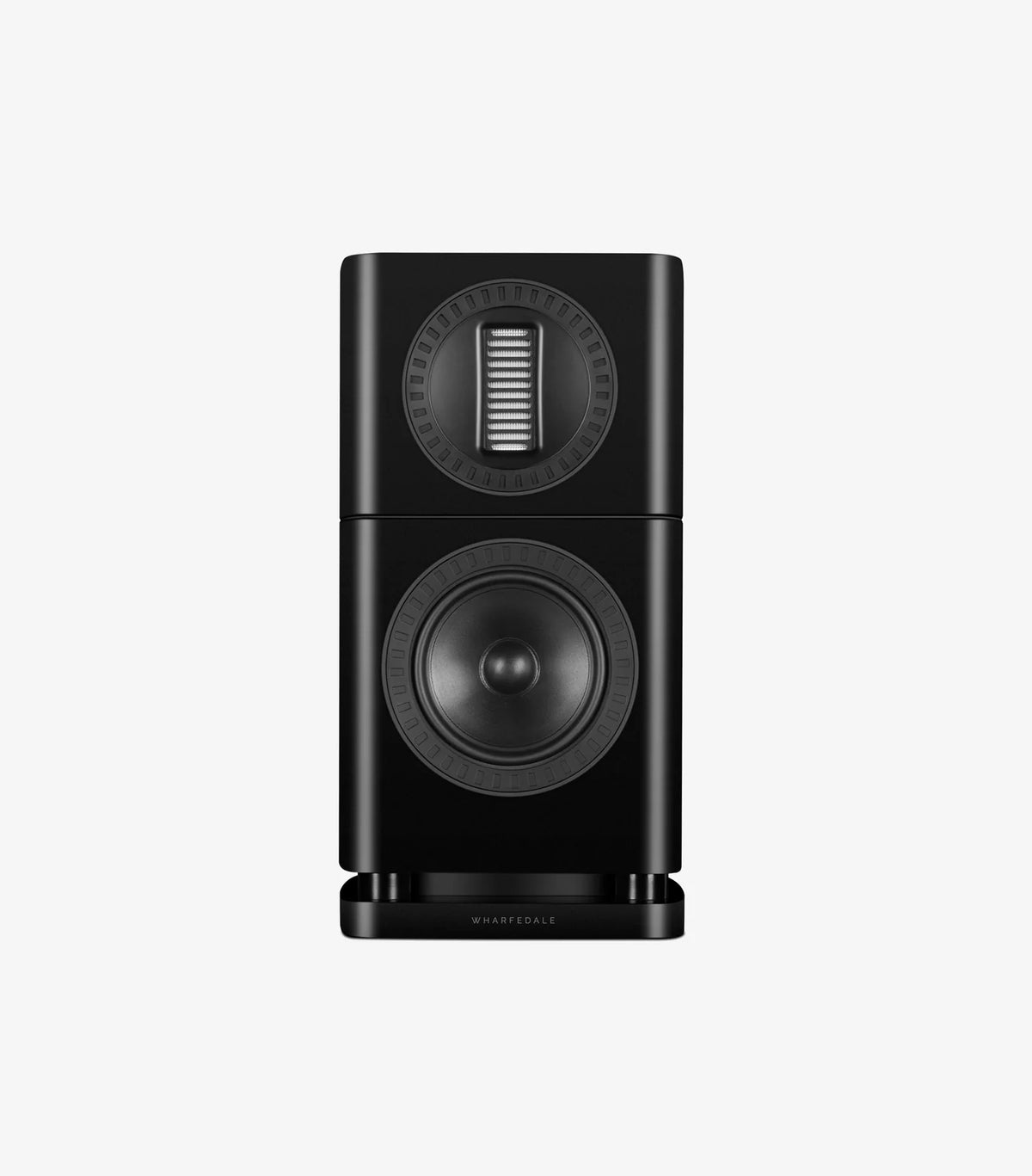

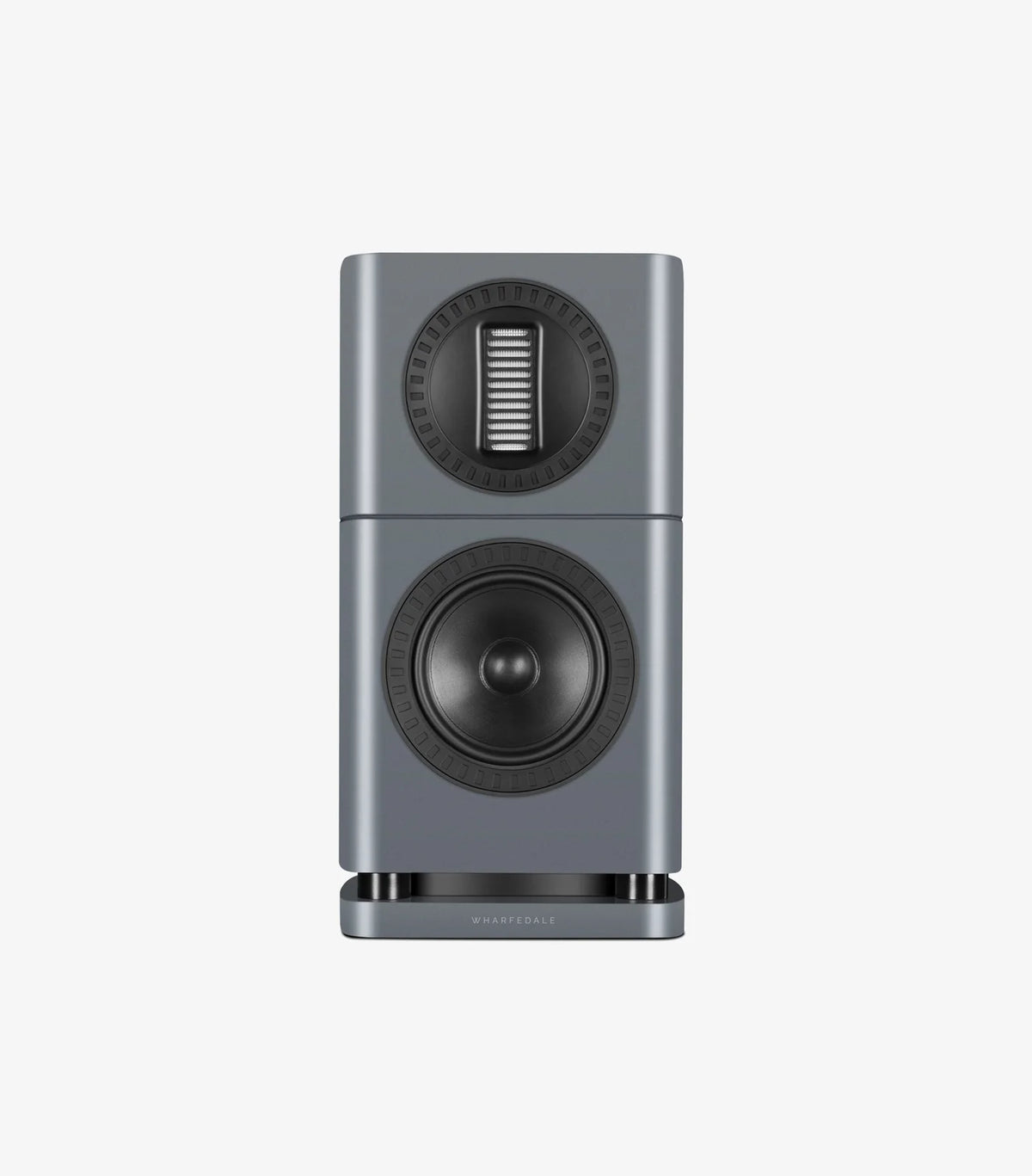

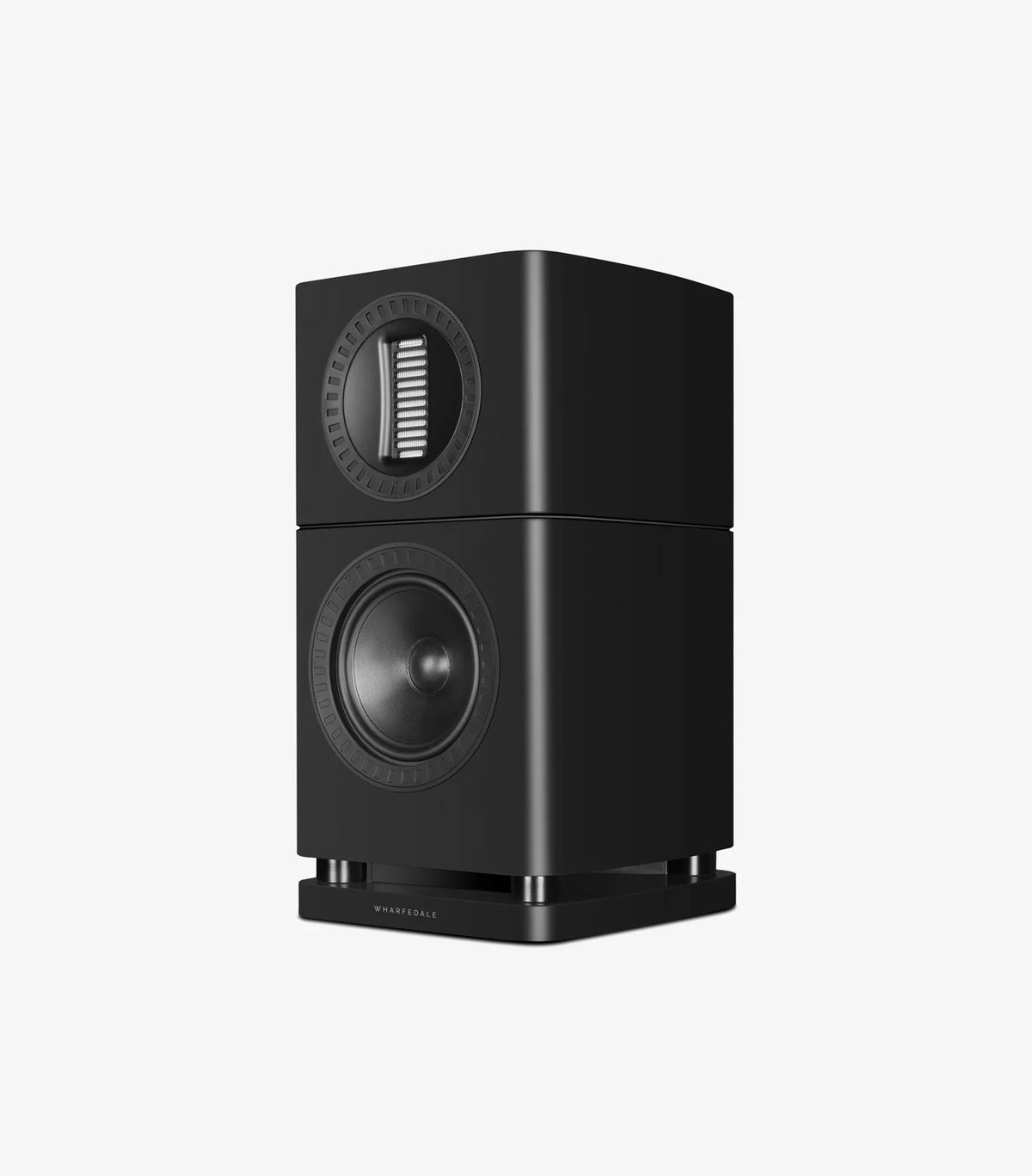

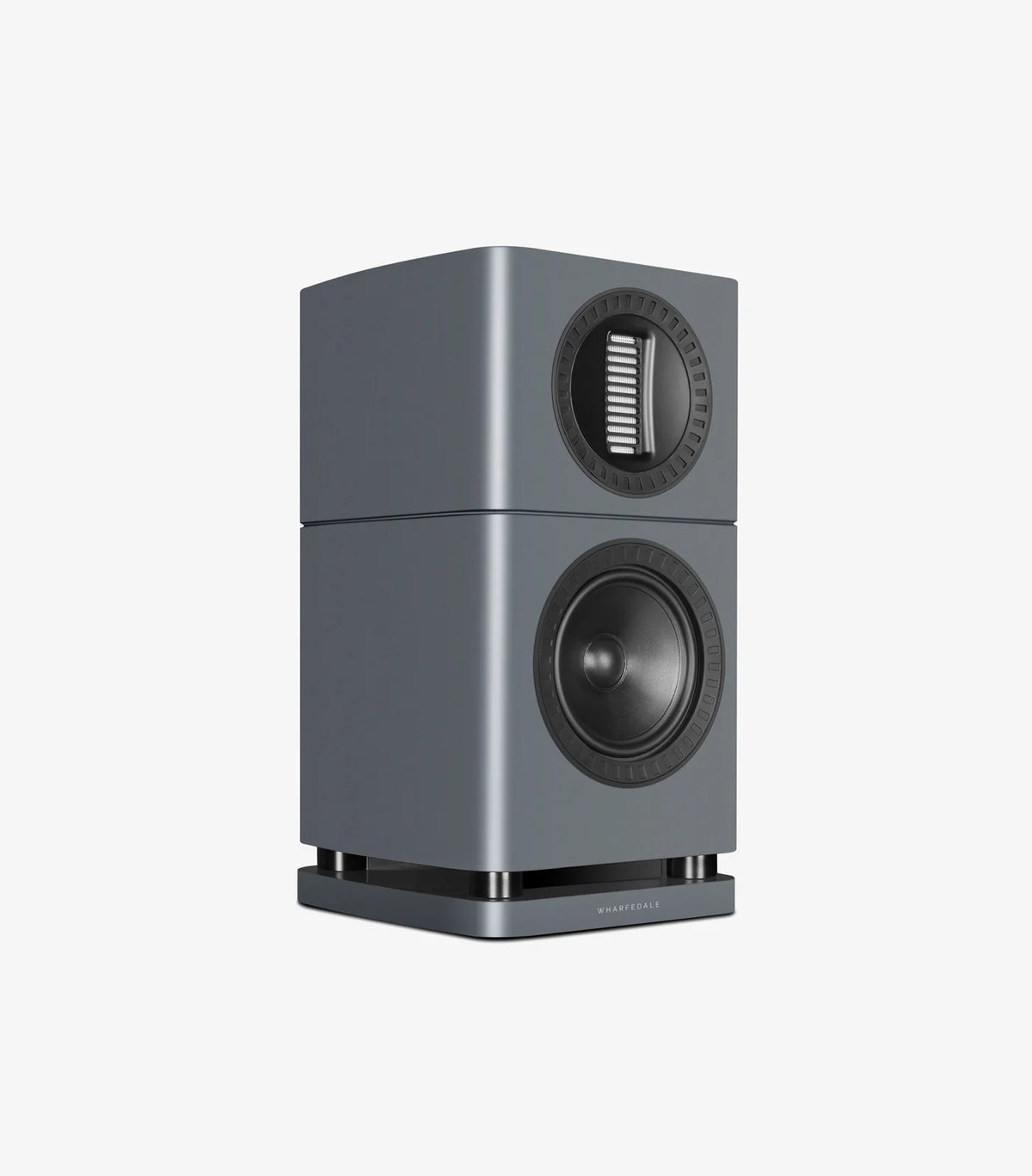

The Wharfedale ELYSIAN 1R is a luxury two-way standmount loudspeaker that refines Wharfedale's flagship series design with enhanced crossover topology and cabinet tuning. Combining hand-finished piano-lacquer craftsmanship with advanced driver technology, the ELYSIAN 1R pairs a custom Air Motion Transformer (AMT) treble unit with a 180mm woven glass-fibre cone bass/midrange transducer, delivering transparent highs, expressive vocals, and controlled dynamic scale.
Low-frequency performance is managed by Wharfedale's Slot-Loaded Profiled Port (SLPP) system, which routes internal bass energy directly into the gap between the cabinet base and the plinth to equalise cabinet pressure and simplify placement near boundaries. Engineered to partner with optional mass-loaded steel stands, the ELYSIAN 1R delivers open soundstaging, low distortion, and reference-grade accuracy for modern living spaces.
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- Ultra-Smooth Air Motion Transformer (AMT): Pleated diaphragm driven by a strategic magnetic circuit to move air efficiently, resulting in low distortion and wide high-frequency dispersion.
- 180mm Woven Glass-Fibre Bass/Midrange Driver: Matrix cone terminated with a flexible rubber surround and powered by a low-distortion motor system for clean midrange and defined bass response.
- Slot-Loaded Profiled Port (SLPP) Bass System: Vents internal cabinet pressure downwards through a profiled slot in the integrated plinth, equalising low-frequency energy for room-friendly setup.
- Advanced Multi-Layer PROS Cabinet Construction: Panel Resonance Optimisation System (PROS) uses damped multi-layer wood laminates to suppress standing waves and cabinet coloration.
- Hand-Polished Piano Lacquer Finish: Real wood veneers sealed with six layers of hand-polished piano lacquer for a high-end luxury aesthetic.

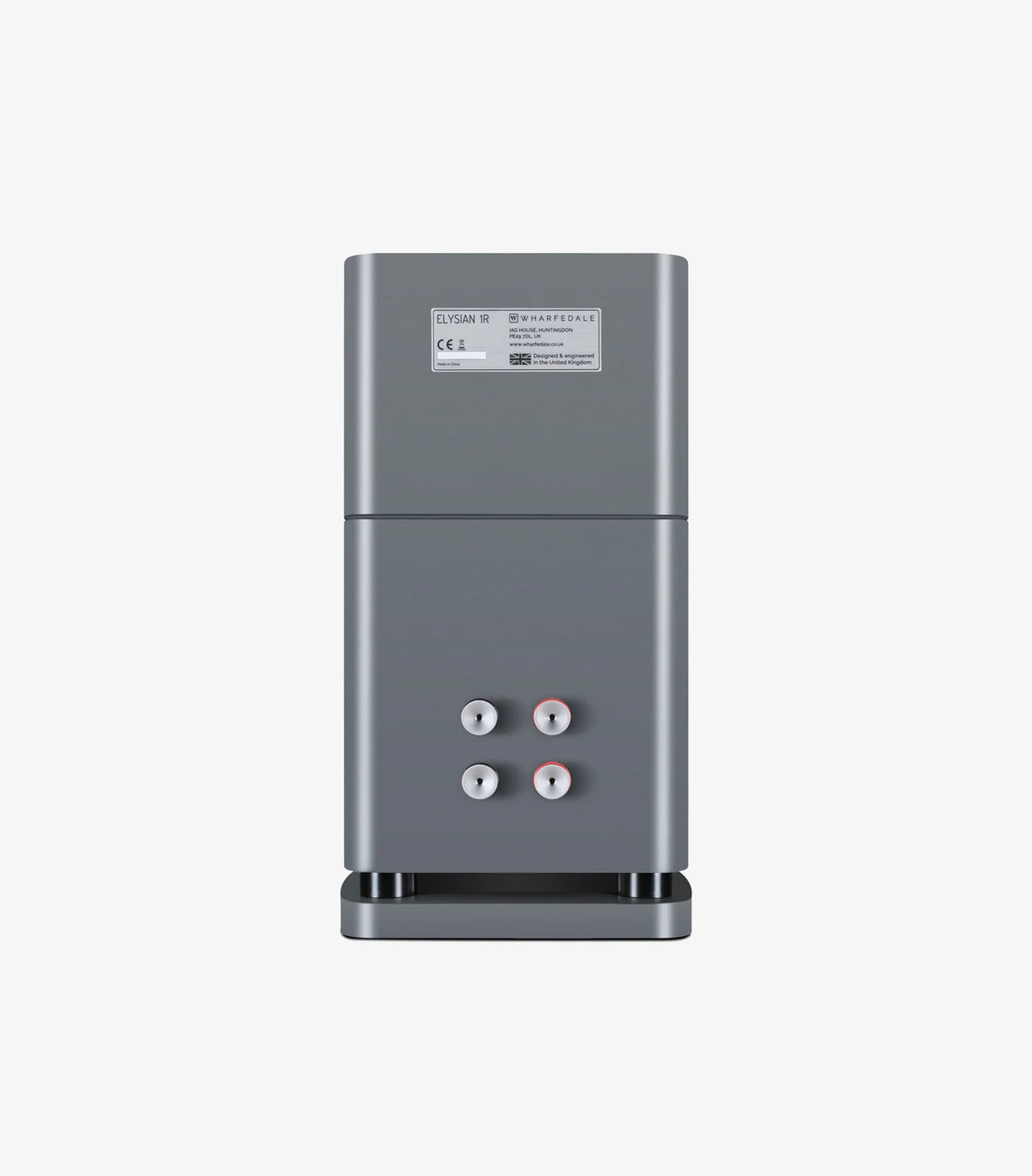

- Bi-Wireable Gold-Plated Binding Posts: Heavy-duty rear terminals supporting bi-wiring or bi-amping configurations to optimize system connection.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Category | Reference 2-Way Standmount Loudspeaker |
| Brand / Series | Wharfedale — ELYSIAN Series |
| Model Designation | ELYSIAN 1R |
| Enclosure Type | Bass Reflex (Slot-Loaded Profiled Port - SLPP) |
| High-Frequency Driver | 27 x 90 mm Air Motion Transformer (AMT) |
| Bass/Midrange Driver | 7" (180mm) Matrix Woven Glass-Fibre Cone |
| Frequency Response (±3dB) | 49 Hz – 22,000 Hz |
| Bass Extension (-6dB) | 44 Hz |
| Sensitivity (2.83V @ 1m) | 89 dB |
| Nominal Impedance | 4 Ω (Compatible with 8 Ω Outputs; Minimum 3.8 Ω) |
| Recommended Amplifier Power | 25 W – 175 W RMS |
| Peak Sound Pressure Level (SPL) | 108 dB |
| Crossover Frequency | 2.6 kHz |
| Cabinet Volume | 16.1 Litres |
| Binding Posts | Bi-Wireable Heavy-Duty Gold-Plated Binding Posts |
| Dimensions (H x W x D) | 490 x 263 x (285 + 30) mm (Includes Terminals & Plinth) |
| Net Weight | 15.0 kg per Speaker |
| Available Finishes | Piano Black / Piano White / Piano Walnut |
