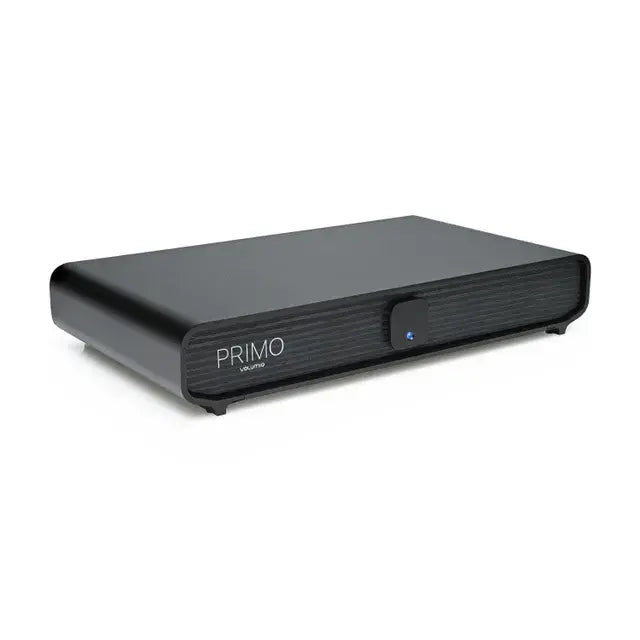

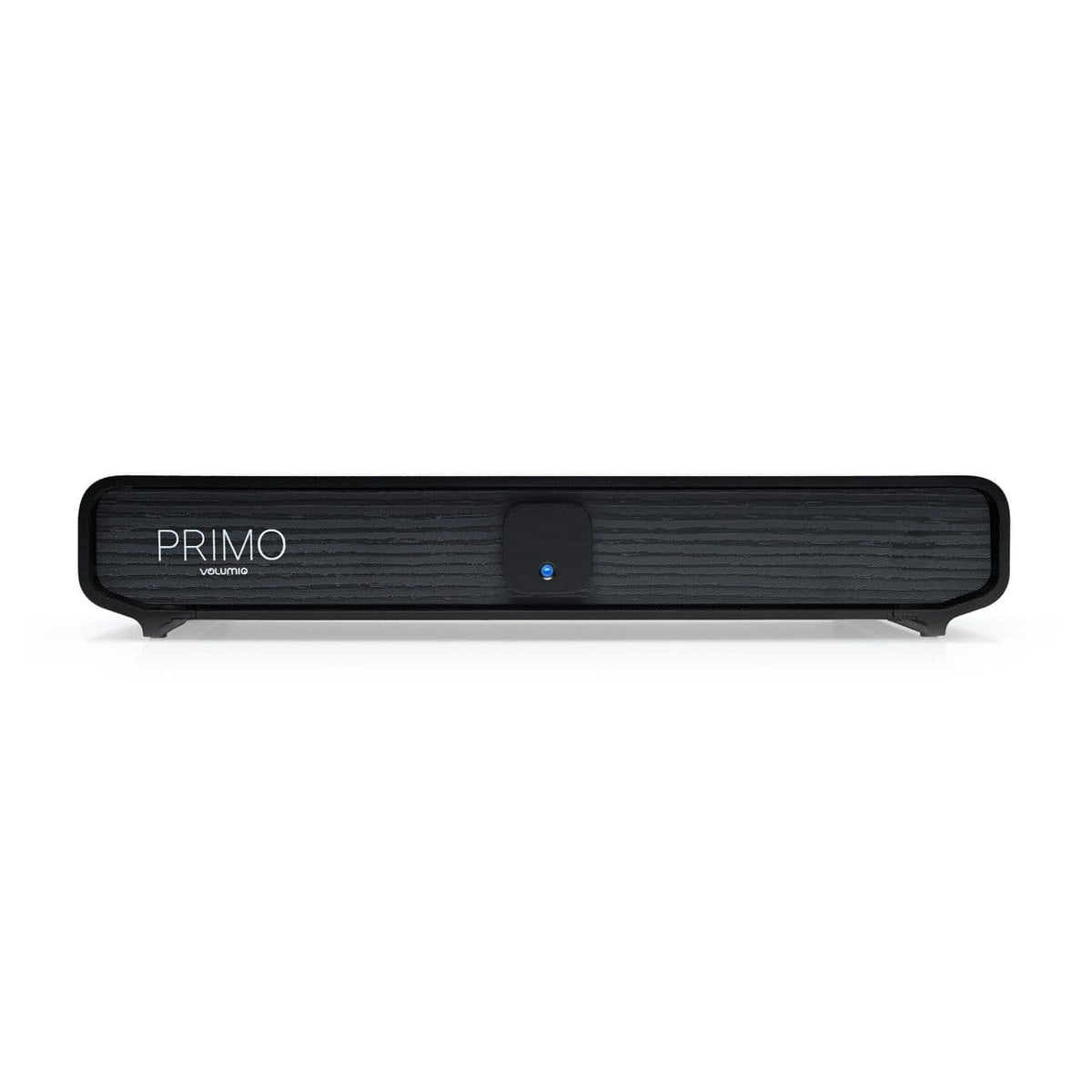

Volumio Primo V3 Network Player and Streamer with DAC
Frequently Bought Together
Product Overview & Specifications
The Volumio Primo V3 is a reference-grade network music streamer and Digital-to-Analog Converter (DAC) designed and assembled in Florence, Italy. Anchored by an ESS Sabre ES9038Q2M DAC featuring Hyperstream IV architecture and an ultra-low phase-noise master clock, the Primo V3 delivers high-fidelity analog playback up to PCM 384kHz / 32-bit via its stereo XLR and RCA outputs. For transport configurations, its ultra-clean USB output supports bit-perfect digital audio streams up to PCM 1536kHz / 32-bit and native DSD1024.
Powered by a Quad-Core Cortex-A72 processor and the Volumio Premium operating system, the Primo V3 is certified Roon Ready and offers native integration for Qobuz Connect, TIDAL Connect, Spotify Connect, AirPlay, and UPnP/DLNA (OpenHome). Engineered for versatile system matching, it features selectable NOS (Non-OverSampling) modes, customizable DAC filters, dynamic output level matching across both balanced XLR (up to 6.30V RMS) and unbalanced RCA (up to 3.15V RMS) line outputs, and an HDMI output for user-interface mirroring up to 4K at 60Hz.
KEY FEATURES & SYSTEM HIGHLIGHTS
- ESS Sabre ES9038Q2M Architecture: Utilizes Hyperstream IV DAC processing and an ultra-low phase-noise master clock for transparent, detail-rich analog performance.
- Roon Ready & Broad Streaming Ecosystem: Native Roon network endpoint with full support for Qobuz Connect, TIDAL Connect, Spotify Connect, AirPlay, and UPnP/DLNA rendering.
- Customizable DAC Tuning & NOS Mode: Selectable Non-OverSampling (NOS) mode and multiple digital DAC reconstruction filters to fine-tune sonic performance.
- Variable / Selectable Output Levels: Multi-step adjustable output level configurations across both balanced XLR (1.55V to 6.30V RMS) and single-ended RCA (0.775V to 3.15V RMS) outputs for optimal preamplifier matching.
- Ultra High-Resolution USB Transport: Dedicated USB digital audio output capable of handling up to PCM 1536kHz / 32-bit and native DSD1024 to external DACs.
- 4K HDMI Display Mirroring: Dedicated HDMI video output mirrors the Volumio Premium user interface onto external monitors or TVs up to 4K resolution at 60Hz.
- Quad-Core Processing & High-Speed Network: Powered by a Quad-Core 1.5GHz ARM Cortex-A72 processor with DDR4 RAM, Gigabit Ethernet, Dual-Band Wi-Fi, and Bluetooth 5.0.
- Handcrafted in Italy: Designed, engineered, and hand-assembled in Florence, Italy.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Category | Roon Ready Network Music Streamer & DAC |
| Digital-to-Analog Converter (DAC) | ESS Sabre ES9038Q2M (Hyperstream IV Architecture) |
| Master Clock | Ultra-Low Phase Noise Clock Stage |
| Maximum Analog Output Resolution | PCM up to 384 kHz / 32-bit |
| Maximum USB Transport Output Resolution | PCM up to 1536 kHz / 32-bit | Native DSD up to DSD1024 |
| Digital Filter & Processing Options | Selectable NOS (Non-OverSampling) Mode & Multiple DAC Filters |

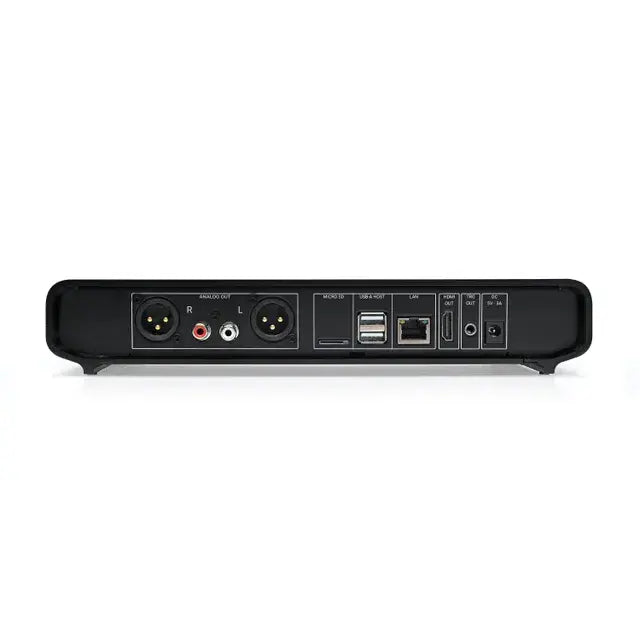

| Balanced Analog Outputs | 1x Stereo Pair XLR |
| Balanced (XLR) Selectable Output Levels | 1.55V / 2.00V / 3.00V / 4.00V / 5.00V / 6.00V / 6.30V RMS |
| Unbalanced Analog Outputs | 1x Stereo Pair RCA |
| Unbalanced (RCA) Selectable Output Levels | 0.775V / 1.00V / 1.50V / 2.00V / 2.50V / 3.00V / 3.15V RMS |
| Analog Output Impedance | Approx. 140 Ω |
| Streaming Services & Protocols | Roon Ready, Qobuz Connect, TIDAL Connect, Spotify Connect, AirPlay, UPnP/DLNA (OpenHome) |
| Supported File Formats | DSD, WAV, FLAC, ALAC, AAC, Ogg Vorbis, CUE, MP3, and others |
| Processing Architecture | Quad-Core ARM Cortex-A72 (1.5 GHz) | High-Speed DDR4 RAM & eMMC Storage |
| Network Connectivity | Gigabit Ethernet (10/100/1000 Mbps), Dual-Band Wi-Fi (802.11 a/b/g/n/ac) |
| Bluetooth Version | Bluetooth 5.0 |
| Video & Peripheral Connections | 1x HDMI Out (UI Mirroring up to 4K/60Hz), USB-A 2.0 Ports, 12V Trigger Out |
| Power Supply Requirement | 12V DC / 3A (2.1 mm Barrel Connector, Centre Positive) |
| Dimensions (W x D x H) | 270 x 150 x 50 mm |
| Net Weight | Approx. 2.5 kg (5.5 lbs) |
| Country of Origin | Designed and Assembled in Florence, Italy |
| In the Box | Volumio Primo V3 Streamer, 12V/3A Power Supply Unit, User Documentation |
