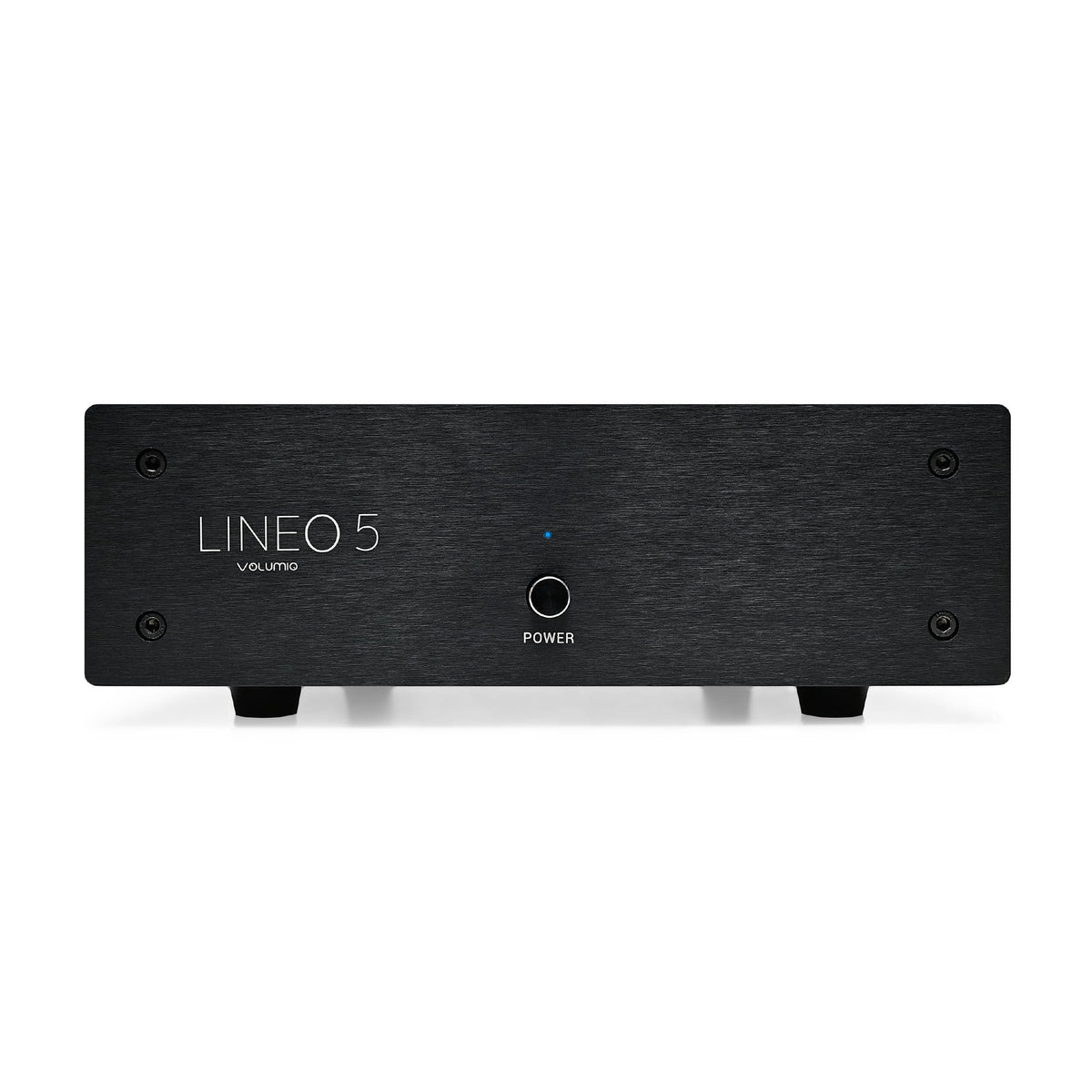

The Volumio Lineo5 is a low-noise 5V/5A linear power supply designed to replace standard switch-mode power adapters and optimize the acoustic performance of digital audio equipment. Engineered specifically as a dedicated upgrade for Volumio Rivo and Primo network streamers, the Lineo5 provides high-current output up to 5 amperes, delivering clean, ripple-free power to digital transport circuitry, internal DAC stages, and connected USB devices.

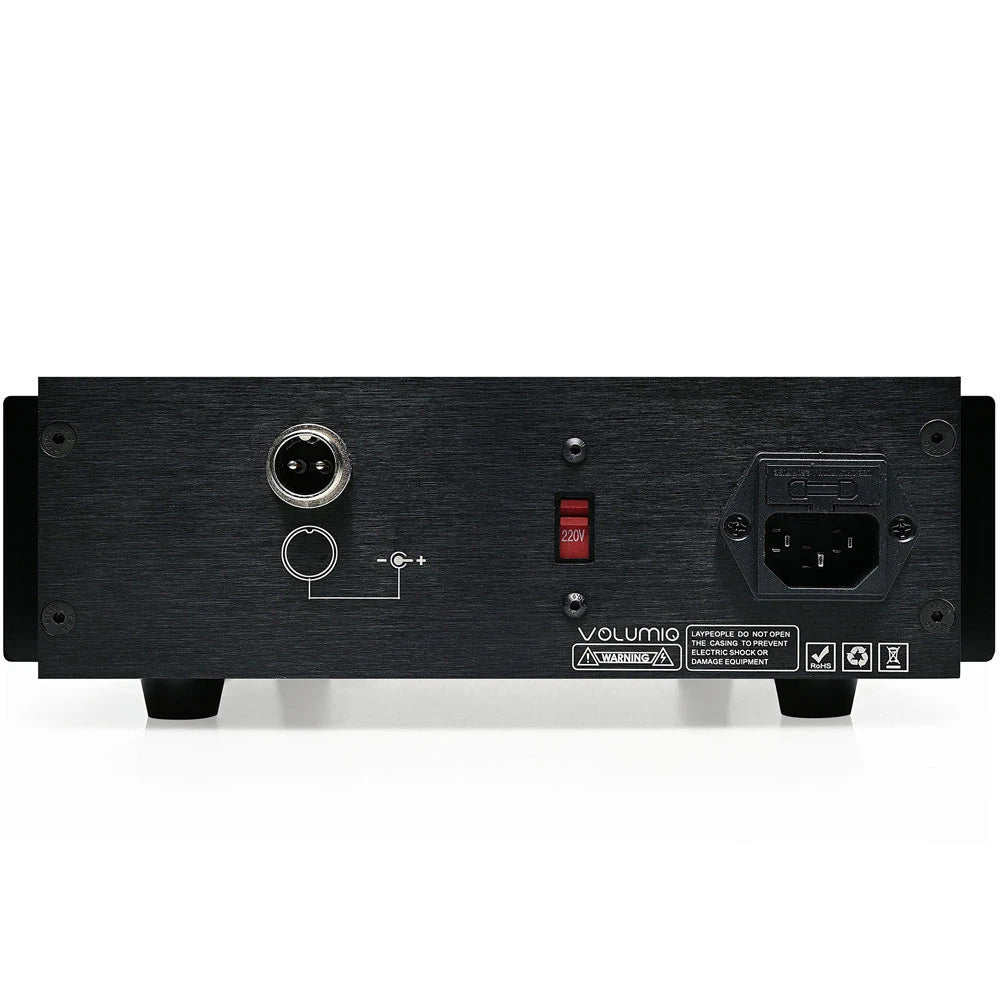

Housed in an aluminium chassis with integrated side-mounted heatsinks for thermal management, the Lineo5 incorporates premium toroidal transformers, high-capacity filtering capacitors, and low-drop linear voltage regulators. Featuring a rear panel AC voltage selector switch supporting both 110V and 220V mains inputs, the unit includes four regional AC power cables and a bipolar-to-DC barrel connector cable (5.5mm/2.1mm tip-positive) for universal setup integration.
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- Low-Noise Linear Regulation: Replaces noisy switch-mode power supplies (SMPS) with a linear circuit path to eliminate high-frequency ripple and digital noise injection.
- 5V / 5A High-Current Output: Delivers up to 5 amperes of continuous direct current to handle transient power demands from high-performance DACs and network streamers.
- Dedicated Volumio System Upgrade: Matched power output characteristics tailored specifically for optimal pairing with Volumio Rivo and Primo streaming hardware.
- Aluminium Chassis with Side Heatsinks: Precision-extruded aluminium enclosure featuring external side heatsinks for passive heat dissipation and long-term thermal stability.
- Global AC Input Selection: Rear-panel selector switch allows easy toggling between 110V–120V (60Hz) and 220V–240V (50Hz) mains power supplies.
- Comprehensive Power Cables Included: Package includes four AC power leads (UK, EU, US, AU/NZ) alongside a 5.5mm/2.1mm tip-positive DC output cable.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Category | Low-Noise Audio Linear Power Supply (LPS) |
| Brand / Model | Volumio — Lineo5 |
| Recommended System Pairing | Volumio Rivo, Volumio Primo, and 5V DC Audio Components |
| Output Voltage | 5V DC (Fixed Output) |
| Maximum Output Current | 5.0 Amperes (5A) |
| DC Connector Output Standard | 5.5mm / 2.1mm DC Barrel Jack (Tip Positive Polarity) |
| Input Voltage Options (Switchable) | AC 110V–120V (60Hz) / AC 220V–240V (50Hz) |
| Maximum Power Consumption | 90 W (At Full Rated Output Load) |
| Enclosure & Thermal Design | Aluminium Chassis with Integrated Side Heatsinks |
| Dimensions (W x D x H) | 270 x 227 x 77 mm |
| Net Weight | 4.0 kg (4000 g) |
| Included Accessories | Lineo5 LPS, 4x Regional AC Power Cables (UK, EU, US, AU/NZ), 1x Bipolar-to-DC Barrel Cable |
