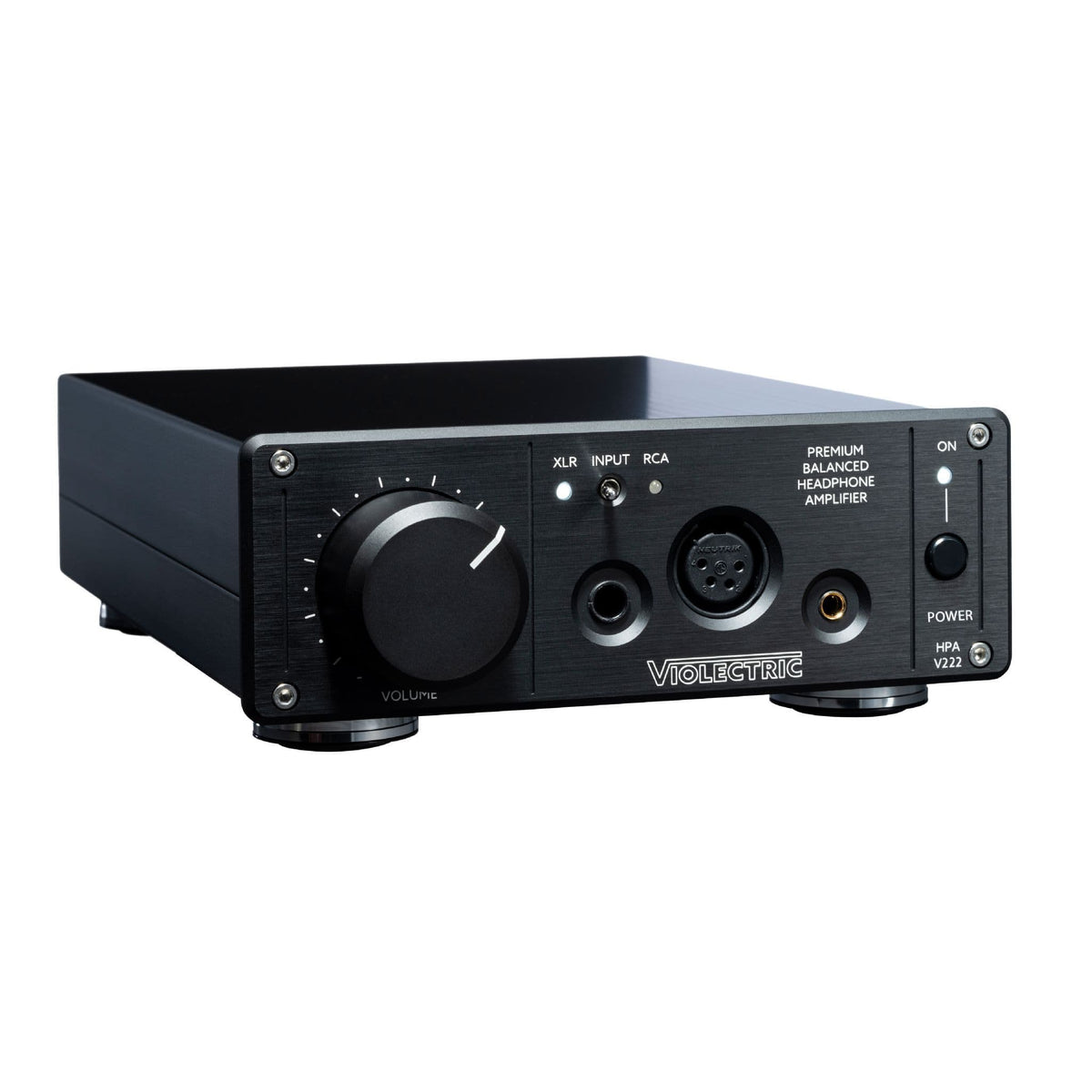

The HPA V222 is a newly developed balanced headphone amplifier in the Violectric range.

As a true balanced amplifier it is equipped with four amplifier stages and not only balanced
connectors !

The roots of the amplifier circuitry can be found in its praised and rewards winning predecessors
V200, V220, V280 and V281.

Inside HPA V222 it features the similar natural but smooth and pleasing sound.

Because of its matchless technology HPA V222 not only offers a powerful headphone amplifier, but also:

- LOWEST NOISE through a very small amount of internal gain.
This makes the amplifier's self-generated noise inaudible.

- HIGH OUTPUT VOLTAGE through 50 V internal operating voltage. Therefor ideally suited
for high-impedance headphones deserving high output voltage swing.

- HIGH OUTPUT POWER thanks to powerful amplifiers that offer far more power even the
most demanding headphones would need. So best suited for headphones with low
impedances as well as magnetostatic headphones !!

- HIGH DAMPING FACTOR due to lowest output impedance. Therefor the ideal match for
difficult to drive headphones without negative side effects and with the guarantee for a
uncompromising frequency response.

The HPA V222 offers:

• - 2 stereo inputs, balanced via XLR, unbalanced via RCA
• - inputs switchable on the front panel
• - +/- 18 dB Pre-Gain for a perfect match of the HPA V222 between source and headphones
• - Volume control with Alps RK 27 attenuator
• - big 38 mm massive aluminum knob
• - powerful balanced stereo amplifier (4 power stages)
• - 3500 mW Pmax into 50 Ohm
• - 23,2 V RMS into 600 Ohm
• - Delayed coupling of the headphones to the amp after power-on
• - Headphone outputs: 1 x Pentaconn, bal., 1 x 4-pin XLR, bal., 1 x 14 jack, unbal.
• - built-in power supply with toroidal transformer
• - 22.000 uF filter capacity

Function:
The inputs on the back may be selected by a front panel switch.

The active and buffered signal is routed to the attenuator made with RK 27 potentiometer and
afterwards to the four power amplifiers.

These are further developments of the famous V200 circuitry.

Connect your (balanced) headphones to the HPA V222 and enjoy a compact and fantastic
sounding headphone amplifier with the praised warm and soft, but natural and precise Violectric
sound !!

Technical Data:

All Data RMS unwtd., 20 Hz - 20 kHz, Pre-Gain set to 0 dB

Analogue input parameter
Inputs (stereo): 1 x XLR balanced, 1 x RCA, unbalanced

• Max. input voltage: + 21 dBu,
• Input impedance: 10 kohm
• Headphone amp parameter
• Nominal input sensitivity: +6 dBu
• Feedback gain: +2 dB unbal., +8 dB bal.
• PRE-GAIN: -18 / -12 / -6 / 0 / +6 / +12 / +18 dBr
• Frequency range: 5 Hz ... 250 kHz (- 0,5 dB)
• Output impedance: 0,25 Ohm unbal., 0,5 Ohm bal.
• Damping factor (Load 50 R): 200 unbal., 100 bal.
• Dynamic range: > 131 dB (A-wtd)
• Noise: < -102 dBu (A-wtd)
• THD+N (1kHz/2x10V/100R=1W): < -102 dB / < 0,0008 %
• THD+N (1kHz/2x4V/32R=0,5W): < -100 dB / < 0.001 %
• Crosstalk: -100 dB (1 kHz) / -95 dB (15 kHz)

Headphone outputs:

• 1 x Pentaconn, bal., 1 x 4-pin XLR, bal., 1 x 1/4 (6.3 mm) TRS jack

General

• Supply voltage: 230 V AC / 115 V AC max. 15 VA
• Front, Back: 5 mm / 2,5 mm Aluminum, black anodized
• Case: 4 mm Aluminum, black anodized
• Case dimensions: 170 x 54 x 228 mm (W x H x D)
• Overall dimensions: 170 x 65 x 252 mm (W x H x D)
