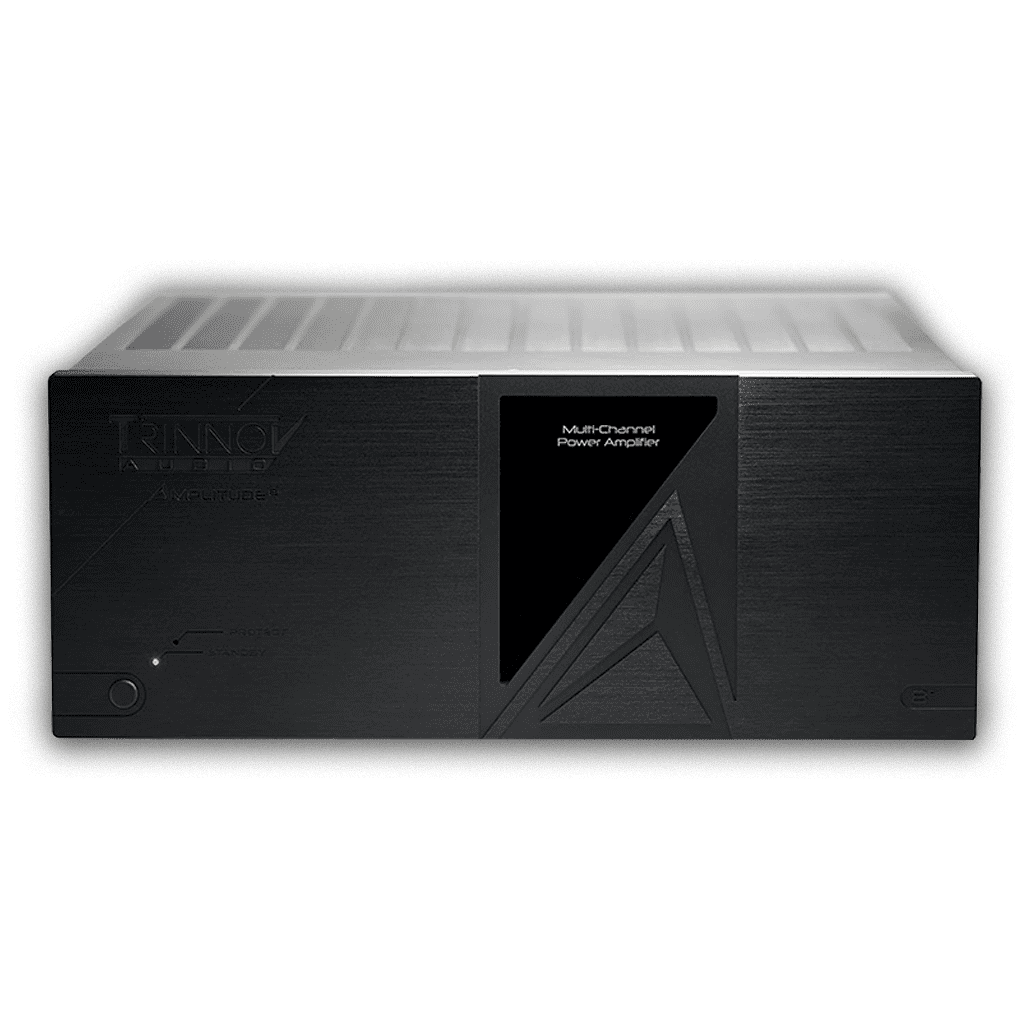

Integrating seamlessly with your Altitude32 A/V preamp, both visually and technically, the Amplitude8 uses two linear power supplies based on heavy-duty toroidal power transformers, this allows for a powerful three-dimensional soundstage huge dynamic range and bass impact only found in the best commercial theatres.

FEEL THE POWER
The two linear power supplies based on heavy-duty toroidal power transformers allow every module of the Amplitude8 to deliver 225W into 8 ohms, 375W into 4 ohms and 500W into 2 ohms.

STATE-OF-THE-ART PERFORMANCE
The amplification stage of the Amplitude8 also features the industrys lowest distortion and noise specifications, and its performance is frequency-independent.

INTEGRATION
The Amplitude8 integrates seamlessly with your Altitude32 A/V preamp, both visually and technically. The Amplitude8s input level perfectly matches the Altitude32s output level, ensuring an optimal use of the dynamic range at the amplification stage; the Altitude32s outputs can easily be connected to the Amplitude8s input via D-Sub or XLR cables; the Amplitude8s front panel was designed to match the Altitude32s facade and will look magnificent in your home theatres rack. A/V preamp, both visually and technically.

Technical Specifications

ANALOG AUDIO INPUTS
CONNECTORS: 1 Balanced (XLR) per channel on each module.
INPUT IMPEDANCE: 47 kOhms, each phase
INPUT SENSITIVITY: 6.15V RMS balanced input (+18dBu) for 225W into 8 ohms.GAIN 19.2dB.
POLARITY: Pin-2 = Positive, Pin-3 = Negative for Non-Inverting Output.

ANALOG AUDIO OUTPUTS
CONNECTORS: One balanced output with 5-way binding posts per channel.

POWER OUTPUT
8 ohms: 225W RMS per channel with less than 0.05% THD from 20 Hz to 20 kHz
4 ohms: 375W RMS per channel with less than 0.05% THD from 20 Hz to 20 kHz
2 ohms: 500W RMS per channel with less than 0.05% THD from 20 Hz to 20 kHz

AUDIOPHILE GRADE PERFORMANCE
Frequency Response: +-0.5Db From 0Hz To 20 Khz, Load Independent
Damping Factor: > 6000 At 100 Hz; > 2000 At Any Frequency Up To And Including 20 Khz
Signal To Noise Ratio: 125Db Referenced To Rated Output (A-Weighted)
Crosstalk: 85 Db

POWER CHARACTERISTICS
Power requirements: 117V AC, 15A Slo Blo main fuse; 230V AC 8A Slo Blo main fuse; 50/60 Hz
Power consumptions: less than 1W at Standby; less than 80W at idle; 1500W maximum by 2 when fully loaded

MISCELLANEOUS
Trigger input: 5 to 12V DC; Steady State.
Dimensions: (W x H x D) 443 x 186,5 x 502 m
