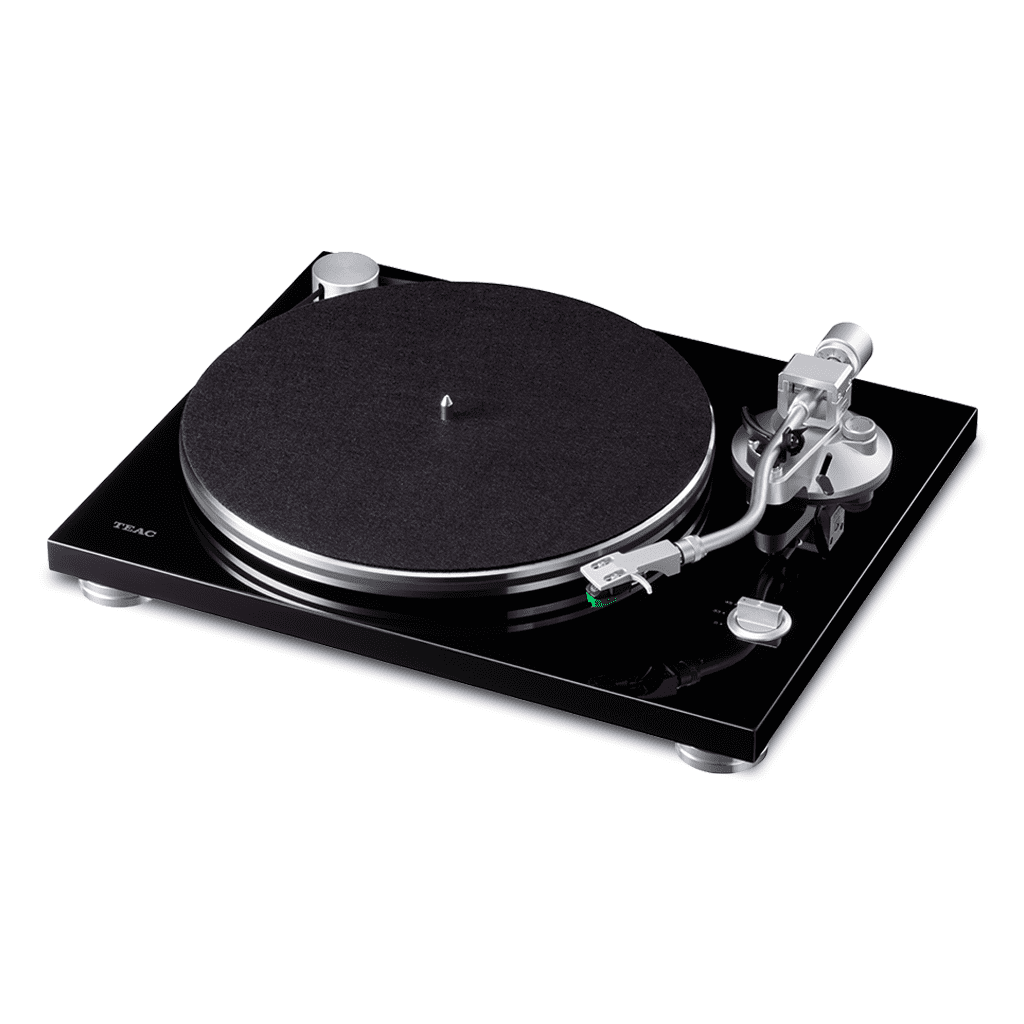

TEAC TN-3B Turntable
TEAC TN-3B Turntable
Our price match promise...
If you find an identical item cheaper from one of our online competitors, tell us and not only will we match the price, we'll beat it by 10% of the difference.
Estimated Shipping Widget will be displayed here!
A new, high-performance standard for belt-driven analog turntables
The TN-3B is a stylish, sleek-looking belt-driven turntable with a built-in MM-type PHONO EQ amplifier and USB digital output.
It employs a new tonearm with knife-edge, pivot-point bearings, co-developed with SAEC, the high-end tonearm manufacturer, for superlative stability and resolution.
The belt-drive mechanism, meanwhile, helps mitigate any unwanted cogging effects (ie fine pulsing) from the operation of the motor, to ensure a precise and smooth platter rotation.
The TN-3B also employs a high-precision NJM8080 op-amp in its in-built Phono EQ amplifier, allowing the user to enjoy the sound of their vinyl records with low distortion and in high quality. In addition, a built-in Analog-to-Digital converter and USB port allow users to digitise their vinyl libraries on their PC/Mac.
The TN-3B delivers a natural and well-balanced sound quality and is quick and easy to set up and start enjoying. We believe it sets a new standard that will satisfy the needs of both audiophiles and ardent record collectors.
Features
- 2-speed, belt-drive turntable offering 33-1/3 and 45 rpm speeds
- Knife-edge, pivot-point tonearm designed by high-end tonearm manufacturer SAEC
- Static-balanced, S-shaped tone-arm with pre-installed audio-technica AT-VM95E MM cartridge
- Die-cast aluminium platter
- USB digital output for digital archiving on PC/Mac
- PHONO/LINE analog outputs (switchable)
- Built-in PHONO EQ amplifier, compatible with MM-type cartridges
- Hi-fi grade NJM8080 op-amp used in PHONO EQ stage
Technical Specifications
| Turntable Type | Belt-Drive |
| Motor | DC Motor |
| Rotation Speed | 33-1/3rpm, 45rpm |
| Wow and flutters | Less than 0.1 |
| Signal-to-Noise ratio | 67dB (A-weighted,20KHz LPF) |
| Platter | Die-cast aluminium, 30cm diameter |
| Tonearm Type | Static-balanced S-shape with knife-edge bearings |
| Effective tone-arm length | 223mm |
| Anti-skating mechanism | Supported |
| Stylus pressure range | 0 to 5g |
| Compatible cartridge weight | 3.0g to 12g 14g to 23g (incl. head-shell) |
| Cartridge Type | VM-series (Moving Magnet-type) |
| Output voltage | 4.0mV (1kHz, 5cm/sec.) |
| Stylus pressure range | 1.8g to 2.2g (2.0 recommended) |
| Cartridge weight | 6.1g |
| Head-shell weight | 11g (incl. screws, nuts, and wires) |
| Stylus life | approx. 300 hours (depending on conditions) |
| Connectors | RCA output x 1 pair (gold-plated) |
| Output Voltage | PHONO EQ THRU: 4.0mV (1kHz, 5cm/sec.) PHONO EQ ON: 224mV (-13dBV) |
| USB Connection | USB B-type (FULL-SPEED) x 1 (DC 5V 500mA supply required) |
| Sampling frequency | 8k / 11.025k / 16 k/ 22.05k / 32k / 44.1k / 48kHz |
| Bit depth | 16-bit |
| Power | AC 100V to 240V, 50/60Hz |
| Power consumption | less than 1.5W |
| Standby power | less than 0.5W |
| GND terminal | Fitted |
| Operating temperature range | 5 to 35 |
| Overall dimensions | 420 x 117 x 356mm / 16.5 x 4.6 x 14.0 (dust cover closed) 420 x 381 x 402mm / 16.5 x 15.0 x 15.8 (dust cover opened) |
| Weight | approx.5.0Kg / 11.0 lbs. |
| Included accessories | Felt mat x1 EP adaptor x1 Counter-weight x1 Headshell (AT-VM95E pre-installed) x1 Platter x1 Dust cover x1 Rubber feet for dust cover x2 Hinges x2 RCA audio cable x1 AC Adapter (GPE053A-V120050) x1 Owners manual (incl. Warranty) x1 |
