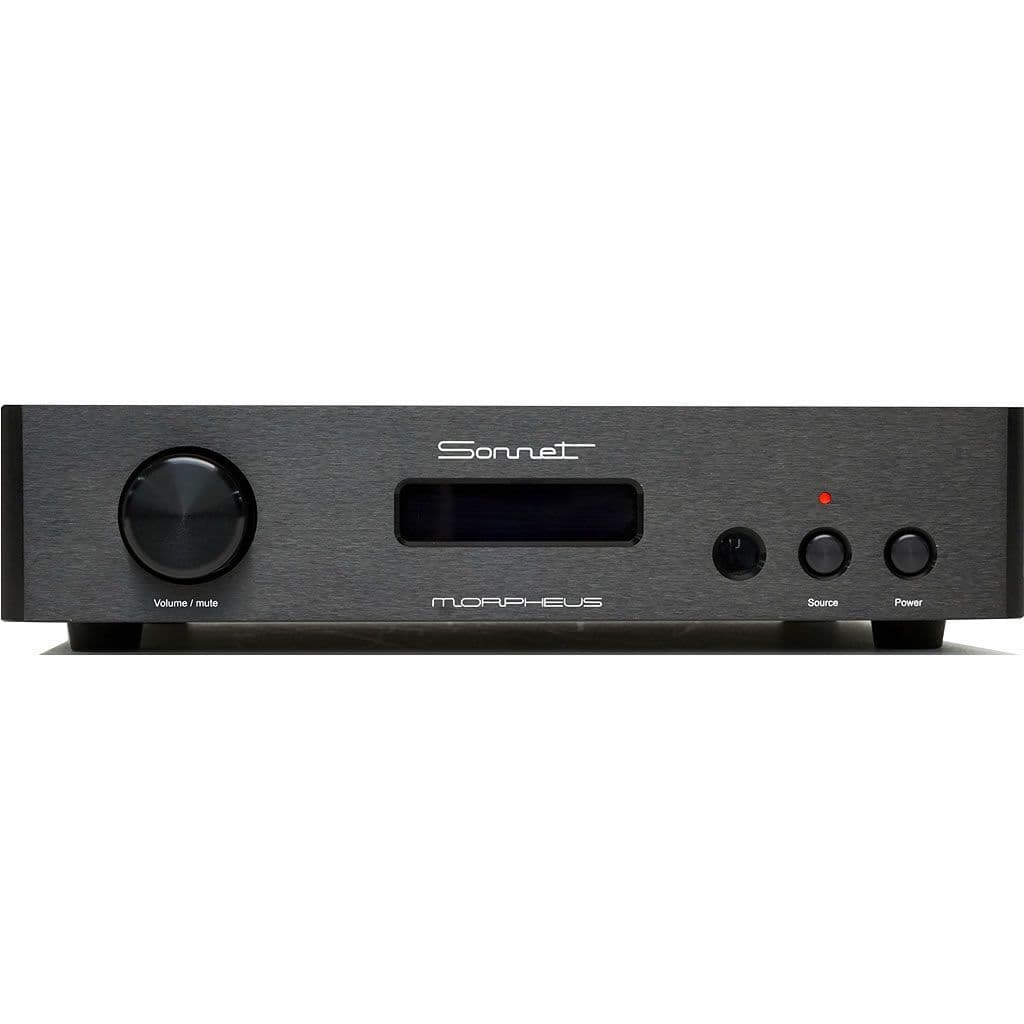

Sonnet Morpheus MKII Digital Analogue Converter

The Design Goal : Pure & Simple High End Digital to Analogue conversion with Volume control.

What more can you do after launching one of the best DACs available today?

The idea of having a decent volume control to prevent a analogue preamplifier could improve performance dramatically. However, we also know that the way of introducing such device in the signal chain can also have a negative effect.

Experiments were made and as result the best sound was coming directly from our new  fully balanced dac modules. Especially in case of R2R ladder DACs it is quite easy to change the output voltage of the DAC by changing its reference voltage.

The SDA-2, a new generation DAC module was designed to get the best regulation possible. The result of this process is an extremely high linearity, right down to -140 dB, which gives our products a realistic 24 bit dynamic range.

It is musical, honors the Non-oversampling principle and simultaneously incorporating the technological progress that has been made over the years.

The Sonnet offers digital to analogue conversion with a lossless volume control !

The Sonnet range will gives you more weight, body, tonal richness, and a more natural sense of the space of the recording. Or to put it more plainly, it fleshes out your music more!

This new range does a wonderful job of presenting even the most complex music in a natural and inviting manner with every last ounce of nuance in tact.

Theres no artificial sounding edge, no sense of a flat cutout image, basically none of digitals nastier stuff. In some cases this can also come with a somewhat dark and muddy sound but that is absolutely not the case with the new Sonnet range. It allows you to hear deep into the recording and the recordings quality.

Morpheus MK-II is born.

In the past two years, the Morpheus has become a huge success. In addition to its use as a normal dac, the Morpheus has also been widely used as a digital preamplifier.

Until now, its use was limited to a series of solid state power amplifiers. However, the MK-II version is now equipped with an additional -10dB attenuator that allows the Morpheus to be combined as a digital preamplifier with highly sensitive tube designs.

By means of jumper settings the output voltage can easily be reduced from 2V RCA and 4V XLR to respectively 0.7V RCA and 1.33Volt RMS which in practice comes down to -10dB.

Main Features

• Balanced  Non oversampling DAC
• Two SDA-2 dac modules per channel in differential mode
• Aluminium six button remote control included
• I2S and USB Modules are easily interchangeable by the customer.

Factory Options:

• MQA module (standard not included)
• I2S Module can be installed instead of the USB module free of charge.
• Full Information on MQA and I2S can be found : here

Specification :

• Power supply 15VA  110/115V AC 220/230V AC 60/50Hz. Power required max 8 Watts
• Input : 1x optical, 1x coaxial and 1x  AES/EBU and either 1x USB or 1x I2S.
• Output : 1x stereo pair single ended  2 Volts RMS
• Output : 1x stereo pair XLR balanced 4 Volts RMS
• Recommended gain of used  power amp in variable gain mode  22 - 26dB
• Frequency Response 44.1 kHz sampling 1Hz 20 khz -2.5 dB
• Frequency Response 192 kHz sampling 1Hz 65 kHz 3dB  and 384kHz (USB)
• Distortion 0.004% THD
• Channel separation 120dB
• Noise Floor -155 dB related to 2 Volt RMS
• Output impedance RCA 100 Ohm, XLR 100 Ohm
• Sampling rate Optical 44.1 96 kHz
• Sampling rate Coax and AES/EBU: 44.1 -192 kHz
• Sampling rate USB 44.1 384kHz
• Dimensions : 290 x 250 x 60 mm
• Weight : 3.2KG
