SONCOZ SGL7 Fully Balanced Analogue Preamplifier
SONCOZ SGL7 Fully Balanced Analogue Preamplifier
Our price match promise...
If you find an identical item cheaper from one of our online competitors, tell us and not only will we match the price, we'll beat it by 10% of the difference.
Estimated Shipping Widget will be displayed here!
The SONCOZ SGL7 is a fully balanced, ultra-low-noise analogue preamplifier built around a refreshingly simple principle: keep the analogue signal purely analogue, but use modern engineering to control it with extraordinary precision. Free from internal DACs, streaming platforms, or digital signal processing (DSP), the SGL7 concentrates entirely on signal path integrity. Volume attenuation is driven by a 12-bit R-2R resistor network controlled by sealed relays, providing 4,096 discrete steps from -54 dB to 0 dB in ultra-fine 0.25 dB increments with channel tracking error kept below 0.05 dB.
The preamplifier achieves impressive measured performance, boasting a noise floor below 3 µV, THD+N below -116 dB, SNR exceeding -126 dB, and crosstalk under -140 dB. Its 8 kg CNC-machined monocoque aluminium chassis houses a dual-isolated linear power supply that physically separates analogue audio rails from digital MCU control noise. Additionally, SONCOZ provides three selectable pure analogue voicing modes - Neutral Balanced, Warm Vocal, and Dynamic Analytical - adjusted via internal feedback and bias conditions rather than digital EQ, alongside user-replaceable socketed op-amps, per-input configuration memory, and MCU-controlled pop-free switching.
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- Pure Analogue Architecture & Low Distortion: Focuses strictly on analogue signal management, delivering exceptionally clean measurements with THD+N below -116 dB, SNR exceeding -126 dB, and crosstalk under -140 dB.

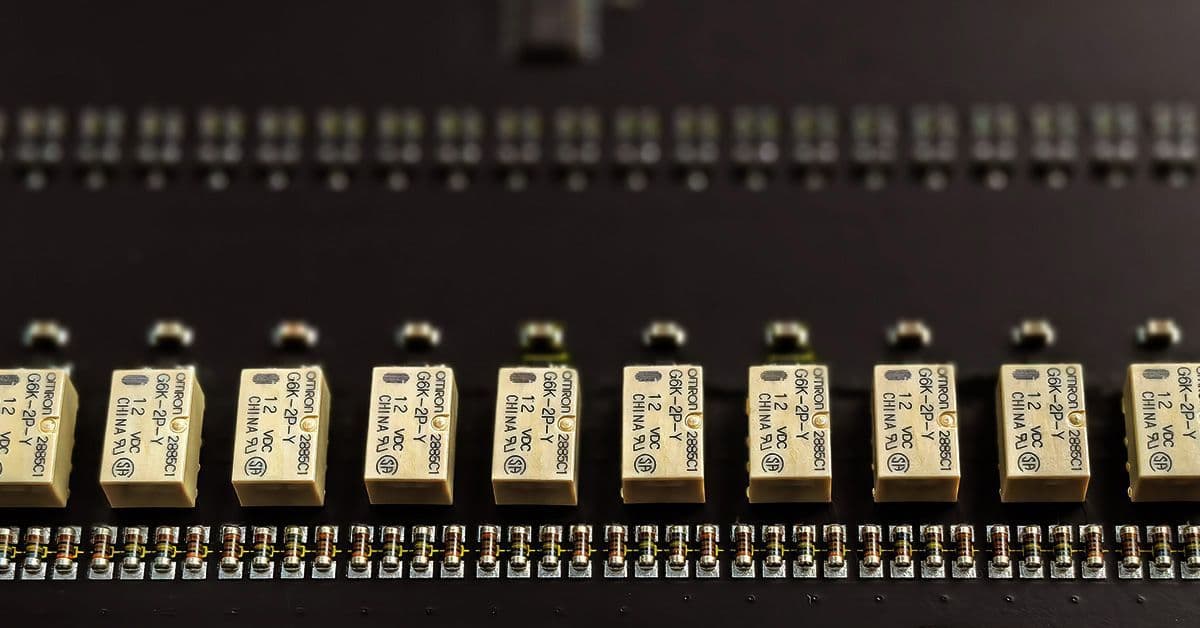

- 12-Bit R-2R Relay Volume Attenuator: Uses sealed relays and a precision resistor matrix providing 4,096 discrete attenuation levels in 0.25 dB steps, ensuring smooth low-volume control and eliminating mechanical potentiometer wear.
- Three Pure Analogue Voicing Modes: Selectable Neutral Balanced, Warm Vocal, and Dynamic Analytical presentations alter local feedback depth and circuit bias in the analogue domain without DSP or frequency-response degradation (< 0.5 dB variation).
- Dual-Isolated Linear Power Architecture: Separate secondary transformer windings, rectification, and linear regulation networks physically isolate digital control circuits from analogue audio stages to achieve a < 3 µV noise floor.
- Independent Per-Input Memory & Gain Matching: Automatically stores and recalls individual gain settings (0 dB, +3 dB, +6 dB), volume levels, and voicing modes independently across all five inputs.
- User-Replaceable Socketed Op-Amps: DIP sockets allow experienced enthusiasts to fine-tune sound characteristics using swappable single or dual operational amplifiers.

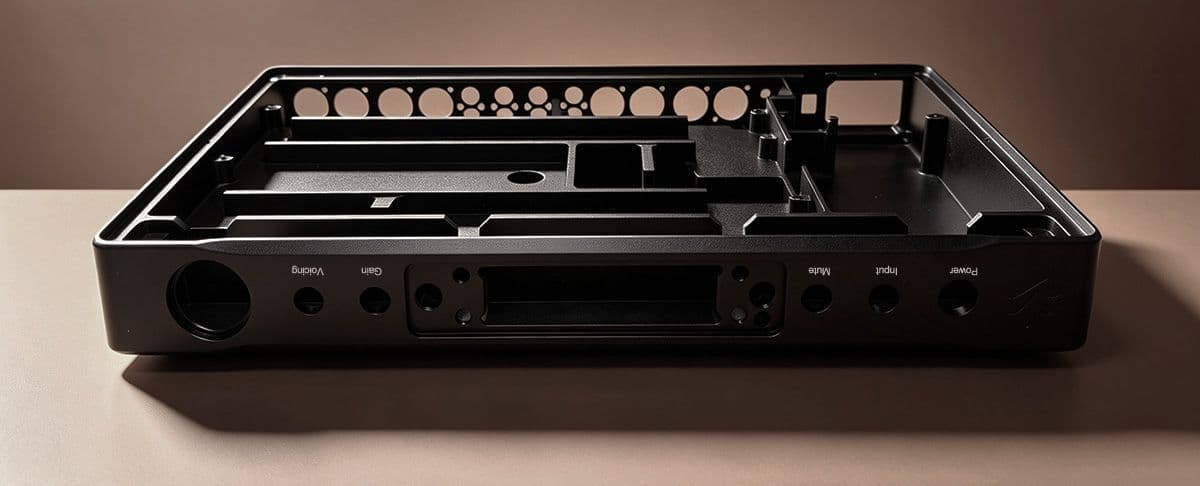

- Solid Billet CNC Monocoque Chassis: Machined from a single solid aluminium billet with internal shielding cavities, a slim 50mm profile, and a 3.7-inch IPS front display panel.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Category | Fully Balanced Pure Analogue Preamplifier |
| Brand / Model | SONCOZ — SGL7 |
| Signal Architecture | Fully Balanced Analogue Path (No Internal DAC / No DSP) |
| Signal-to-Noise Ratio (SNR) | < -126 dB @ 1 kHz (A-Weighted) |
| Total Harmonic Distortion (THD+N) | < -116 dB @ 1 kHz (A-Weighted) |
| Crosstalk / Channel Separation | < -140 dB @ 10 kHz |
| Residual Noise Floor | < 3 µV (Ultra-Low Noise Output) |
| Frequency Response | 20 Hz – 40,000 Hz (±0.1 dB) |
| Volume Control Type | 12-Bit R-2R Resistor Network with Sealed Relays (4,096 Attenuation States) |
| Volume Range & Resolution | -54 dB to 0 dB in 0.25 dB Steps (Channel Tracking Error < 0.05 dB) |
| Selectable Gain Settings | 0 dB / +3 dB / +6 dB (Independent Memory Stored per Input) |
| Analogue Voicing Modes | Neutral Balanced / Warm Vocal / Dynamic Analytical (< 0.5 dB Response Deviation) |

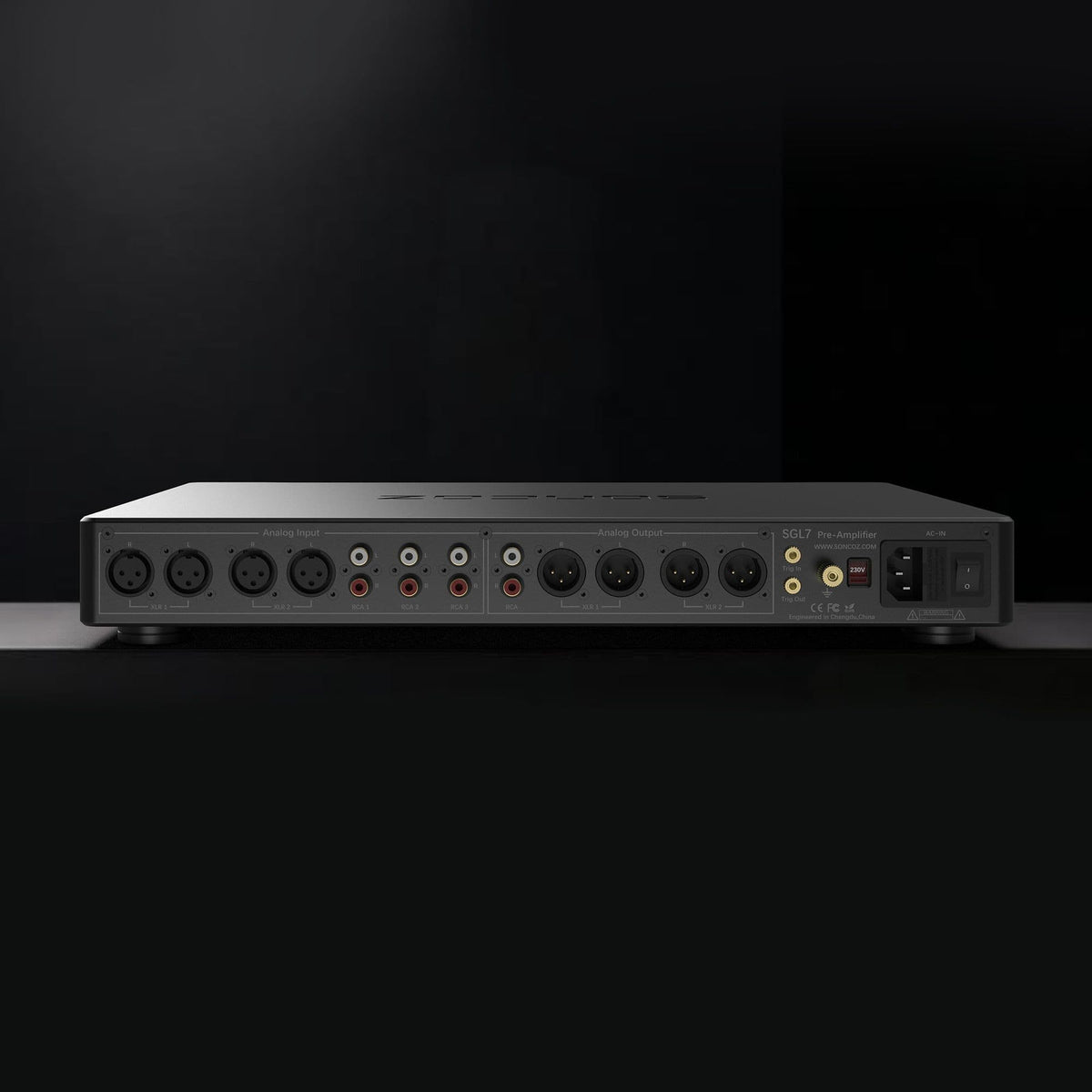

| Analogue Audio Inputs | 2x Stereo Balanced XLR Pairs, 3x Stereo Single-Ended RCA Pairs |
| Analogue Audio Outputs | 2x Stereo Balanced XLR Pairs, 1x Stereo Single-Ended RCA Pair |
| Maximum Input / Output Level | Maximum Input: 10V RMS | Maximum Output: 8V RMS |
| Output Impedance | 100 Ω (XLR Balanced) | 50 Ω (RCA Single-Ended) |
| Power Supply Architecture | Dual-Isolated Linear Power Supplies (Dedicated Audio & Control Transformer Windings) |
| Front Display & Interface | 3.7-inch IPS Screen (240 x 960 Resolution, 1000:1 Contrast, 5 Brightness Levels) |
| Control & Trigger Connections | 1x 3.5mm 12V Trigger In, 1x 3.5mm 12V Trigger Out (5–12V DC Compatible) |
| Chassis Construction | Single-Billet CNC-Machined Aluminium Monocoque Structure |
| Dimensions (W x D x H) | 430 x 268 x 50 mm |
| Net Weight | 8.0 kg |
| Available Finishes | Black / Silver |
