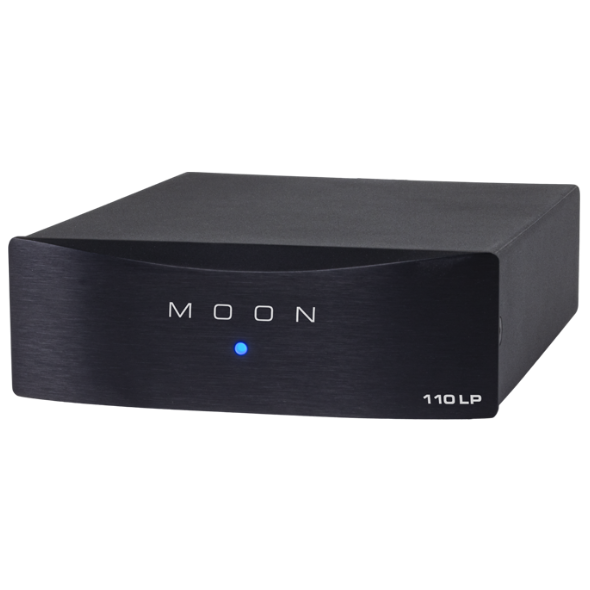

Simaudio Moon 110LP V2 Phono Preamplifier

£490.00 £600.00 Save £110
Audio Emotion

Condition Report

Score: 5 / 5 Mint

Visually and mechanically indistinguishable from new.

Condition Notes:
  • Has not been removed from its packing, effectively unused.
  • Less than two years old.
Origin Preowned
Original Box ✓ Yes
Packaging ✓ Yes
Included Accessories:
  • ✓ Includes Mains Cable
  • ✓ Includes Manual

The MOON 110LP v2 simplifies high-quality analogue playback. Derived from technologies found in its big brother 310LP, the MOON 110LP v2 represents another leap forward in an affordable phono preamplifier.

Sound Quality

Developed with award-winning technologies used in our more exotic phono preamplifiers, the MOON 110LP v2 represents another leap forward in sound quality and affordability.

Dynamic

Enjoy all of the MOON sonic characteristics available at a lower cost than ever; fast, tight, extended bass response, a natural open midrange, and airy extended high frequencies.  This is achieved through the combination of an improved power supply and an enhanced circuit layout. Another benefit is an increased input overload margin for trouble free use.

Convenient & Flexible

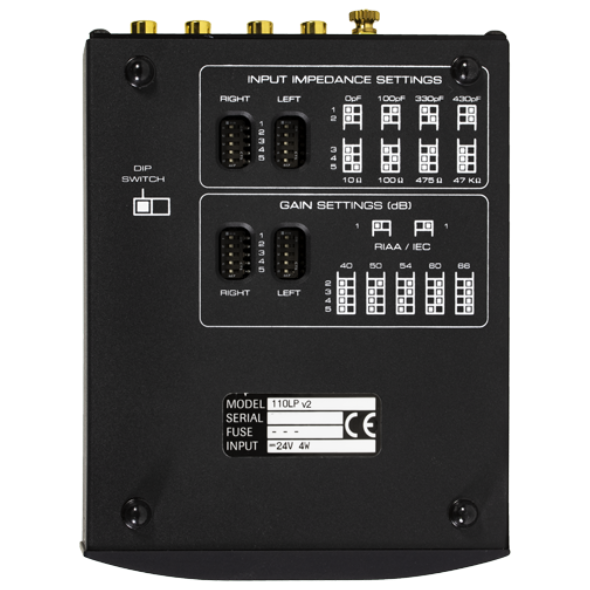

In a matter of just a few seconds, you can easily configure under the unit each of these four parameters: gain, curve, resistance and capacitance. As a result, replacing your cartridge will not render the MOON 110LP v2 obsolete.

Design features
  • End-user adjustable impedance loading (47kΩ, 475Ω, 100Ω, 10Ω)

  • End-user adjustable capacitance loading (0pF, 100pF, 330pF, 430pF)

  • End-user adjustable gain settings for moving magnet and moving coil cartridges (40dB, 50dB, 54dB, 60dB, 66dB)

  • End user selectable curve (IEC/RIAA)

  • Four layer PCB tracings using pure copper for low impedance characteristics

  • Inductive DC Filtering for a significantly lower noise floor

  • Compact, rigid all-aluminum chassis with gold-plated RCA connectors

  • Designed to be powered up at all times for optimal performance

Specifications

  • Circuit Layout
    Mirror-image symmetrical circuit
  • Single-ended inputs
    1 pair (RCA)
  • Input Impedance - Adjustable
    10Ω / 100Ω / 475Ω / 47kΩ
  • Input Capacitance - Adjustable
    0 / 100pF / 330pF / 430pF
  • Gain Level - Adjustable
    40dB / 50dB / 54dB / 60dB / 66dB
  • Curve
    IEC / RIAA
  • Signal-to-noise Ratio (full scale @40 dB gain)
    104 dB
  • Signal-to-noise Ratio (full scale @60 dB gain)
    87 dB
  • Frequency Response
    20Hz - 20kHz (± 0.5dB)
  • Intermodulation Distortion
    0.002%
  • THD (20Hz - 20kHz)
    0.002%
  • Power Consumption @ idle
    2 W
  • AC Power Requirements
    100-240V 50Hz / 60 Hz
  • Shipping Weight
    3.3 lb / 1.5 kg
  • Dimensions (W x H x D)
    5.0 x 1.65 x 6.5 in

  • 12.7 x 4.2 x 16.5 cm
