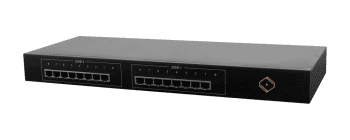

Silent Angel Bonn N16 Network Switch

Silent Angel Bonn N16 network switch is an advanced unit with a built-in high-quality Forester Linear Power Supply.

TWO ISOLATED ZONES FOR NETWORK TRAFFIC ISOLATION

N16 LPS has two isolated zones for network traffic isolation. Physical isolation avoids ethernet traffic interference so that critical audio player functionality is separated from network traffic.

SILENT ANGEL FORESTER TECHNOLOGY INSIDE

N16 LPS is equipped with Silent Angel Forester linear power module, a stable low noise and fast responding power source. By using a fully symmetric circuit (in both transformer and circuit), the Forester linear power module provides two isolated power sources that match the high frequency loading of switch circuit and clock circuit feeding two separated 8 port switch modules.

ISOLATED SILENT ANGEL TCXO MODULES

N16 LPS isolates the clock source for each network zone. It has two optimally-powered TCXO modules for two isolated network zones so that the TCXO reduces power noise from the switch circuit.

FLEXIBLE MOUNTING OPTIONS

With included rack mount brackets, N16 LPS can be mounted to a 19 inch rack at 1U in height, or use the included rubber pad to place N16 LPS on a flat and solid surface.

There are two typical scenario for N16 LPS to fit in your network environment:

1 Fully isolated zones.

2 Two zones in series.

SPECIFICATIONS:

Dimensions: 441mm (W) x 166mm (D) x 44.1mm (H)

Device Weight: 3KG

Input: 230VAC or 115VAC 50/60Hz (with voltage selector)

Power LEDGreen light on when power is on.

LINK / ACT LEDLight on when port is linked up, flashes when active.

Green: 1000 Mbps

Amber: 100 Mbps

Accessories:

IEC Type AC Power Cord *1

Ethernet Cable *1

Mounting Brackets *2

Bracket Screws *8

Rubber Feet *4

Quick Start Guide *1

Warranty Card *1
