Product Overview & Specifications

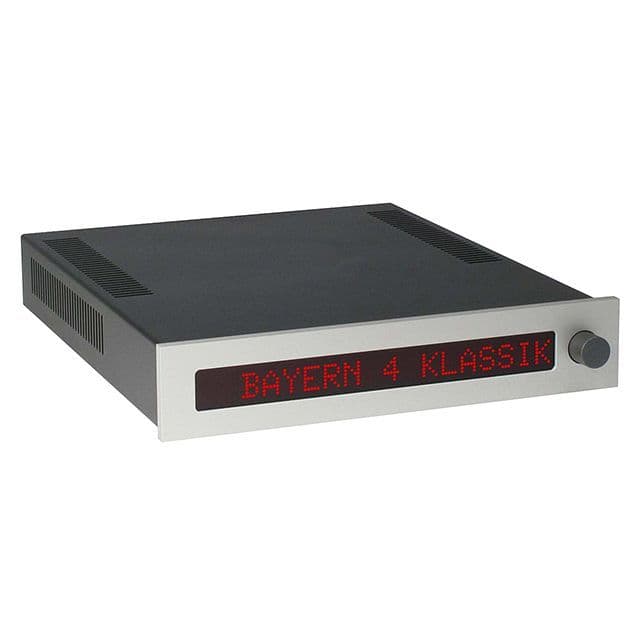

The RESTEK MSAT+ satellite tuner is a hi-fi radio that only serves the high-quality audio reception of DVB-S radio stations. Audio is not a waste product of a video receiver here. You do not need a screen to operate the MSAT+. With the MSAT+, RESTEK finally opens up the satellite transmission technology of radio programs to audiophiles as well.
Features of the satellite tuner MSAT+ from the M-Series- Infrared system remote control
- Dimmable multi function display
- Menu-driven one-button operation
- Adjustable output level
- Digital Toslink output
- Digital RCA output
- Analog RCA output
- On and off volume control
- German production
Technical Specifications
| Frequency range | 950 MHz... 2150 MHz |
| Input level | -75 dBm... 10 dBm |
| Symbol rate | 1MSym... 45 MSym |
| Decoding | MPEG1 and MPEG2, layer 1 and 2 |
| LNB mode | 14V / 18V Max 400 mA, tone burst, 22 kHz tone and DiSEqC 1.x, single-cable systems |
| Loop through | -3dB max. |
| D/A Converter | 24 bit Burr Brown Delta-Sigma-multi bit converter |
| Resolution | 16, 18, 20 and 24 bits |
| Upsampling | 44.1, 48, 88.2, 96, 176.4 and 192 kHz |
| Frequency response | 3 Hz... 24 kHz ± 0. 5dB |
| Total harmonic distortion | < 0.005% |
| Commercial signal dynamic range | > 100 dB |
| Output level | 2V of rms max |
| Output current | 70 mA rms max |
| Output impedance | 50 ohm |
| Noise ratio | > 100 dBA |
| Crosstalk attenuation | > 100 dB |
| Dimensions (WxHxD) | 285 x 64 x 330 mm |
| Weight | approx. 3.9 kg |
| Display color | Red, green or blue |
| Versions of the front | Acrylic mirror polished, black, champagne, or silvery matte brushed aluminium, chrome plated brass, as well as special designs on request |
