Product Overview & Specifications

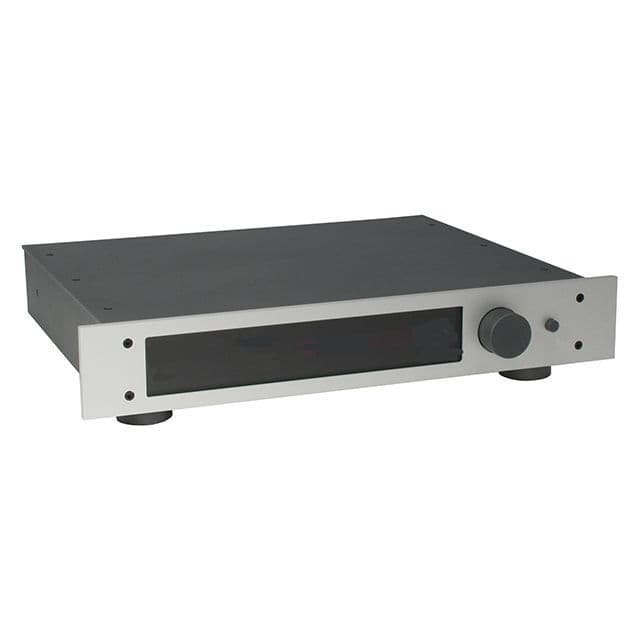

The RESTEK ESAT + satellite tuner is a high-quality digital radio for satellite reception.
In developing this unique satellite receiver for audio signals, RESTEK has been able to draw on its many years of experience developing world-renowned tuner legends. Tuners like the legendary FM.3003 once made RESTEK known worldwide.
- Infrared system remote control
- Dimmable multi function display
- Menu-driven one-button operation
- Symmetrical design
- Analog XLR and RCA outputs
- Digital RCA and Toslink output
- Adjustable output voltage
- Sandwich housing made of steel, bituminous, aluminium
- Standby consumption < 0.5 W
Technical Specifications
| Frequency range | 950 MHz to 2150 MHz |
| Input level | -75 dBm to 10 dBm |
| Symbol rate | 1 MSym up 45 MSym |
| Decoding | MPEG1 and MPEG2 layer 1 and 2 |
| LMB modes | 14V / 18V max 400 mA, tone burst, 22 kHz tone and DiSEqC 1.x |
| D/A Converter | 24 bit BurrBrown and Delta-Sigma multi-bit converter |
| Resolution | 16 bit, 18 bit, 20 bit, 24-bit |
| Upsampling | 44.1, 48, 88.2, 96, 176.4 and 192 kHz |
| Frequency response | 3 Hz to 24 kHz +/-0,5 dB |
| Total harmonic distortion | < 0.004% |
| Commercial signal dynamic range | > 103 dB |
| Output level | 2V rms Max asymmetrically, 4 V rms Max symmetrically |
| Output impedance | 50 ohm unbalanced, 110 balanced |
| Dimensions | 483 x 90 x 365 mm |
| Weight | approx. 12 kg |
| Display color | Red, green or blue |
| Versions of the front | Acrylic mirror polished, black, champagne, or silvery matte brushed aluminium, chrome plated brass, as well as special designs on request |
