Product Overview & Specifications
Smaller does not mean lesser. REL designed the compact T/5x to give smaller sized spaces and systems equal quality sound, so while scale may change the performance stays the same.
STUNNINGLY SIMPLE
Simplify, Then Add Lightness: Simplicity is its own reward and T/5x reduces the classic cubic sub to its bare essence. A single, high quality AlloyFibre composite driver and down firing orientation produces maximum coupling with the floor and eliminates the need for a grille. T/5x is the purest expression of REL.
A 360-DEGREE UPGRADE
When REL upgraded their drivers, they were forced to redesign outward. The lovely cabinets grew over its predecessor due to thicker cabinet walls and improved bracing. Why? Because the additional speed and impact of the new drivers requires greater control or the benefits can be lost before they get to the listener.
SWIFT
REL began by updating their classic 8 bass engine to reduce mass, while greatly increasing stiffness. This improvement led to upgrading cabinet dimensions and wall thickness to better control the deep bass. Additional upgrades extended even into the design of REL's feet, resulting in greater speed and solidity to the presentation of sound.
REL'S RELIABLE BRAINS AND BRAWN
RELs electronics are the brains and power behind their success. Serie Ti uses the same Class A/B power amplifier sections with large, high current power supplies, precision-wound transformers and an amazing reliability record that has powered some 100,000 RELs.
Standby Mode switch not included on 110V units.
INTRODUCING ARROW
Arrow is RELs latest generation of zero compression wireless. Super-fast delivery of both High Level Bass and .1/ LFE ensures the rich, natural warmth that only RELs can deliver. With a throw distance of some 45(13.7M) Arrow permits flexible placement without sacrificing sound quality.
Technical Specifications
| TYPE | Closed Box down-firing driver |
| ACTIVE DRIVER SIZE & MATERIAL | 8 in., 200mm long-throw FibreAlloy inverted aluminium dust cap steel chassis, white cone |
| PASSIVE RADIATOR SIZE & MATERIAL | N/A |
| LOW FREQUENCY EXTENTION | -6dB at 32 Hz |
| INPUT CONNECTORS | High Level Neutrik Speakon Low Level single RCA, LFE RCA |
| OUTPUT CONNECTORS | N/A |
| POWER OUTPUT | 125 watts (RMS) |
| AMPLIFIER TYPE | Class A/B |
| WIRELESS CAPABILITY | Arrow (Optional) Zero Compression Single Large Scale Integrated Chip |
| FULLY ELECTRONIC SET SAFE | Yes |
| D.C. FAULT | Yes |
| OUTPUT SHORT | Yes |
| MAINS INPUT VOLTAGE | 220-240 volts 110-120 volts for certain markets |
| FUSES | 1.6 Amp semi delay 230 volts operation 3.15 Amp semi delay 115 volts operation |
| DIMENSIONS (W x H x D) | 267 x 317 x 322 mm |
| NET WEIGHT | 12 kg |
| FINISH | High Gloss Black, 5 coats High Gloss White, 5 coats |
| Supplied Accessories | Mains Lead Neutrik Speakon 10m User Manual |
Manufacturer Site
Customer Reviews
Don't let the hassle of selling privately hold you back. We accept almost any trade-in (of lower value) to make your upgrade affordable. We even handle the logistics with our seamless courier service.
How it works:
The Offer: If you are happy with our quote, simply contact us to complete your purchase.
The Collection & Delivery: We will contact you to arrange the collection of your old equipment and delivery of your new equipment.
Ready to upgrade? Please complete the details below for a fast, accurate valuation. We will base your part exchange against the item you are currently viewing on the site.

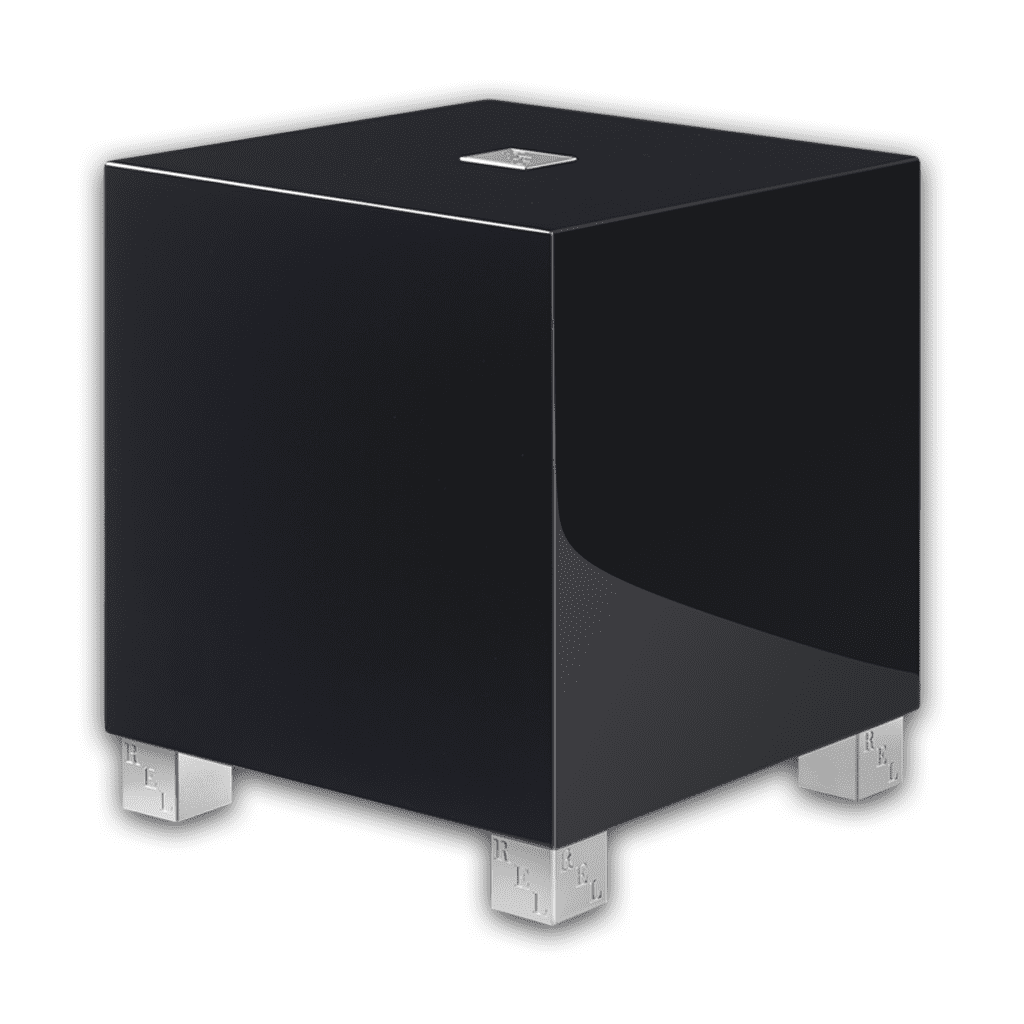

REL Acoustics T/5x Subwoofer
