"Reimyo" means miracle, and that's the name Harmonix has given to its growing lineup of cutting-edge sound equipment. The Reimyo lineup truly lives up to its name. The lineup was designed through High-tech Fusion: that's where Harmonix collaborates with the world's finest specialized companies, combining the best technology in the world to create an unprecedented, and otherwise impossible, product line. As their name implies, these systems bring out natural sound in an almost miraculous way.

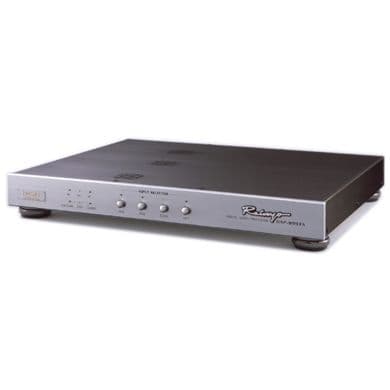

Reimyo DAP-999EX, a high-purity digital-to-analog converter unparalleled and unprecedented performance in its class bring you exquisite sound you have never ever experienced before. Employs Japan Victor’s K2 technology 24bit DAC IC, rigid constructed all aluminum body, custom design parts including transformers and condensers, special made super purity and ultra high-speed signal transmission internal wiring, original design tuning feet addition to our oriented and our rigorous study over the digital behave let you excite and invite you to a new level in music listening!

Already known as the best of CD transport Reimyo CDT-777 and new DAP-999EX combo produces fabulous reality of music performance as if they are live! DAP-999EX equip with AES( XLR-3P) Hot No.3, Coaxial (RCA), BNC and Optical(TORX) digital inputs and balanced and unbalanced outputs.

Features

• Input Quantization: 16bit
• Sampling Frequency: 48 kHz, 44.1kHz, 32 kHz. Auto-switching.
• Digital Inputs:
  • 1 x AES (XLR-3P; Hot: No.3) Input Impedance:110 Ohm
  • 1 x BNC: 75 Ohm
  • 1 x COAXIAL (RCA) 75 Ohm
  • 1 x OPTICAL (TORX)
• Signal Procession: K2 Technology (K2 LSI; 16-24bit)
• DA Converter: 24bit 16-time oversampling/multi bit)
• Analog Outputs:
  • XLR balance/ 5.1 Vrms/ Low Imp.
  • RCA unbalance/ 2.55 Vrms/ Low Imp.
• Frequency Response: DC ~ 20kHz (+/-0.5dB)
• S/N Ratio: Better than 114dB (IHF-A)
• Dynamic Range: Better than 100dB
• Channel Separation: Better than 105dB (1kHz)
• Output frequency: 4-time (88.2kHz Max)
• Frequency Expansion: 4-time (fs/44.1kHz to 176.4kHz)
• Linearity: +/-0.5dB (+10dBm ~ 90dBm) 1kHz IHF-A
• THD: Better than 0.003% (1kHz Vo=F/S)(30kHz LPF On)
• Channel: 2-Channel Stereo
• Phase shift Switch: (0° ~ 180°) 0°: normal, 180°: Invert
• Power Requirement: 117V-50/60Hz or 230V-50/60Hz (Single Voltage Transformer, not convertible)
• Power Consumption: 15W
• Dimensions: 430(W) x 44(H) x 337(D) Max.
• Weight: 11.2 Lbs or 5.5kgs

* Specification and design of DAP-999EX Limited may be changed without notice for the purpose of further improvement.
