Product Overview & Specifications

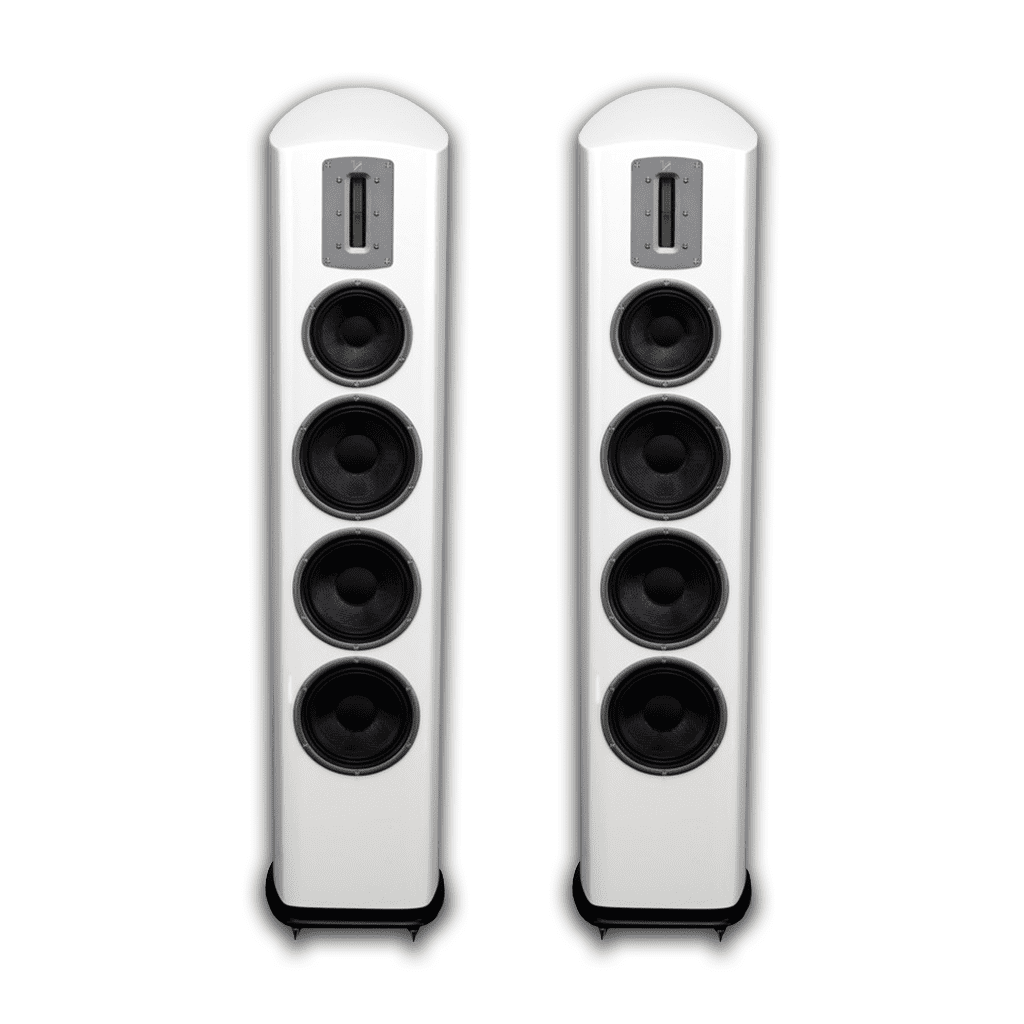

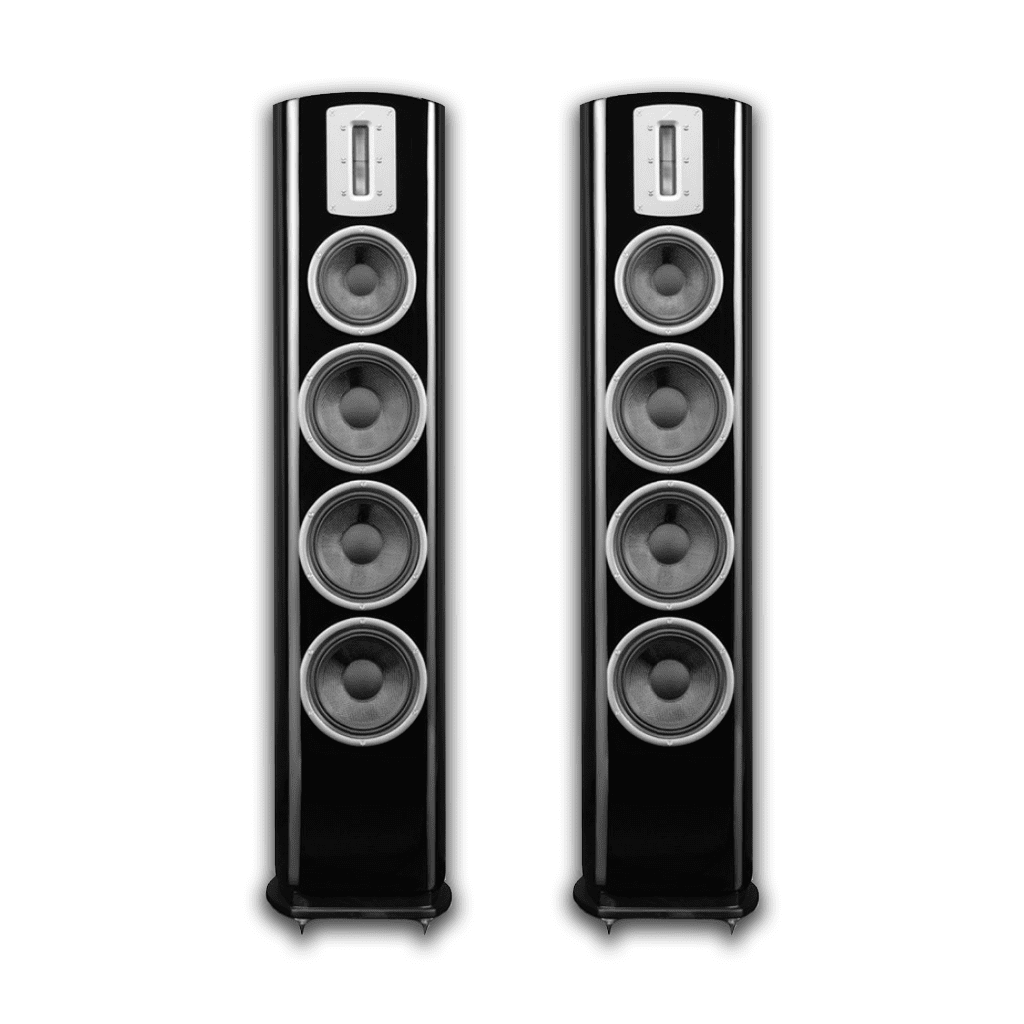

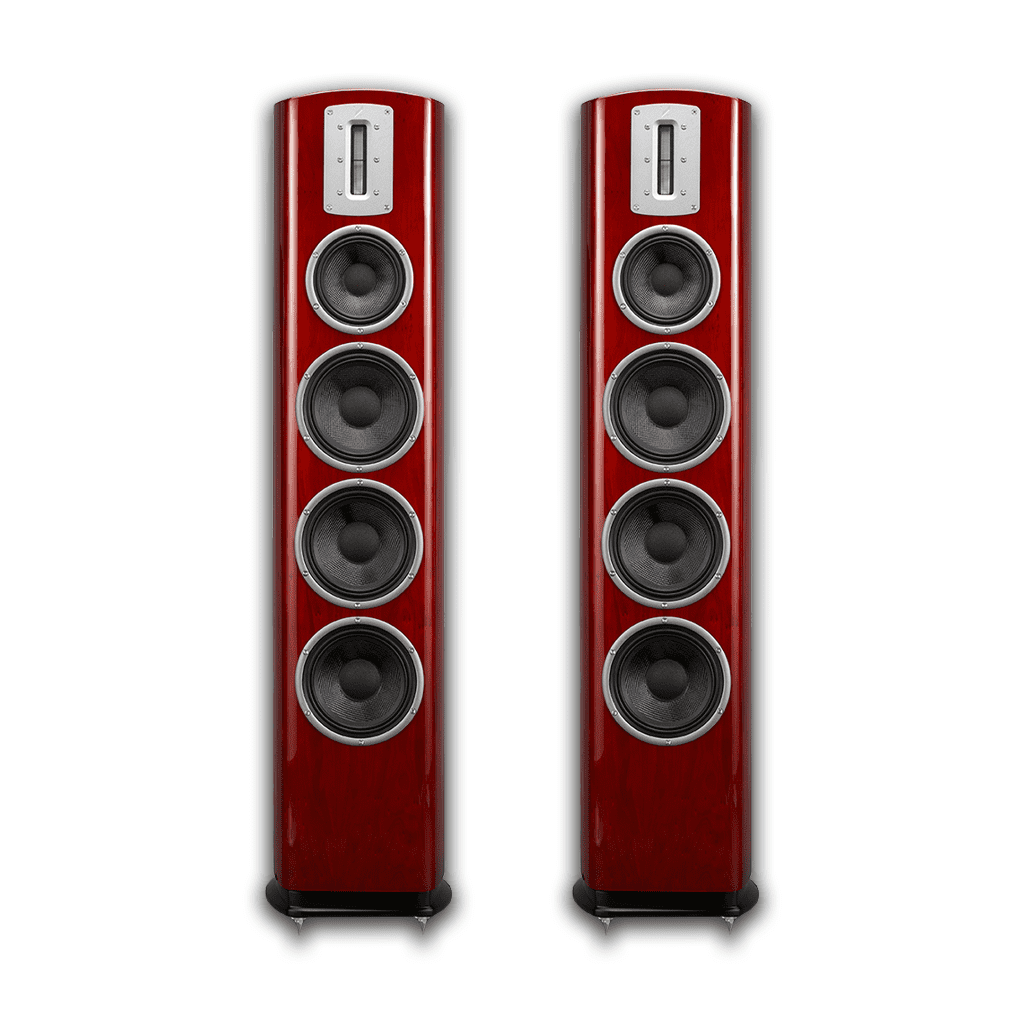

QUAD proudly announce Z Series, our new flagship ribbon loudspeaker range. After taking a new approach to ribbon tweeter design using a unique sandwich formation, an exceptionally robust, high power speaker has been engineered, yet with the delicate sound conventional ribbon speakers are known for. Z Series is housed beautifully curved piano lacquered cabinets, available in black, white and rosewood.
Technical Specifications
| General description | Floor-standing Loudspeakers |
| Enclosure type | Bass Reflex |
| Transducer complement | 3-way |
| Bass driver | 3 x 165mm Woven Kevlar |
| Treble driver | 90x12mm true ribbon |
| AV shield | No |
| Sensitivity (1W @ 1m) | 90dB |
| Recommended amplifier power | 60-250W |
| Peak SPL | 115dB |
| Nominal impedance | 4 |
| Minimum impedance | 3.6 |
| Frequency response (+/-3dB) | 47Hz - 20kHz |
| Bass extension (-6dB) | 40Hz |
| Crossover frequency | 300Hz & 3.5KHz |
| Cabinet Volume (in litres) | 43L |
| Dimensions | 1175mm x 267mm x 340mm |
| Weight | 23.5kg |
| Finish | Piano Black / Piano White / Piano Rosewood |
| Accessories | User Manual, Certificate |
