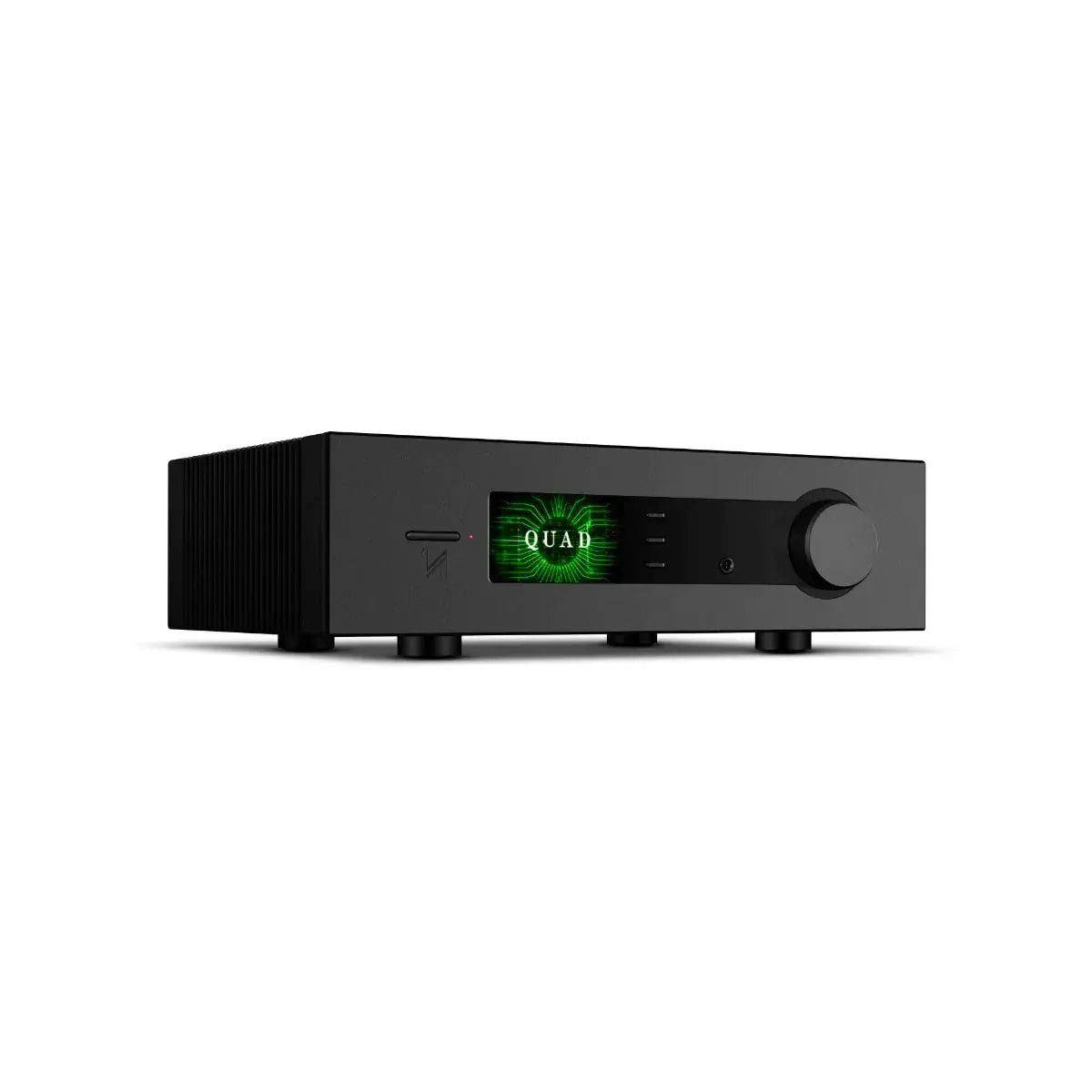

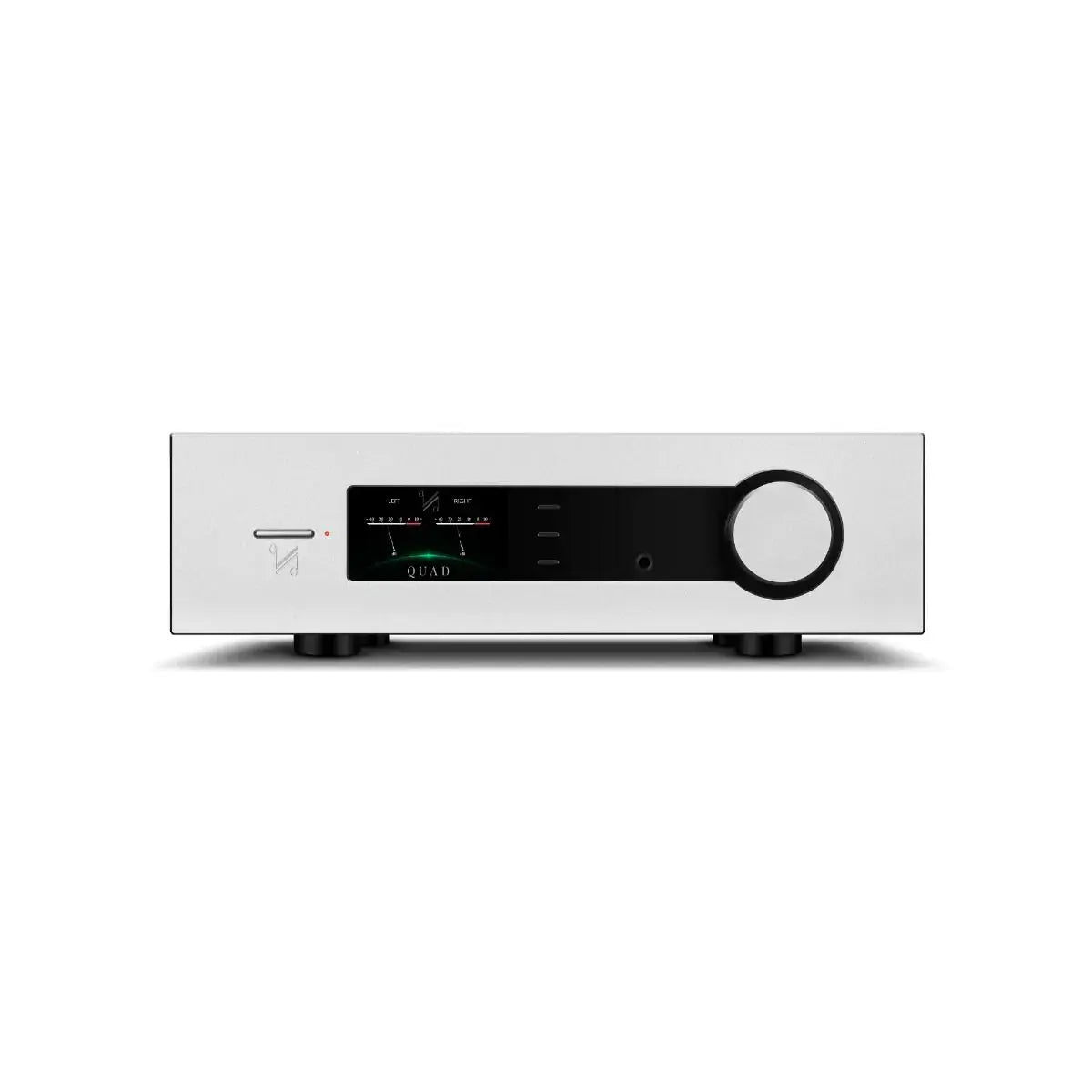

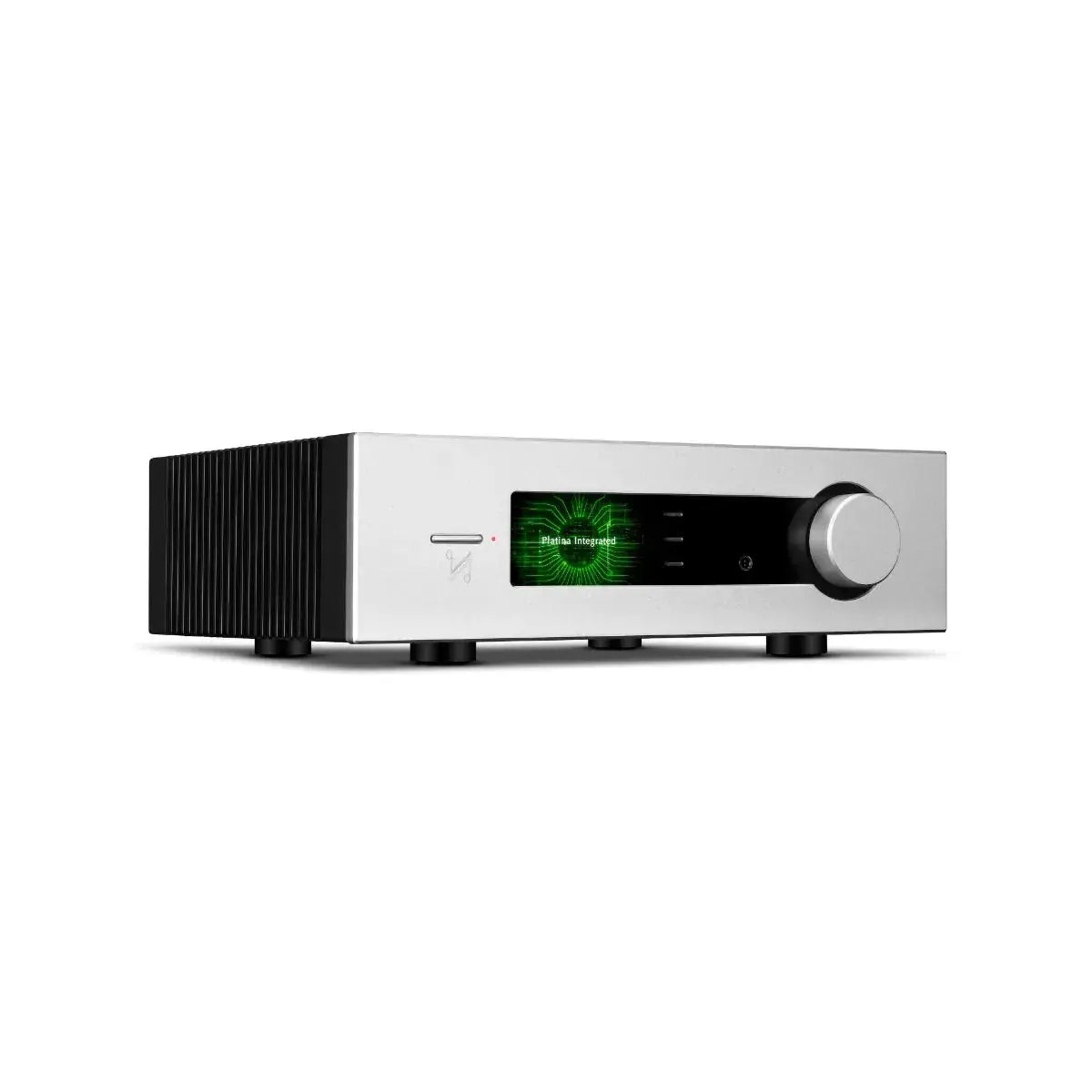

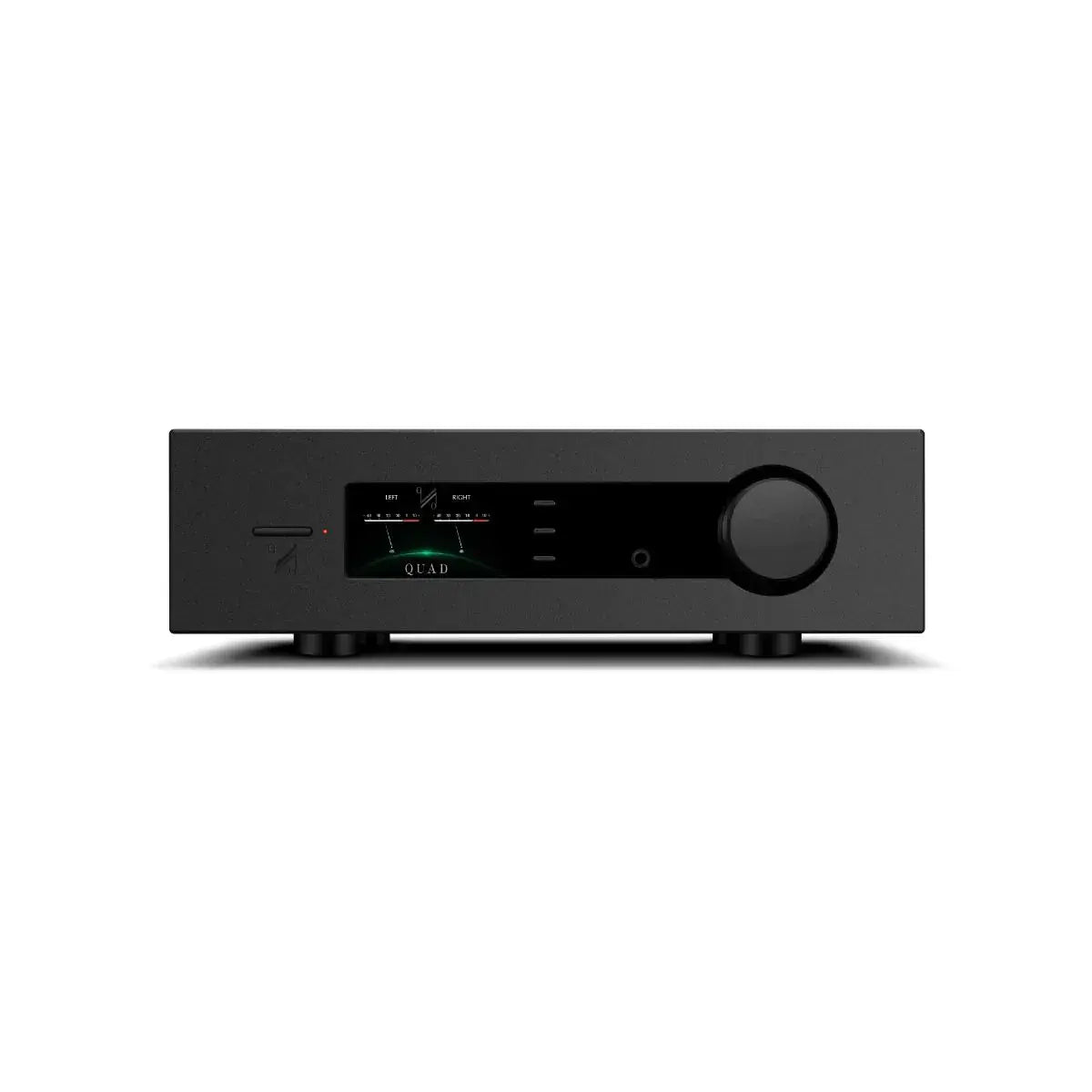

QUAD Platina Integrated Amplifier
QUAD Platina Integrated Amplifier
Our price match promise...
If you find an identical item cheaper from one of our online competitors, tell us and not only will we match the price, we'll beat it by 10% of the difference.
Estimated Shipping Widget will be displayed here!
The QUAD Platina Integrated is the flagship Class AB integrated amplifier in QUAD's reference line-up, delivering a muscular 2 x 200W into 8 Ω (2 x 310W into 4 Ω) with peak currents up to 20A. Built on a dual-mono topology, it features a massive 630VA toroidal transformer with 44,000 µF reservoir capacitance per channel and custom Würth Elektronik capacitors. Its modern chassis pairs machined aluminum tactile controls with a 4.3-inch IPS color display and a graphical user interface for seamless parameter adjustment.
Equipped with an ESS Sabre ES9038PRO DAC and dual master clocks, the Platina Integrated supports audio up to PCM 768 kHz and DSD512 with optional PCM upsampling and 5 user-selectable reconstruction filters. Analog inputs feature an advanced JFET MM/MC phono stage with selectable gain settings (46 dB, 52 dB, 60 dB), while output stages include a 4-channel active volume control, pre-outs (XLR/RCA), HDMI ARC, and a dedicated current-feedback headphone amplifier.
KEY FEATURES & SYSTEM ARCHITECTURE
- Dual-Mono Class AB Power Stage: Delivers 200W per channel into 8 Ω and 310W into 4 Ω with 20A peak current capability to effortlessly drive complex speaker loads.
- 630VA Power Supply Architecture: Powered by a custom 630VA toroidal transformer, 44,000 µF filtering per channel, cascaded voltage regulators, and bespoke Würth Elektronik capacitors.
- ESS Sabre ES9038PRO Reference DAC: Features dual precision master clocks, PCM upsampling (to 352.8 kHz / 384 kHz), 5 reconstruction filters, and support for PCM 768 kHz and native DSD512.
- JFET MM/MC Phono Stage: High-impedance, ultra-low-noise phono preamplifier with three adjustable gain settings (46 dB, 52 dB, 60 dB) accessible directly through the GUI.
- Comprehensive Digital & Home Theater Connectivity: Includes HDMI ARC, USB-C (PC USB), 2x Optical, 2x Coaxial S/PDIF inputs, and Roon Tested certification.
- Current-Feedback Headphone Output: High-bandwidth, low-distortion discrete headphone amplifier designed to drive loads from 20 Ω to 600 Ω.
- 4.3-Inch IPS Display & Active Volume Control: Full-color GUI display paired with a step-based 4-channel active volume control and unified system remote.
SPECIFICATIONS
| Product Category | Integrated Amplifier with DAC & Phono Stage |
| Amplifier Architecture | Class AB Dual Mono Design |
| Rated Power Output (THD < 1%) | 2 x 200 W RMS @ 8 Ω | 2 x 310 W RMS @ 4 Ω |
| Maximum Output Current | 20 Amperes |
| Power Supply Transformer / Capacitance | 630 VA Toroidal Transformer | 44,000 µF Capacitance per Channel |
| DAC Chipset & Master Clocks | ESS Sabre ES9038PRO 32-bit DAC with Dual Precision Master Clocks |
| Supported Digital Sample Rates | PC USB (Type-C): PCM up to 768 kHz, Native DSD512 | S/PDIF & HDMI ARC: PCM up to 192 kHz |
| Digital Inputs | 1x PC USB (Type-C), 1x HDMI ARC, 2x Coaxial S/PDIF, 2x Optical Toslink |
| Analog Inputs | 1x Stereo Balanced XLR, 2x Stereo Unbalanced RCA, 1x Dedicated MM/MC Phono (RCA) |
| Phono Preamplifier Gain & Impedance | Gain: +46 dB, +52 dB, +60 dB | Impedance: MM (50 kΩ // 100 pF), MC (360 Ω // 200 pF) |
| Preamplifier Line Outputs | 1x Stereo Balanced XLR Pre-Out, 1x Stereo Unbalanced RCA Pre-Out |
| Digital Line Outputs | 1x Optical Toslink, 1x Coaxial S/PDIF |
| Headphone Output | Current-Feedback Circuit | Output Impedance: 2.35 Ω | Load: 20 – 600 Ω |
| Display Screen | 4.3" Full-View Color IPS LCD (800 x 480 pixels) |
| Software & Digital Features | Roon Tested, PCM Upsampling, 5 User-Selectable Reconstruction Filters |
| System Control Ports | 1x 12V Trigger In, 1x 12V Trigger Out |
| Dimensions (W x H x D) | 445 x 134.5 x 348 mm |
| Net Weight | 17.1 kg |
| Standby Power Consumption | < 0.5 W |
| Included Accessories | System Remote Control, Power Cord, User Manual |
