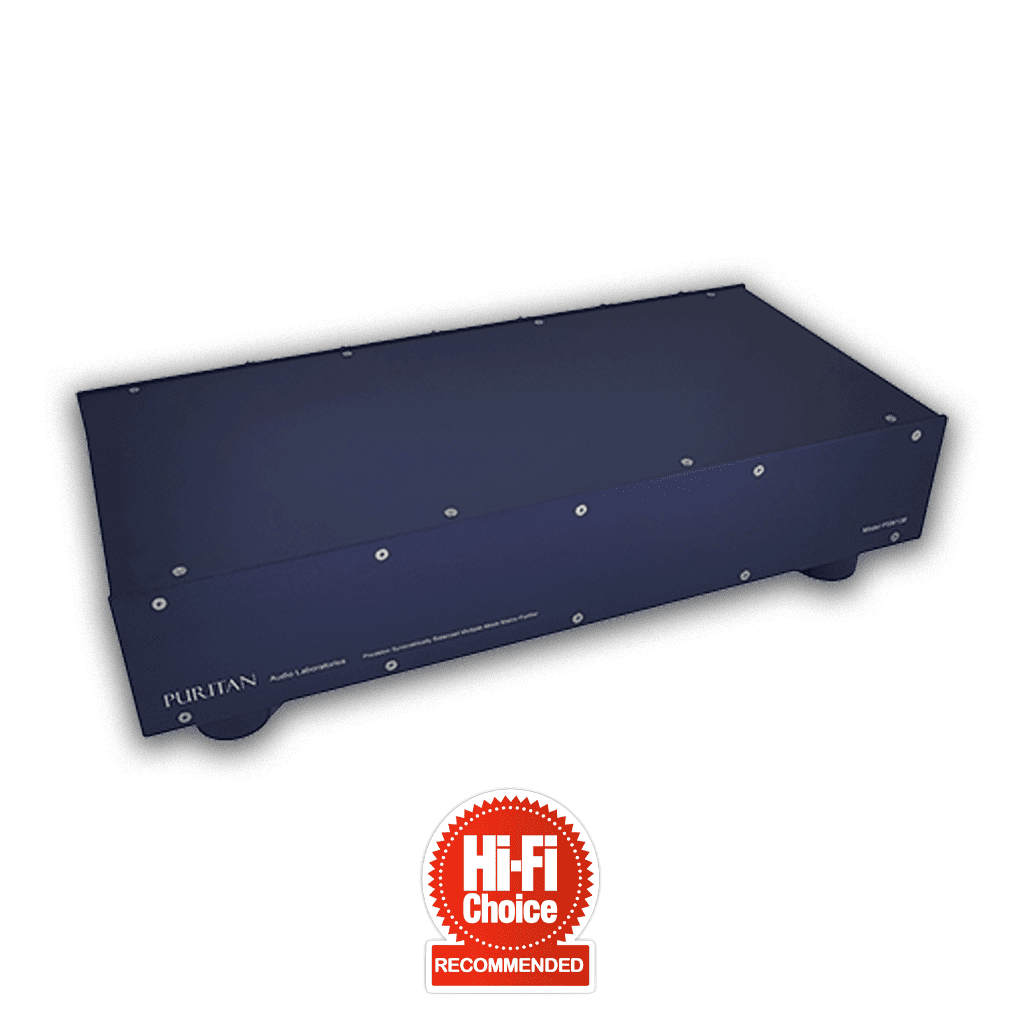

Puritan PSM136 Studio Master Purifier
Puritan PSM136 Studio Master Purifier
Our price match promise...
If you find an identical item cheaper from one of our online competitors, tell us and not only will we match the price, we'll beat it by 10% of the difference.
Estimated Shipping Widget will be displayed here!
The Puritan Audio Labs PSM136 utilizes precision symmetrically balanced circuitry across 6 fully independent 15A outlets, featuring 39 finely tuned filter elements to lift your system into a new dimension. By eliminating common and differential mode interference while maintaining equal resistance power routing, it delivers three-dimensional soundstaging, believably rich timbre, and exceptional clarity between instruments.
Housed in an electrically and magnetically shielded casing with silver-plated OFC PTFE internal wiring, the PSM136 incorporates built-in DC-rebalancing technology to stop transformer hum and an integrated cleansed star-earthing system to lower the noise floor. Includes a 2m Classic Mains Cable and a 5-year manufacturer guarantee.
KEY FEATURES
- Built-In DC Rebalancing: Rebalances the AC sine wave to eliminate DC offsets, stopping transformer buzz and allowing power supplies to operate at full efficiency.
- 39 Cumulative Filter Elements: Multi-stage purification targets all types of AC mains interference without restricting dynamic impact.
- 6 Isolated 15A Outlets: Each socket features independent re-filter stages for both common and differential mode disturbances, eliminating cross-contamination between source and amplification components.
- Cleansed Star Earthing: Star earthing layout paired with ground-line purification eliminates ground loop hum and significantly drops the system noise floor.
- 30,000A Surge Protection: Comprehensive three-dimensional voltage spike protection safeguards high-end audio investments.
- Heavy-Duty C20 Inlet: High-current IEC C20 input connection supplied with a 2m Puritan Classic Mains Cable.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Output Sockets | 6 Directly Star-Connected 15A Outlets (Isolated) |
| Purification Stages | 39 Cumulative Independent Filter Elements |
| DC Blocking | Built-In AC Sine Wave Rebalancing (Removes DC Components) |
| Surge Protection | 30,000 Amps (Three-Dimensional) |
| Earthing System | Star Earthing with Integrated Cleansed Ground Line |
| Internal Wiring | Silver-Plated OFC Copper with PTFE Insulation |
| Mains Input | IEC C20 Inlet (Includes 2m Classic Power Cable) |
| Rated Voltage | 220–240V AC (50/60Hz; Other Voltages Available) |
| Socket Region Options | UK, Schuko, France/Belgium, Switzerland, USA/Canada |
| Chassis Options | Standard Shelf Mounting or 2U Rackmount Facia |
| Dimensions (W x D x H) | 430 x 230 x 110 mm |
| Country of Manufacture | United Kingdom |
| Warranty | 5 Years Guarantee |
REVIEWS & MEDIA
MANUFACTURER INFORMATION
Visit Official Puritan Audio Laboratories PSM136 Product Page
