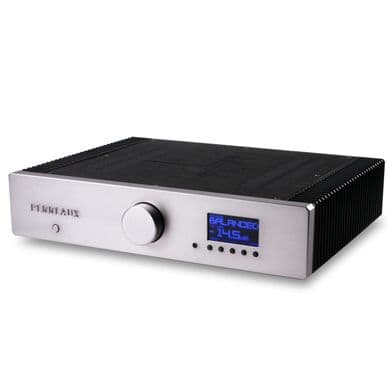

The 150i is a compact integrated amplifier with big attitude. It has been designed with precision engineering using the latest in technological advances to ensure seamless integration into any system. The 150i won't disappoint.

The optional internal 24-bit/192kHz Digital to Analogue Converter (DAC) and Moving Magnet/Moving Coil (MM/MC) Phono Preamplifier modules ensure complete integration of digital source components (such as network music servers and set-top digital receivers), as well as turntables, into a high-performance system.

The Eloquence 150i stereo integrated amplifier is the perfect partner for the CDt Compact Disc Transport when you choose to add the DAC module.


Features

• High Power Design
• High-current Custom Power Supply
• High Damping Factor
• Advanced Microprocessor Control
• Advanced Stepped Volume Control
• Advanced Lossless Stepped Off-Set Balance Control
• Non-Invasive Protection
• Balanced (XLR) input
• Home Theatre/Pass-Through Loop
• IR (infrared) input and output
• Isolation Feet Options
• USB Digital to Analogue Converter (DAC) (optional)
• MM/MC Phono Stage (optional)



Technical data

Dimensions	426mm (16.8") x 344mm (13.5") x 102mm (4.0") (W x D xH) Weight: 17kg (37.4lb)
Amplifier
Rated Power Output (per channel):	150W into 8 300W into 4
Maximum Power Output (prior to clipping, per channel):	190W into 8 310W into 4
Total Harmonic Distortion + Noise	Typically: 0.002% @ 1kHz, 150W into 8 20Hz to 20kHz: less than 0.040%, 150W into 8
Frequency Response	20Hz to 20kHz: +0.00dB, -0.15dB 5Hz to 60kHz: +0.00dB, -0.50dB
Damping Factor:	800 @ 1kHz, 150W into 8
Signal to Noise Ratio (unweighted):	better than 96dB, ref. 150W
Preamplifier
Input Impedance	Unbalanced: 12k Balanced: 22k
Input Overload	Unbalanced: 8Vrms Balanced: 8Vrms
Volume Control Range:	-95.5dB to +31.5dB
Volume Control Resolution:	0.5dB per step
Input Volume Trim Range:	40dB
Balance Resolution:	0.5dB
Balance Range:	40dB
Optional Eloquence DAC Module Specifications
Digital Inputs:	2 SPDIF Coax (BNC) 2 SPDIF Optical (Toslink) 1 USB (Type B)
Input Sample Rate:	32, 44.1, 48, 88.2, 96, 176.4, 192kHz (Coax, Optical) 32, 44.1, 48kHz (USB)
Input Word Length (maximum):	24-bit (Coax, Optical) 16-bit (USB)
Input Impedance:	75 (Coax)
Transformer Coupled	Coax: Yes Optical: No USB: No
Analogue Section
Digital to Analogue Conversion:	24-bit / 192kHz
Output Voltage:	2.0Vrms @ 0dBFS
Total Harmonic Distortion + Noise	Typically: 0.002%, 20Hz-20kHz @ 0dBFS
Frequency Response	20Hz to 20kHz: +0.0dB, -0.1dB 5Hz to 94kHz: +0.0dB, -3.0dB
Dynamic Range (unweighted):	better than 115dB @ 0dBFS
Signal to Noise Ratio (unweighted):	better than 115dB @ 0dBFS
Channel Separation:	better than 110dB @ 0dBFS
Stop Band:	105kHz
Stop Band Attenuation:	125dB
Optional Eloquence Phono Module Specifications
Input Impedance:	Low Gain (MM): 47k High Gain (MC): 100k
Input Capacitance:	22pF
Gain	Low Gain (MM): 40dB High Gain (MC): 60dB
Total Harmonic Distortion (THD+N):	Typically: 0.002% @ 1kHz, low gain setting 20Hz to 20kHz: less than 0.010%, low gain setting
RIAA Accuracy:	0.5dB, 20Hz-20kHz
Signal to Noise Ratio (unweighted):	better than 85dB, low gain setting
