Product Overview & Specifications

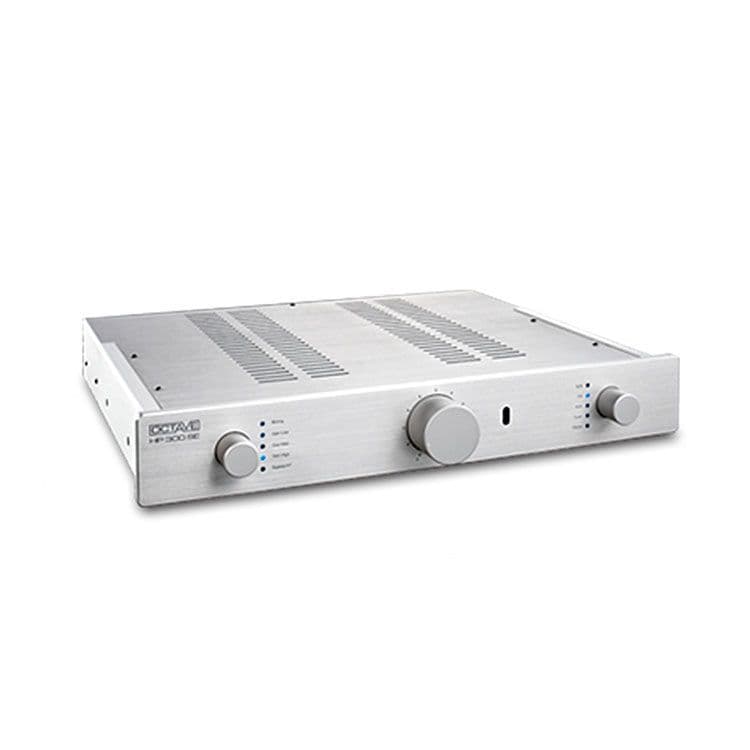

The HP 300 SE is a enhanced version of the HP 300 MKII. The HP 300 SE does not replace the HP 300 MKII, this model extends our range of Preamps. The HP 300 SE offers more flexibility in the connections and sonic benefits due to some improvements in the Power Supply and the Output stage of the Line Amplifier. The HP 300 SE has two independent XLR Inputs, three RCA Inputs, one Monitor Output, two RCA Outputs and one XLR Output. The Gain is switchable in three steps, this allow to set the optimum Gain and regulation Ratio depending on the efficiency of the Loudspeaker. The new designed Line Amp has a extremely high Signal to Noise Ratio. Noise is not only a characteristic of the tubes, a significant contribution is coming from the mains, respectively the Power supply design of a Preamp. The Power supply of the HP 300 SE consists of the external transformer with optimized isolation characteristic, and the precise ultra low noise Voltage regulators of the main unit. Both systems are match to each and help reducing the Noise of the Lime Amplifier effectively. The Balanced Output is realized with a highly symmetrical Output Transformer. The Transformer offers the possibility to connect or disconnect the Ground connection to the Power Amplifier. The feature helps to reduce disturbing mains induced currents that usually flow in the Ground of the Signal connection. Both Outputs offer very low Output Resistances. Connecting cables up to 5 - 10 meter is without negative influence. A helpful feature in modern Hifi combinations is the Home Theatre Bypass Function. The HP 300 SE offers this feature, with the additional possibility to select the Bypass Input from a RCA Input to a XLR Input. The Monitor Output is buffered and can be used to drive an external headphone Amp, the Analog Input of a Computer or similar. Phono MC is available optional.
Technical Data
| Gain high | 25 dB = 18,5 |
| Gain med | 19 dB = 8,8 |
| Gain low | 12 dB = 4 |
| Frequency Response Gain high | 10 Hz - 200 kHz - 1,5 dB |
| Total Harmonic Distortion Gain high | 0.03% |
| S / N Ratio : Gain high | - 92 dB |
| S / N Ratio Gain low | -108 dB |
| Left/Right Crosstalk | 90 dB 1 kHz |
| Input to Input Crosstalk | 100 dB 1 kHz |
| Input Impedance | 100 kOhm |
| Output Impedance | 50 Ohm cinch; 150 Ohm XLR |
| Channel Balance | 0.5 dB - 70 dB |
| Connections | Inputs : 3 x Cinch, 2 x XLR, 1 x Phono Option Outputs : 2 x Cinch, 1 x XLR, 1 x Monitor |
| Features | HT Bypass, Sym. Inputs and Outputs, Monitor Out |
|
Phono-MC | |
| RIAA-Equalization Accuracy | 0,3 dB 15 Hz - 20 kHz |
| Corner Frequency Subsonic Filter | 20 Hz / - 3 dB |
| Input Impedance | 40 - 1000 Ohm |
| Input Sensitivity | 0.1 mV / 0.5 mV |
| Gain low | 58 dB |
| Gain high | 67 dB |
| Signal-to-Noise Ratio (weighted) | - 75 dB |
| Power Consumption | 35 W |
| Weight with Power Supply | 12 kg |
| Standard Accessories | Power cord, IR-Remote Control |
| Dimensions | W x H x D = 438 x 77 x 410 mm |
| Dimensions Power Supply | W x H x D = 110 x 80 x 250 mm |
Manufacturer site
