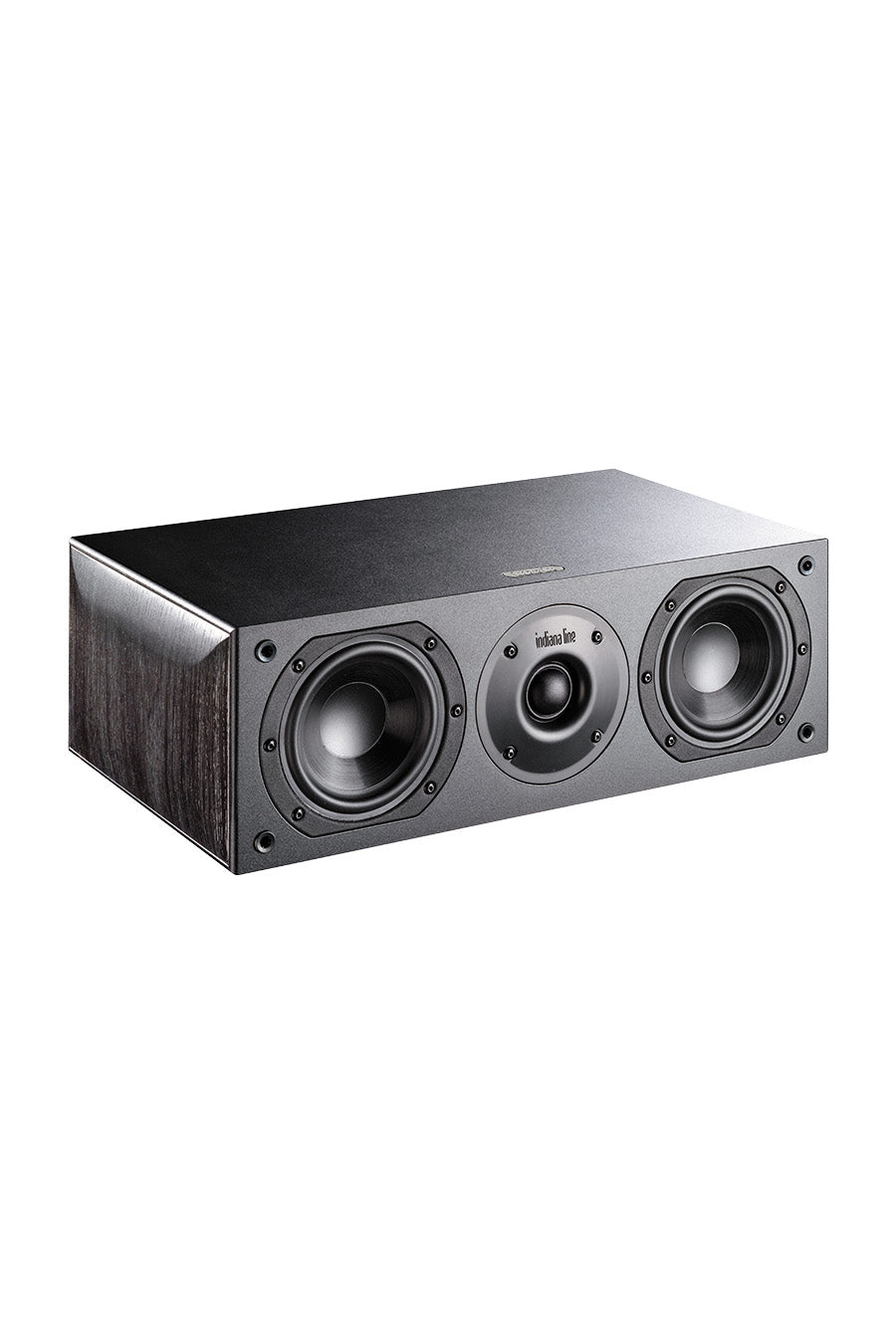

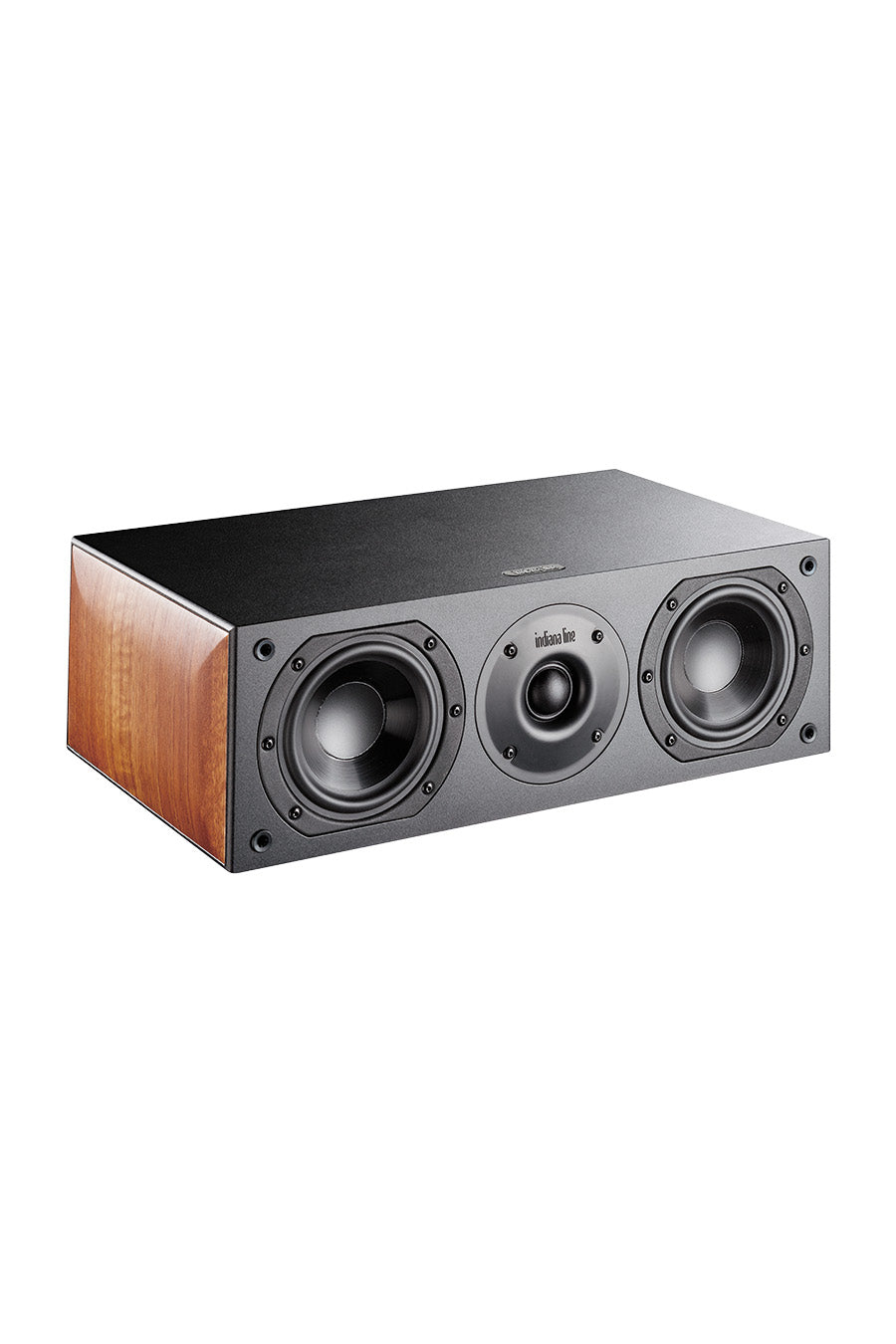

Indiana Line Nota 740 X Centre Speaker

The Indiana Line Nota 740 X 2-way central speaker uses a symmetrical arrangement of electroacoustic transducers and a back ported bass reflex cabinet. Two 107 mm woofers, which warmly reproduce the sound of the midrange and a tweeter with a diameter of 26 mm are responsible for the sound. The wholeness is guaranteed by a wide frequency response. The Indiana Line Nota 740 X model is a confirmation of the Italian design craftsmanship. It has been created primarily for use in home theater systems, in operation with other loudspeakers from the Indiana Line Nota series.

Indiana Line is one of the most important Italian brands in the audio sector. It offers loudspeakers as well as installation speakers. Its traditions date back to 1977. The designers and engineers working for Indiana Line aim to develop models characterized by the highest quality workmanship with rationally used components. Thanks to this, the sound qualities that go far beyond the parameters achieved by competing models available in a similar price range have been achieved.

Italian style craftsmanship

The Nota series is characterized by a timeless design that perfectly confirms the craftsmanship of Italian style and design thought. Properly profiled side panels give the speakers that belong to it a characteristic look. In combination with a durable and aesthetic vinyl coating, which is available in light walnut or black oak, the Nota 740 X will not only decorate the interior of your listening room but will also amaze you with its dynamic and emotional sound. In combination with other, appropriately selected components, you will be able to feel almost like during a “live” concert.

Nota 740 X – perfect for home theater systems

The Indiana Line Nota 740 X is a 2-way center speaker with a 26 mm dome tweeter and a pair of 107 mm mid-woofers. They work in a horizontal symmetrical arrangement in which the tweeter is located between two woofers. The bass reflex port is located at the back, which reduces the audibility of resonances coming from the inside, having a negative impact on the clarity of the played voice. Nota 740 X has been created primarily for use in home theater systems. It will work especially well in medium-sized rooms (from approx. 12 to approx. 20 m2). Together with the Nota 550 X floorstanding speakers or the Nota 260 X bookshelf speakers (as front speakers) and the Nota 240 X models (as effect speakers), you can create a complete, sonically-coherent set of speakers prepared for sound handling, among others, in DTS: X standard. The Nota 740 X loudspeaker has an amplifier loading impedance between 4 – 8 ohms, and the power of the amplifier should be from 30 and 100 W.

Clear and pure sound

Polypropylene membranes of symmetrically placed mid-woofers smoothly and warmly reflect the sound of the midrange, and at the same time guarantee a solid dose of bass. As in the woofers used in other models from the Nota series, also here the mid-woofers have micro-grooves similar to a CD. The tweeter with a neodymium magnet and radial rear chamber is located in a specially profiled front, which improves the dispersion of treble. Moreover, the Nota 740 X model in the tweeter filter only has air coils and foil capacitors, which makes the treble extremely clear and distinct.

The most important features of the Nota 740 X model:

• 2-way central acoustical design
• Crossover frequency: 2,6 kHz
• 2 x 107 mm mid-woofer
• 26 mm textile dome tweeter
• Bass reflex cabinet with a port at the back
• Frequency response: 60 Hz to 22 kHz
• Finish: black oak or light walnut
• Suggested amplifier power: 30 – 100 W
• Sensitivity: 92 dB (2,8 V / 1 m)
• Dimensions (H x W x D): 130 x 400 x 235 mm
• Weight: 4,6 kg
