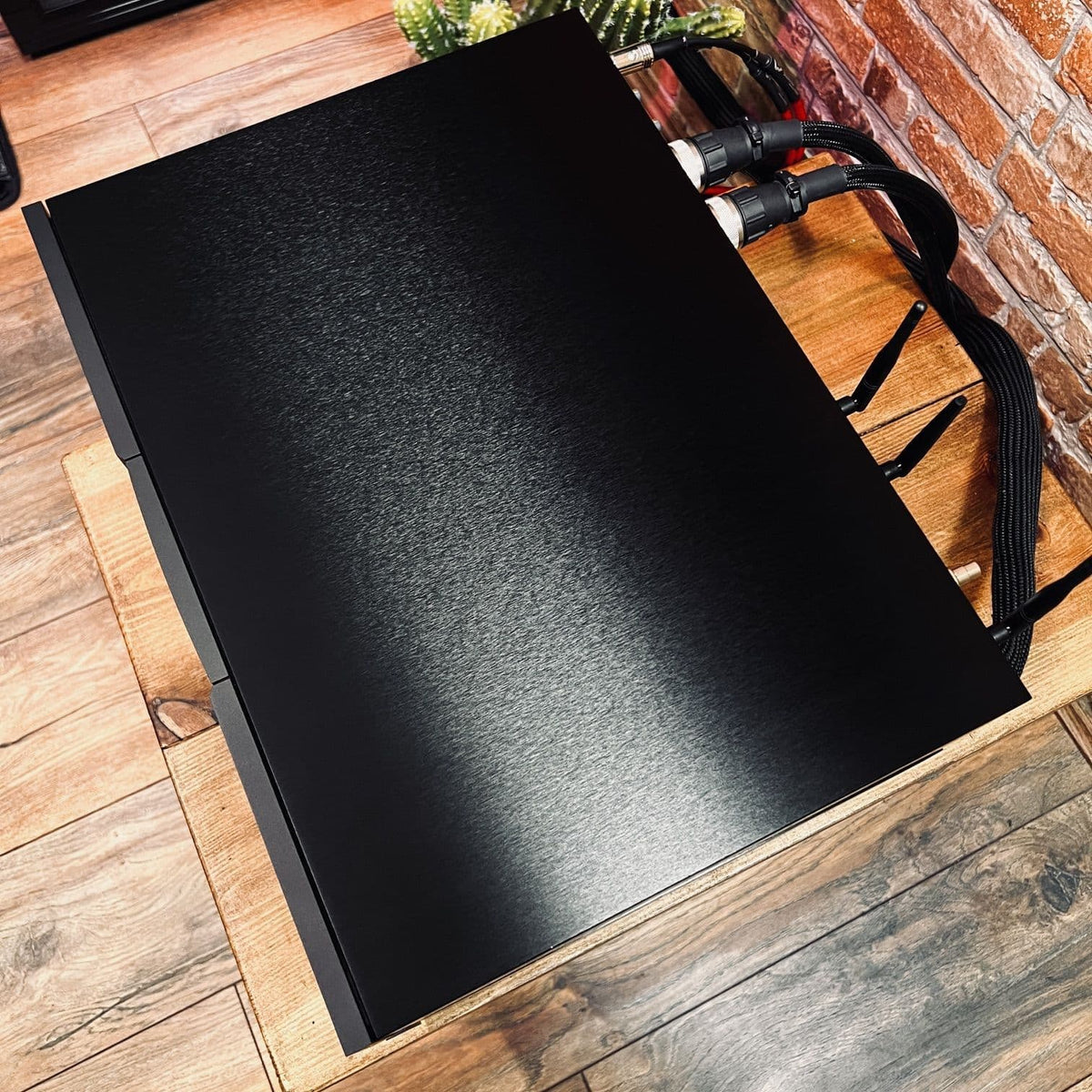

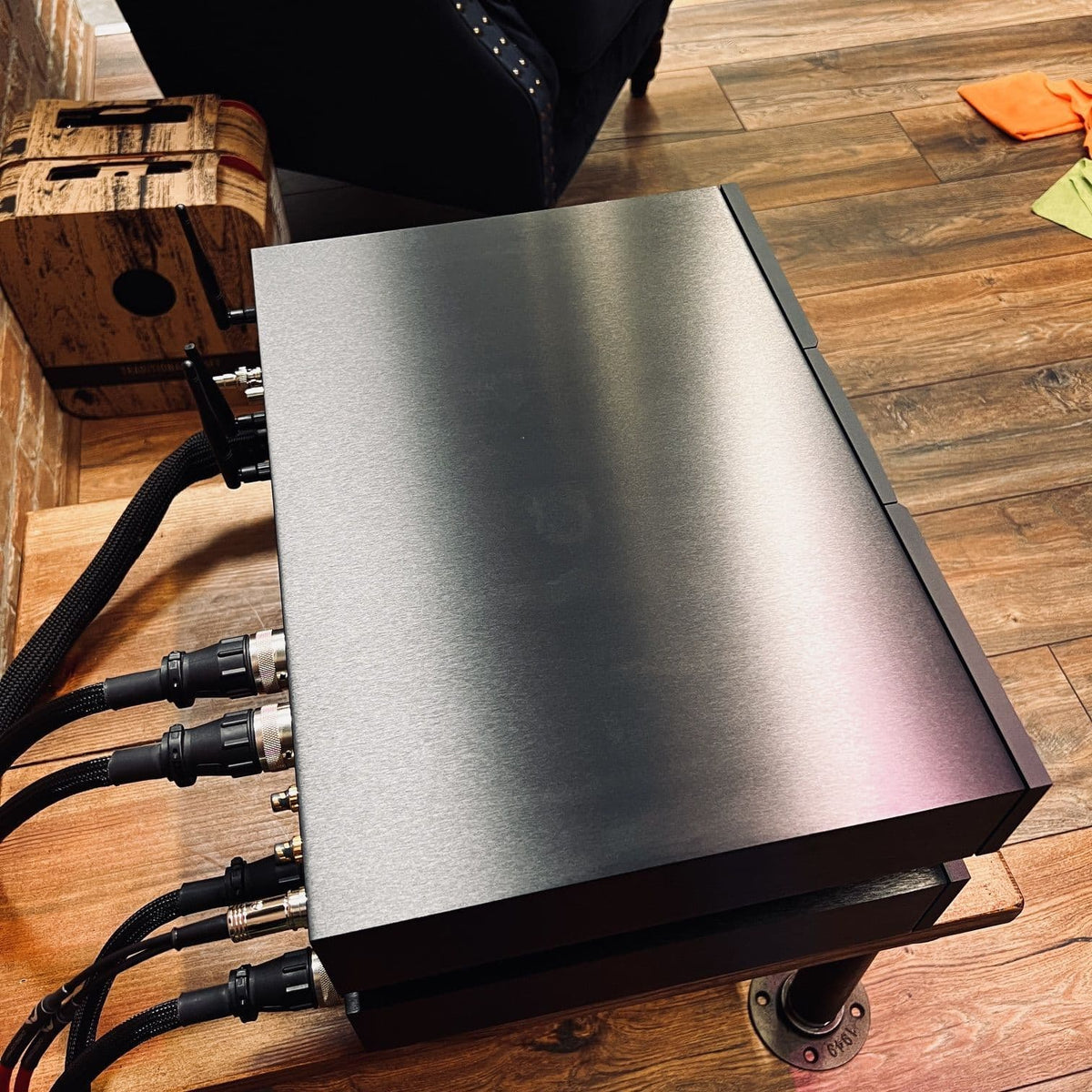

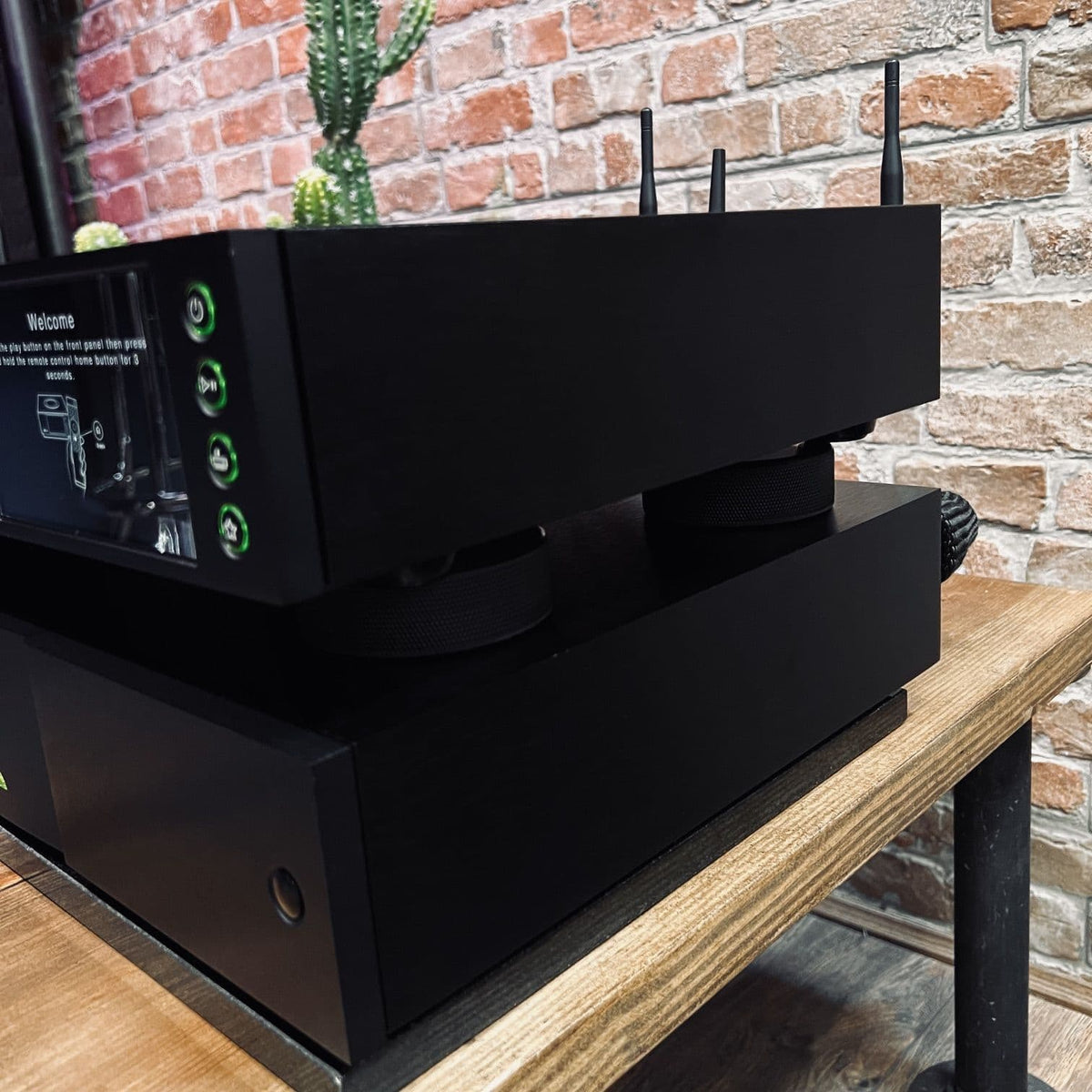

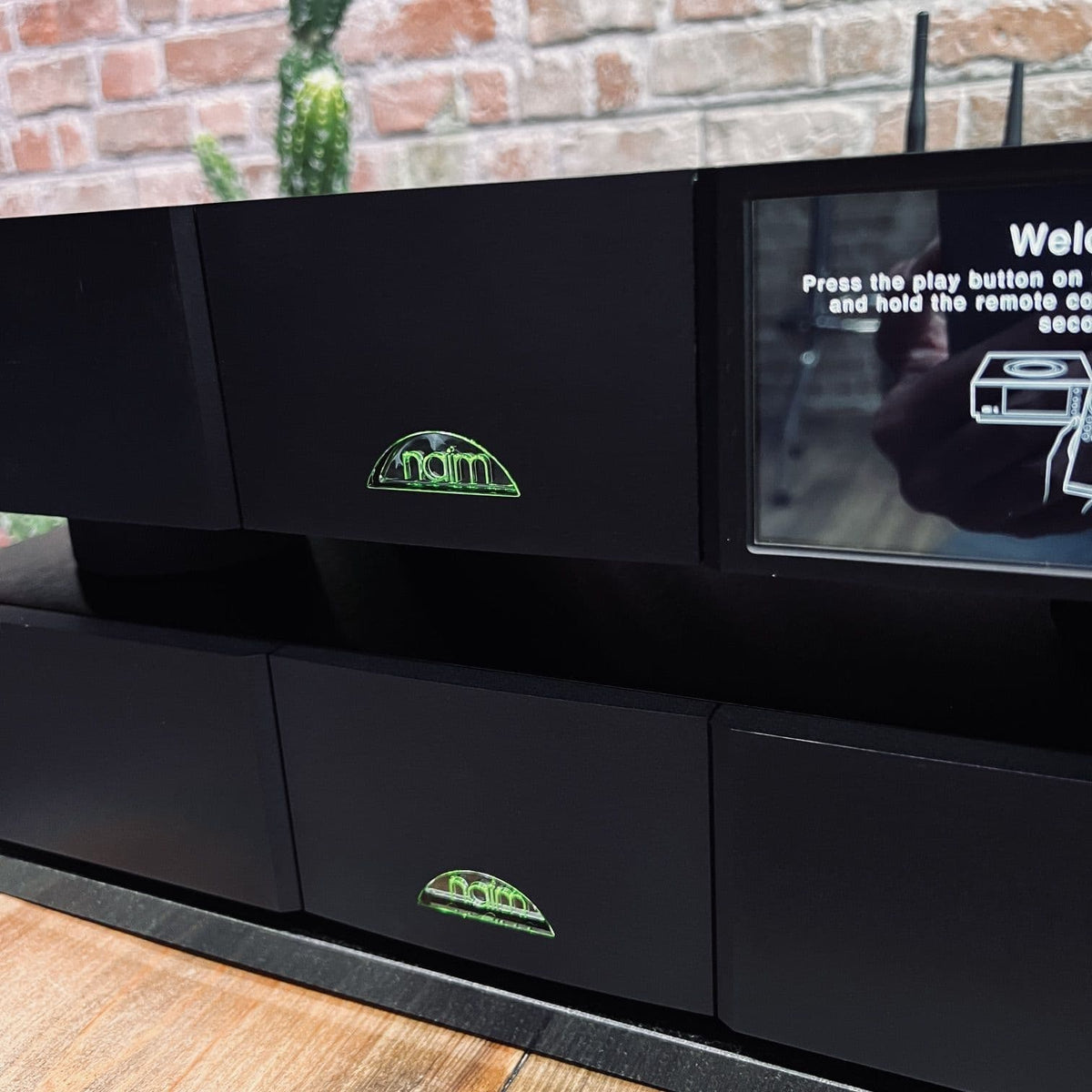

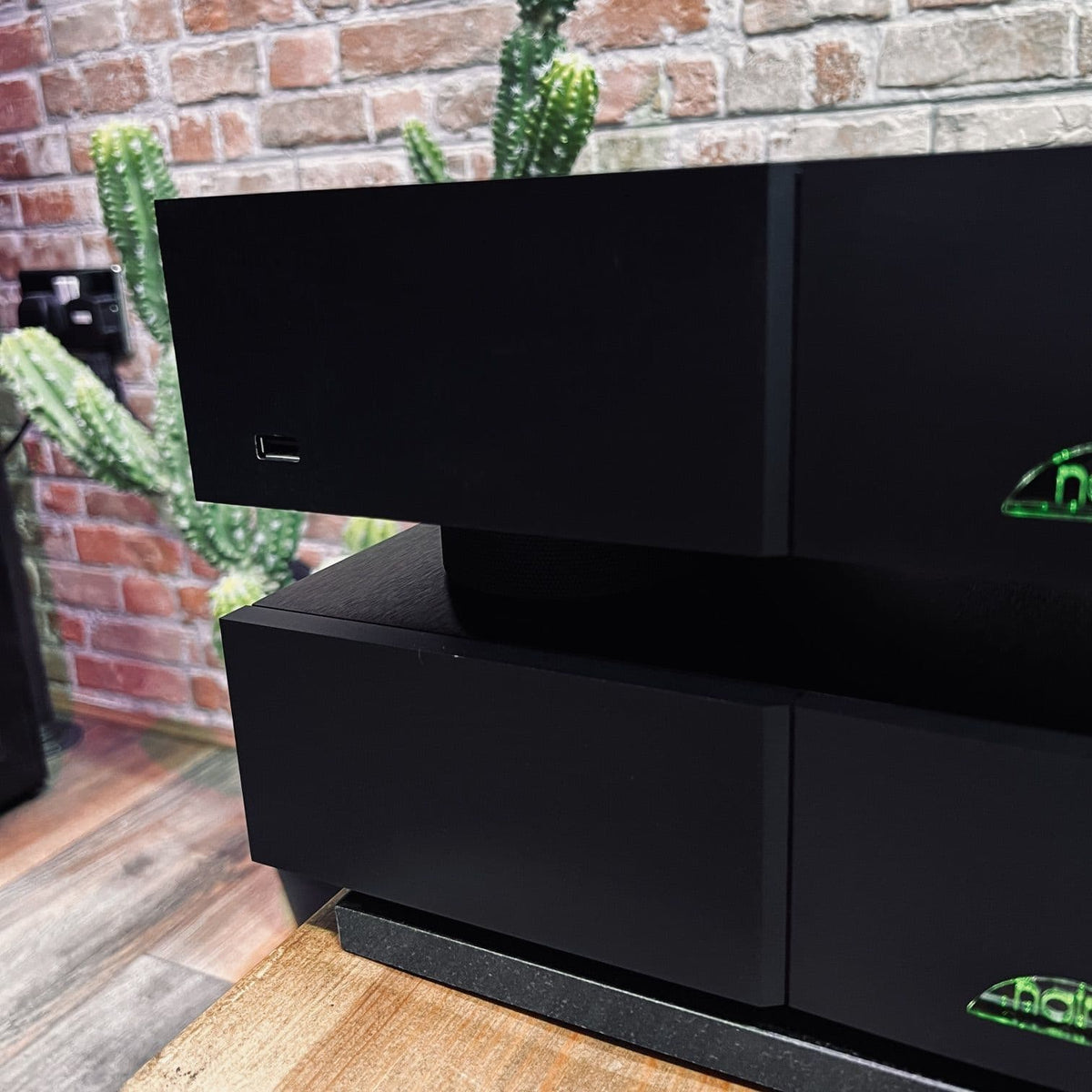

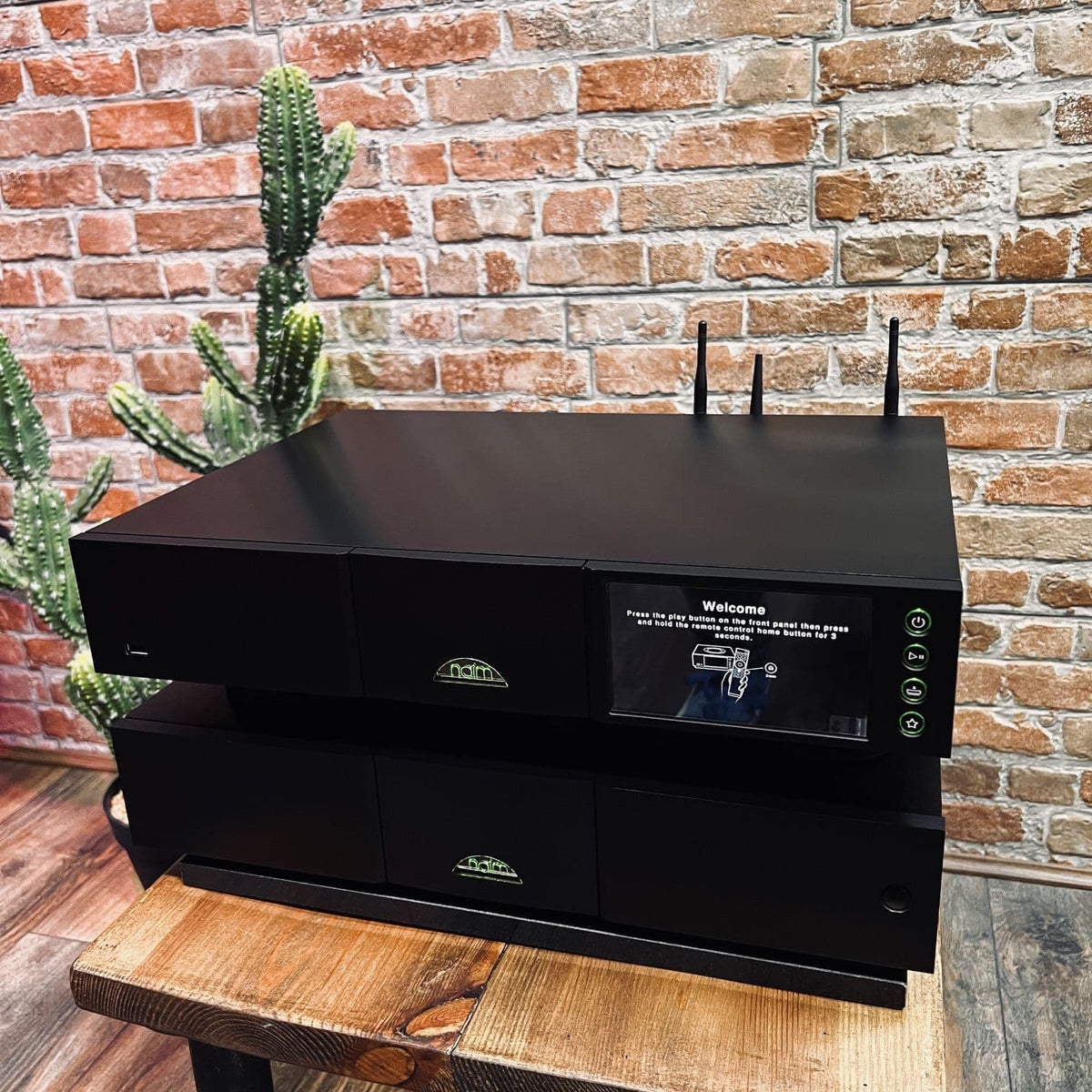

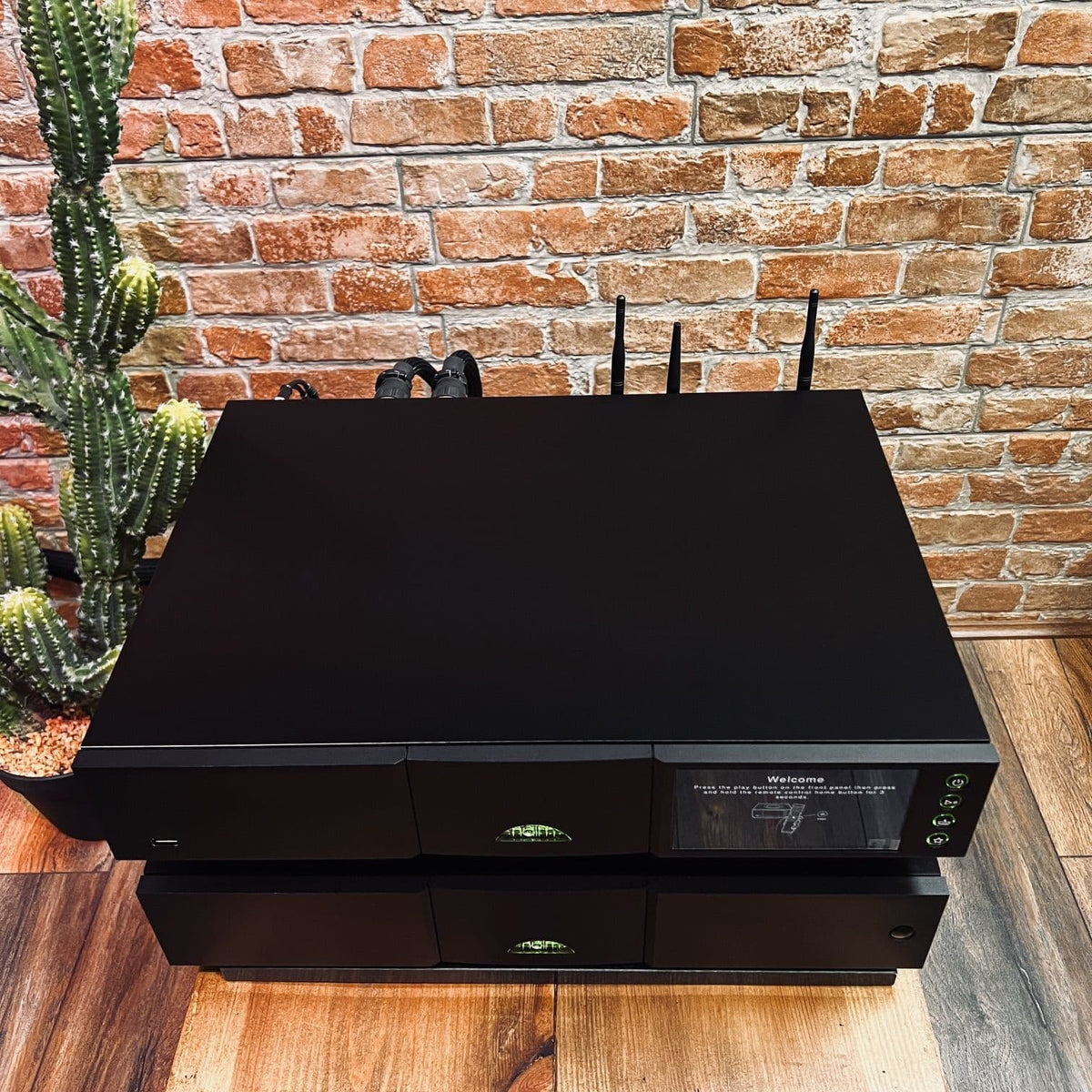

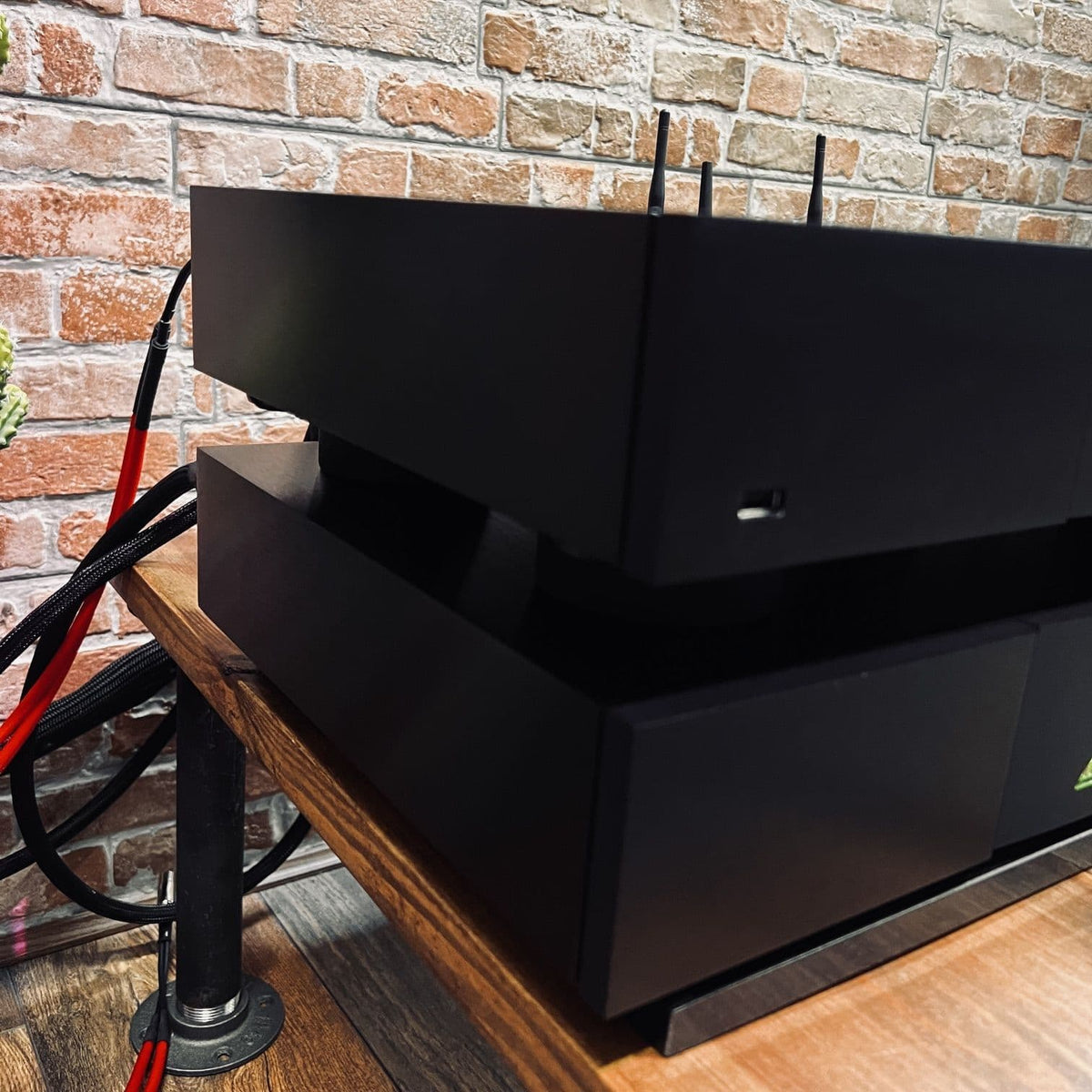

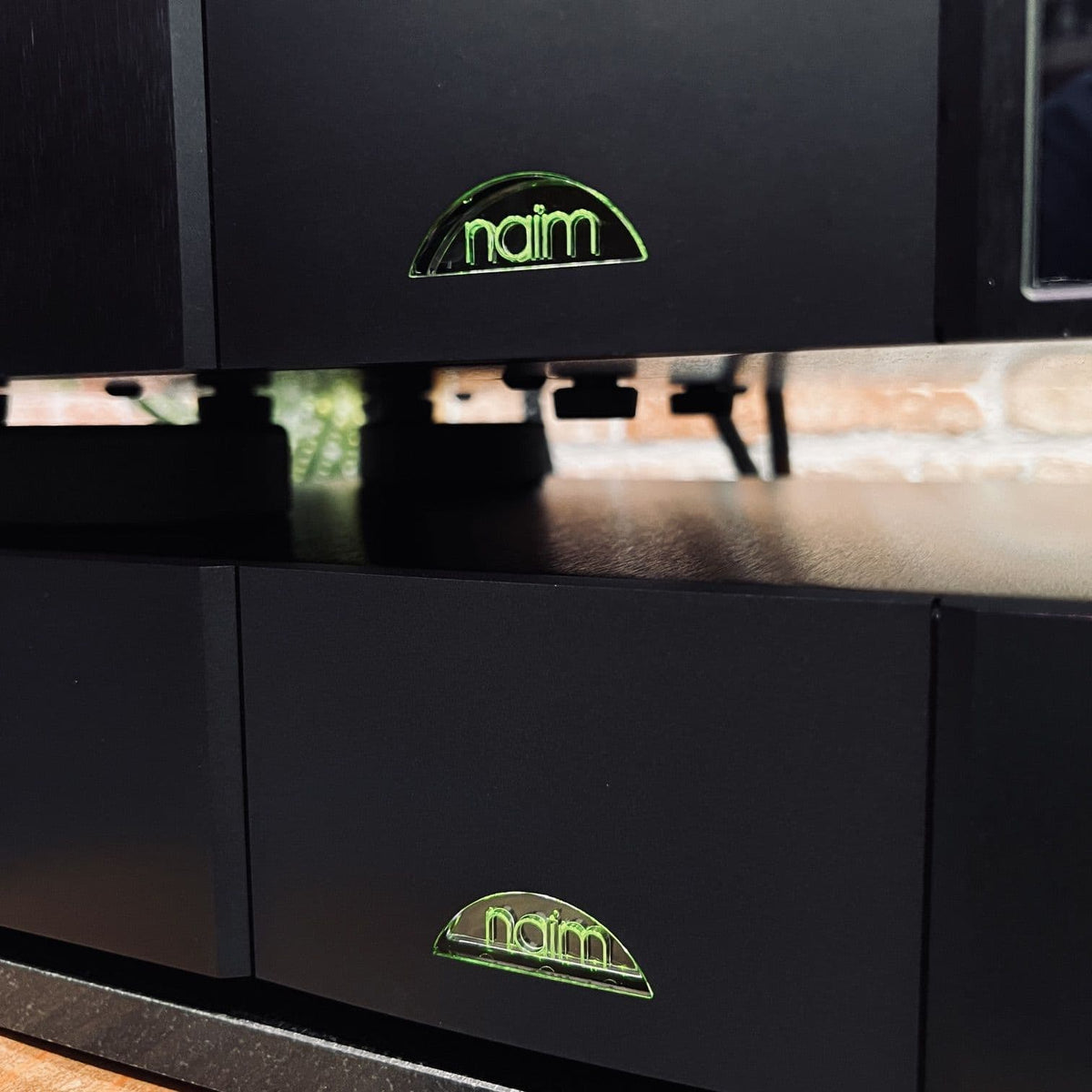

Naim ND555 Network Audio Player & Naim NAPS 555 DR
Condition Report
Score: 5 / 5 Mint
Visually and mechanically indistinguishable from new.
- Warranty cover provided until November 2027.
- ✓ Accessory Packs inc : Quick Start Guide, Cleaning Cloth, 4x Batteries (sealed)
- ✓ Accessory Packs inc : 2x WiFi Aerials, 1x Bluetooth Aerial, BNC/RCA Adapter.
- ✓ Accessory Packs inc : Naim Remote Control, Naim 2x Burndy NAPS555 Set.

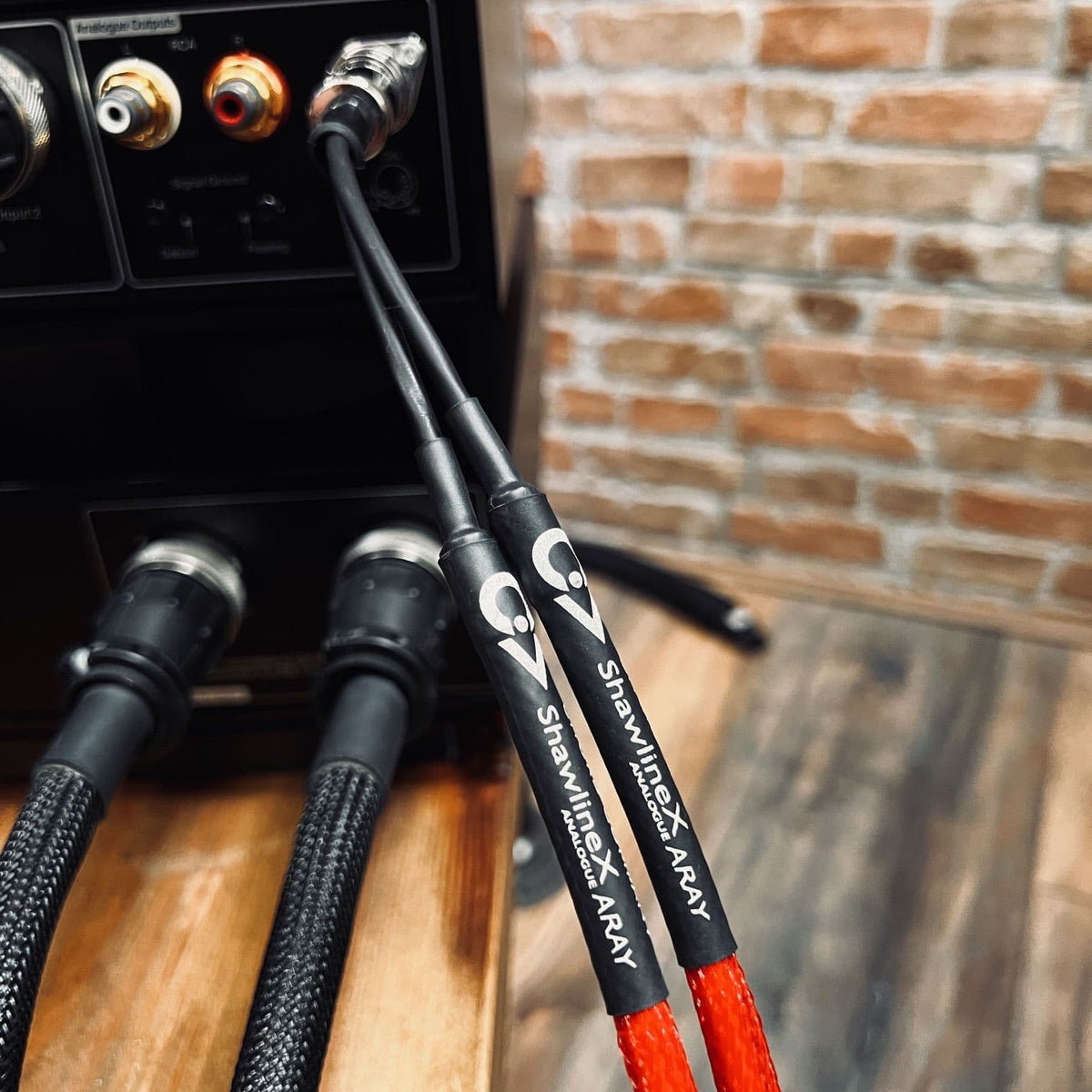

- ✓ Inc Upgrade : Chord ShawlineX DIN-DIN Cable (5 pin)
Product Overview & Specifications
The Naim ND 555 is a flagship 500 Series network audio player designed for reference-grade streaming systems. Engineered to partner with Naim Statement or 500 Series amplification, the ND 555 incorporates Naim's NP800 streaming architecture with low-voltage differential signaling (LVDS), a 40-bit SHARC DSP engine, and dual Burr-Brown® R2R ladder DACs. The internal analog and digital stages are isolated on heavy brass sub-chassis suspended on tuned springs to minimize microphonic vibration.
Operating exclusively with external Naim power supplies—such as the included flagship 555 PS DR—the ND 555 isolates sensitive audio circuitry from mains transformer radiation. The 555 PS DR utilizes Naim’s Discrete Regulator (DR) technology across seven regulated DC supply rails, powered by a massive toroidal transformer. Controlled via the Focal & Naim app, Zigbee remote, or front panel, the system supports high-resolution PCM up to 32-bit/384 kHz, native DSD128, Roon Ready certification, AirPlay 2, Chromecast, and direct TIDAL, Qobuz, and Spotify streaming.
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- Master DAC Clocking & NP800 Streaming Card: Naim's NP800 network board allows the master DAC clock to control system data flow, eliminating timing errors and jitter.
- 40-Bit SHARC DSP & Burr-Brown® R2R Ladder DACs: Signals are 16x oversampled with 40-bit accuracy via a SHARC DSP before feeding true R2R multibit ladder converters.
- Low-Voltage Differential Signaling (LVDS): High-speed digital routing lowers noise radiation, signal distortion, and timing errors.
- Brass Sub-Chassis Suspension: Sensitive internal circuits and DAC boards are mounted to heavy brass plates suspended on tuned springs to mechanically decouple components from ambient microphony.

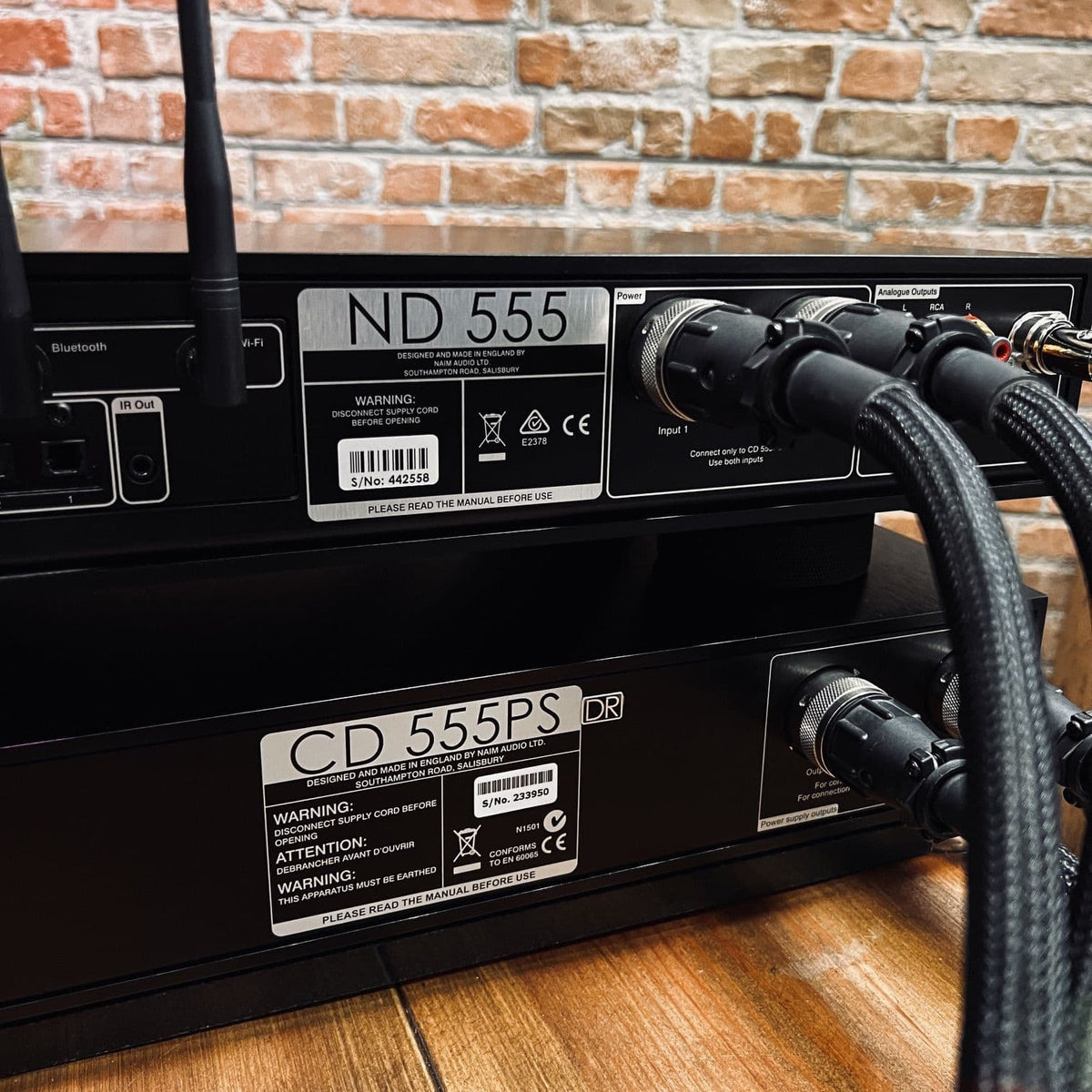

- Dedicated 555 PS DR Power Supply Architecture: Powered by an external 555 PS DR unit featuring seven isolated, discrete regulated DC rails and a massive low-noise toroidal transformer.
- Comprehensive High-Res Streaming & Multiroom: Supports UPnP, Roon Ready, Apple AirPlay 2, Chromecast, Qobuz, TIDAL, Spotify Connect, Internet Radio, and gapless audio playback up to 32-bit/384 kHz and DSD128.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Category | Flagship Network Audio Player & Reference Power Supply System |
| Brand / Series | Naim Audio — 500 Series |
| Model Designation | ND 555 (Network Player) + 555 PS DR (External Power Supply) |
| Digital-to-Analog Converter (DAC) | Burr-Brown® R2R Multibit Ladder DACs |
| Digital Signal Processor (DSP) | 40-Bit Floating Point Analog Devices SHARC DSP (16x Oversampling) |
| Internal Mechanical Isolation | Suspended Heavy Brass Sub-Chassis with Spring Isolation |
| Supported PCM Audio Formats | WAV (up to 32-bit/384 kHz), FLAC, AIFF, ALAC (up to 24-bit/384 kHz), MP3, AAC, OGG, WMA, M4A |
| Supported DSD Audio Formats | DSD64 (2.8 MHz) & DSD128 (5.6 MHz) |

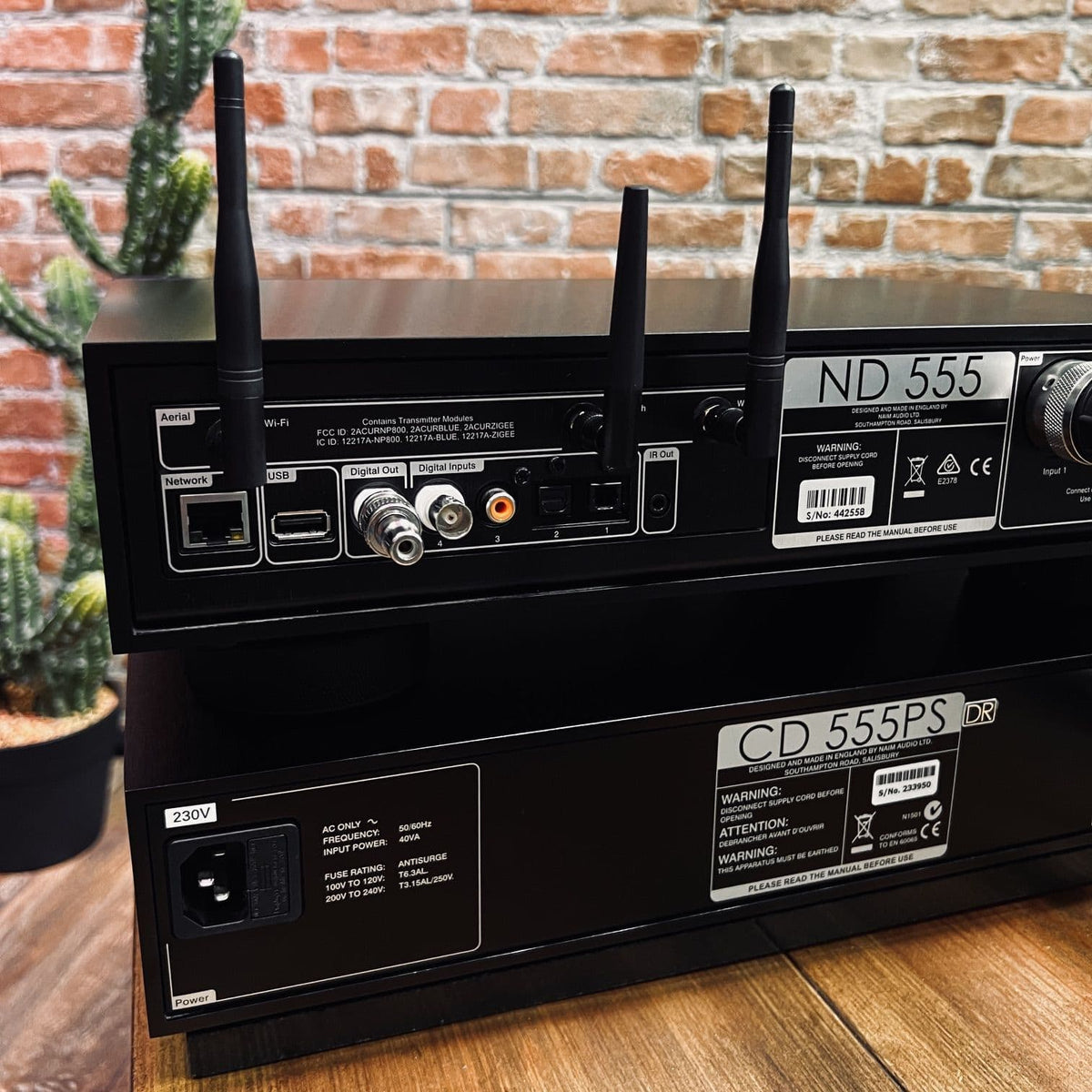

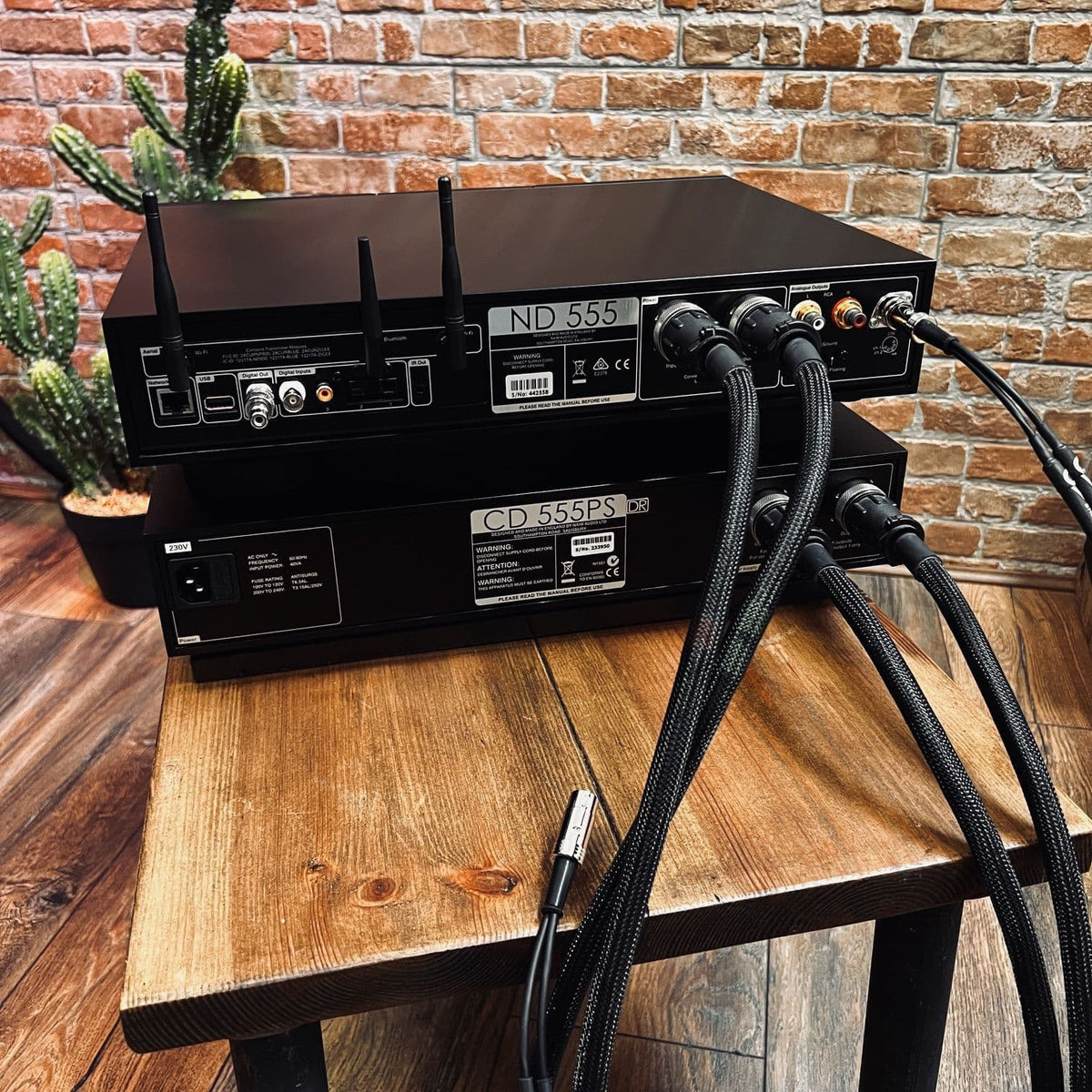

| Digital Inputs | 2x Optical TOSLink (24-bit/96 kHz), 1x RCA Coaxial (24-bit/192 kHz, DoP64), 1x BNC Coaxial (24-bit/192 kHz) |

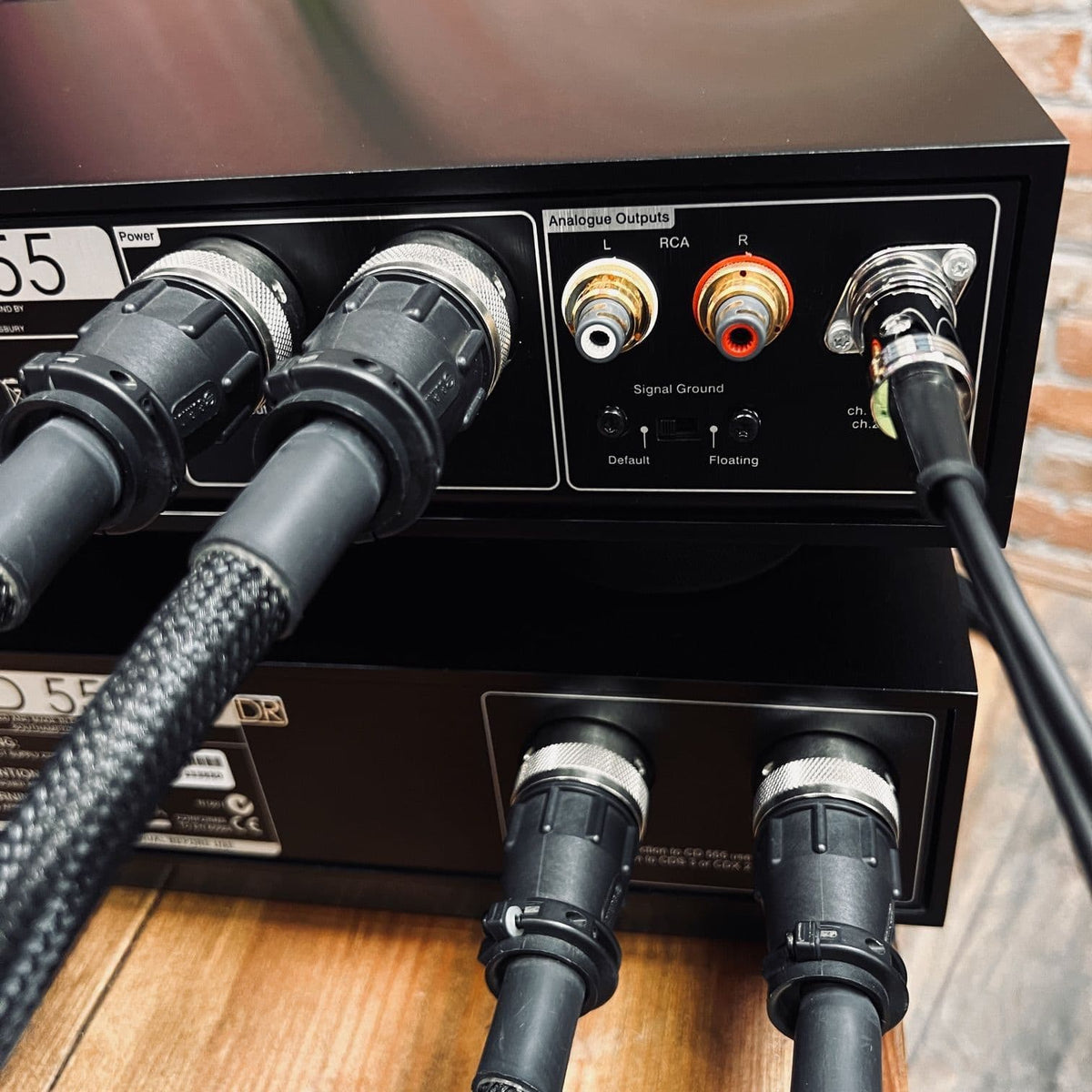

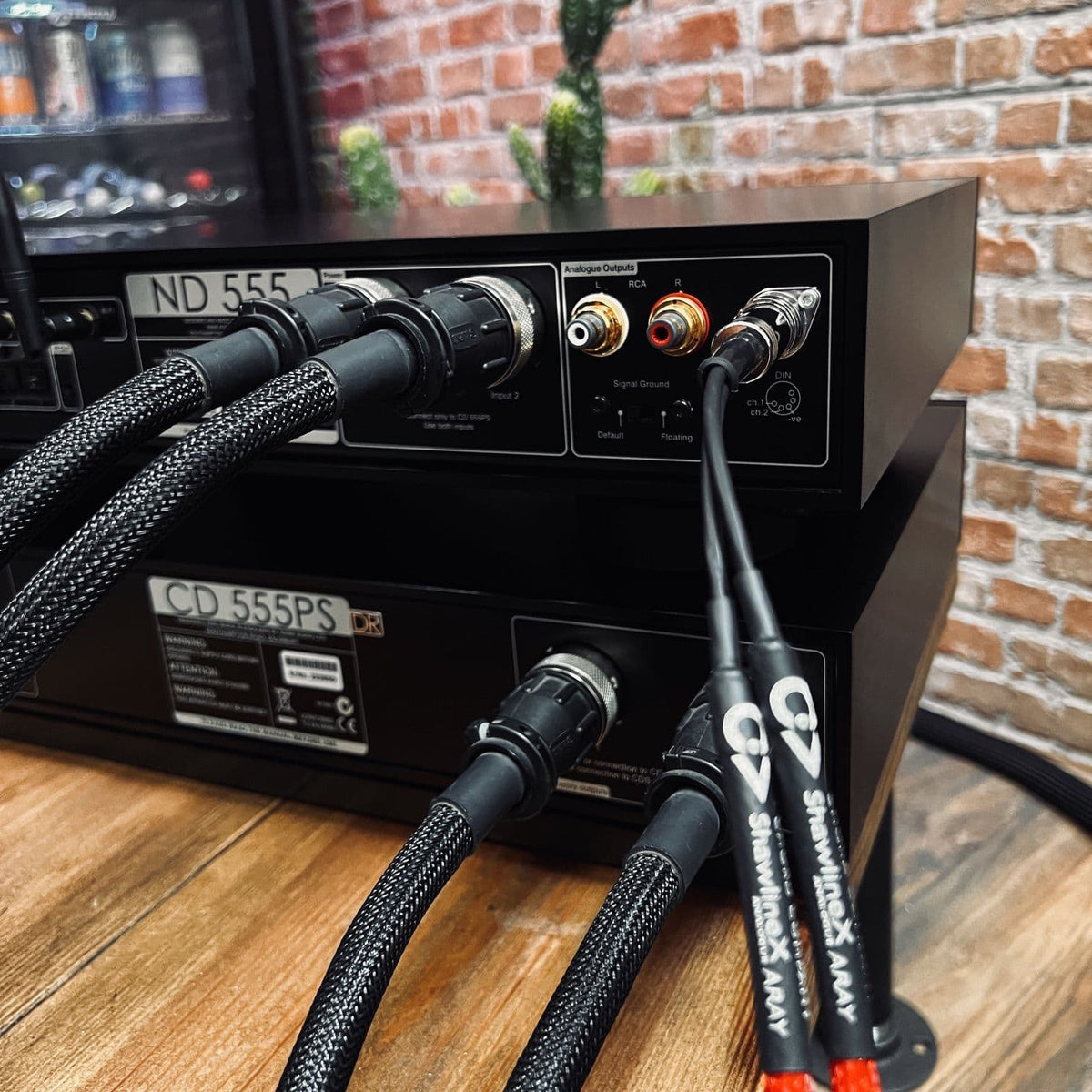

| Analogue Outputs | 1x Stereo RCA Pair, 1x 5-Pin DIN Output |
| Network & Streaming Protocols | Ethernet (10/100 Mbps), Dual-Band Wi-Fi (802.11a/b/g/n/ac), Roon Ready, AirPlay 2, Chromecast, UPnP |
| Integrated Streaming Services | TIDAL, Qobuz, Spotify Connect, Internet Radio |
| Wireless Input | Bluetooth |
| Power Supply (555 PS DR) Architecture | External Dedicated Unit | 7 Regulated Supply Voltages | Naim Discrete Regulator (DR) |
| Power Supply Dimensions (W x D x H) | 432 x 314 x 87 mm (17.0" x 12.4" x 3.4") |
| Power Supply Weight | 15.7 kg (34.6 lbs) |

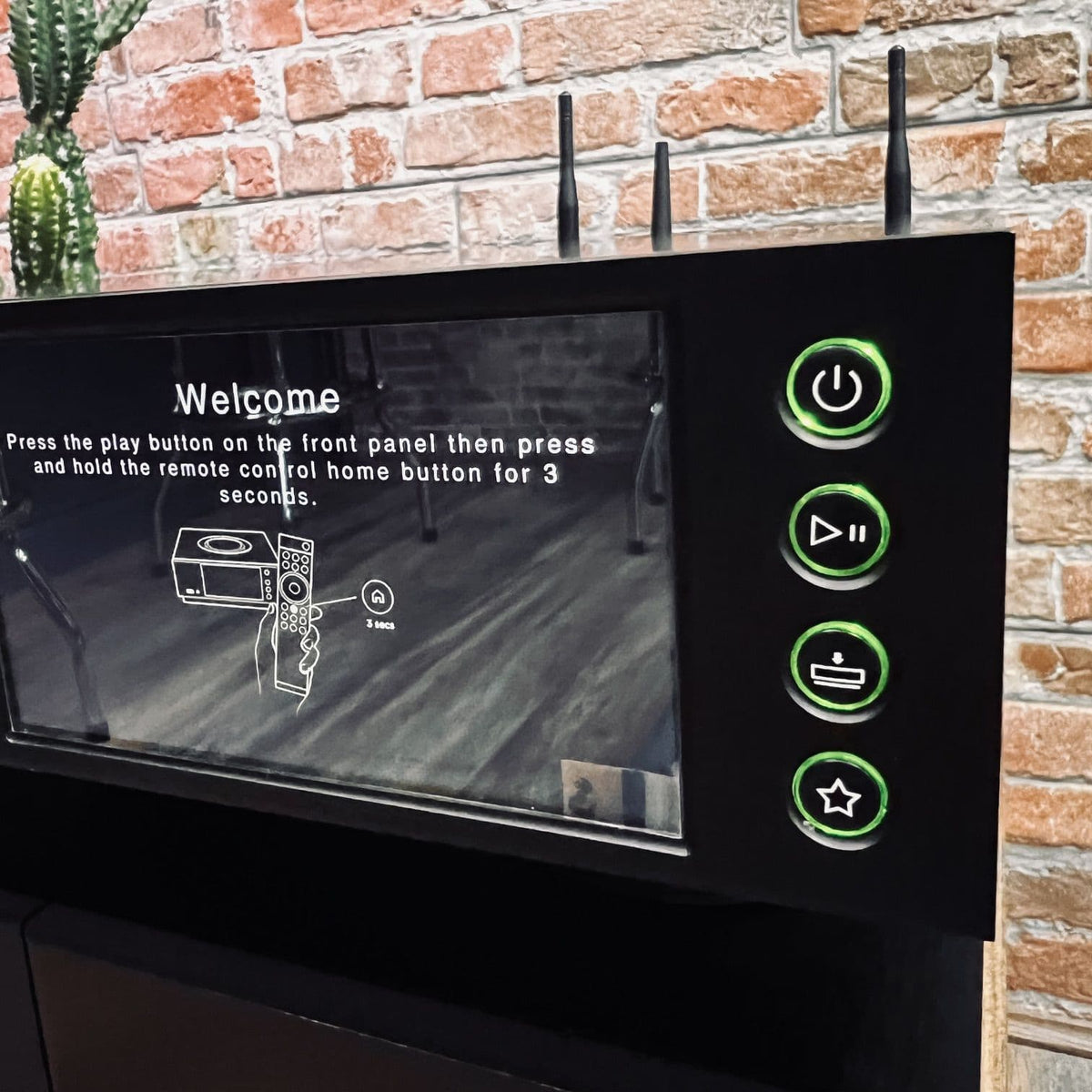

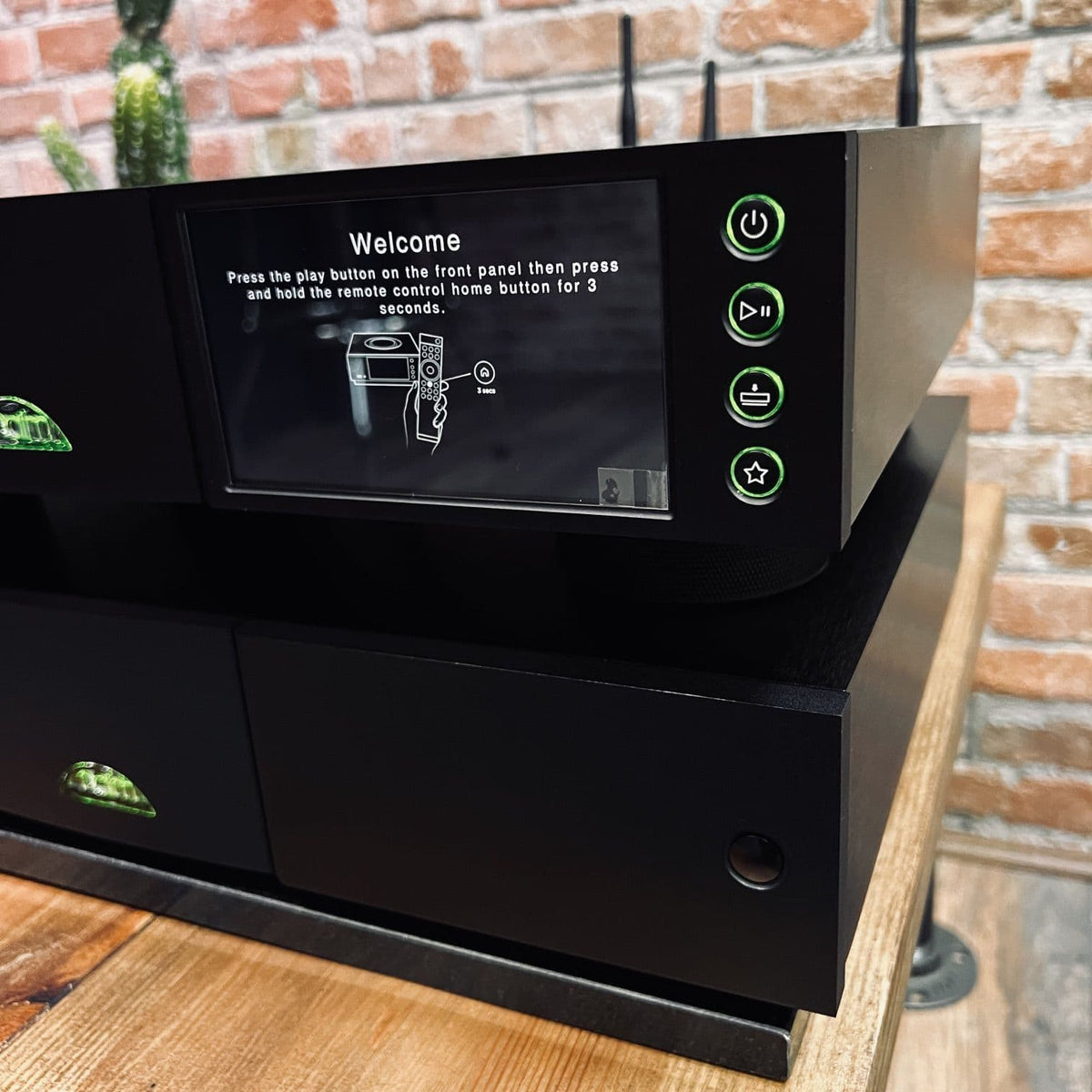

| System Control | Focal & Naim App (iOS & Android), Zigbee Remote Control, Front Panel |
