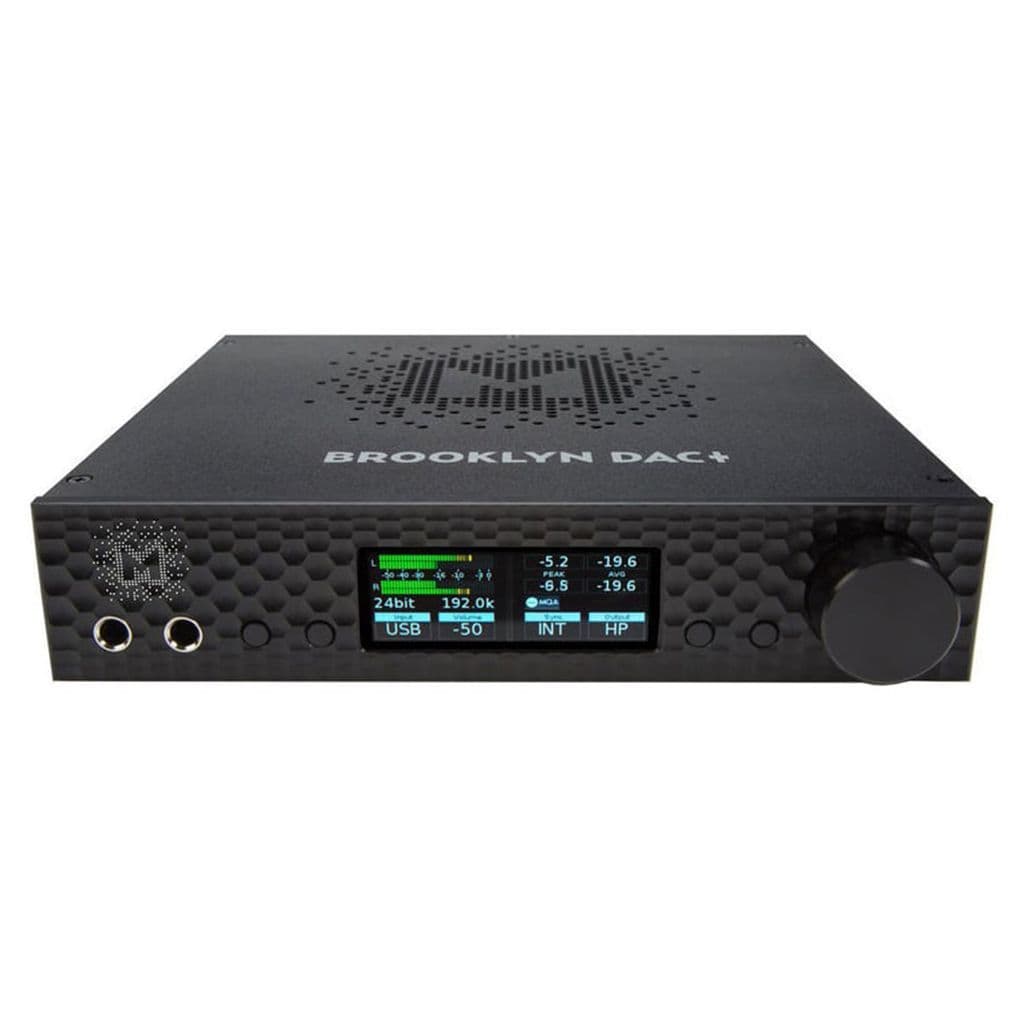

Brooklyn DAC+ is primarily reference USB2 DAC, but also line and phono analog preamplifier and a reference headphone amplifier. It integrates digital and vinyl hi-res playback for reference listening on headphones and speakers. All integrated functions are of the premium grade. Both phono preamplifier as well as a headphone amplifier are of the highest quality, they challenge dedicated units costing thousands of ££.

Specifications

CONVERSION: up to 384k, 32bit PCM, native DSD up to DSD256, DXD, 130dB Dynamic Range

MQA HI-RES DECODER: built in certified hardware MQA decoder

DIGITAL INPUTS: USB2 Class2 (OSX, Linux driverless, all formats), AES/EBU (PCM up to 192k, up to DSD64 DOP), 2x S/PDIF (PCM up to 192k, up to DSD64 DOP), Toslink/ADAT 2x S/PDIF (PCM up to 192k, up to DSD64 DOP), SDIF3 DSD up to DSD256

CLOCK: Mytek Femtoclock Generator 0.82ps internal jitter, Wordclock Input and Output (allows stacking multiple units for multichannel operation, includes mch DSD)

ANALOG OUTPUTS: RCA, balanced XLR, simultaneous, 50 Ohm impedance

HEADPHONE OUTPUTS: Reference High Current, High transient Headphone Amp, 500mA, 6 Watts, dual headphone jacks, designed to drive hard to drive headphones.

BUILT-IN ATTENUATOR: Choice of 1dB step analog attenuator, separate for main out and head- phones, 1dB step digital 32 bit attenuator and purist relay bypass.

BUILT-IN ANALOG PREAMP: Line level input or Phono M/M, M/C input, relay controlled.

AUDIO INTERFACE FUNCTION: All digital inputs can be routed into computer via USB2. Allows connection of external digital sources such as CD Players and digitizing ADCs.

REMOTE: Included, universal remote capable

FIRMWARE: Upgradable via USB Control panel

WORLDWIDE POWER SUPPLY

OPTIONAL DC/BATTERY POWER INPUT: 12VDC

DIMENSIONS: WxDxH=8.5x8.5x1.74=216x216x44mm

WEIGHT: 4lbs, 2kg
