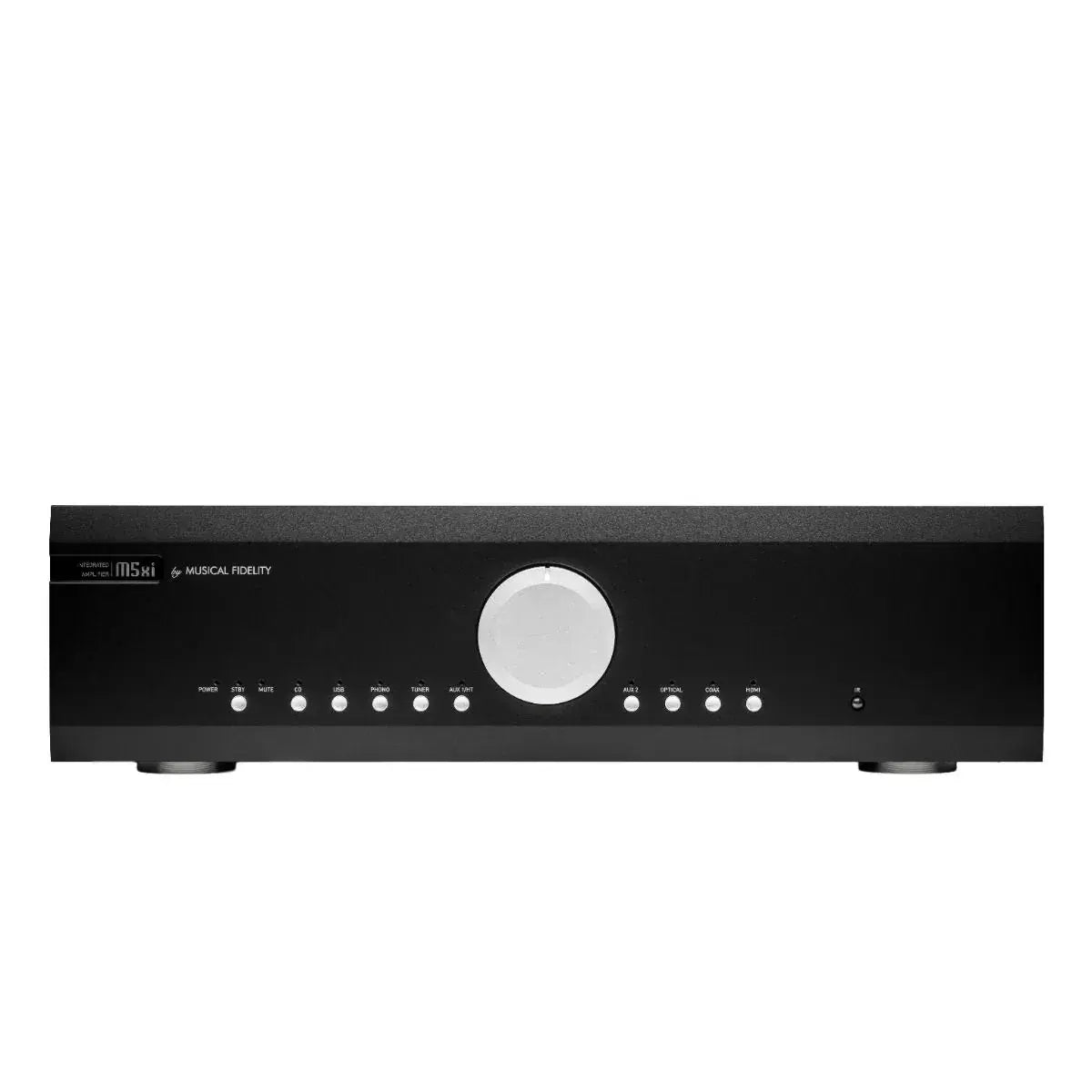

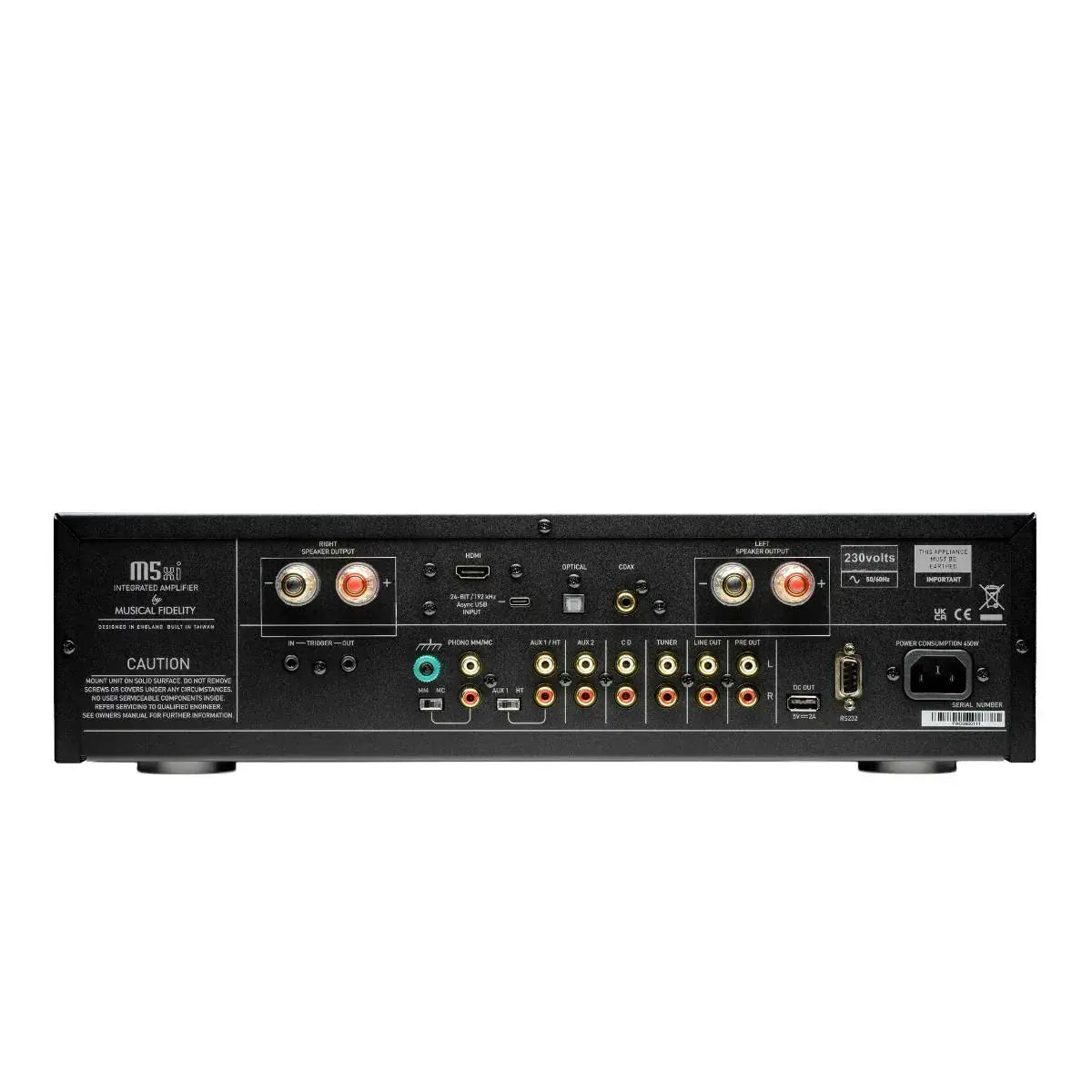

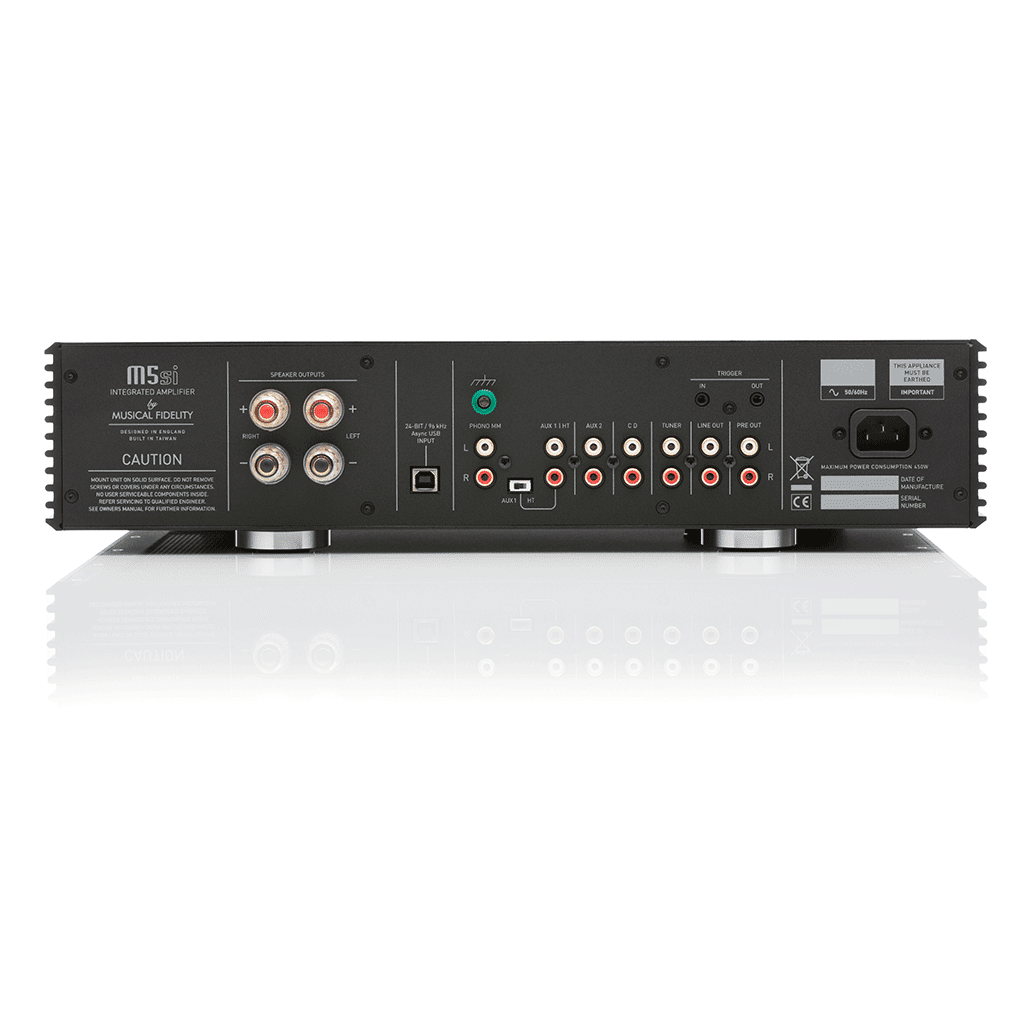

Musical Fidelity M5Xi Integrated Amplifier
Musical Fidelity M5Xi Integrated Amplifier
Our price match promise...
If you find an identical item cheaper from one of our online competitors, tell us and not only will we match the price, we'll beat it by 10% of the difference.
Estimated Shipping Widget will be displayed here!
The Musical Fidelity M5xi is a high-performance integrated amplifier designed to deliver powerful, refined sound with effortless control. Inspired by the brands flagship TITAN amplifier architecture, it combines 160 watts per channel with a fully analogue preamp stage for detailed, balanced audio. HDMI eARC, USB connectivity and a built-in MM/MC phono stage make it easy to integrate with modern and traditional systems alike. Housed in a robust aluminium chassis, the M5xi offers premium build quality, low-noise performance and flexible connectivity for serious music listening.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Continuous Power (both channels driven @ 1% THD, 1kHz) | 160W per channel into 8Ω; 240W per channel into 4Ω |
| Continuous Power (both channels driven @ 0.09% THD, 20Hz20kHz) | 140W per channel into 8Ω; 210W per channel into 4Ω |
| Peak Power (both channels driven @ 1% THD, 1kHz) | 190W per channel into 8Ω; 320W per channel into 4Ω |
| Voltage Output | 36V RMS (20Hz20kHz, onset of clipping); 101V peak-to-peak |
| Current Output | 45A peak-to-peak |
| Damping Factor | 47 (8Ω) |
| Output Devices | 2 pairs per channel |
| THD+N | <0.009% typical (20Hz20kHz) |
| Signal-to-Noise Ratio | >105dB A-weighted |
| Input Impedance | 40kΩ |
| Frequency Response | +0, 0.1dB (10Hz20kHz) |
| Analog Inputs | 4x RCA line-level inputs |
| HDMI Input | 1x HDMI |
| Digital Inputs | 1x Coaxial, 1x Optical |
| Phono Input | 1x MM/MC |
| USB Input | 1x USB-C (up to 24-bit/192kHz) |
| Line Outputs | 1 pair RCA tape outputs (constant level); 1 pair RCA preamp outputs |
| Speaker Outputs | 2 pairs 4mm banana plug terminals |
| USB Power Output | 1x USB-A 5V/2A |
| Control Connections | RS232 D-sub; Trigger In & Out |
| Sensitivity (nominal) | 3mV MM / 0.4mV MC (for 300mV nominal) |
| Gain | 40dB MM / 60dB MC |
| Signal-to-Noise Ratio | >87dB A-weighted |
| Input Capacitance | 220pF |
| Input Impedance | 50kΩ MM / 1kΩ MC |
| Frequency Response | RIAA/IEC ±0.4dB (20Hz20kHz) |
| Mains Supply | 115/230VAC 50/60Hz (factory preset); 100VAC 50/60Hz (alternative) |
| Power Consumption | 320W maximum |
| Dimensions (HxWxD) | 125mm x 440mm x 405mm |
| Weight | 15kg |
