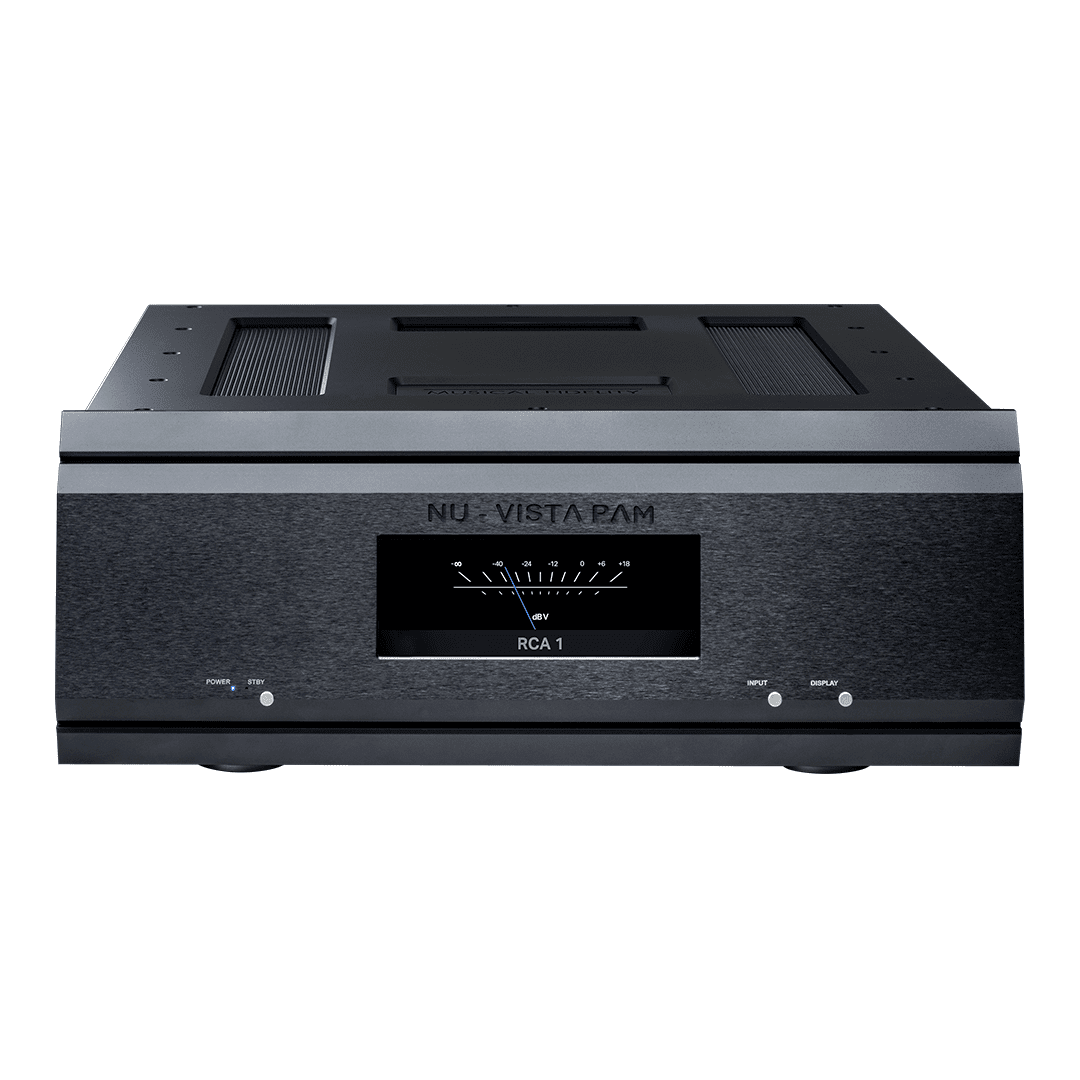

Musical Fidelity Nu-Vista PAM Mono Power Amplifier

THE NU-VISTA PAM

To achieve its unique sound signature, the Nu-Vista PAM features four 6S51N nuvistor valves in a discrete, Class A amplifier buffer stage; but there is so much more going on inside this stylish chassis to ensure it delivers reference-grade sound.

The added space within the Nu-Vista PAM, compared to the PAS stereo power amplifier, allows for a slightly modified internal design, featuring a bridged output amplifier stage utilising the power of 2 x 5 pairs of high power thermally compensated output devices. The end-result is even more power and greater drive ability per-speaker for further improved audio imaging.

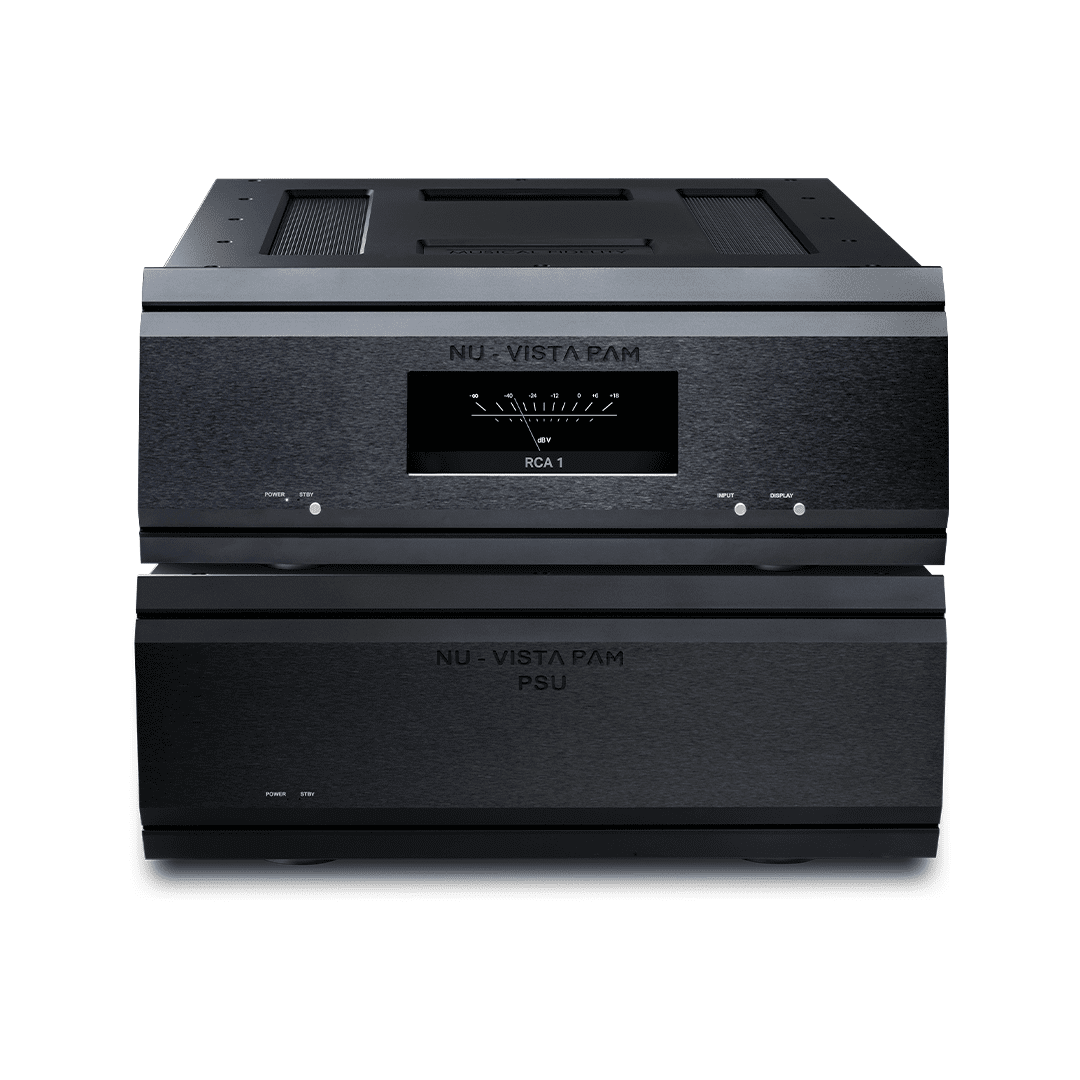

The Nu-Vista PAM PSU allowed Musical Fidelitys engineers to remove the AC mains power supply from the main unit and place it in a separate, spacious chassis dedicated to delivering perfect power. Featuring inbuilt mains and output filtering, it functions as a very quiet, clean power supply that allows the sensitive audio circuitry in the Nu-Vista PAM to perform without mains-borne interference, far away from the optimised power transformers. For total convenience in use, the Nu-Vista PAM PSU is switched on and off via the Nu-Vista PAMs front-panel.

In typical Musical Fidelity style, the overall construction of the Nu-Vista PAM and Nu-Vista PAM PSU is uncompromisingly solid. The front and side panels are milled from extruded aluminium profiles, contributing to a chassis that effectively acts as a Faraday cage, protecting the internal circuitry from external electromagnetic fields. Because of the overall weight, the chassis is also resistant to other mechanical vibrations and airborne interference.

The Nu-Vista PAM represents a first for Musical Fidelity. Its technical performance and measurements are astonishing and truly class leading. But more importantly this all results in a sound that is like nothing else. It is silky smooth with enormous transients and an effortless feel that is at once relaxing and involving. When combined with the matching pre-amplifier, they project an image between the loudspeakers that is so real, you could almost touch it.

Specifications

• AMPLIFIER TYPE: Mono Power Amplifier

• AMPLIFIER CLASS: A-B

• POWER OUTPUT (8Ω): > 600 W

• AMPLIFIER VOLTAGE OUTPUT: 69V RMS

• AMPLIFIER CURRENT OUTPUT: 150A Peak to Peak

• OUTPUT DEVICES: 5+5 (Bridged) Pairs

• DAMPING FACTOR: 180

• VALVES: 4 x 6S51N Nuvistors

• SIGNAL TO NOISE RATIO:(A-Weighted) > 108 dB

• THD +N: Typical < 0.003 %

• RCA INPUT(S): 2 x Mono Connector

• INPUT IMPEDANCE (UNBALANCED INPUT): 100000 Ω

• BALANCED XLR INPUT(S): 2 x Mono Connector

• FIXED ANALOGUE OUTPUT(S): 1 x RCA + 1 x XLR Mono Connector

• TRIGGER CONNECTION: Y

• POWER SUPPLY WEIGHT: 40 kg

• MAXIMUM POWER CONSUMPTION: 2150 W

• ADDITIONAL DIMENSIONS (W X H X D): (PSU) 483 x 187.5 x 478 mm

• DIMENSIONS (W X H X D): 483 x 187.5 x 494 mm

• WEIGHT: 27 kg
