• Kadenz utilizes a ULT-Gen2 patented super-linear dynamic driver that delivers significant improvements gained through the design of earlier models. lts brand-new irregular magnetic circuit was designed using FEA finite element simulation and topology optimization, and features pressure balance channels for different vibration regions.The unique dome-shaped vent is used to suppress treble standing waves on the inside of the diaphragm and protect the diaphragm and coil from high dynamic stress.
• Thanks to several innovative modifications of driver structure and new magnetic circuit materials, Kadenz not only has ultra-low nonlinear distortion close to the critical value that can be measured in the laboratory under the standard 1Pa measured sound pressure(94dB), but also maintains ultra-low nonlinear distortion under far greater sound pressures, thus delivering outstanding dynamic performance.
• Kadenz ships with a high-quality single-crystal copper silver-plated Litz cable, and is equipped with 3.5mm single-ended and 4.4mm balanced replaceable plugs for easy matching to different playback devices.
• The ECHO-B uses a USB-Cuniversal plug, making it compatible with smartphones, laptops, computers, and iP 15 without needing a driver. lt is fully compatible with PC, Android, and i0S, and offers lossless sound quality.
• ECHO-B is equipped with a new online interactive DSP.In addition to the five built-in tuning configurations, users can also select different tuning configurations or customise parametric equalisers through the new MOONDROP APP.Users can download tuning optimization configurations contributed by others and upload their own tunings.

Specification

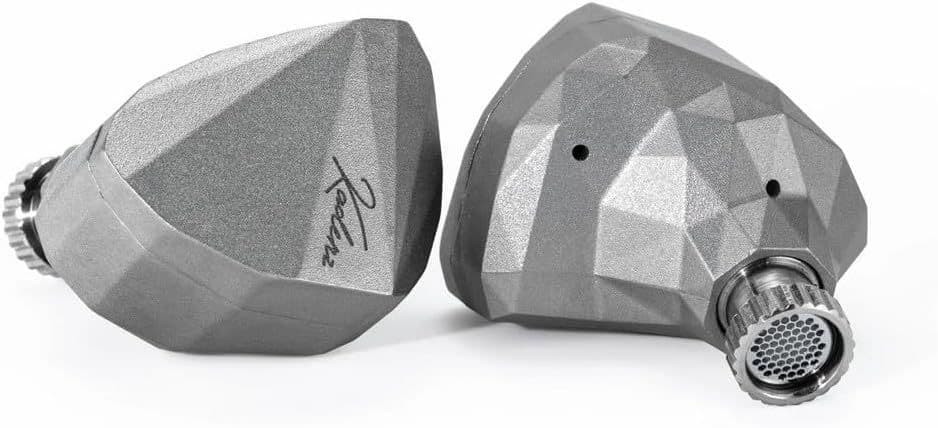

• Model: MOONDROP Kadenz Flagship-level 10mm Dynamic Driver In-ear Earphone
• Driver: 10mm [ULT-Gen2] Patented* Dynamic Driver
• Diaphragm: TAC Diamond-Coated Dome Composite Diaphragm
• Sensitivity: 122dB/Vrms (@1kHz)
• Impedance: 35Ω±15% (@1kHz)
• Frequency Response: 8Hz-21kHz (IEC61094, Free Field)
• Effective Frequency Response: 20Hz-20kHz (IEC60318-4, -3dB)
• Cable Jack: 0.78-2pin
• THD: THD0.03% (@1kHz, 94dB)

*A High-performance 10mm Dynamic Driver Used To In-ear Earphone.

Package

• KADENZ
• Ear-tips (S, M, L)
• Spring tips (S, M, L)
• Cable
• Adapter
• Leather Case
• Interchangeable Nozzle (ABC)
• 4.4mm Fully Balanced Type-C Decoding Cable
• Manual
• Service Card
• Certificate
