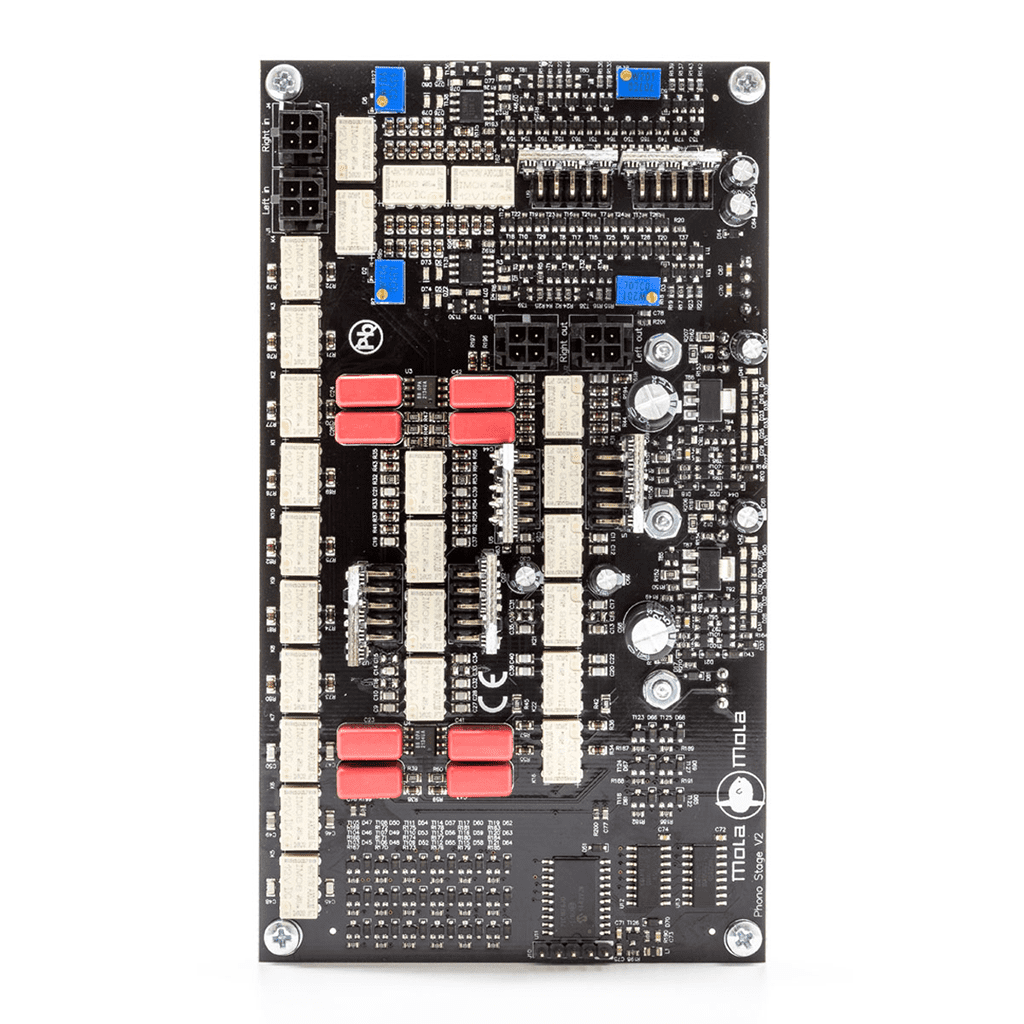

Mola Mola Phono Module
Mola Mola Phono Module
Our price match promise...
If you find an identical item cheaper from one of our online competitors, tell us and not only will we match the price, we'll beat it by 10% of the difference.
Estimated Shipping Widget will be displayed here!
AN ARCHIVAL GRADE PHONO STAGE
What was originally intended to be a simple RIAA add-on for the Makua Preamp has quickly spiraled into the quietest and probably most versatile phono stage ever built. MC/MM input stages are optimized for current noise and voltage noise respectively. Unlike the more common arrangement of an MC head amp feeding into the MM stage, the two stages are fully independent, realizing an equally short signal path for both. Input gain is switchable in 5dB steps over a 40dB range.
Input resistance and capacitance are individually switchable. Available EQ settings cover practically all known cutting curves used, including most 78RPM.
All settings are software controllable, either on the fly using a smart-phone and tablet via the Mola Mola Remote app or directly stored under the preset buttons. The preamp can be configured to route any input through the phono stage, this allows you to have multiple turntables and cartridges connected.
Features
PERFORMANCE
Input noise (MC): 0.35nV/rtHz
Input noise (MM): 0.9pA/rtHz
Sensitivity: variable from 30uV to 5mV
THD, IMD: not measurable
RIAA conformance: +/-0.1dB
AVAILABLE TIME CONSTANTS
t1: 200, 250, 318, 400, 450us
t2: 50, 64, 75, 100us
bass shelf: 14, 18, 20dB
