Matrix Audio MS-1C Music Streamer & DAC
Frequently Bought Together
Product Overview & Specifications
The Matrix Audio MS-1C is a flagship-tier music streamer and Digital-to-Analog Converter (DAC) engineered as a reference digital source for high-end audio systems. Built around Asahi Kasei Microdevices' flagship AK4191 + AK4499EX DAC architecture, the MS-1C completely separates digital filtering from analog conversion to minimize phase noise and inter-channel crosstalk. Supporting high-resolution PCM up to 32-bit/768kHz and native DSD up to 24.58MHz (DSD512), it incorporates dual ultra-low-phase-noise femtosecond clocks alongside an audiophile-grade Lundahl transformer-coupled analog output stage for rich, dynamic, and organic sound reproduction.
Housed in a precision CNC-machined aluminum chassis, the MS-1C serves as a complete digital nerve center. It offers extensive wireless and wired network connectivity—including Wi-Fi 6, Gigabit Ethernet, Roon Ready certification, AirPlay 2, and direct support for TIDAL Connect, Qobuz Connect, and Spotify Connect. Internal local library storage can be expanded via an M.2 NVMe SSD slot, while a full suite of digital outputs (IIS-LVDS, AES/EBU, Coaxial, Optical, and USB DAC) allows the MS-1C to function seamlessly as a dedicated digital transport or integrated streamer/DAC managed via the MA Remote App.
KEY FEATURES & SYSTEM HIGHLIGHTS
- AK4191 + AK4499EX DAC Architecture: AKM's flagship two-chip solution isolates digital processing from analog conversion to achieve ultra-low distortion and exceptionally low noise backgrounds.
- Lundahl Transformer Analog Stage: Custom Lundahl audio transformers in the analog line stage provide galvanic isolation, superior common-mode rejection, and smooth, natural musicality.
- Dual Femtosecond Master Clocks: Ultra-low phase noise clock generator system ensures precise data timing and suppresses digital jitter across all sample rates.
- Ultra High-Resolution File Support: Native decoding for PCM files up to 32-bit / 768 kHz and DSD playback up to 24.58 MHz (DSD512).
- NVMe SSD Storage Expansion: Integrated M.2 NVMe SSD expansion slot supports fast internal storage for extensive local music collections.
- Comprehensive Digital Output Suite: Digital transport features include IIS-LVDS, AES/EBU, Coaxial S/PDIF, Optical Toslink, and dedicated USB DAC output.
- Next-Gen Network & Streaming Services: Equipped with Wi-Fi 6 and Gigabit Ethernet supporting Roon Ready, AirPlay 2, TIDAL Connect, Qobuz Connect, and Spotify Connect.
- CNC Machined Chassis & MA Remote App: Premium, high-rigidity CNC aluminum housing controlled via the intuitive MA Remote mobile application.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Category | Reference Music Streamer & DAC |
| Product Series | Matrix Audio M Series |
| Digital-to-Analog Converter (DAC) | AKM AK4191 Delta-Sigma Modulator + AK4499EX DAC |
| Analog Output Circuitry | Lundahl Transformer-Coupled Line Stage |
| Clock System | Dual Femtosecond Master Clocks |
| Maximum PCM Support | Up to 32-bit / 768 kHz |
| Maximum DSD Support | Up to 24.58 MHz (Native DSD512) |
| Internal Storage Expansion | 1x M.2 NVMe SSD Expansion Slot |
| Network Connectivity | Gigabit Ethernet (10/100/1000 Mbps) & Wi-Fi 6 (Dual-Band) |
| Streaming Protocols & Services | Roon Ready, AirPlay 2, TIDAL Connect, Qobuz Connect, Spotify Connect |

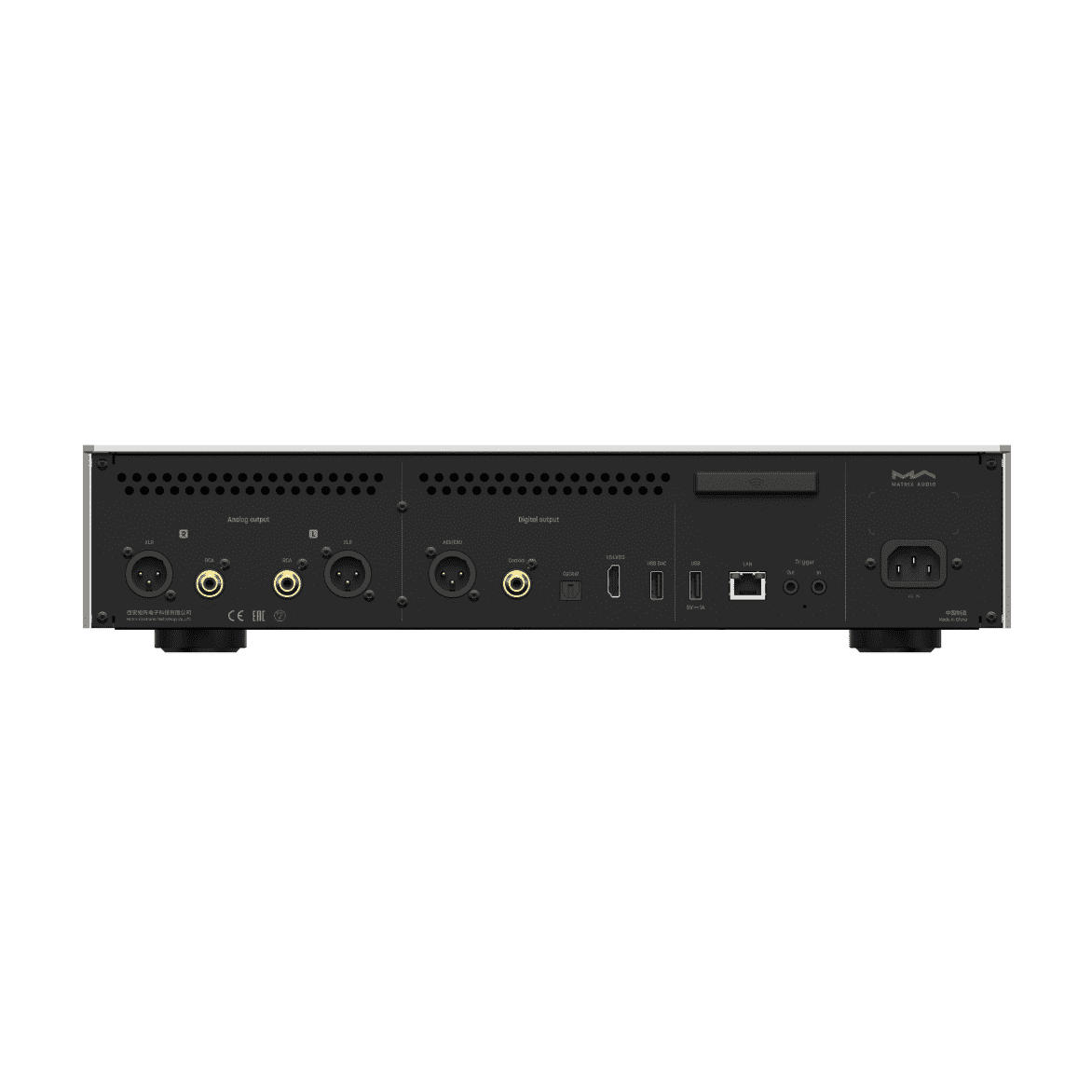

| Analog Audio Outputs | 1x Stereo Pair Balanced XLR, 1x Stereo Pair Unbalanced RCA |
| Digital Audio Outputs | 1x IIS-LVDS, 1x AES/EBU (XLR), 1x Coaxial S/PDIF, 1x Optical Toslink, 1x USB DAC Output |
| Control Interface | MA Remote App (iOS & Android) |
| Chassis Material | Precision CNC-Machined Solid Aluminum Chassis |
| Dimensions (W x D x H) | 430 x 315 x 96 mm |
| Manufacturer | Matrix Audio |
